A Discrete-Event Network Simulator
API
ns3::RandomBuildingPositionAllocator Class Reference

Allocate each position by randomly chosing a building from the list of all buildings, and then randomly chosing a position inside the building. More...

#include "building-position-allocator.h"

+ Inheritance diagram for ns3::RandomBuildingPositionAllocator:

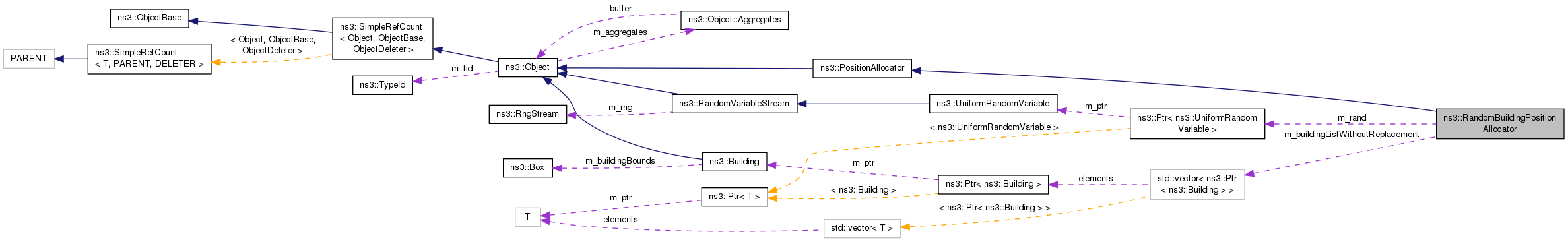

+ Collaboration diagram for ns3::RandomBuildingPositionAllocator:

Public Member Functions

 RandomBuildingPositionAllocator ()

int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model. More...

virtual Vector GetNext (void) const

- Public Member Functions inherited from ns3::PositionAllocator
 PositionAllocator ()

virtual ~PositionAllocator ()

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::PositionAllocator
static TypeId GetTypeId (void)
 Register this type with the TypeId system. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

std::vector< Ptr< Building > > m_buildingListWithoutReplacement

Ptr< UniformRandomVariablem_rand
 Provides uniform random variables. More...

bool m_withReplacement


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Allocate each position by randomly chosing a building from the list of all buildings, and then randomly chosing a position inside the building.

Config Paths

ns3::RandomBuildingPositionAllocator is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBuildingPositionAllocator"

Attributes

  • WithReplacement: If true, the building will be randomly selected with replacement. If false, no replacement will occur, until the list of buildings to select becomes empty, at which point it will be filled again with the list of all buildings.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 64 bytes (on a 64-bit architecture).

Definition at line 39 of file building-position-allocator.h.

Constructor & Destructor Documentation

ns3::RandomBuildingPositionAllocator::RandomBuildingPositionAllocator ( )

Definition at line 43 of file building-position-allocator.cc.

References m_rand.

Member Function Documentation

int64_t ns3::RandomBuildingPositionAllocator::AssignStreams ( int64_t  stream)
virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters
streamfirst stream index to use
Returns
the number of stream indices assigned by this model

Implements ns3::PositionAllocator.

Definition at line 100 of file building-position-allocator.cc.

References m_rand, and ns3::RandomVariableStream::SetStream().

+ Here is the call graph for this function:

Vector ns3::RandomBuildingPositionAllocator::GetNext ( void  ) const
virtual
TypeId ns3::RandomBuildingPositionAllocator::GetTypeId ( void  )
static

Definition at line 49 of file building-position-allocator.cc.

References m_withReplacement, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), and ns3::TypeId::SetParent().

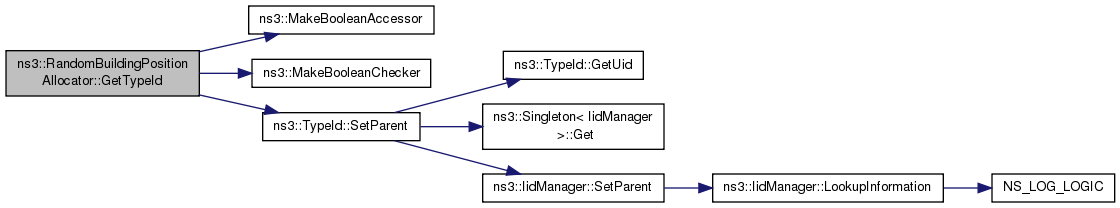

+ Here is the call graph for this function:

Member Data Documentation

std::vector< Ptr<Building> > ns3::RandomBuildingPositionAllocator::m_buildingListWithoutReplacement
mutableprivate

Definition at line 63 of file building-position-allocator.h.

Referenced by GetNext().

Ptr<UniformRandomVariable> ns3::RandomBuildingPositionAllocator::m_rand
private

Provides uniform random variables.

Definition at line 66 of file building-position-allocator.h.

Referenced by AssignStreams(), GetNext(), and RandomBuildingPositionAllocator().

bool ns3::RandomBuildingPositionAllocator::m_withReplacement
private

Definition at line 62 of file building-position-allocator.h.

Referenced by GetNext(), and GetTypeId().


The documentation for this class was generated from the following files:
