ns3::RipRte Class Reference

Rip v2 Routing Table Entry (RTE) - see RFC 2453. More...

#include "rip-header.h"

+ Inheritance diagram for ns3::RipRte:

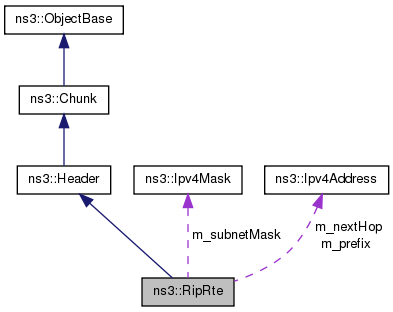

+ Collaboration diagram for ns3::RipRte:

Public Member Functions

 RipRte (void)

virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet. More...

virtual TypeId GetInstanceTypeId (void) const
 Return the instance type identifier. More...

Ipv4Address GetNextHop (void) const
 Get the next hop. More...

Ipv4Address GetPrefix (void) const
 Get the prefix. More...

uint32_t GetRouteMetric (void) const
 Get the route metric. More...

uint16_t GetRouteTag (void) const
 Get the route tag. More...

virtual uint32_t GetSerializedSize (void) const
 Get the serialized size of the packet. More...

Ipv4Mask GetSubnetMask (void) const
 Get the subnet mask. More...

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet. More...

void SetNextHop (Ipv4Address nextHop)
 Set the next hop. More...

void SetPrefix (Ipv4Address prefix)
 Set the prefix. More...

void SetRouteMetric (uint32_t routeMetric)
 Set the route metric. More...

void SetRouteTag (uint16_t routeTag)
 Set the route tag. More...

void SetSubnetMask (Ipv4Mask subnetMask)
 Set the subnet mask. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint32_t m_metric
 Route metric. More...

Ipv4Address m_nextHop
 Next hop. More...

Ipv4Address m_prefix
 Advertised prefix. More...

Ipv4Mask m_subnetMask
 Subnet mask. More...

uint16_t m_tag
 Route tag. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Rip v2 Routing Table Entry (RTE) - see RFC 2453.

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 37 of file rip-header.h.

Constructor & Destructor Documentation

ns3::RipRte::RipRte ( void  )

Definition at line 32 of file rip-header.cc.

Member Function Documentation

uint32_t ns3::RipRte::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the packet.

Parameters
startBuffer iterator.
Returns
Size of the packet.

Implements ns3::Header.

Definition at line 73 of file rip-header.cc.

References GetSerializedSize(), m_metric, m_nextHop, m_prefix, m_subnetMask, m_tag, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Ipv4Address::Set(), and ns3::Ipv4Mask::Set().

Referenced by ns3::RipHeader::Deserialize().

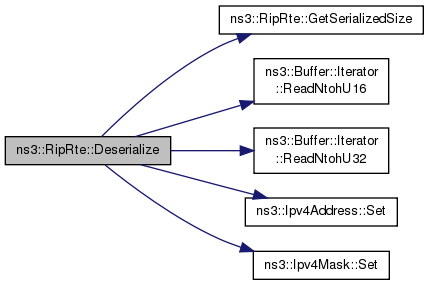

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

TypeId ns3::RipRte::GetInstanceTypeId ( void  ) const
virtual

Return the instance type identifier.

Returns
Instance type ID.

Implements ns3::ObjectBase.

Definition at line 46 of file rip-header.cc.

References GetTypeId().

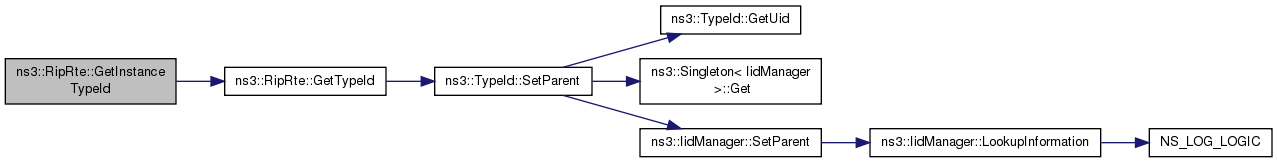

+ Here is the call graph for this function:

Ipv4Address ns3::RipRte::GetNextHop ( void  ) const

Get the next hop.

Returns
The next hop.

Definition at line 138 of file rip-header.cc.

References m_nextHop.

Ipv4Address ns3::RipRte::GetPrefix ( void  ) const

Get the prefix.

Returns
The prefix.

Definition at line 98 of file rip-header.cc.

References m_prefix.

uint32_t ns3::RipRte::GetRouteMetric ( void  ) const

Get the route metric.

Returns
The route metric.

Definition at line 128 of file rip-header.cc.

References m_metric.

uint16_t ns3::RipRte::GetRouteTag ( void  ) const

Get the route tag.

Returns
The route tag.

Definition at line 118 of file rip-header.cc.

References m_tag.

uint32_t ns3::RipRte::GetSerializedSize ( void  ) const
virtual

Get the serialized size of the packet.

Returns
Size.

Implements ns3::Header.

Definition at line 57 of file rip-header.cc.

Referenced by Deserialize(), ns3::Rip::DoSendRouteUpdate(), ns3::RipHeader::GetSerializedSize(), and ns3::Rip::HandleRequests().

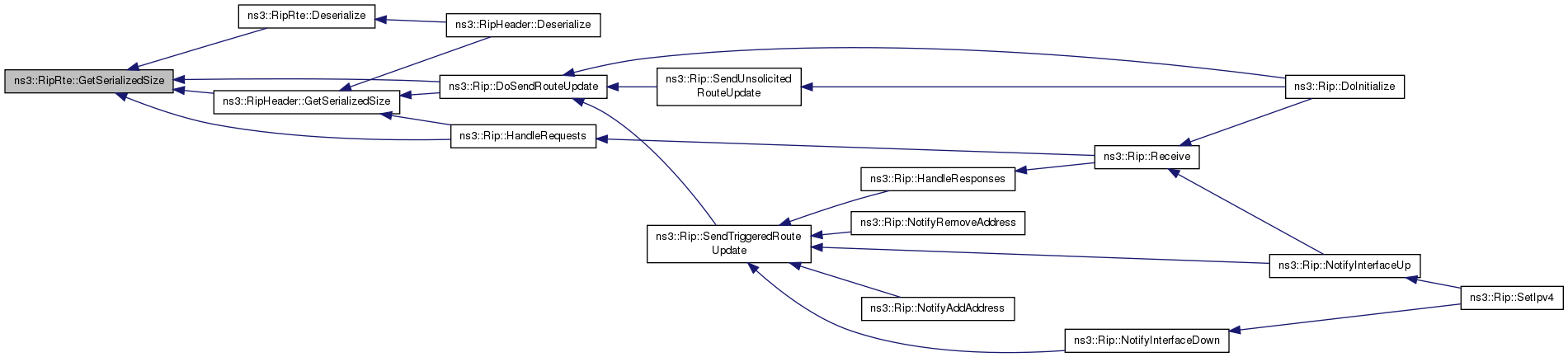

+ Here is the caller graph for this function:

Ipv4Mask ns3::RipRte::GetSubnetMask ( void  ) const

Get the subnet mask.

Returns
The subnet mask.

Definition at line 108 of file rip-header.cc.

References m_subnetMask.

TypeId ns3::RipRte::GetTypeId ( void  )
static

Get the type ID.

Returns
The object TypeId.

Definition at line 37 of file rip-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

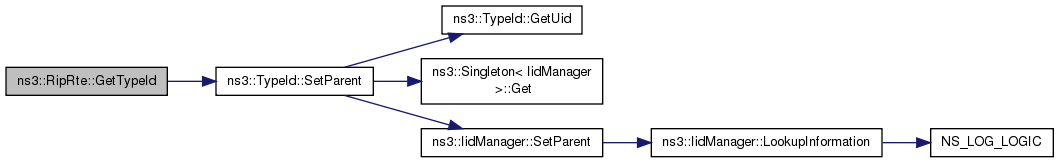

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RipRte::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 51 of file rip-header.cc.

References ns3::Ipv4Mask::GetPrefixLength(), m_metric, m_nextHop, m_prefix, m_subnetMask, and m_tag.

Referenced by ns3::operator<<().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::RipRte::Serialize ( Buffer::Iterator  start) const
virtual

Serialize the packet.

Parameters
startBuffer iterator.

Implements ns3::Header.

Definition at line 62 of file rip-header.cc.

References ns3::Ipv4Address::Get(), ns3::Ipv4Mask::Get(), m_metric, m_nextHop, m_prefix, m_subnetMask, m_tag, ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteHtonU32().

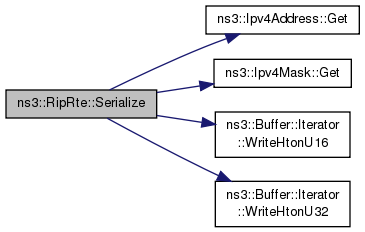

+ Here is the call graph for this function:

void ns3::RipRte::SetNextHop ( Ipv4Address  nextHop)

Set the next hop.

Parameters
nextHopThe next hop.

Definition at line 133 of file rip-header.cc.

References m_nextHop.

void ns3::RipRte::SetPrefix ( Ipv4Address  prefix)

Set the prefix.

Parameters
prefixThe prefix.

Definition at line 93 of file rip-header.cc.

References m_prefix.

Referenced by ns3::Rip::DoSendRouteUpdate(), ns3::Rip::HandleRequests(), and ns3::Rip::SendRouteRequest().

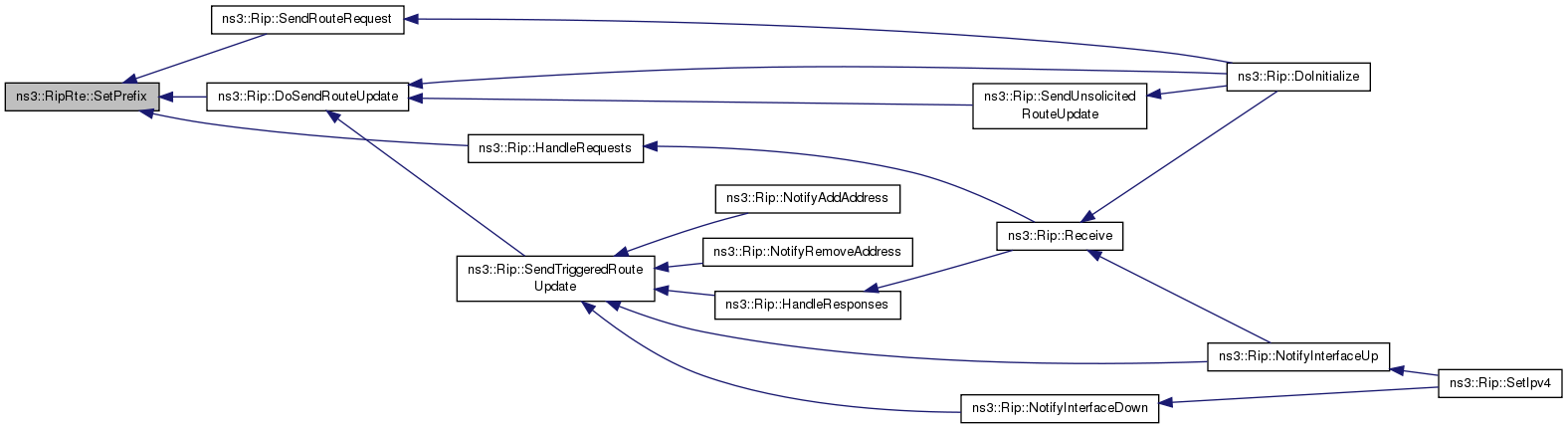

+ Here is the caller graph for this function:

void ns3::RipRte::SetRouteMetric ( uint32_t  routeMetric)

Set the route metric.

Parameters
routeMetricThe route metric.

Definition at line 123 of file rip-header.cc.

References m_metric.

Referenced by ns3::Rip::DoSendRouteUpdate(), ns3::Rip::HandleRequests(), and ns3::Rip::SendRouteRequest().

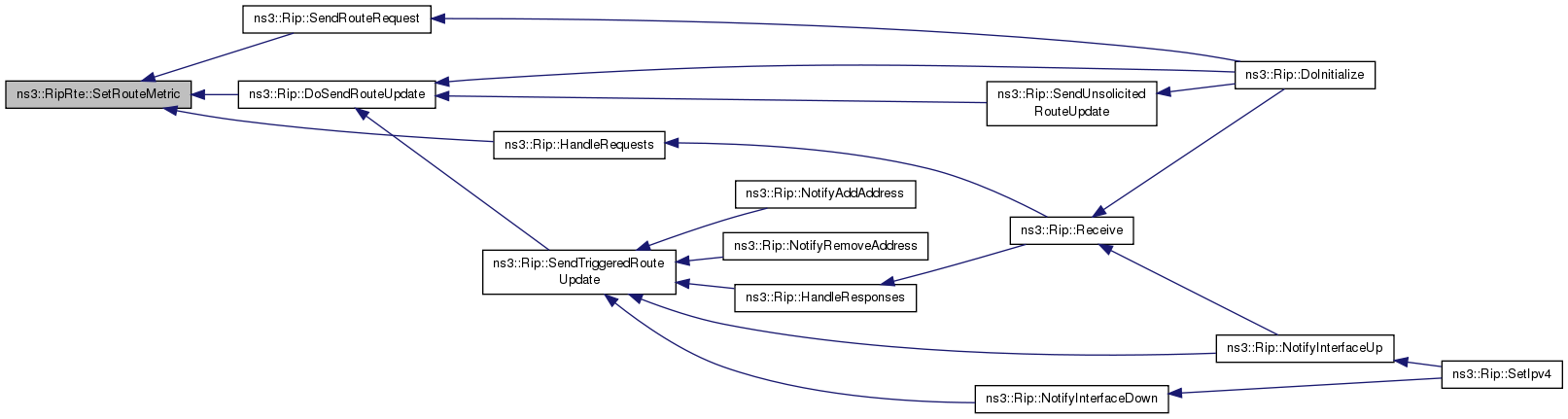

+ Here is the caller graph for this function:

void ns3::RipRte::SetRouteTag ( uint16_t  routeTag)

Set the route tag.

Parameters
routeTagThe route tag.

Definition at line 113 of file rip-header.cc.

References m_tag.

Referenced by ns3::Rip::DoSendRouteUpdate(), and ns3::Rip::HandleRequests().

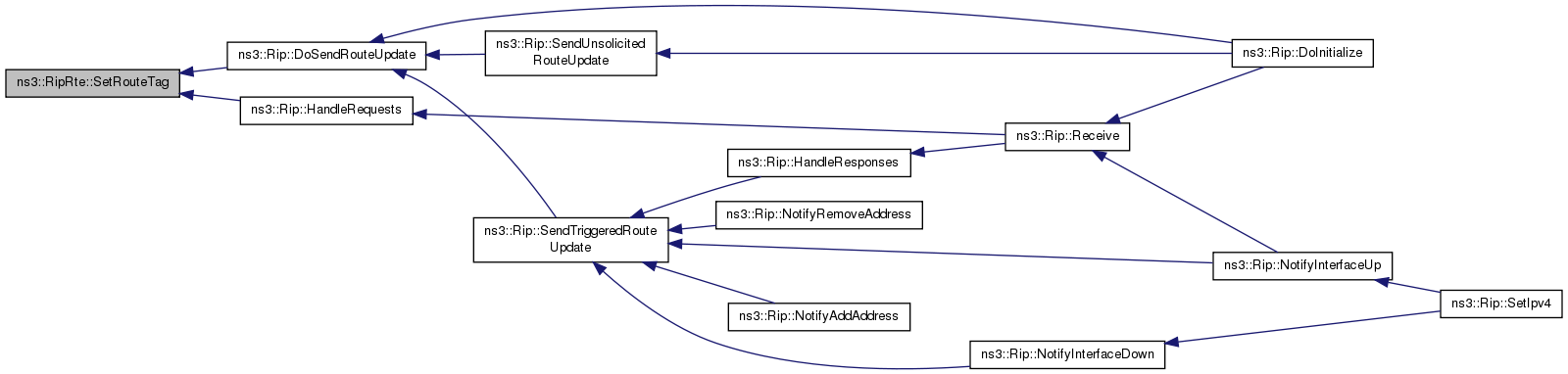

+ Here is the caller graph for this function:

void ns3::RipRte::SetSubnetMask ( Ipv4Mask  subnetMask)

Set the subnet mask.

Parameters
subnetMaskThe subnet mask.

Definition at line 103 of file rip-header.cc.

References m_subnetMask.

Referenced by ns3::Rip::DoSendRouteUpdate(), ns3::Rip::HandleRequests(), and ns3::Rip::SendRouteRequest().

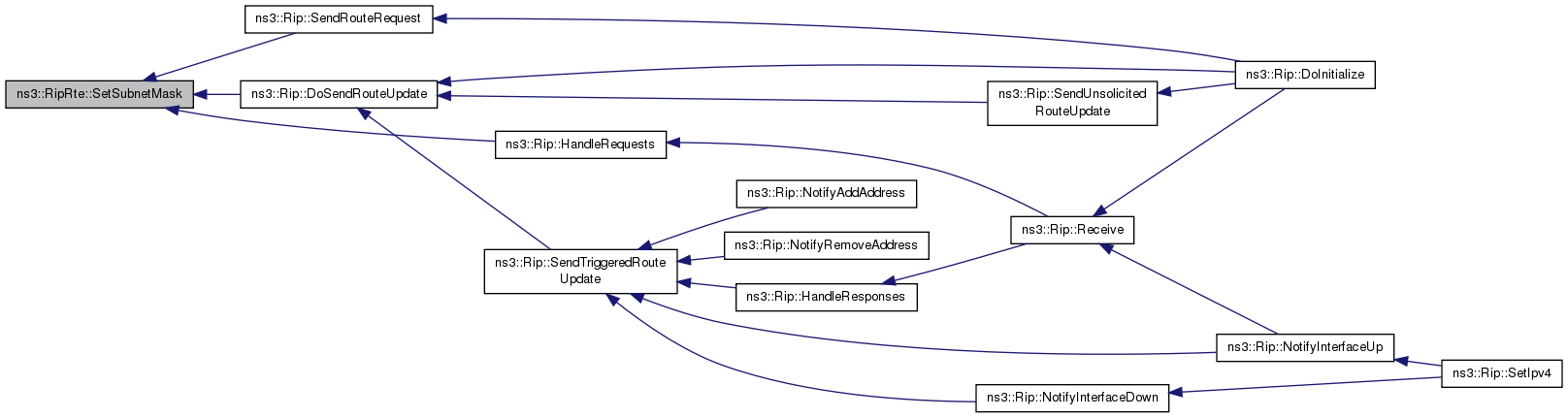

+ Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::RipRte::m_metric
private

Route metric.

Definition at line 141 of file rip-header.h.

Referenced by Deserialize(), GetRouteMetric(), Print(), Serialize(), and SetRouteMetric().

Ipv4Address ns3::RipRte::m_nextHop
private

Next hop.

Definition at line 140 of file rip-header.h.

Referenced by Deserialize(), GetNextHop(), Print(), Serialize(), and SetNextHop().

Ipv4Address ns3::RipRte::m_prefix
private

Advertised prefix.

Definition at line 138 of file rip-header.h.

Referenced by Deserialize(), GetPrefix(), Print(), Serialize(), and SetPrefix().

Ipv4Mask ns3::RipRte::m_subnetMask
private

Subnet mask.

Definition at line 139 of file rip-header.h.

Referenced by Deserialize(), GetSubnetMask(), Print(), Serialize(), and SetSubnetMask().

uint16_t ns3::RipRte::m_tag
private

Route tag.

Definition at line 137 of file rip-header.h.

Referenced by Deserialize(), GetRouteTag(), Print(), Serialize(), and SetRouteTag().


The documentation for this class was generated from the following files:
