ns3::Ssid Class Reference

The IEEE 802.11 SSID Information Element. More...

#include "ssid.h"

Inheritance diagram for ns3::Ssid:

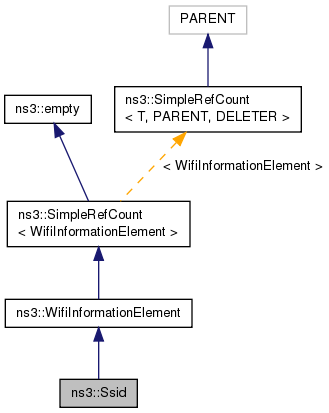

Collaboration diagram for ns3::Ssid:

Public Member Functions
	Ssid ()
	Ssid (std::string s)
	Create SSID from a given string. More...
	Ssid (char const ssid[32], uint8_t length)
	Create SSID from a given array of char and given length. More...
uint8_t	DeserializeInformationField (Buffer::Iterator start, uint8_t length)
	Get the information field size. More...
WifiInformationElementId	ElementId () const
	Get the ElementID. More...
uint8_t	GetInformationFieldSize () const
	Get the information field size. More...
bool	IsBroadcast (void) const
	Check if the SSID is broadcast. More...
bool	IsEqual (const Ssid &o) const
	Check if the two SSIDs are equal. More...
char *	PeekString (void) const
	Peek the SSID. More...
void	SerializeInformationField (Buffer::Iterator start) const
	Get the information field size. More...
Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()
Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE, which must be present. More...
Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE if it is present. More...
uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields. More...
virtual bool	operator< (WifiInformationElement const &a) const
	Compare information elements using Element ID. More...
virtual bool	operator== (WifiInformationElement const &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...
virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...
Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...
Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
uint8_t	m_length
	Length of the SSID. More...
uint8_t	m_ssid [33]
	Raw SSID value. More...

Detailed Description

The IEEE 802.11 SSID Information Element.

See also

Ssid Attribute

Definition at line 35 of file ssid.h.

Constructor & Destructor Documentation

ns3::Ssid::Ssid

(

)

Definition at line 25 of file ssid.cc.

References m_length, and m_ssid.

ns3::Ssid::Ssid

(

std::string

s

)

Create SSID from a given string.

Parameters

s	SSID in string

Definition at line 34 of file ssid.cc.

References m_length, m_ssid, NS_ASSERT, and third::ssid.

ns3::Ssid::Ssid	(	char const	ssid[32],
		uint8_t	length
	)

Create SSID from a given array of char and given length.

Parameters

ssid
length

Definition at line 54 of file ssid.cc.

References m_length, m_ssid, and NS_ASSERT.

Member Function Documentation

uint8_t ns3::Ssid::DeserializeInformationField ( Buffer::Iterator  start, uint8_t  length  )

virtual

Get the information field size.

Parameters

start	the information field iterator
length	the size of the information field

Returns

the size of the field read

Implements ns3::WifiInformationElement.

Definition at line 126 of file ssid.cc.

References m_length, m_ssid, NS_ASSERT, and ns3::Buffer::Iterator::Read().

Here is the call graph for this function:

WifiInformationElementId ns3::Ssid::ElementId ( ) const

virtual

Get the ElementID.

Returns

the element ID

Implements ns3::WifiInformationElement.

Definition at line 107 of file ssid.cc.

References IE_SSID.

uint8_t ns3::Ssid::GetInformationFieldSize ( void  ) const

virtual

Get the information field size.

Returns

the information field size

Implements ns3::WifiInformationElement.

Definition at line 113 of file ssid.cc.

References m_length.

bool ns3::Ssid::IsBroadcast

(

void

)

const

Check if the SSID is broadcast.

Returns

true if the SSID is broadcast, false otherwise

Definition at line 89 of file ssid.cc.

References m_ssid.

bool ns3::Ssid::IsEqual

(

const Ssid &

o

)

const

Check if the two SSIDs are equal.

Parameters

o	SSID to compare to

Returns

true if the two SSIDs are equal, false otherwise

Definition at line 72 of file ssid.cc.

References m_ssid.

Referenced by ns3::StaWifiMac::Receive(), and ns3::MeshWifiInterfaceMac::Receive().

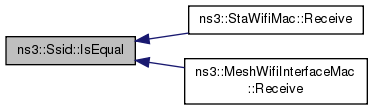

Here is the caller graph for this function:

char * ns3::Ssid::PeekString

(

void

)

const

Peek the SSID.

Returns

a pointer to SSID string

Definition at line 99 of file ssid.cc.

References m_ssid.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

void ns3::Ssid::SerializeInformationField ( Buffer::Iterator  start ) const

virtual

Get the information field size.

Parameters

start

the information field iterator

Implements ns3::WifiInformationElement.

Definition at line 119 of file ssid.cc.

References m_length, m_ssid, NS_ASSERT, and ns3::Buffer::Iterator::Write().

Here is the call graph for this function:

Member Data Documentation

uint8_t ns3::Ssid::m_length

private

Length of the SSID.

Definition at line 111 of file ssid.h.

Referenced by DeserializeInformationField(), GetInformationFieldSize(), SerializeInformationField(), and Ssid().

uint8_t ns3::Ssid::m_ssid[33]

private

Raw SSID value.

Definition at line 110 of file ssid.h.

Referenced by DeserializeInformationField(), IsBroadcast(), IsEqual(), PeekString(), SerializeInformationField(), and Ssid().

---

The documentation for this class was generated from the following files:

• src/wifi/model/ssid.h
• src/wifi/model/ssid.cc
