An implementation of LEDBAT. More...

#include "tcp-ledbat.h"

Inheritance diagram for ns3::TcpLedbat:

Collaboration diagram for ns3::TcpLedbat:

Classes
struct	OwdCircBuf
	Buffer structure to store delays. More...

Public Member Functions
	TcpLedbat (void)
	Create an unbound tcp socket. More...

	TcpLedbat (const TcpLedbat &sock)
	Copy constructor. More...

virtual	~TcpLedbat (void)
	Destructor. More...

virtual Ptr< TcpCongestionOps >	Fork ()
	Copy the congestion control algorithm across socket. More...

virtual std::string	GetName () const
	Get the name of the TCP flavour. More...

virtual uint32_t	GetSsThresh (Ptr< const TcpSocketState > tcb, uint32_t bytesInFlight)
	Get the slow start threshold. More...

virtual void	IncreaseWindow (Ptr< TcpSocketState > tcb, uint32_t segmentsAcked)
	Adjust cwnd following LEDBAT algorithm. More...

virtual void	PktsAcked (Ptr< TcpSocketState > tcb, uint32_t segmentsAcked, const Time &rtt)
	Get information from the acked packet. More...

void	SetDoSs (SlowStartType doSS)
	Change the Slow Start Capability. More...

Public Member Functions inherited from ns3::TcpNewReno
	TcpNewReno ()

	TcpNewReno (const TcpNewReno &sock)
	Copy constructor. More...

	~TcpNewReno ()

Public Member Functions inherited from ns3::TcpCongestionOps
	TcpCongestionOps ()

	TcpCongestionOps (const TcpCongestionOps &other)
	Copy constructor. More...

virtual	~TcpCongestionOps ()

virtual void	CongestionStateSet (Ptr< TcpSocketState > tcb, const TcpSocketState::TcpCongState_t newState)
	Trigger events/calculations specific to a congestion state. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::TcpNewReno
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::TcpCongestionOps
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	CongestionAvoidance (Ptr< TcpSocketState > tcb, uint32_t segmentsAcked)
	Reduce Congestion. More...

Protected Member Functions inherited from ns3::TcpNewReno
virtual uint32_t	SlowStart (Ptr< TcpSocketState > tcb, uint32_t segmentsAcked)
	Tcp NewReno slow start algorithm. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef uint32_t(*	FilterFunction) (struct OwdCircBuf &)
	Filter function used by LEDBAT for current delay. More...

enum	SlowStartType { DO_NOT_SLOWSTART, DO_SLOWSTART }
	The slowstart types. More...

enum	State { LEDBAT_VALID_OWD = (1 << 1), LEDBAT_CAN_SS = (1 << 3) }
	The state of LEDBAT. More...

Private Member Functions
void	AddDelay (struct OwdCircBuf &cb, uint32_t owd, uint32_t maxlen)
	Add new delay to the buffers. More...

uint32_t	BaseDelay ()
	Return the value of base delay. More...

uint32_t	CurrentDelay (FilterFunction filter)
	Return the value of current delay. More...

void	InitCircBuf (struct OwdCircBuf &buffer)
	Initialise a new buffer. More...

void	UpdateBaseDelay (uint32_t owd)
	Update the base delay buffer. More...

Static Private Member Functions
static uint32_t	MinCircBuf (struct OwdCircBuf &b)
	Return the minimum delay of the buffer. More...

Private Attributes
uint32_t	m_baseHistoLen
	Length of base delay history buffer. More...

struct OwdCircBuf	m_baseHistory
	Buffer to store the base delay. More...

SlowStartType	m_doSs
	Permissible Slow Start State. More...

uint32_t	m_flag
	LEDBAT Flag. More...

double	m_gain
	GAIN value from RFC. More...

uint64_t	m_lastRollover
	Timestamp of last added delay. More...

struct OwdCircBuf	m_noiseFilter
	Buffer to store the current delay. More...

uint32_t	m_noiseFilterLen
	Length of current delay buffer. More...

int32_t	m_sndCwndCnt
	The congestion window addition parameter. More...

Time	m_target
	Target Queue Delay. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

An implementation of LEDBAT.

Introspection did not find any typical Config paths.

Attributes

TargetDelay: Targeted Queue Delay
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +100000000.0ns
- Flags: construct write read
BaseHistoryLen: Number of Base delay samples
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
NoiseFilterLen: Number of Current delay samples
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 4
- Flags: construct write read
Gain: Offset Gain
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
SSParam: Possibility of Slow Start
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: yes
- Flags: construct write

No TraceSources are defined for this type.
Size of this type is 152 bytes (on a 64-bit architecture).

Definition at line 37 of file tcp-ledbat.h.

Member Typedef Documentation

typedef uint32_t(* ns3::TcpLedbat::FilterFunction) (struct OwdCircBuf &)

private

Filter function used by LEDBAT for current delay.

Definition at line 153 of file tcp-ledbat.h.

Constructor & Destructor Documentation

ns3::TcpLedbat::TcpLedbat ( void )

Create an unbound tcp socket.

Definition at line 82 of file tcp-ledbat.cc.

References DO_SLOWSTART, InitCircBuf(), LEDBAT_CAN_SS, m_baseHistoLen, m_baseHistory, m_doSs, m_flag, m_gain, m_lastRollover, m_noiseFilter, m_noiseFilterLen, m_sndCwndCnt, m_target, ns3::MilliSeconds(), and NS_LOG_FUNCTION.

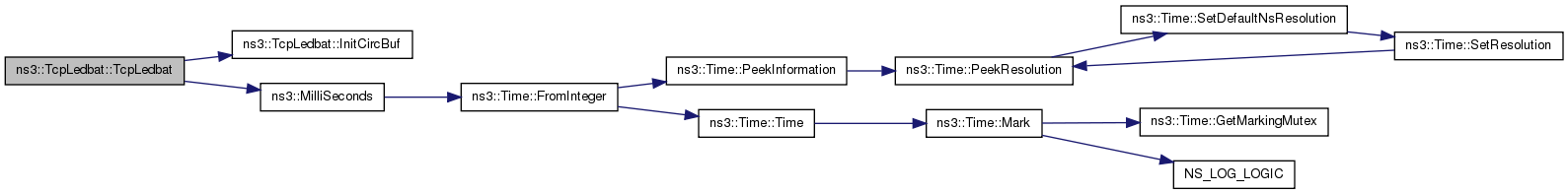

Here is the call graph for this function:

ns3::TcpLedbat::TcpLedbat ( const TcpLedbat & sock )

Copy constructor.

Parameters

sock	the object to copy

Definition at line 105 of file tcp-ledbat.cc.

References m_baseHistoLen, m_baseHistory, m_doSs, m_flag, m_gain, m_lastRollover, m_noiseFilter, m_noiseFilterLen, m_sndCwndCnt, m_target, and NS_LOG_FUNCTION.

ns3::TcpLedbat::~TcpLedbat ( void )

virtual

Destructor.

Definition at line 121 of file tcp-ledbat.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::TcpLedbat::AddDelay	(	struct OwdCircBuf &	cb,
		uint32_t	owd,
		uint32_t	maxlen
	)

private

Add new delay to the buffers.

Parameters

cb	The buffer
owd	The new delay
maxlen	The maximum permitted length

Definition at line 231 of file tcp-ledbat.cc.

References ns3::TcpLedbat::OwdCircBuf::buffer, ns3::TcpLedbat::OwdCircBuf::min, NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Referenced by PktsAcked(), and UpdateBaseDelay().

Here is the call graph for this function:

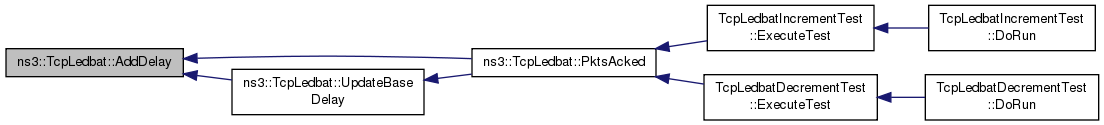

Here is the caller graph for this function:

uint32_t ns3::TcpLedbat::BaseDelay ( )

private

Return the value of base delay.

Returns: The base delay

Definition at line 157 of file tcp-ledbat.cc.

References m_baseHistory, MinCircBuf(), and NS_LOG_FUNCTION.

Referenced by CongestionAvoidance().

Here is the call graph for this function:

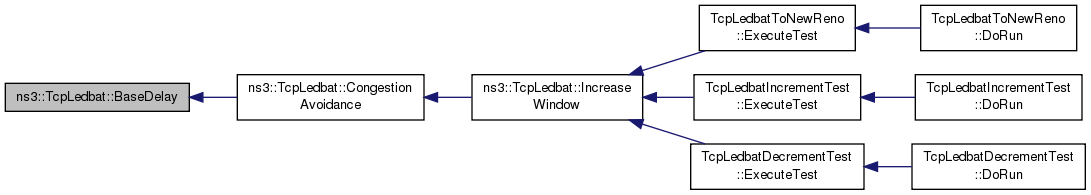

Here is the caller graph for this function:

void ns3::TcpLedbat::CongestionAvoidance	(	Ptr< TcpSocketState >	tcb,
		uint32_t	segmentsAcked
	)

protectedvirtual

Reduce Congestion.

Parameters

tcb	internal congestion state
segmentsAcked	count of segments ACKed

Reimplemented from ns3::TcpNewReno.

Definition at line 190 of file tcp-ledbat.cc.

References BaseDelay(), ns3::TcpNewReno::CongestionAvoidance(), CurrentDelay(), ns3::TracedValue< T >::Get(), ns3::Time::GetMilliSeconds(), LEDBAT_VALID_OWD, ns3::TcpSocketState::m_cWnd, m_flag, m_gain, ns3::TcpSocketState::m_highTxMark, ns3::TcpSocketState::m_lastAckedSeq, ns3::TcpSocketState::m_segmentSize, m_sndCwndCnt, ns3::TcpSocketState::m_ssThresh, m_target, max, min, MinCircBuf(), and NS_LOG_FUNCTION.

Referenced by IncreaseWindow().

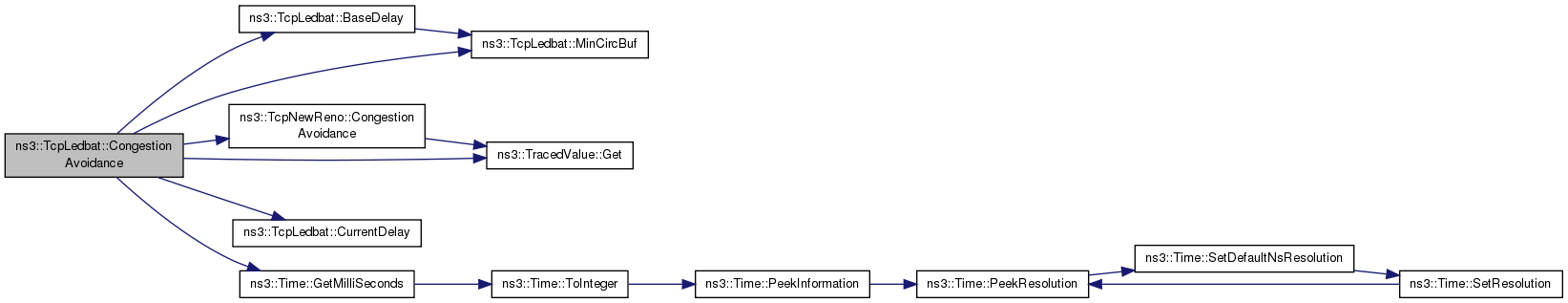

Here is the call graph for this function:

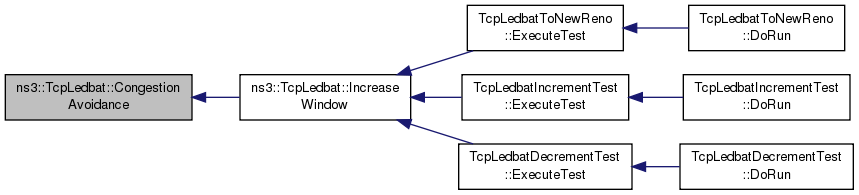

Here is the caller graph for this function:

uint32_t ns3::TcpLedbat::CurrentDelay ( FilterFunction filter )

private

Return the value of current delay.

Parameters

filter The filter function

Returns: The current delay

Definition at line 151 of file tcp-ledbat.cc.

References m_noiseFilter, and NS_LOG_FUNCTION.

Referenced by CongestionAvoidance().

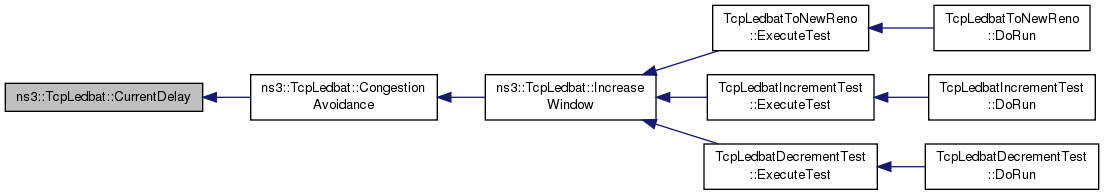

Here is the caller graph for this function:

Ptr< TcpCongestionOps > ns3::TcpLedbat::Fork ( )

virtual

Copy the congestion control algorithm across socket.

Returns: a pointer of the copied object

Reimplemented from ns3::TcpNewReno.

Definition at line 127 of file tcp-ledbat.cc.

std::string ns3::TcpLedbat::GetName ( void ) const

virtual

Get the name of the TCP flavour.

Returns: The name of the TCP

Reimplemented from ns3::TcpNewReno.

Definition at line 133 of file tcp-ledbat.cc.

uint32_t ns3::TcpLedbat::GetSsThresh	(	Ptr< const TcpSocketState >	tcb,
		uint32_t	bytesInFlight
	)

virtual

Get the slow start threshold.

Parameters

tcb	internal congestion state
bytesInFlight	bytes in flight

Returns: The slow start threshold

Reimplemented from ns3::TcpNewReno.

Definition at line 163 of file tcp-ledbat.cc.

References ns3::TcpNewReno::GetSsThresh(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

TypeId ns3::TcpLedbat::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 32 of file tcp-ledbat.cc.

References DO_NOT_SLOWSTART, DO_SLOWSTART, m_baseHistoLen, m_gain, m_noiseFilterLen, m_target, ns3::MakeDoubleAccessor(), ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeUintegerAccessor(), ns3::MilliSeconds(), SetDoSs(), and ns3::TypeId::SetParent().

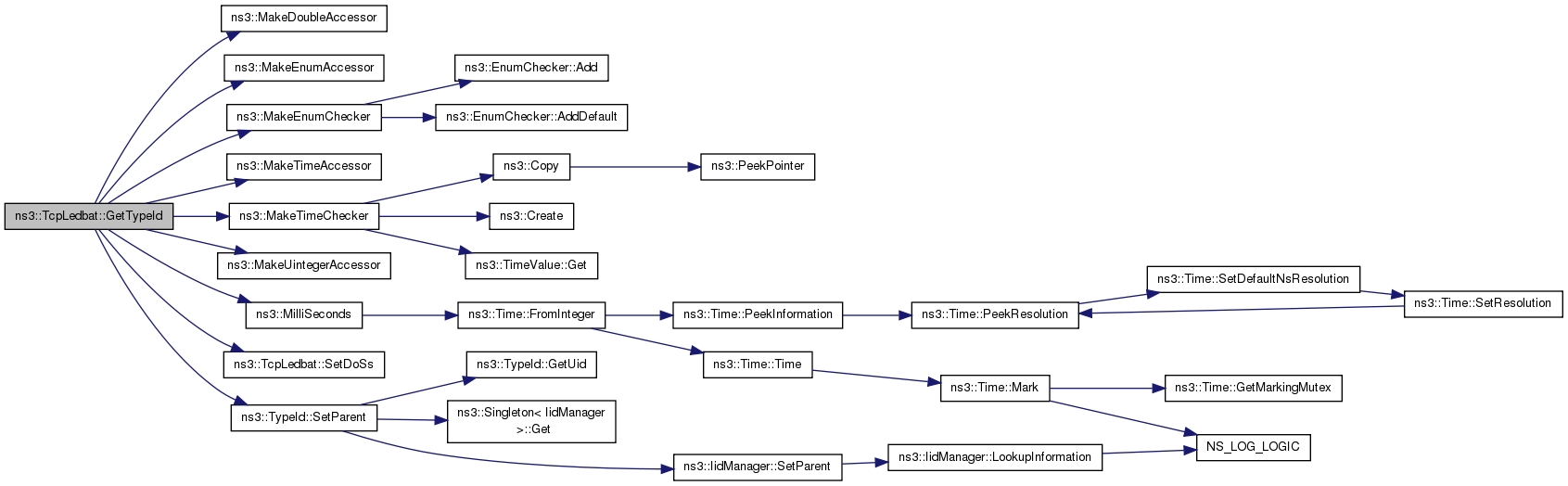

Here is the call graph for this function:

void ns3::TcpLedbat::IncreaseWindow	(	Ptr< TcpSocketState >	tcb,
		uint32_t	segmentsAcked
	)

virtual

Adjust cwnd following LEDBAT algorithm.

Parameters

tcb	internal congestion state
segmentsAcked	count of segments ACKed

Reimplemented from ns3::TcpNewReno.

Definition at line 172 of file tcp-ledbat.cc.

References CongestionAvoidance(), DO_SLOWSTART, ns3::TracedValue< T >::Get(), LEDBAT_CAN_SS, ns3::TcpSocketState::m_cWnd, m_doSs, m_flag, ns3::TcpSocketState::m_segmentSize, ns3::TcpSocketState::m_ssThresh, NS_LOG_FUNCTION, and ns3::TcpNewReno::SlowStart().

Referenced by TcpLedbatToNewReno::ExecuteTest(), TcpLedbatIncrementTest::ExecuteTest(), and TcpLedbatDecrementTest::ExecuteTest().

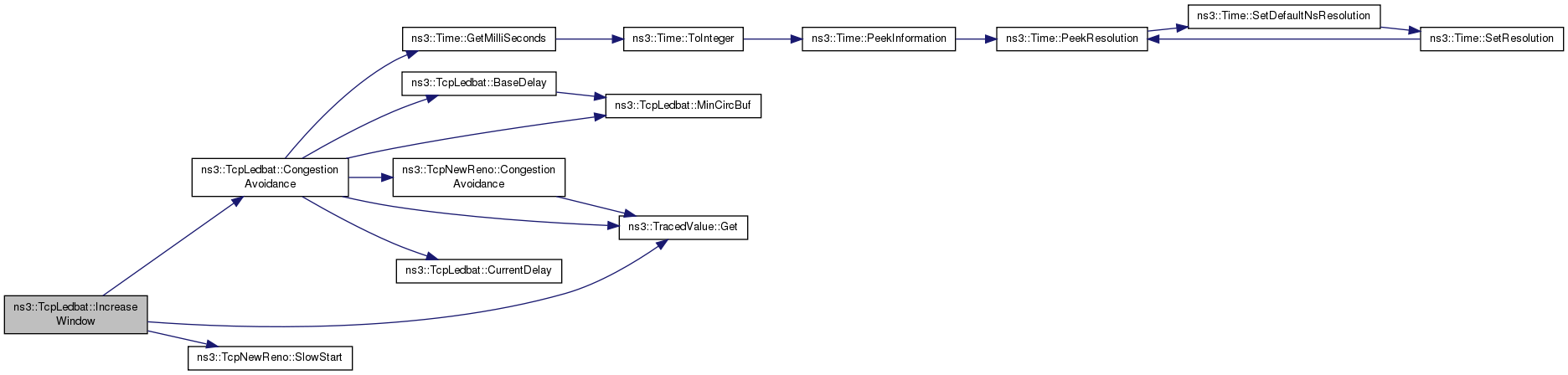

Here is the call graph for this function:

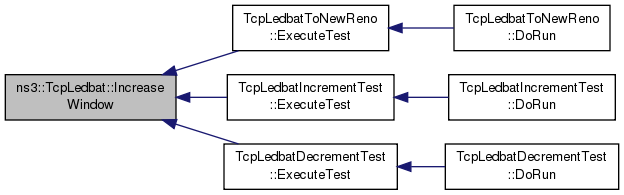

Here is the caller graph for this function:

void ns3::TcpLedbat::InitCircBuf ( struct OwdCircBuf & buffer )

private

Initialise a new buffer.

Parameters

buffer The buffer to be initialised

Definition at line 98 of file tcp-ledbat.cc.

References ns3::TcpLedbat::OwdCircBuf::buffer, ns3::TcpLedbat::OwdCircBuf::min, and NS_LOG_FUNCTION.

Referenced by TcpLedbat().

Here is the caller graph for this function:

uint32_t ns3::TcpLedbat::MinCircBuf ( struct OwdCircBuf & b )

staticprivate

Return the minimum delay of the buffer.

Parameters

b	The buffer

Returns: The minimum delay

Definition at line 138 of file tcp-ledbat.cc.

References ns3::TcpLedbat::OwdCircBuf::buffer, ns3::TcpLedbat::OwdCircBuf::min, and NS_LOG_FUNCTION_NOARGS.

Referenced by BaseDelay(), and CongestionAvoidance().

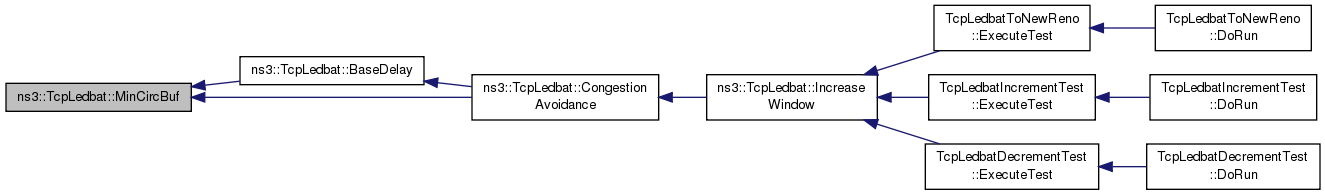

Here is the caller graph for this function:

void ns3::TcpLedbat::PktsAcked	(	Ptr< TcpSocketState >	tcb,
		uint32_t	segmentsAcked,
		const Time &	rtt
	)

virtual

Get information from the acked packet.

Parameters

tcb	internal congestion state
segmentsAcked	count of segments ACKed
rtt	The estimated rtt

Reimplemented from ns3::TcpCongestionOps.

Definition at line 291 of file tcp-ledbat.cc.

References AddDelay(), ns3::Time::IsPositive(), LEDBAT_VALID_OWD, m_flag, m_noiseFilter, m_noiseFilterLen, ns3::TcpSocketState::m_rcvTimestampEchoReply, ns3::TcpSocketState::m_rcvTimestampValue, NS_LOG_FUNCTION, and UpdateBaseDelay().

Referenced by TcpLedbatIncrementTest::ExecuteTest(), and TcpLedbatDecrementTest::ExecuteTest().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TcpLedbat::SetDoSs ( SlowStartType doSS )

Change the Slow Start Capability.

Parameters

doSS	Slow Start Option

Definition at line 68 of file tcp-ledbat.cc.

References LEDBAT_CAN_SS, m_doSs, m_flag, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::TcpLedbat::UpdateBaseDelay ( uint32_t owd )

private

Update the base delay buffer.

Parameters

owd The delay

Definition at line 262 of file tcp-ledbat.cc.

References AddDelay(), ns3::TcpLedbat::OwdCircBuf::buffer, ns3::Time::GetSeconds(), m_baseHistoLen, m_baseHistory, m_lastRollover, ns3::TcpLedbat::OwdCircBuf::min, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by PktsAcked().

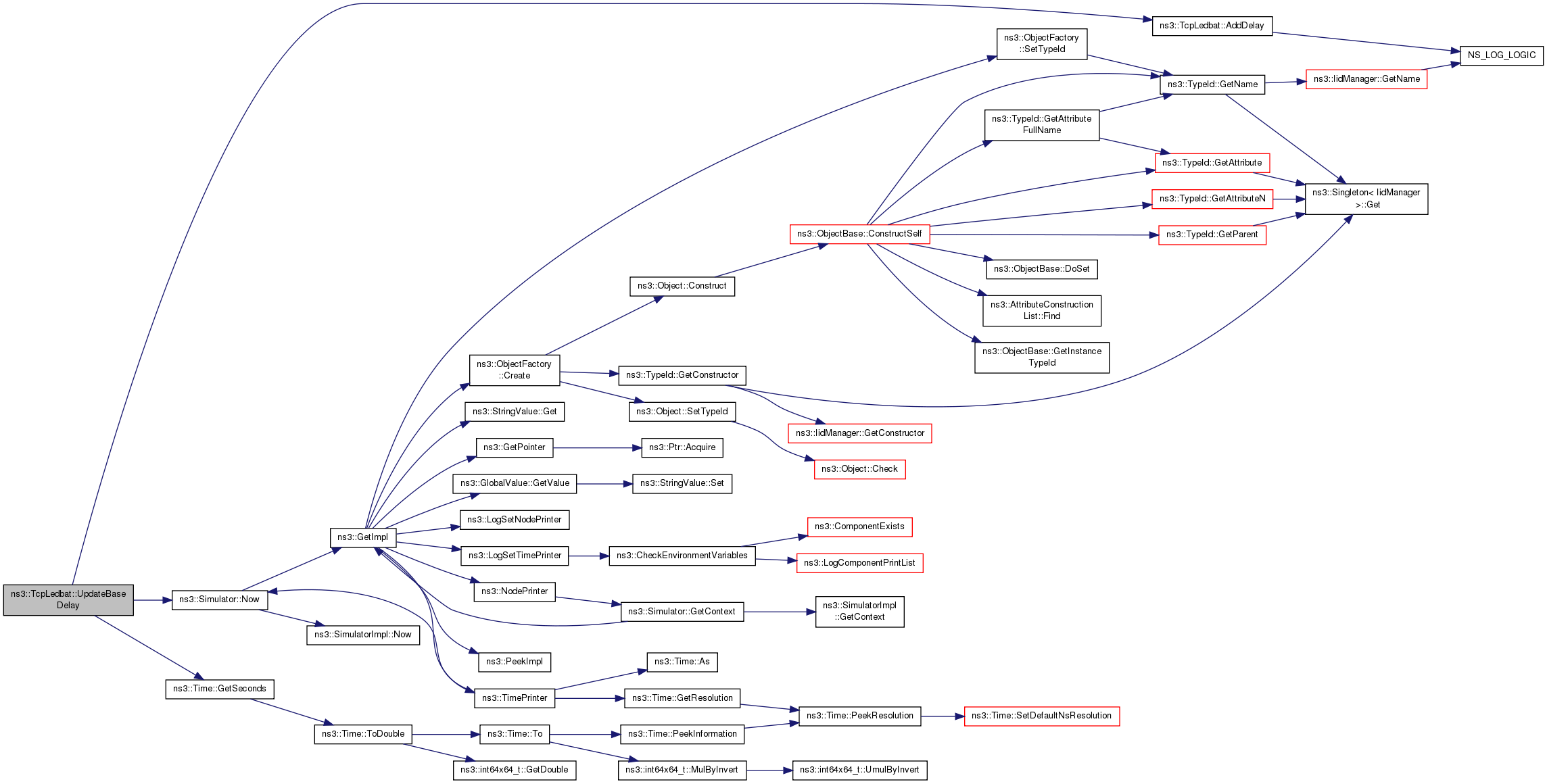

Here is the call graph for this function:

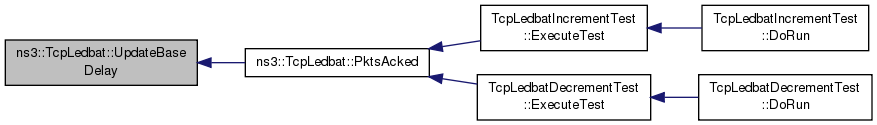

Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::TcpLedbat::m_baseHistoLen

private

Length of base delay history buffer.

Definition at line 197 of file tcp-ledbat.h.

Referenced by GetTypeId(), TcpLedbat(), and UpdateBaseDelay().

struct OwdCircBuf ns3::TcpLedbat::m_baseHistory

private

Buffer to store the base delay.

Definition at line 201 of file tcp-ledbat.h.

Referenced by BaseDelay(), TcpLedbat(), and UpdateBaseDelay().

SlowStartType ns3::TcpLedbat::m_doSs

private

Permissible Slow Start State.

Definition at line 196 of file tcp-ledbat.h.

Referenced by IncreaseWindow(), SetDoSs(), and TcpLedbat().

uint32_t ns3::TcpLedbat::m_flag

private

LEDBAT Flag.

Definition at line 203 of file tcp-ledbat.h.

Referenced by CongestionAvoidance(), IncreaseWindow(), PktsAcked(), SetDoSs(), and TcpLedbat().

double ns3::TcpLedbat::m_gain

private

GAIN value from RFC.

Definition at line 195 of file tcp-ledbat.h.

Referenced by CongestionAvoidance(), GetTypeId(), and TcpLedbat().

uint64_t ns3::TcpLedbat::m_lastRollover

private

Timestamp of last added delay.

Definition at line 199 of file tcp-ledbat.h.

Referenced by TcpLedbat(), and UpdateBaseDelay().

struct OwdCircBuf ns3::TcpLedbat::m_noiseFilter

private

Buffer to store the current delay.

Definition at line 202 of file tcp-ledbat.h.

Referenced by CurrentDelay(), PktsAcked(), and TcpLedbat().

uint32_t ns3::TcpLedbat::m_noiseFilterLen

private

Length of current delay buffer.

Definition at line 198 of file tcp-ledbat.h.

Referenced by GetTypeId(), PktsAcked(), and TcpLedbat().

int32_t ns3::TcpLedbat::m_sndCwndCnt

private

The congestion window addition parameter.

Definition at line 200 of file tcp-ledbat.h.

Referenced by CongestionAvoidance(), and TcpLedbat().

Time ns3::TcpLedbat::m_target

private

Target Queue Delay.

Definition at line 194 of file tcp-ledbat.h.

Referenced by CongestionAvoidance(), GetTypeId(), and TcpLedbat().

The documentation for this class was generated from the following files:

src/internet/model/tcp-ledbat.h
src/internet/model/tcp-ledbat.cc

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
