An unknown TCP option. More...

#include "tcp-option.h"

Inheritance diagram for ns3::TcpOptionUnknown:

Collaboration diagram for ns3::TcpOptionUnknown:

Public Member Functions
	TcpOptionUnknown ()

virtual	~TcpOptionUnknown ()

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the Option from a buffer iterator. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

virtual uint8_t	GetKind (void) const
	Get the `kind' (as in RFC 793) of this option. More...

virtual uint32_t	GetSerializedSize (void) const
	Returns number of bytes required for Option serialization. More...

virtual void	Print (std::ostream &os) const
	Print the Option contents. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the Option to a buffer iterator. More...

Public Member Functions inherited from ns3::TcpOption
	TcpOption ()

virtual	~TcpOption ()

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::TcpOption
static Ptr< TcpOption >	CreateOption (uint8_t kind)
	Creates an option. More...

static TypeId	GetTypeId (void)
	Get the type ID. More...

static bool	IsKindKnown (uint8_t kind)
	Check if the option is implemented. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_content [40]
	The option data. More...

uint8_t	m_kind
	The unknown option kind. More...

uint32_t	m_size
	The unknown option size. More...

Additional Inherited Members
Public Types inherited from ns3::TcpOption
enum	Kind { END = 0, NOP = 1, MSS = 2, WINSCALE = 3, SACKPERMITTED = 4, SACK = 5, TS = 8, UNKNOWN = 255 }
	The option Kind, as defined in the respective RFCs. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

An unknown TCP option.

Introspection did not find any typical Config paths.

An unknown option can be deserialized and (only if deserialized previously) serialized again.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 80 bytes (on a 64-bit architecture).

Definition at line 122 of file tcp-option.h.

Constructor & Destructor Documentation

ns3::TcpOptionUnknown::TcpOptionUnknown ( )

Definition at line 119 of file tcp-option.cc.

References m_kind, and m_size.

ns3::TcpOptionUnknown::~TcpOptionUnknown ( )

virtual

Definition at line 126 of file tcp-option.cc.

Member Function Documentation

uint32_t ns3::TcpOptionUnknown::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the Option from a buffer iterator.

Parameters

start the buffer iterator

Returns: the number of deserialized bytes

Implements ns3::TcpOption.

Definition at line 174 of file tcp-option.cc.

References m_content, m_kind, m_size, NS_LOG_WARN, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Here is the call graph for this function:

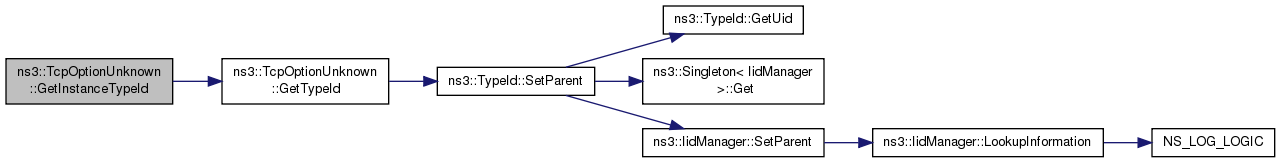

TypeId ns3::TcpOptionUnknown::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
