ns3::TtaFfMacScheduler Class Reference

Implements the SCHED SAP and CSCHED SAP for a Throughput to Average scheduler. More...

#include "tta-ff-mac-scheduler.h"

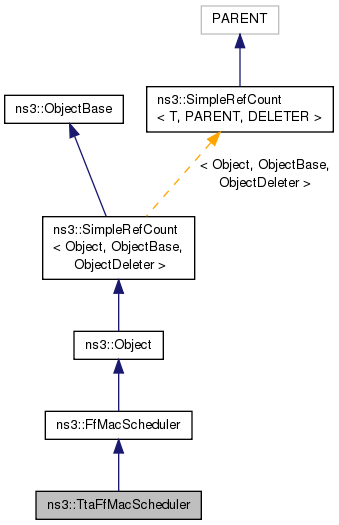

+ Inheritance diagram for ns3::TtaFfMacScheduler:

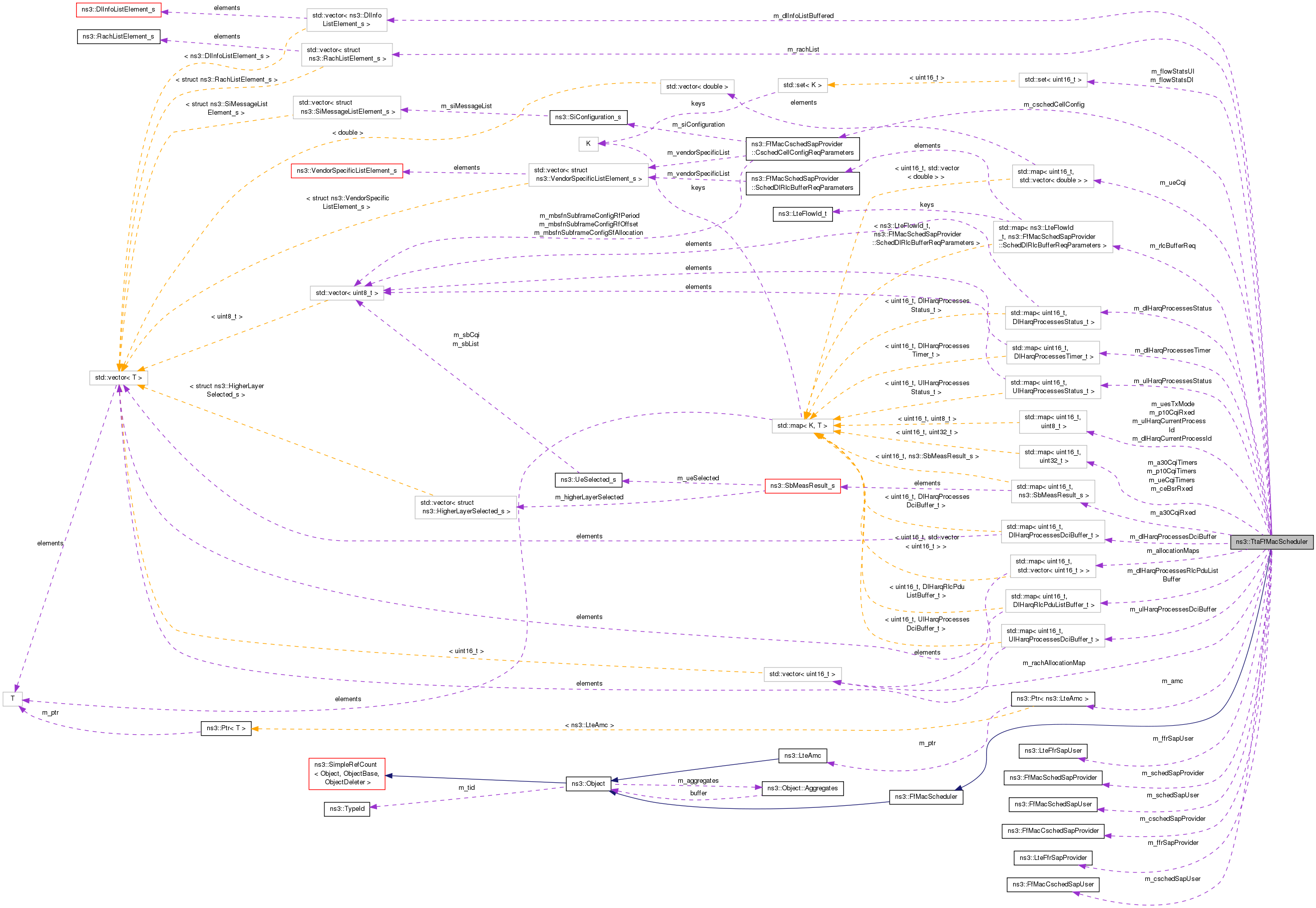

+ Collaboration diagram for ns3::TtaFfMacScheduler:

Public Member Functions

 TtaFfMacScheduler ()
 Constructor. More...

virtual ~TtaFfMacScheduler ()
 Destructor. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual FfMacCschedSapProviderGetFfMacCschedSapProvider ()

virtual FfMacSchedSapProviderGetFfMacSchedSapProvider ()

virtual LteFfrSapUserGetLteFfrSapUser ()

virtual void SetFfMacCschedSapUser (FfMacCschedSapUser *s)
 set the user part of the FfMacCschedSap that this Scheduler will interact with. More...

virtual void SetFfMacSchedSapUser (FfMacSchedSapUser *s)
 set the user part of the FfMacSchedSap that this Scheduler will interact with. More...

virtual void SetLteFfrSapProvider (LteFfrSapProvider *s)
 Set the Provider part of the LteFfrSap that this Scheduler will interact with. More...

void TransmissionModeConfigurationUpdate (uint16_t rnti, uint8_t txMode)
 Transmission mode configuration update. More...

- Public Member Functions inherited from ns3::FfMacScheduler
 FfMacScheduler ()
 constructor More...

virtual ~FfMacScheduler ()
 destructor More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

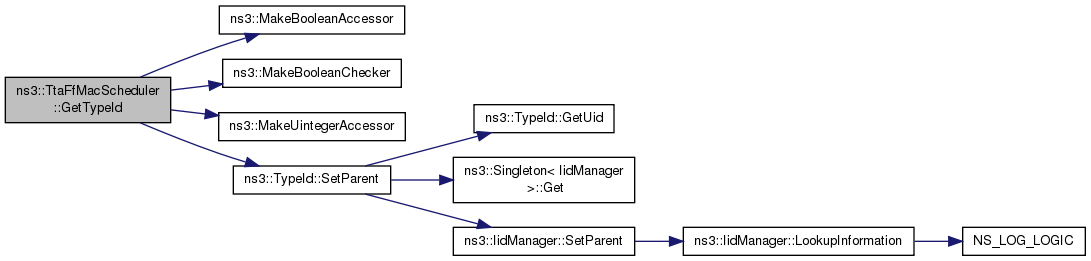

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::FfMacScheduler
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

void DoCschedCellConfigReq (const struct FfMacCschedSapProvider::CschedCellConfigReqParameters &params)
 CSched cell config request function. More...

void DoCschedLcConfigReq (const struct FfMacCschedSapProvider::CschedLcConfigReqParameters &params)
 CSched LC config request function. More...

void DoCschedLcReleaseReq (const struct FfMacCschedSapProvider::CschedLcReleaseReqParameters &params)
 CSched LC release request function. More...

void DoCschedUeConfigReq (const struct FfMacCschedSapProvider::CschedUeConfigReqParameters &params)
 CSched UE config request function. More...

void DoCschedUeReleaseReq (const struct FfMacCschedSapProvider::CschedUeReleaseReqParameters &params)
 CSched UE release request function. More...

void DoSchedDlCqiInfoReq (const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters &params)
 Sched DL CQI info request function. More...

void DoSchedDlMacBufferReq (const struct FfMacSchedSapProvider::SchedDlMacBufferReqParameters &params)
 Sched DL MAC buffer request function. More...

void DoSchedDlPagingBufferReq (const struct FfMacSchedSapProvider::SchedDlPagingBufferReqParameters &params)
 Sched DL paging buffer request function. More...

void DoSchedDlRachInfoReq (const struct FfMacSchedSapProvider::SchedDlRachInfoReqParameters &params)
 Sched DL RACH info request function. More...

void DoSchedDlRlcBufferReq (const struct FfMacSchedSapProvider::SchedDlRlcBufferReqParameters &params)
 Sched DL RLC buffer request function. More...

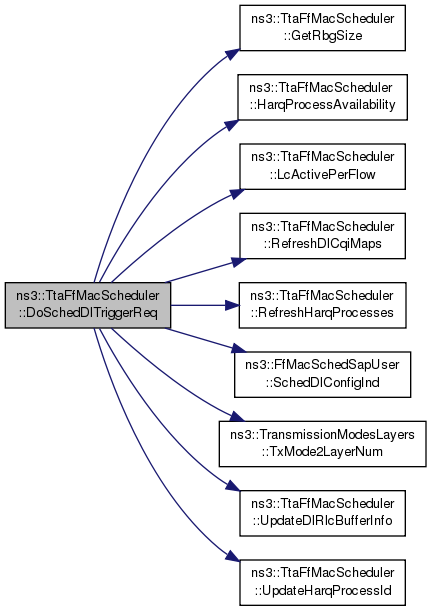

void DoSchedDlTriggerReq (const struct FfMacSchedSapProvider::SchedDlTriggerReqParameters &params)
 Sched DL trigger request function. More...

void DoSchedUlCqiInfoReq (const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters &params)
 Sched UL CQI info request function. More...

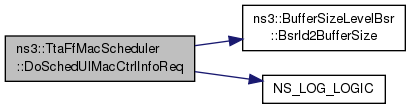

void DoSchedUlMacCtrlInfoReq (const struct FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters &params)
 Sched UL MAC control info request function. More...

void DoSchedUlNoiseInterferenceReq (const struct FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters &params)
 Sched UL noise interference request function. More...

void DoSchedUlSrInfoReq (const struct FfMacSchedSapProvider::SchedUlSrInfoReqParameters &params)
 Sched UL SR info request function. More...

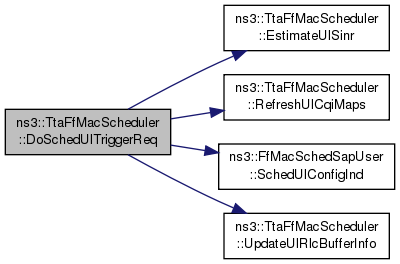

void DoSchedUlTriggerReq (const struct FfMacSchedSapProvider::SchedUlTriggerReqParameters &params)
 Sched UL trigger request function. More...

double EstimateUlSinr (uint16_t rnti, uint16_t rb)
 Estimate UL SINR function. More...

int GetRbgSize (int dlbandwidth)
 Get RBG size function. More...

uint8_t HarqProcessAvailability (uint16_t rnti)
 Return the availability of free process for the RNTI specified. More...

unsigned int LcActivePerFlow (uint16_t rnti)
 LC acive per flow function. More...

void RefreshDlCqiMaps (void)
 Refresh DL CQI maps. More...

void RefreshHarqProcesses ()
 Refresh HARQ processes according to the timers. More...

void RefreshUlCqiMaps (void)
 Refresh UL CQI maps. More...

void UpdateDlRlcBufferInfo (uint16_t rnti, uint8_t lcid, uint16_t size)
 Update DL RLC buffer info function. More...

uint8_t UpdateHarqProcessId (uint16_t rnti)
 Update and return a new process Id for the RNTI specified. More...

void UpdateUlRlcBufferInfo (uint16_t rnti, uint16_t size)
 Update DL RLC buffer info function. More...


Private Attributes

std::map< uint16_t, SbMeasResult_sm_a30CqiRxed
 Map of UE's DL CQI A30 received. More...

std::map< uint16_t, uint32_t > m_a30CqiTimers
 Map of UE's timers on DL CQI A30 received. More...

std::map< uint16_t, std::vector< uint16_t > > m_allocationMaps
 Map of previous allocated UE per RBG (used to retrieve info from UL-CQI) More...

Ptr< LteAmcm_amc
 AMC. More...

std::map< uint16_t, uint32_t > m_ceBsrRxed
 Map of UE's buffer status reports received. More...

uint32_t m_cqiTimersThreshold


of TTIs for which a CQI can be considered valid

More...

FfMacCschedSapProvider::CschedCellConfigReqParameters m_cschedCellConfig
 CSched cell config. More...

FfMacCschedSapProviderm_cschedSapProvider
 CSched SAP provider. More...

FfMacCschedSapUserm_cschedSapUser
 CSched SAP user. More...

std::map< uint16_t, uint8_t > m_dlHarqCurrentProcessId
 DL HARQ current process ID. More...

std::map< uint16_t, DlHarqProcessesDciBuffer_tm_dlHarqProcessesDciBuffer
 DL HARQ process DCI buffer. More...

std::map< uint16_t, DlHarqRlcPduListBuffer_tm_dlHarqProcessesRlcPduListBuffer
 DL HARQ process RLC PDU list buffer. More...

std::map< uint16_t, DlHarqProcessesStatus_tm_dlHarqProcessesStatus
 DL HARQ process status. More...

std::map< uint16_t, DlHarqProcessesTimer_tm_dlHarqProcessesTimer
 DL HARQ process timer. More...

std::vector< DlInfoListElement_sm_dlInfoListBuffered
 HARQ retx buffered. More...

LteFfrSapProviderm_ffrSapProvider
 FFR SAP provider. More...

LteFfrSapUserm_ffrSapUser
 FFR SAP user. More...

std::set< uint16_t > m_flowStatsDl
 Set of UE statistics (per RNTI basis) in downlink. More...

std::set< uint16_t > m_flowStatsUl
 Set of UE statistics (per RNTI basis) More...

bool m_harqOn
 m_harqOn when false inhibit te HARQ mechanisms (by default active) More...

uint16_t m_nextRntiUl
 RNTI of the next user to be served next scheduling in UL. More...

std::map< uint16_t, uint8_t > m_p10CqiRxed
 Map of UE's DL CQI P01 received. More...

std::map< uint16_t, uint32_t > m_p10CqiTimers
 Map of UE's timers on DL CQI P01 received. More...

std::vector< uint16_t > m_rachAllocationMap
 RACH allocation map. More...

std::vector< struct RachListElement_sm_rachList
 RACH list. More...

std::map< LteFlowId_t, FfMacSchedSapProvider::SchedDlRlcBufferReqParametersm_rlcBufferReq
 Vectors of UE's LC info. More...

FfMacSchedSapProviderm_schedSapProvider
 Sched SAP provider. More...

FfMacSchedSapUserm_schedSapUser
 Sched SAP user. More...

std::map< uint16_t, std::vector< double > > m_ueCqi
 Map of UEs' UL-CQI per RBG. More...

std::map< uint16_t, uint32_t > m_ueCqiTimers
 Map of UEs' timers on UL-CQI per RBG. More...

std::map< uint16_t, uint8_t > m_uesTxMode
 txMode of the UEs More...

uint8_t m_ulGrantMcs
 MCS for UL grant (default 0) More...

std::map< uint16_t, uint8_t > m_ulHarqCurrentProcessId
 UL HARQ current process ID. More...

std::map< uint16_t, UlHarqProcessesDciBuffer_tm_ulHarqProcessesDciBuffer
 UL HARQ process DCI buffer. More...

std::map< uint16_t, UlHarqProcessesStatus_tm_ulHarqProcessesStatus
 UL HARQ process status. More...


Friends

class MemberCschedSapProvider< TtaFfMacScheduler >
 allow MemberCschedSapProvider<TtaFfMacScheduler> class friend access More...

class MemberSchedSapProvider< TtaFfMacScheduler >
 allow MemberSchedSapProvider<TtaFfMacScheduler> class friend access More...


Additional Inherited Members

- Public Types inherited from ns3::FfMacScheduler
enum  UlCqiFilter_t { SRS_UL_CQI, PUSCH_UL_CQI, ALL_UL_CQI }
 The type of UL CQI to be filtered (ALL means accept all the CQI, where a new CQI of any type overwrite the old one, even of another type) More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...

- Protected Attributes inherited from ns3::FfMacScheduler
UlCqiFilter_t m_ulCqiFilter
 UL CQI filter. More...


Detailed Description

Implements the SCHED SAP and CSCHED SAP for a Throughput to Average scheduler.

This class implements the interface defined by the FfMacScheduler abstract class

Config Paths

ns3::TtaFfMacScheduler is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/ComponentCarrierMap/[i]/FfMacScheduler/$ns3::TtaFfMacScheduler"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/ComponentCarrierMap/[i]/FfMacScheduler/$ns3::TtaFfMacScheduler"

Attributes

  • CqiTimerThreshold: The number of TTIs a CQI is valid (default 1000 - 1 sec.)
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 1000
    • Flags: construct write read
  • HarqEnabled: Activate/Deactivate the HARQ [by default is active].
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • UlGrantMcs: The MCS of the UL grant, must be [0..15] (default 0)
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:255
    • Initial value: 0
    • Flags: construct write read

Attributes defined in parent class ns3::FfMacScheduler

  • UlCqiFilter: The filter to apply on UL CQIs received
    • Set with class: ns3::EnumValue
    • Underlying type:
    • Initial value: ALL_UL_CQI
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 1344 bytes (on a 64-bit architecture).

Definition at line 64 of file tta-ff-mac-scheduler.h.

Constructor & Destructor Documentation

ns3::TtaFfMacScheduler::TtaFfMacScheduler ( )

Constructor.

Creates the MAC Scheduler interface implementation

Definition at line 51 of file tta-ff-mac-scheduler.cc.

References m_amc, m_cschedSapProvider, and m_schedSapProvider.

ns3::TtaFfMacScheduler::~TtaFfMacScheduler ( )
virtual

Destructor.

Definition at line 61 of file tta-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::TtaFfMacScheduler::DoDispose ( void  )
virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::FfMacScheduler.

Definition at line 67 of file tta-ff-mac-scheduler.cc.

References m_cschedSapProvider, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesTimer, m_dlInfoListBuffered, m_schedSapProvider, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

void ns3::TtaFfMacScheduler::DoSchedDlCqiInfoReq ( const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters params)
private

Sched DL CQI info request function.

Parameters
paramsFfMacCschedSapProvider::SchedDlCqiInfoReqParameters

Definition at line 1172 of file tta-ff-mac-scheduler.cc.

References ns3::CqiListElement_s::A30, m_a30CqiRxed, m_a30CqiTimers, ns3::FfMacSchedSapProvider::SchedDlCqiInfoReqParameters::m_cqiList, m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC(), and ns3::CqiListElement_s::P10.

+ Here is the call graph for this function:

void ns3::TtaFfMacScheduler::DoSchedDlMacBufferReq ( const struct FfMacSchedSapProvider::SchedDlMacBufferReqParameters params)
private

Sched DL MAC buffer request function.

Parameters
paramsFfMacCschedSapProvider::SchedDlMacBufferReqParameters

Definition at line 316 of file tta-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

void ns3::TtaFfMacScheduler::DoSchedDlPagingBufferReq ( const struct FfMacSchedSapProvider::SchedDlPagingBufferReqParameters params)
private

Sched DL paging buffer request function.

Parameters
paramsFfMacCschedSapProvider::SchedDlPagingBufferReqParameters

Definition at line 308 of file tta-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

void ns3::TtaFfMacScheduler::DoSchedDlRachInfoReq ( const struct FfMacSchedSapProvider::SchedDlRachInfoReqParameters params)
private

Sched DL RACH info request function.

Parameters
paramsFfMacCschedSapProvider::SchedDlRachInfoReqParameters

Definition at line 1162 of file tta-ff-mac-scheduler.cc.

References ns3::FfMacSchedSapProvider::SchedDlRachInfoReqParameters::m_rachList, m_rachList, and NS_LOG_FUNCTION.

void ns3::TtaFfMacScheduler::DoSchedDlTriggerReq ( const struct FfMacSchedSapProvider::SchedDlTriggerReqParameters params)
private

Sched DL trigger request function.

Parameters
paramsFfMacCschedSapProvider::SchedDlTriggerReqParameters
Todo:
check correct value according the DCIs txed

Definition at line 469 of file tta-ff-mac-scheduler.cc.

References GetRbgSize(), HARQ_PROC_NUM, HarqProcessAvailability(), LcActivePerFlow(), m_a30CqiRxed, ns3::UlDciListElement_s::m_aggrLevel, m_amc, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_buildDataList, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_buildRarList, ns3::UlDciListElement_s::m_cceIndex, ns3::UlDciListElement_s::m_cqiRequest, m_cschedCellConfig, ns3::UlDciListElement_s::m_dai, ns3::BuildDataListElement_s::m_dci, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_dlBandwidth, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, ns3::FfMacSchedSapProvider::SchedDlTriggerReqParameters::m_dlInfoList, m_dlInfoListBuffered, m_flowStatsDl, ns3::UlDciListElement_s::m_freqHopping, m_harqOn, ns3::DlDciListElement_s::m_harqProcess, ns3::UlDciListElement_s::m_hopping, ns3::RlcPduListElement_s::m_logicalChannelIdentity, ns3::DlDciListElement_s::m_mcs, ns3::UlDciListElement_s::m_mcs, ns3::UlDciListElement_s::m_n2Dmrs, ns3::DlDciListElement_s::m_ndi, ns3::UlDciListElement_s::m_ndi, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_nrOfPdcchOfdmSymbols, m_p10CqiRxed, ns3::UlDciListElement_s::m_pdcchPowerOffset, m_rachAllocationMap, m_rachList, ns3::DlDciListElement_s::m_rbBitmap, ns3::UlDciListElement_s::m_rbLen, ns3::UlDciListElement_s::m_rbStart, ns3::DlDciListElement_s::m_resAlloc, m_rlcBufferReq, ns3::BuildDataListElement_s::m_rlcPduList, ns3::DlDciListElement_s::m_rnti, ns3::UlDciListElement_s::m_rnti, ns3::BuildDataListElement_s::m_rnti, ns3::BuildRarListElement_s::m_rnti, ns3::DlDciListElement_s::m_rv, m_schedSapUser, ns3::FfMacSchedSapProvider::SchedDlTriggerReqParameters::m_sfnSf, ns3::RlcPduListElement_s::m_size, ns3::UlDciListElement_s::m_tbSize, ns3::DlDciListElement_s::m_tbsSize, ns3::DlDciListElement_s::m_tpc, ns3::UlDciListElement_s::m_tpc, m_uesTxMode, ns3::UlDciListElement_s::m_ueTxAntennaSelection, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, m_ulGrantMcs, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, ns3::UlDciListElement_s::m_ulIndex, ns3::DlInfoListElement_s::NACK, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, RefreshDlCqiMaps(), RefreshHarqProcesses(), ns3::FfMacSchedSapUser::SchedDlConfigInd(), ns3::TransmissionModesLayers::TxMode2LayerNum(), UpdateDlRlcBufferInfo(), and UpdateHarqProcessId().

+ Here is the call graph for this function:

void ns3::TtaFfMacScheduler::DoSchedUlMacCtrlInfoReq ( const struct FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters params)
private

Sched UL MAC control info request function.

Parameters
paramsFfMacCschedSapProvider::SchedUlMacCtrlInfoReqParameters

Definition at line 1638 of file tta-ff-mac-scheduler.cc.

References ns3::MacCeListElement_s::BSR, ns3::BufferSizeLevelBsr::BsrId2BufferSize(), m_ceBsrRxed, ns3::FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters::m_macCeList, NS_LOG_FUNCTION, and NS_LOG_LOGIC().

+ Here is the call graph for this function:

void ns3::TtaFfMacScheduler::DoSchedUlNoiseInterferenceReq ( const struct FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters params)
private

Sched UL noise interference request function.

Parameters
paramsFfMacCschedSapProvider::SchedUlNoiseInterferenceReqParameters

Definition at line 1624 of file tta-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

void ns3::TtaFfMacScheduler::DoSchedUlSrInfoReq ( const struct FfMacSchedSapProvider::SchedUlSrInfoReqParameters params)
private

Sched UL SR info request function.

Parameters
paramsFfMacCschedSapProvider::SchedUlSrInfoReqParameters

Definition at line 1631 of file tta-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

void ns3::TtaFfMacScheduler::DoSchedUlTriggerReq ( const struct FfMacSchedSapProvider::SchedUlTriggerReqParameters params)
private

Sched UL trigger request function.

Parameters
paramsFfMacCschedSapProvider::SchedUlTriggerReqParameters

Definition at line 1264 of file tta-ff-mac-scheduler.cc.

References EstimateUlSinr(), HARQ_PERIOD, HARQ_PROC_NUM, ns3::UlDciListElement_s::m_aggrLevel, m_allocationMaps, m_amc, ns3::UlDciListElement_s::m_cceIndex, m_ceBsrRxed, ns3::UlDciListElement_s::m_cqiRequest, m_cschedCellConfig, ns3::UlDciListElement_s::m_dai, ns3::FfMacSchedSapUser::SchedUlConfigIndParameters::m_dciList, ns3::UlDciListElement_s::m_freqHopping, m_harqOn, ns3::UlDciListElement_s::m_hopping, ns3::UlDciListElement_s::m_mcs, ns3::UlDciListElement_s::m_n2Dmrs, ns3::UlDciListElement_s::m_ndi, m_nextRntiUl, ns3::UlDciListElement_s::m_pdcchPowerOffset, m_rachAllocationMap, ns3::UlDciListElement_s::m_rbLen, ns3::UlDciListElement_s::m_rbStart, ns3::UlDciListElement_s::m_rnti, m_schedSapUser, ns3::FfMacSchedSapProvider::SchedUlTriggerReqParameters::m_sfnSf, ns3::UlDciListElement_s::m_tbSize, ns3::UlDciListElement_s::m_tpc, m_ueCqi, ns3::UlDciListElement_s::m_ueTxAntennaSelection, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, ns3::UlDciListElement_s::m_ulIndex, ns3::FfMacSchedSapProvider::SchedUlTriggerReqParameters::m_ulInfoList, NO_SINR, ns3::UlInfoListElement_s::NotOk, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, RefreshUlCqiMaps(), ns3::FfMacSchedSapUser::SchedUlConfigInd(), and UpdateUlRlcBufferInfo().

+ Here is the call graph for this function:

double ns3::TtaFfMacScheduler::EstimateUlSinr ( uint16_t  rnti,
uint16_t  rb
)
private

Estimate UL SINR function.

Parameters
rntithe RNTI
rbthe RB
Returns
the SINR

Definition at line 1233 of file tta-ff-mac-scheduler.cc.

References m_cschedCellConfig, m_ueCqi, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, and NO_SINR.

Referenced by DoSchedUlTriggerReq().

+ Here is the caller graph for this function:

FfMacCschedSapProvider * ns3::TtaFfMacScheduler::GetFfMacCschedSapProvider ( )
virtual
Returns
the Provider part of the FfMacCschedSap provided by the Scheduler

Implements ns3::FfMacScheduler.

Definition at line 122 of file tta-ff-mac-scheduler.cc.

References m_cschedSapProvider.

FfMacSchedSapProvider * ns3::TtaFfMacScheduler::GetFfMacSchedSapProvider ( )
virtual
Returns
the Provider part of the FfMacSchedSap provided by the Scheduler

Implements ns3::FfMacScheduler.

Definition at line 128 of file tta-ff-mac-scheduler.cc.

References m_schedSapProvider.

LteFfrSapUser * ns3::TtaFfMacScheduler::GetLteFfrSapUser ( )
virtual
Returns
the User part of the LteFfrSap provided by the FfrAlgorithm

Implements ns3::FfMacScheduler.

Definition at line 140 of file tta-ff-mac-scheduler.cc.

References m_ffrSapUser.

int ns3::TtaFfMacScheduler::GetRbgSize ( int  dlbandwidth)
private

Get RBG size function.

Parameters
dlbandwidththe DL bandwidth
Returns
the RBG size

Definition at line 324 of file tta-ff-mac-scheduler.cc.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

TypeId ns3::TtaFfMacScheduler::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 82 of file tta-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, m_harqOn, m_ulGrantMcs, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

uint8_t ns3::TtaFfMacScheduler::HarqProcessAvailability ( uint16_t  rnti)
private

Return the availability of free process for the RNTI specified.

Parameters
rntithe RNTI of the UE to be updated
Returns
the process id value

Definition at line 362 of file tta-ff-mac-scheduler.cc.

References HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

unsigned int ns3::TtaFfMacScheduler::LcActivePerFlow ( uint16_t  rnti)
private

LC acive per flow function.

Parameters
rntithe RNTI
Returns
the LC active per flow

Definition at line 339 of file tta-ff-mac-scheduler.cc.

References m_rlcBufferReq.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::RefreshDlCqiMaps ( void  )
private

Refresh DL CQI maps.

Definition at line 1830 of file tta-ff-mac-scheduler.cc.

References m_a30CqiRxed, m_a30CqiTimers, m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::RefreshHarqProcesses ( )
private

Refresh HARQ processes according to the timers.

Definition at line 436 of file tta-ff-mac-scheduler.cc.

References HARQ_DL_TIMEOUT, HARQ_PROC_NUM, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::RefreshUlCqiMaps ( void  )
private

Refresh UL CQI maps.

Definition at line 1883 of file tta-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, m_ueCqi, m_ueCqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.

Referenced by DoSchedUlTriggerReq().

+ Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::SetFfMacCschedSapUser ( FfMacCschedSapUser s)
virtual

set the user part of the FfMacCschedSap that this Scheduler will interact with.

Normally this part of the SAP is exported by the MAC.

Parameters
s

Implements ns3::FfMacScheduler.

Definition at line 110 of file tta-ff-mac-scheduler.cc.

References m_cschedSapUser.

void ns3::TtaFfMacScheduler::SetFfMacSchedSapUser ( FfMacSchedSapUser s)
virtual

set the user part of the FfMacSchedSap that this Scheduler will interact with.

Normally this part of the SAP is exported by the MAC.

Parameters
s

Implements ns3::FfMacScheduler.

Definition at line 116 of file tta-ff-mac-scheduler.cc.

References m_schedSapUser.

void ns3::TtaFfMacScheduler::SetLteFfrSapProvider ( LteFfrSapProvider s)
virtual

Set the Provider part of the LteFfrSap that this Scheduler will interact with.

Parameters
s

Implements ns3::FfMacScheduler.

Definition at line 134 of file tta-ff-mac-scheduler.cc.

References m_ffrSapProvider.

void ns3::TtaFfMacScheduler::TransmissionModeConfigurationUpdate ( uint16_t  rnti,
uint8_t  txMode
)

Transmission mode configuration update.

Parameters
rntithe RNTI
txModethe transmission mode

Definition at line 1990 of file tta-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapUser::CschedUeConfigUpdateInd(), m_cschedSapUser, ns3::FfMacCschedSapUser::CschedUeConfigUpdateIndParameters::m_rnti, ns3::FfMacCschedSapUser::CschedUeConfigUpdateIndParameters::m_transmissionMode, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::TtaFfMacScheduler::UpdateDlRlcBufferInfo ( uint16_t  rnti,
uint8_t  lcid,
uint16_t  size
)
private

Update DL RLC buffer info function.

Parameters
rntithe RNTI
lcidthe LCID
sizethe size

Definition at line 1913 of file tta-ff-mac-scheduler.cc.

References m_rlcBufferReq, NS_LOG_ERROR, and NS_LOG_INFO.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

uint8_t ns3::TtaFfMacScheduler::UpdateHarqProcessId ( uint16_t  rnti)
private

Update and return a new process Id for the RNTI specified.

Parameters
rntithe RNTI of the UE to be updated
Returns
the process id value

Definition at line 395 of file tta-ff-mac-scheduler.cc.

References HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, m_harqOn, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

+ Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::UpdateUlRlcBufferInfo ( uint16_t  rnti,
uint16_t  size
)
private

Update DL RLC buffer info function.

Parameters
rntithe RNTI
sizethe size

Definition at line 1965 of file tta-ff-mac-scheduler.cc.

References m_ceBsrRxed, NS_LOG_ERROR, and NS_LOG_INFO.

Referenced by DoSchedUlTriggerReq().

+ Here is the caller graph for this function:

Friends And Related Function Documentation

allow MemberCschedSapProvider<TtaFfMacScheduler> class friend access

Definition at line 98 of file tta-ff-mac-scheduler.h.

friend class MemberSchedSapProvider< TtaFfMacScheduler >
friend

allow MemberSchedSapProvider<TtaFfMacScheduler> class friend access

Definition at line 100 of file tta-ff-mac-scheduler.h.

Member Data Documentation

std::map<uint16_t,SbMeasResult_s> ns3::TtaFfMacScheduler::m_a30CqiRxed
private

Map of UE's DL CQI A30 received.

Definition at line 310 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedDlTriggerReq(), and RefreshDlCqiMaps().

std::map<uint16_t,uint32_t> ns3::TtaFfMacScheduler::m_a30CqiTimers
private

Map of UE's timers on DL CQI A30 received.

Definition at line 314 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

std::map<uint16_t, std::vector <uint16_t> > ns3::TtaFfMacScheduler::m_allocationMaps
private

Map of previous allocated UE per RBG (used to retrieve info from UL-CQI)

Definition at line 320 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), and DoSchedUlTriggerReq().

Ptr<LteAmc> ns3::TtaFfMacScheduler::m_amc
private

AMC.

Definition at line 279 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and TtaFfMacScheduler().

std::map<uint16_t,uint32_t> ns3::TtaFfMacScheduler::m_ceBsrRxed
private

Map of UE's buffer status reports received.

Definition at line 334 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeReleaseReq(), DoSchedUlMacCtrlInfoReq(), DoSchedUlTriggerReq(), and UpdateUlRlcBufferInfo().

uint32_t ns3::TtaFfMacScheduler::m_cqiTimersThreshold
private

of TTIs for which a CQI can be considered valid

Definition at line 352 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedUlCqiInfoReq(), GetTypeId(), RefreshDlCqiMaps(), and RefreshUlCqiMaps().

FfMacCschedSapProvider::CschedCellConfigReqParameters ns3::TtaFfMacScheduler::m_cschedCellConfig
private
FfMacCschedSapProvider* ns3::TtaFfMacScheduler::m_cschedSapProvider
private

CSched SAP provider.

Definition at line 339 of file tta-ff-mac-scheduler.h.

Referenced by DoDispose(), GetFfMacCschedSapProvider(), and TtaFfMacScheduler().

FfMacCschedSapUser* ns3::TtaFfMacScheduler::m_cschedSapUser
private

CSched SAP user.

Definition at line 337 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), SetFfMacCschedSapUser(), and TransmissionModeConfigurationUpdate().

std::map<uint16_t, uint8_t> ns3::TtaFfMacScheduler::m_dlHarqCurrentProcessId
private

DL HARQ current process ID.

Definition at line 361 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), HarqProcessAvailability(), and UpdateHarqProcessId().

std::map<uint16_t, DlHarqProcessesDciBuffer_t> ns3::TtaFfMacScheduler::m_dlHarqProcessesDciBuffer
private

DL HARQ process DCI buffer.

Definition at line 367 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().

std::map<uint16_t, DlHarqRlcPduListBuffer_t> ns3::TtaFfMacScheduler::m_dlHarqProcessesRlcPduListBuffer
private

DL HARQ process RLC PDU list buffer.

Definition at line 368 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().

std::map<uint16_t, DlHarqProcessesStatus_t> ns3::TtaFfMacScheduler::m_dlHarqProcessesStatus
private
std::map<uint16_t, DlHarqProcessesTimer_t> ns3::TtaFfMacScheduler::m_dlHarqProcessesTimer
private

DL HARQ process timer.

Definition at line 366 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and RefreshHarqProcesses().

std::vector<DlInfoListElement_s> ns3::TtaFfMacScheduler::m_dlInfoListBuffered
private

HARQ retx buffered.

Definition at line 369 of file tta-ff-mac-scheduler.h.

Referenced by DoDispose(), and DoSchedDlTriggerReq().

LteFfrSapProvider* ns3::TtaFfMacScheduler::m_ffrSapProvider
private

FFR SAP provider.

Definition at line 344 of file tta-ff-mac-scheduler.h.

Referenced by SetLteFfrSapProvider().

LteFfrSapUser* ns3::TtaFfMacScheduler::m_ffrSapUser
private

FFR SAP user.

Definition at line 343 of file tta-ff-mac-scheduler.h.

Referenced by GetLteFfrSapUser().

std::set<uint16_t> ns3::TtaFfMacScheduler::m_flowStatsDl
private

Set of UE statistics (per RNTI basis) in downlink.

Definition at line 290 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().

std::set<uint16_t> ns3::TtaFfMacScheduler::m_flowStatsUl
private

Set of UE statistics (per RNTI basis)

Definition at line 295 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), and DoCschedUeReleaseReq().

bool ns3::TtaFfMacScheduler::m_harqOn
private

m_harqOn when false inhibit te HARQ mechanisms (by default active)

Definition at line 360 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), GetTypeId(), and UpdateHarqProcessId().

uint16_t ns3::TtaFfMacScheduler::m_nextRntiUl
private

RNTI of the next user to be served next scheduling in UL.

Definition at line 350 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeReleaseReq(), and DoSchedUlTriggerReq().

std::map<uint16_t,uint8_t> ns3::TtaFfMacScheduler::m_p10CqiRxed
private

Map of UE's DL CQI P01 received.

Definition at line 301 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedDlTriggerReq(), and RefreshDlCqiMaps().

std::map<uint16_t,uint32_t> ns3::TtaFfMacScheduler::m_p10CqiTimers
private

Map of UE's timers on DL CQI P01 received.

Definition at line 305 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

std::vector<uint16_t> ns3::TtaFfMacScheduler::m_rachAllocationMap
private

RACH allocation map.

Definition at line 381 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

std::vector<struct RachListElement_s> ns3::TtaFfMacScheduler::m_rachList
private

RACH list.

Definition at line 380 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlRachInfoReq(), and DoSchedDlTriggerReq().

std::map<LteFlowId_t, FfMacSchedSapProvider::SchedDlRlcBufferReqParameters> ns3::TtaFfMacScheduler::m_rlcBufferReq
private
FfMacSchedSapProvider* ns3::TtaFfMacScheduler::m_schedSapProvider
private

Sched SAP provider.

Definition at line 340 of file tta-ff-mac-scheduler.h.

Referenced by DoDispose(), GetFfMacSchedSapProvider(), and TtaFfMacScheduler().

FfMacSchedSapUser* ns3::TtaFfMacScheduler::m_schedSapUser
private

Sched SAP user.

Definition at line 338 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and SetFfMacSchedSapUser().

std::map<uint16_t, std::vector <double> > ns3::TtaFfMacScheduler::m_ueCqi
private

Map of UEs' UL-CQI per RBG.

Definition at line 325 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), EstimateUlSinr(), and RefreshUlCqiMaps().

std::map<uint16_t, uint32_t> ns3::TtaFfMacScheduler::m_ueCqiTimers
private

Map of UEs' timers on UL-CQI per RBG.

Definition at line 329 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), and RefreshUlCqiMaps().

std::map<uint16_t,uint8_t> ns3::TtaFfMacScheduler::m_uesTxMode
private

txMode of the UEs

Definition at line 354 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().

uint8_t ns3::TtaFfMacScheduler::m_ulGrantMcs
private

MCS for UL grant (default 0)

Definition at line 382 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), and GetTypeId().

std::map<uint16_t, uint8_t> ns3::TtaFfMacScheduler::m_ulHarqCurrentProcessId
private

UL HARQ current process ID.

Definition at line 371 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

std::map<uint16_t, UlHarqProcessesDciBuffer_t> ns3::TtaFfMacScheduler::m_ulHarqProcessesDciBuffer
private

UL HARQ process DCI buffer.

Definition at line 376 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

std::map<uint16_t, UlHarqProcessesStatus_t> ns3::TtaFfMacScheduler::m_ulHarqProcessesStatus
private

UL HARQ process status.

Definition at line 375 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedUlTriggerReq().


The documentation for this class was generated from the following files:
