ns3::UanHeaderRcCtsGlobal Class Reference

Cycle broadcast information. More...

#include "uan-header-rc.h"

+ Inheritance diagram for ns3::UanHeaderRcCtsGlobal:

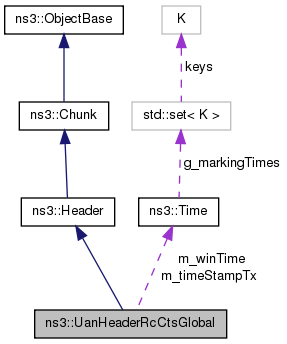

+ Collaboration diagram for ns3::UanHeaderRcCtsGlobal:

Public Member Functions

 UanHeaderRcCtsGlobal ()
 Default constructor. More...

 UanHeaderRcCtsGlobal (Time wt, Time ts, uint16_t rate, uint16_t retryRate)
 Constructor. More...

 ~UanHeaderRcCtsGlobal ()
 Destructor. More...

virtual uint32_t Deserialize (Buffer::Iterator start)

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

uint16_t GetRateNum (void) const
 Get the data rate number. More...

uint16_t GetRetryRate (void) const
 Get the retry rate number. More...

virtual uint32_t GetSerializedSize (void) const

Time GetTxTimeStamp (void) const
 Get the CTS transmit timestamp. More...

Time GetWindowTime (void) const
 Get the window time (time duration following blocking time to allow RTS transmissions). More...

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const

void SetRateNum (uint16_t rate)
 Set the rate number corresponding to data rate of current cycle. More...

void SetRetryRate (uint16_t rate)
 Set the retry rate number for the current cycle. More...

void SetTxTimeStamp (Time timeStamp)
 Set the CTS timestamp. More...

void SetWindowTime (Time t)
 Set the window time (time duration following blocking time to allow RTS transmissions). More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint16_t m_rateNum
 Rate number. More...

uint16_t m_retryRate
 Retry rate. More...

Time m_timeStampTx
 Timestamp. More...

Time m_winTime
 Window time. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Cycle broadcast information.

Introspection did not find any typical Config paths.

This includes the rate number, retry rate and window time.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 224 of file uan-header-rc.h.

Constructor & Destructor Documentation

ns3::UanHeaderRcCtsGlobal::UanHeaderRcCtsGlobal ( )

Default constructor.

Definition at line 266 of file uan-header-rc.cc.

ns3::UanHeaderRcCtsGlobal::UanHeaderRcCtsGlobal ( Time  wt,
Time  ts,
uint16_t  rate,
uint16_t  retryRate
)

Constructor.

Parameters
wtWindow time.
tsTimestamp.
rateRate number.
retryRateRetry rate value.

Definition at line 274 of file uan-header-rc.cc.

ns3::UanHeaderRcCtsGlobal::~UanHeaderRcCtsGlobal ( )

Destructor.

Definition at line 284 of file uan-header-rc.cc.

Member Function Documentation

uint32_t ns3::UanHeaderRcCtsGlobal::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 365 of file uan-header-rc.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_rateNum, m_retryRate, m_timeStampTx, m_winTime, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU32(), ns3::Seconds(), and visualizer.core::start().

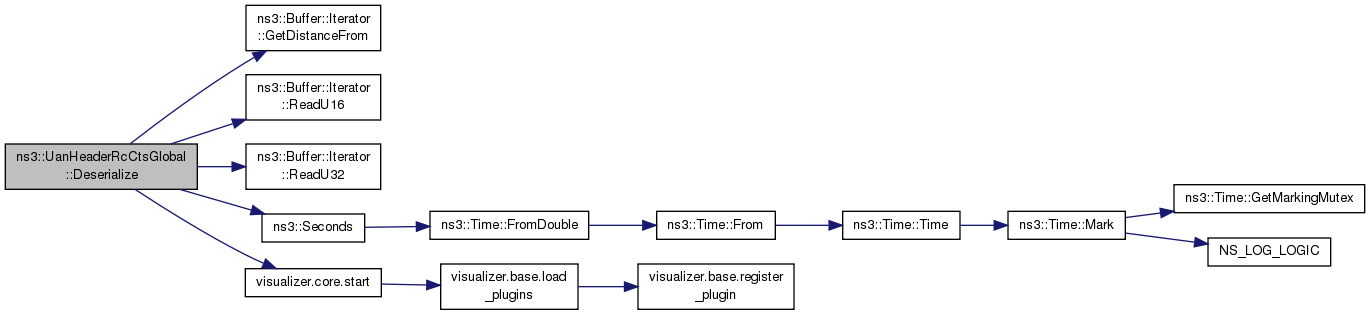

+ Here is the call graph for this function:

TypeId ns3::UanHeaderRcCtsGlobal::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 383 of file uan-header-rc.cc.

References GetTypeId().

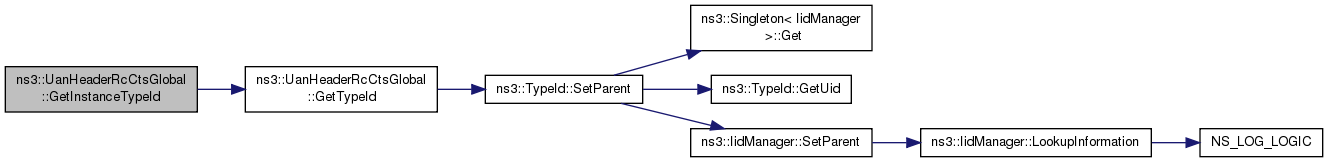

+ Here is the call graph for this function:

uint16_t ns3::UanHeaderRcCtsGlobal::GetRateNum ( void  ) const

Get the data rate number.

Returns
The rate number.

Definition at line 345 of file uan-header-rc.cc.

References m_rateNum.

Referenced by ns3::UanMacRc::ReceiveOkFromPhy().

+ Here is the caller graph for this function:

uint16_t ns3::UanHeaderRcCtsGlobal::GetRetryRate ( void  ) const

Get the retry rate number.

Returns
The retry rate number.

Definition at line 339 of file uan-header-rc.cc.

References m_retryRate.

Referenced by ns3::UanMacRc::ReceiveOkFromPhy().

+ Here is the caller graph for this function:

uint32_t ns3::UanHeaderRcCtsGlobal::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 350 of file uan-header-rc.cc.

Referenced by ns3::UanMacRc::UanMacRc(), and ns3::UanMacRcGw::UanMacRcGw().

+ Here is the caller graph for this function:

Time ns3::UanHeaderRcCtsGlobal::GetTxTimeStamp ( void  ) const

Get the CTS transmit timestamp.

Returns
The timestamp.

Definition at line 333 of file uan-header-rc.cc.

References m_timeStampTx.

Referenced by ns3::UanMacRc::ScheduleData().

+ Here is the caller graph for this function:

TypeId ns3::UanHeaderRcCtsGlobal::GetTypeId ( void  )
static

Register this type.

Returns
The TypeId.

Definition at line 290 of file uan-header-rc.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

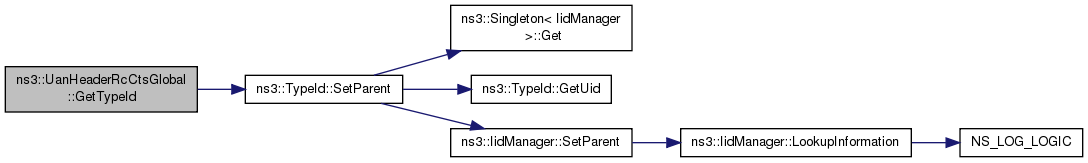

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Time ns3::UanHeaderRcCtsGlobal::GetWindowTime ( void  ) const

Get the window time (time duration following blocking time to allow RTS transmissions).

Returns
The window time.

Definition at line 327 of file uan-header-rc.cc.

References m_winTime.

Referenced by ns3::UanMacRc::ReceiveOkFromPhy().

+ Here is the caller graph for this function:

void ns3::UanHeaderRcCtsGlobal::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 377 of file uan-header-rc.cc.

References ns3::Time::GetSeconds(), m_rateNum, m_retryRate, m_timeStampTx, and m_winTime.

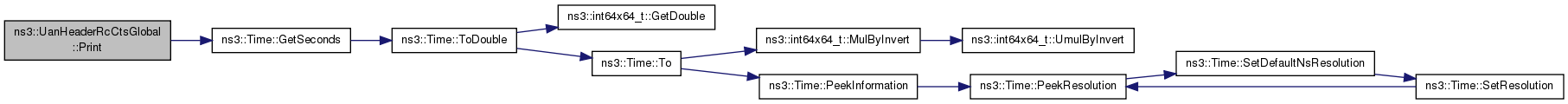

+ Here is the call graph for this function:

void ns3::UanHeaderRcCtsGlobal::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 356 of file uan-header-rc.cc.

References ns3::Time::GetSeconds(), m_rateNum, m_retryRate, m_timeStampTx, m_winTime, ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU32().

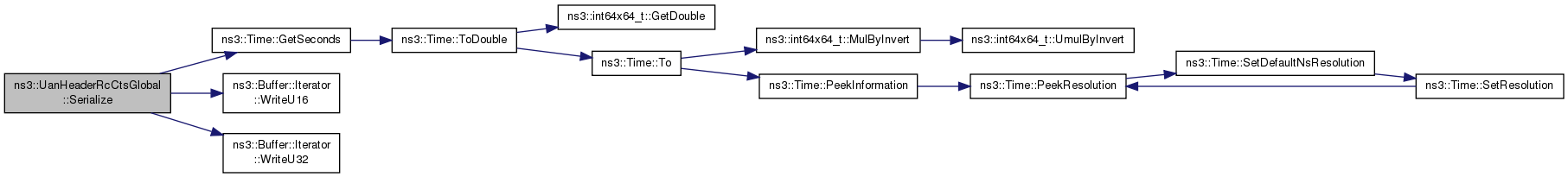

+ Here is the call graph for this function:

void ns3::UanHeaderRcCtsGlobal::SetRateNum ( uint16_t  rate)

Set the rate number corresponding to data rate of current cycle.

Parameters
rateThe rate number.

Definition at line 303 of file uan-header-rc.cc.

References m_rateNum.

Referenced by ns3::UanMacRcGw::StartCycle().

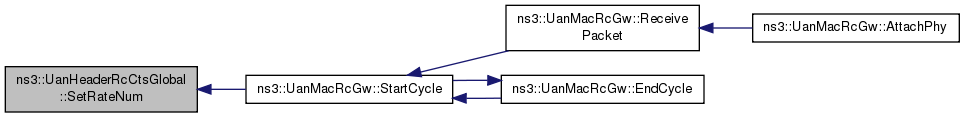

+ Here is the caller graph for this function:

void ns3::UanHeaderRcCtsGlobal::SetRetryRate ( uint16_t  rate)

Set the retry rate number for the current cycle.

Parameters
rateThe retry rate number

Definition at line 309 of file uan-header-rc.cc.

References m_retryRate.

Referenced by ns3::UanMacRcGw::StartCycle().

+ Here is the caller graph for this function:

void ns3::UanHeaderRcCtsGlobal::SetTxTimeStamp ( Time  timeStamp)

Set the CTS timestamp.

Parameters
timeStampThe time of CTS transmission.

Definition at line 321 of file uan-header-rc.cc.

References m_timeStampTx.

Referenced by ns3::UanMacRcGw::StartCycle().

+ Here is the caller graph for this function:

void ns3::UanHeaderRcCtsGlobal::SetWindowTime ( Time  t)

Set the window time (time duration following blocking time to allow RTS transmissions).

Parameters
tThe window time.

Definition at line 315 of file uan-header-rc.cc.

References m_winTime.

Referenced by ns3::UanMacRcGw::StartCycle().

+ Here is the caller graph for this function:

Member Data Documentation

uint16_t ns3::UanHeaderRcCtsGlobal::m_rateNum
private

Rate number.

Definition at line 309 of file uan-header-rc.h.

Referenced by Deserialize(), GetRateNum(), Print(), Serialize(), and SetRateNum().

uint16_t ns3::UanHeaderRcCtsGlobal::m_retryRate
private

Retry rate.

Definition at line 308 of file uan-header-rc.h.

Referenced by Deserialize(), GetRetryRate(), Print(), Serialize(), and SetRetryRate().

Time ns3::UanHeaderRcCtsGlobal::m_timeStampTx
private

Timestamp.

Definition at line 306 of file uan-header-rc.h.

Referenced by Deserialize(), GetTxTimeStamp(), Print(), Serialize(), and SetTxTimeStamp().

Time ns3::UanHeaderRcCtsGlobal::m_winTime
private

Window time.

Definition at line 307 of file uan-header-rc.h.

Referenced by Deserialize(), GetWindowTime(), Print(), Serialize(), and SetWindowTime().


The documentation for this class was generated from the following files:
