ns3::VendorSpecificActionHeader Class Reference

See IEEE 802.11-2007 chapter 7.3.1.11 and 7.4.5 also IEEE 802.11p-2010 chapter 7.4.5 Although WifiActionHeader has been defined in wifi mgt-header.h/.cc, it is not a good way to inherit from it or add vendor specific action support. More...

#include "vendor-specific-action.h"

+ Inheritance diagram for ns3::VendorSpecificActionHeader:

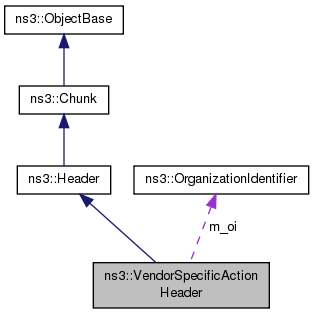

+ Collaboration diagram for ns3::VendorSpecificActionHeader:

Public Member Functions

 VendorSpecificActionHeader (void)

virtual ~VendorSpecificActionHeader (void)

virtual uint32_t Deserialize (Buffer::Iterator start)

uint8_t GetCategory (void) const
 the category field shall be CATEGORY_OF_VSA More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

OrganizationIdentifier GetOrganizationIdentifier (void) const

virtual uint32_t GetSerializedSize (void) const

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const

void SetOrganizationIdentifier (OrganizationIdentifier oi)

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint8_t m_category
 category More...

OrganizationIdentifier m_oi
 OI. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

See IEEE 802.11-2007 chapter 7.3.1.11 and 7.4.5 also IEEE 802.11p-2010 chapter 7.4.5 Although WifiActionHeader has been defined in wifi mgt-header.h/.cc, it is not a good way to inherit from it or add vendor specific action support.

Introspection did not find any typical Config paths.

The reason is Action field. Other Action frames contains Action field, and the VSA frame contains OUI or variable OrganizationIdentifier instead of one byte Action field. Header format: | Category | Organization IdentifierType | Vendor Specific content | Octets: 1 j Variable

In ns-3, VSA frame will be divided into VendorSpecificActionHeader vsaHeader and Packet vsc that indicates vendor specific content.

This frame is used by IEEE 1609.4 to send WSA packet of IEEE 1609.3, and if users want to send management information without customized management frames, he can use VSA frames.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 154 of file vendor-specific-action.h.

Constructor & Destructor Documentation

ns3::VendorSpecificActionHeader::VendorSpecificActionHeader ( void  )

Definition at line 249 of file vendor-specific-action.cc.

References NS_LOG_FUNCTION.

ns3::VendorSpecificActionHeader::~VendorSpecificActionHeader ( void  )
virtual

Definition at line 256 of file vendor-specific-action.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::VendorSpecificActionHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 327 of file vendor-specific-action.cc.

References ns3::CATEGORY_OF_VSA, ns3::OrganizationIdentifier::Deserialize(), GetSerializedSize(), m_category, m_oi, NS_LOG_FUNCTION, and ns3::Buffer::Iterator::ReadU8().

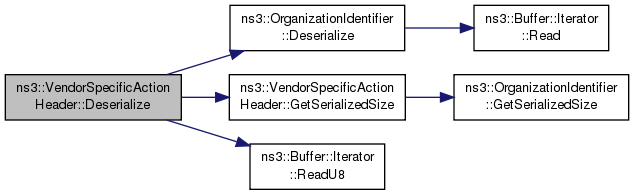

+ Here is the call graph for this function:

uint8_t ns3::VendorSpecificActionHeader::GetCategory ( void  ) const

the category field shall be CATEGORY_OF_VSA

Definition at line 288 of file vendor-specific-action.cc.

References m_category, and NS_LOG_FUNCTION.

Referenced by ns3::OcbWifiMac::Receive().

+ Here is the caller graph for this function:

TypeId ns3::VendorSpecificActionHeader::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 295 of file vendor-specific-action.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

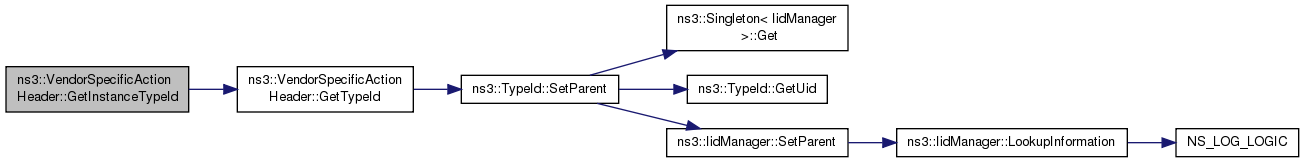

+ Here is the call graph for this function:

OrganizationIdentifier ns3::VendorSpecificActionHeader::GetOrganizationIdentifier ( void  ) const
Returns
current OrganizationIdentifier of the VSA header

Definition at line 269 of file vendor-specific-action.cc.

References m_oi, and NS_LOG_FUNCTION.

Referenced by ns3::OcbWifiMac::Receive().

+ Here is the caller graph for this function:

uint32_t ns3::VendorSpecificActionHeader::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 312 of file vendor-specific-action.cc.

References ns3::OrganizationIdentifier::GetSerializedSize(), m_category, m_oi, and NS_LOG_FUNCTION.

Referenced by Deserialize().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

TypeId ns3::VendorSpecificActionHeader::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 276 of file vendor-specific-action.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

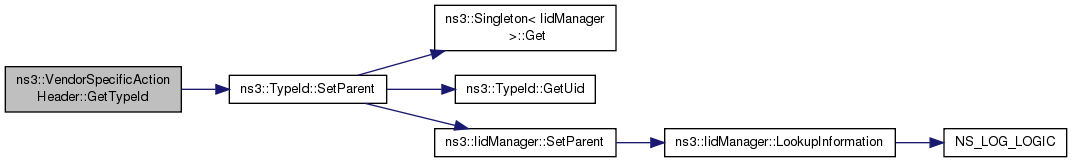

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::VendorSpecificActionHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 302 of file vendor-specific-action.cc.

References m_category, m_oi, and NS_LOG_FUNCTION.

void ns3::VendorSpecificActionHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 319 of file vendor-specific-action.cc.

References m_category, m_oi, NS_LOG_FUNCTION, ns3::OrganizationIdentifier::Serialize(), and ns3::Buffer::Iterator::WriteU8().

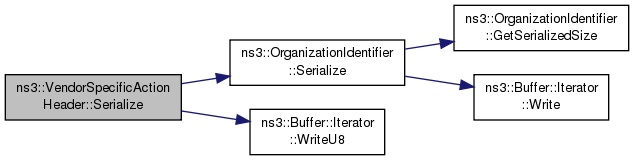

+ Here is the call graph for this function:

void ns3::VendorSpecificActionHeader::SetOrganizationIdentifier ( OrganizationIdentifier  oi)
Parameters
oithe OrganizationIdentifier of current VSA header

Definition at line 262 of file vendor-specific-action.cc.

References m_oi, and NS_LOG_FUNCTION.

Referenced by ns3::OcbWifiMac::SendVsc().

+ Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::VendorSpecificActionHeader::m_category
private

category

Definition at line 186 of file vendor-specific-action.h.

Referenced by Deserialize(), GetCategory(), GetSerializedSize(), Print(), and Serialize().

OrganizationIdentifier ns3::VendorSpecificActionHeader::m_oi
private
