ns3::WaveformGeneratorHelper Class Reference

Create a Waveform generator, which can be used to inject specific noise in the channel. More...

#include "waveform-generator-helper.h"

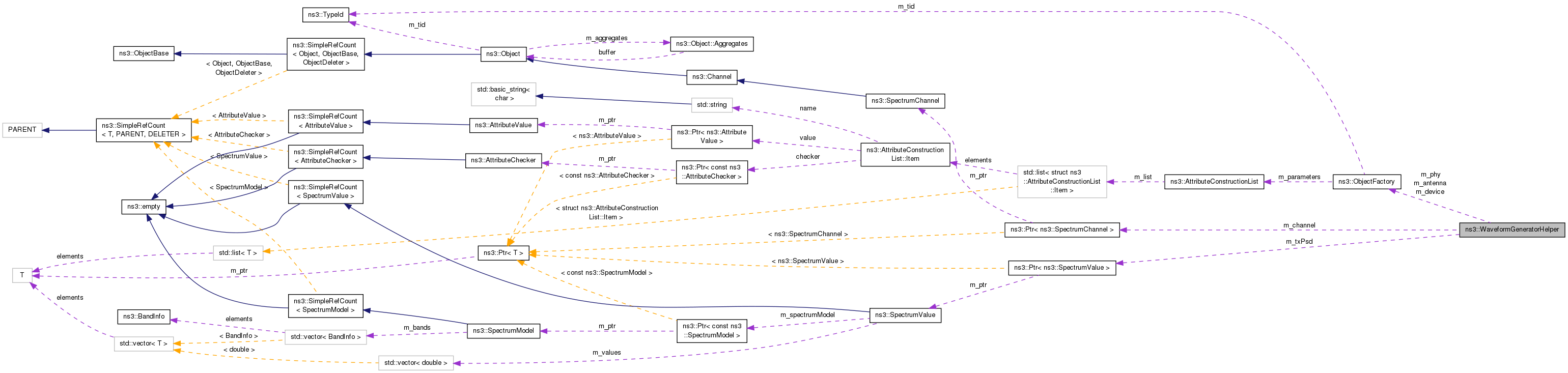

Collaboration diagram for ns3::WaveformGeneratorHelper:

Public Member Functions
	WaveformGeneratorHelper ()
	~WaveformGeneratorHelper ()
NetDeviceContainer	Install (NodeContainer c) const
NetDeviceContainer	Install (Ptr< Node > node) const
NetDeviceContainer	Install (std::string nodeName) const
void	SetAntenna (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())
void	SetChannel (Ptr< SpectrumChannel > channel)
	set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper More...
void	SetChannel (std::string channelName)
	set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper More...
void	SetDeviceAttribute (std::string n1, const AttributeValue &v1)
void	SetPhyAttribute (std::string name, const AttributeValue &v)
void	SetTxPowerSpectralDensity (Ptr< SpectrumValue > txPsd)

Protected Attributes
ObjectFactory	m_antenna
	Object factory for the Antenna objects. More...
Ptr< SpectrumChannel >	m_channel
	Channel. More...
ObjectFactory	m_device
	Object factory for the NetDevice objects. More...
ObjectFactory	m_phy
	Object factory for the phy objects. More...
Ptr< SpectrumValue >	m_txPsd
	Tx power spectral density. More...

Detailed Description

Create a Waveform generator, which can be used to inject specific noise in the channel.

Definition at line 45 of file waveform-generator-helper.h.

Constructor & Destructor Documentation

ns3::WaveformGeneratorHelper::WaveformGeneratorHelper

(

)

Definition at line 40 of file waveform-generator-helper.cc.

References m_antenna, m_device, m_phy, and ns3::ObjectFactory::SetTypeId().

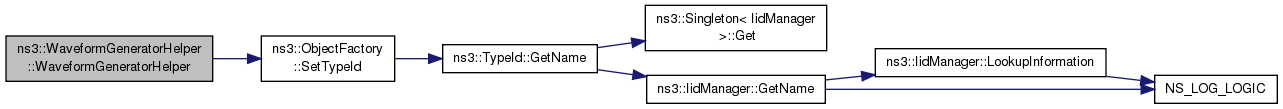

Here is the call graph for this function:

ns3::WaveformGeneratorHelper::~WaveformGeneratorHelper

(

)

Definition at line 47 of file waveform-generator-helper.cc.

Member Function Documentation

NetDeviceContainer ns3::WaveformGeneratorHelper::Install

(

NodeContainer

c

)

const

Parameters

c	the set of nodes on which a device must be created

Returns

a device container which contains all the devices created by this method.

Definition at line 110 of file waveform-generator-helper.cc.

References ns3::NetDeviceContainer::Add(), ns3::Node::AddDevice(), ns3::NodeContainer::Begin(), ns3::ObjectFactory::Create(), first::devices, ns3::NodeContainer::End(), ns3::Object::GetObject(), m_antenna, m_channel, m_device, m_phy, m_txPsd, NS_ASSERT, NS_ASSERT_MSG, and third::phy.

Referenced by Install().

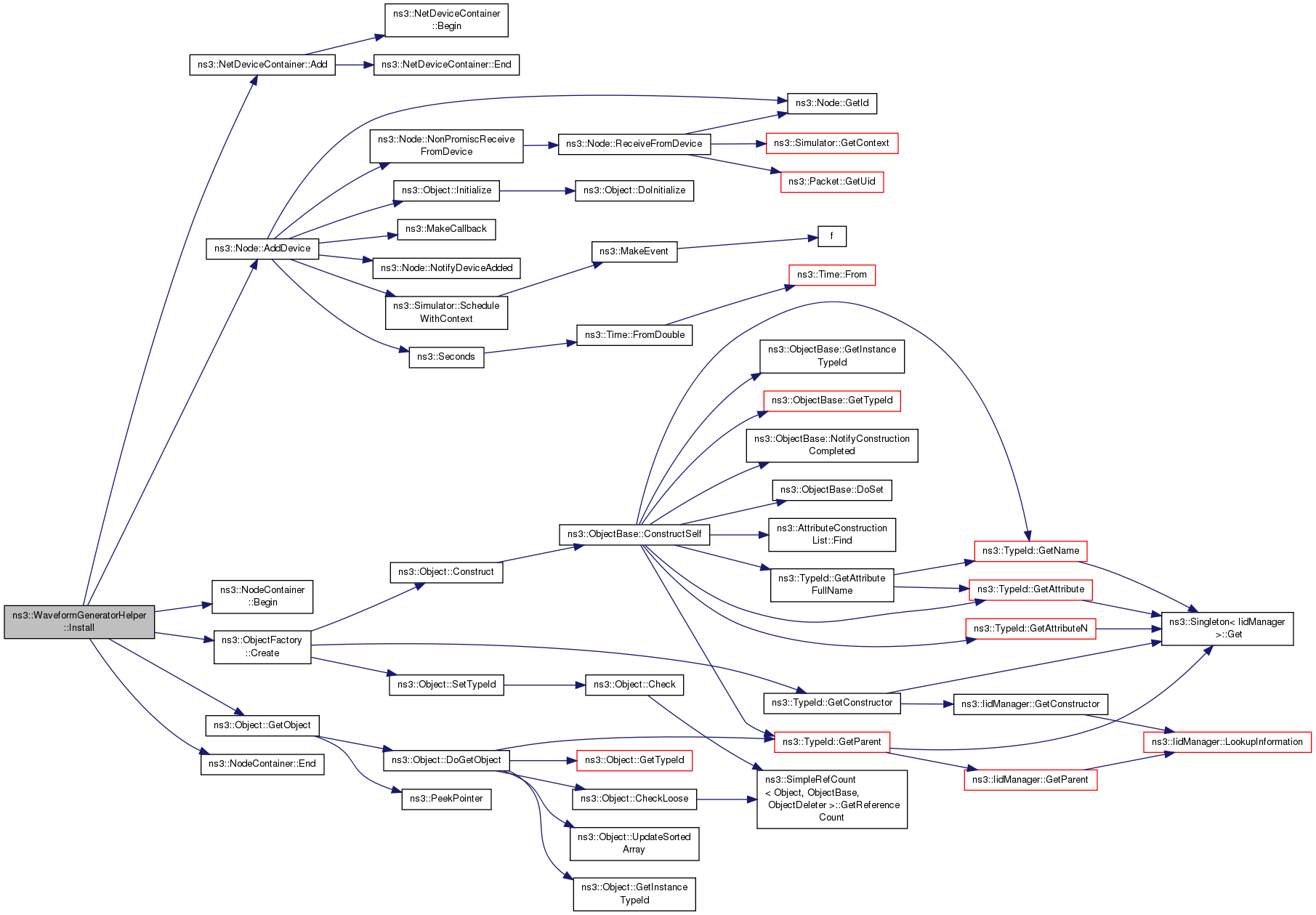

Here is the call graph for this function:

Here is the caller graph for this function:

NetDeviceContainer ns3::WaveformGeneratorHelper::Install

(

Ptr< Node >

node

)

const

Parameters

node	the node on which a device must be created

Returns

a device container which contains all the devices created by this method.

Definition at line 148 of file waveform-generator-helper.cc.

References Install().

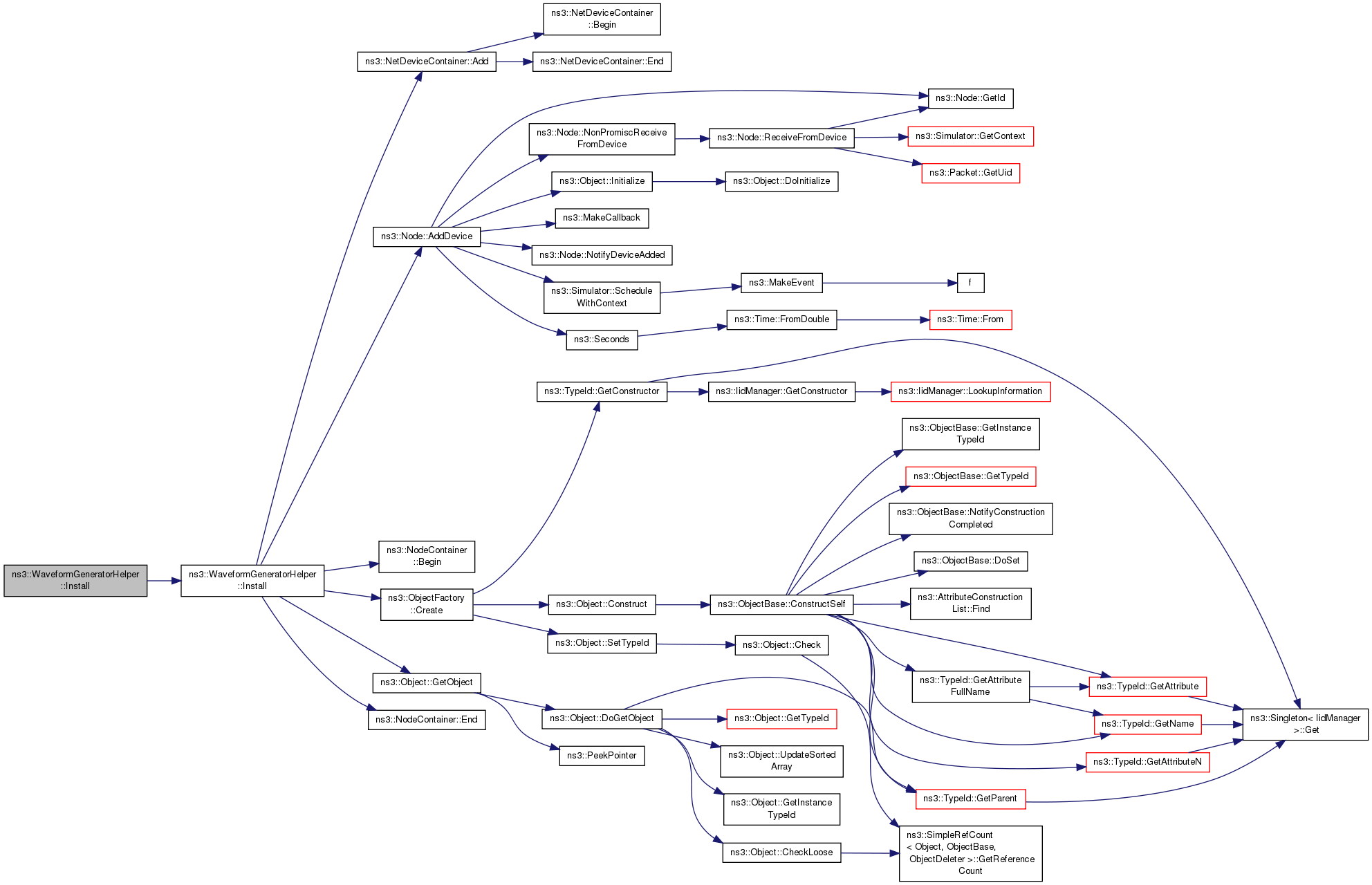

Here is the call graph for this function:

NetDeviceContainer ns3::WaveformGeneratorHelper::Install

(

std::string

nodeName

)

const

Parameters

nodeName

the name of node on which a device must be created

Returns

a device container which contains all the devices created by this method.

Definition at line 154 of file waveform-generator-helper.cc.

References Install().

Here is the call graph for this function:

void ns3::WaveformGeneratorHelper::SetAntenna	(	std::string	type,
		std::string	n0 = "",
		const AttributeValue &	v0 = EmptyAttributeValue (),
		std::string	n1 = "",
		const AttributeValue &	v1 = EmptyAttributeValue (),
		std::string	n2 = "",
		const AttributeValue &	v2 = EmptyAttributeValue (),
		std::string	n3 = "",
		const AttributeValue &	v3 = EmptyAttributeValue (),
		std::string	n4 = "",
		const AttributeValue &	v4 = EmptyAttributeValue (),
		std::string	n5 = "",
		const AttributeValue &	v5 = EmptyAttributeValue (),
		std::string	n6 = "",
		const AttributeValue &	v6 = EmptyAttributeValue (),
		std::string	n7 = "",
		const AttributeValue &	v7 = EmptyAttributeValue ()
	)

Parameters

type	the type of the model to set
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set

Configure the AntennaModel instance for each new device to be created

Definition at line 86 of file waveform-generator-helper.cc.

References m_antenna, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

void ns3::WaveformGeneratorHelper::SetChannel

(

Ptr< SpectrumChannel >

channel

)

set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper

Parameters

channel

Definition at line 52 of file waveform-generator-helper.cc.

References third::channel, and m_channel.

void ns3::WaveformGeneratorHelper::SetChannel

(

std::string

channelName

)

set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper

Parameters

channelName

Definition at line 58 of file waveform-generator-helper.cc.

References third::channel, and m_channel.

void ns3::WaveformGeneratorHelper::SetDeviceAttribute	(	std::string	n1,
		const AttributeValue &	v1
	)

Parameters

n1	the name of the attribute to set
v1	the value of the attribute to set

Set these attributes on each AlohaNoackNetDevice created

Definition at line 80 of file waveform-generator-helper.cc.

References m_device, and ns3::ObjectFactory::Set().

Here is the call graph for this function:

void ns3::WaveformGeneratorHelper::SetPhyAttribute	(	std::string	name,
		const AttributeValue &	v
	)

Parameters

name	the name of the attribute to set
v	the value of the attribute

Set these attributes on each HdOfdmSpectrumPhy instance to be created

Definition at line 73 of file waveform-generator-helper.cc.

References m_phy, and ns3::ObjectFactory::Set().

Here is the call graph for this function:

void ns3::WaveformGeneratorHelper::SetTxPowerSpectralDensity

(

Ptr< SpectrumValue >

txPsd

)

Parameters

txPsd

the Power Spectral Density to be used for transmission by all created PHY instances

Definition at line 65 of file waveform-generator-helper.cc.

References m_txPsd, and NS_LOG_FUNCTION.

Referenced by WaveformGeneratorTestCase::DoRun().

Here is the caller graph for this function:

Member Data Documentation

ObjectFactory ns3::WaveformGeneratorHelper::m_antenna

protected

Object factory for the Antenna objects.

Definition at line 140 of file waveform-generator-helper.h.

Referenced by Install(), SetAntenna(), and WaveformGeneratorHelper().

Ptr<SpectrumChannel> ns3::WaveformGeneratorHelper::m_channel

protected

Channel.

Definition at line 141 of file waveform-generator-helper.h.

Referenced by Install(), and SetChannel().

ObjectFactory ns3::WaveformGeneratorHelper::m_device

protected

Object factory for the NetDevice objects.

Definition at line 139 of file waveform-generator-helper.h.

Referenced by Install(), SetDeviceAttribute(), and WaveformGeneratorHelper().

ObjectFactory ns3::WaveformGeneratorHelper::m_phy

protected

Object factory for the phy objects.

Definition at line 138 of file waveform-generator-helper.h.

Referenced by Install(), SetPhyAttribute(), and WaveformGeneratorHelper().

Ptr<SpectrumValue> ns3::WaveformGeneratorHelper::m_txPsd

protected

Tx power spectral density.

Definition at line 142 of file waveform-generator-helper.h.

Referenced by Install(), and SetTxPowerSpectralDensity().

---

The documentation for this class was generated from the following files:

• src/spectrum/helper/waveform-generator-helper.h
• src/spectrum/helper/waveform-generator-helper.cc
