WifiMacQueueItem stores (const) packets along with their Wifi MAC headers and the time when they were enqueued. More...

#include "wifi-mac-queue.h"

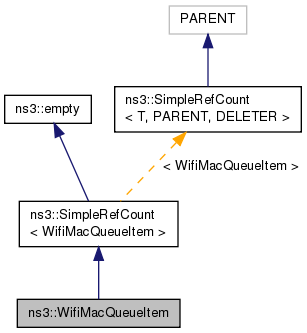

Inheritance diagram for ns3::WifiMacQueueItem:

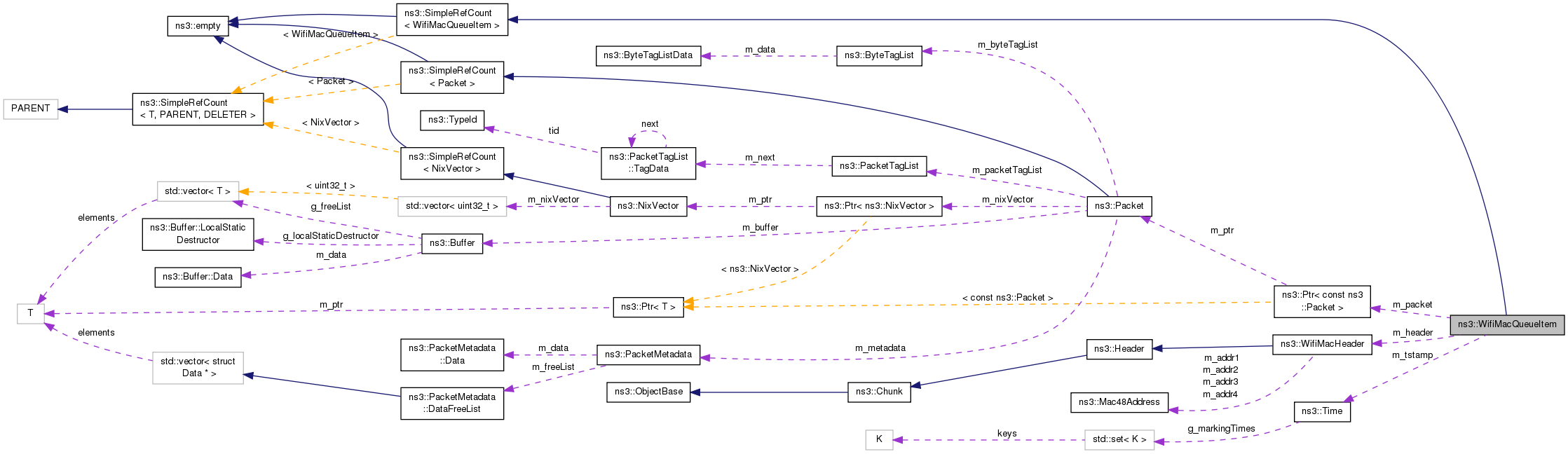

Collaboration diagram for ns3::WifiMacQueueItem:

Public Member Functions
	WifiMacQueueItem (Ptr< const Packet > p, const WifiMacHeader &header)
	Create a Wifi MAC queue item containing a packet and a Wifi MAC header. More...

virtual	~WifiMacQueueItem ()

Mac48Address	GetAddress (enum WifiMacHeader::AddressType type) const
	Return the requested address present in the header. More...

const WifiMacHeader &	GetHeader (void) const
	Get the header stored in this item. More...

Ptr< const Packet >	GetPacket (void) const
	Get the packet stored in this item. More...

uint32_t	GetSize (void) const
	Return the size of the packet included in this item. More...

Time	GetTimeStamp (void) const
	Get the timestamp included in this item. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiMacQueueItem >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Member Functions
	WifiMacQueueItem ()
	Default constructor. More...

	WifiMacQueueItem (const WifiMacQueueItem &)
	Copy constructor. More...

WifiMacQueueItem &	operator= (const WifiMacQueueItem &)
	Assignment operator. More...

Private Attributes
WifiMacHeader	m_header
	Wifi MAC header associated with the packet. More...

Ptr< const Packet >	m_packet
	The packet contained in this queue item. More...

Time	m_tstamp
	timestamp when the packet arrived at the queue More...

Detailed Description

WifiMacQueueItem stores (const) packets along with their Wifi MAC headers and the time when they were enqueued.

Definition at line 39 of file wifi-mac-queue.h.

Constructor & Destructor Documentation

ns3::WifiMacQueueItem::WifiMacQueueItem	(	Ptr< const Packet >	p,
		const WifiMacHeader &	header
	)

Create a Wifi MAC queue item containing a packet and a Wifi MAC header.

Parameters

p	the const packet included in the created item.
header	the Wifi Mac header included in the created item.

Definition at line 35 of file wifi-mac-queue.cc.

ns3::WifiMacQueueItem::~WifiMacQueueItem ( )

virtual

Definition at line 42 of file wifi-mac-queue.cc.

ns3::WifiMacQueueItem::WifiMacQueueItem ( )

private

Default constructor.

Defined and unimplemented to avoid misuse

ns3::WifiMacQueueItem::WifiMacQueueItem ( const WifiMacQueueItem & )

private

Copy constructor.

Defined and unimplemented to avoid misuse

Member Function Documentation

Mac48Address ns3::WifiMacQueueItem::GetAddress ( enum WifiMacHeader::AddressType type ) const

Return the requested address present in the header.

Parameters

type	the type of the address to return

Returns: the address

Definition at line 59 of file wifi-mac-queue.cc.

References ns3::WifiMacHeader::ADDR1, ns3::WifiMacHeader::ADDR2, ns3::WifiMacHeader::ADDR3, ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::GetAddr3(), and m_header.

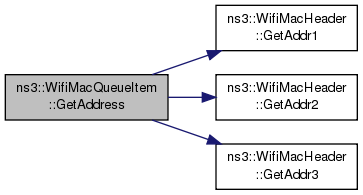

Here is the call graph for this function:

const WifiMacHeader & ns3::WifiMacQueueItem::GetHeader ( void ) const

Get the header stored in this item.

Returns: the header stored in this item.

Definition at line 53 of file wifi-mac-queue.cc.

References m_header.

Referenced by TwoLevelAggregationTest::DoRun().

Here is the caller graph for this function:

Ptr< const Packet > ns3::WifiMacQueueItem::GetPacket ( void ) const

Get the packet stored in this item.

Returns: the packet stored in this item.

Definition at line 47 of file wifi-mac-queue.cc.

References m_packet.

Referenced by TwoLevelAggregationTest::DoRun(), and WifiAcMappingTest::PacketEnqueuedInWifiMacQueue().

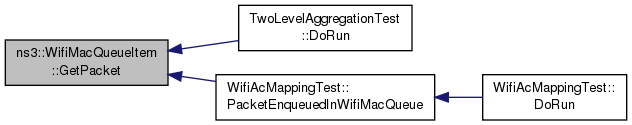

Here is the caller graph for this function:

uint32_t ns3::WifiMacQueueItem::GetSize ( void ) const

Return the size of the packet included in this item.

Returns: the size of the packet included in this item.

Definition at line 83 of file wifi-mac-queue.cc.

References ns3::WifiMacHeader::GetSerializedSize(), ns3::Packet::GetSize(), m_header, and m_packet.

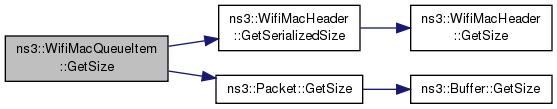

Here is the call graph for this function:

Time ns3::WifiMacQueueItem::GetTimeStamp ( void ) const

Get the timestamp included in this item.

Returns: the timestamp included in this item.

Definition at line 77 of file wifi-mac-queue.cc.

References m_tstamp.

Referenced by TwoLevelAggregationTest::DoRun().

Here is the caller graph for this function:

WifiMacQueueItem& ns3::WifiMacQueueItem::operator= ( const WifiMacQueueItem & )

private

Assignment operator.

Defined and unimplemented to avoid misuse

Returns

Member Data Documentation

WifiMacHeader ns3::WifiMacQueueItem::m_header

private

Wifi MAC header associated with the packet.

Definition at line 105 of file wifi-mac-queue.h.

Referenced by GetAddress(), GetHeader(), and GetSize().

Ptr<const Packet> ns3::WifiMacQueueItem::m_packet

private

The packet contained in this queue item.

Definition at line 104 of file wifi-mac-queue.h.

Referenced by GetPacket(), and GetSize().

Time ns3::WifiMacQueueItem::m_tstamp

private

timestamp when the packet arrived at the queue

Definition at line 106 of file wifi-mac-queue.h.

Referenced by GetTimeStamp().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-mac-queue.h
src/wifi/model/wifi-mac-queue.cc
