ns-3: ns3::WifiModeFactory Class Reference

A Discrete-Event Network Simulator

API

create WifiMode class instances and keep track of them. More...

#include "wifi-mode.h"

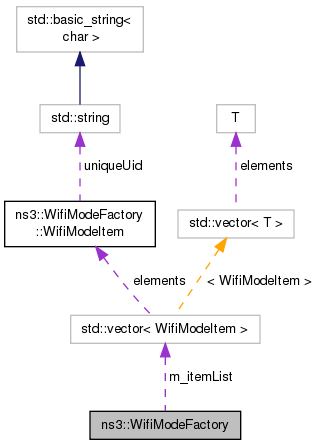

Collaboration diagram for ns3::WifiModeFactory:

Classes
struct	WifiModeItem
	This is the data associated to a unique WifiMode. More...

Static Public Member Functions
static WifiMode	CreateWifiMcs (std::string uniqueName, uint8_t mcsValue, WifiModulationClass modClass)

static WifiMode	CreateWifiMode (std::string uniqueName, WifiModulationClass modClass, bool isMandatory, WifiCodeRate codingRate, uint16_t constellationSize)

Private Types
typedef std::vector< WifiModeItem >	WifiModeItemList
	typedef for a vector of WifiModeItem. More...

Private Member Functions
	WifiModeFactory ()

uint32_t	AllocateUid (std::string uniqueUid)
	Allocate a WifiModeItem from a given uniqueUid. More...

WifiModeItem *	Get (uint32_t uid)
	Return a WifiModeItem at the given uid index. More...

WifiMode	Search (std::string name) const
	Search and return WifiMode from a given name. More...

Static Private Member Functions
static WifiModeFactory *	GetFactory ()
	Return a WifiModeFactory. More...

Private Attributes
WifiModeItemList	m_itemList
	item list More...

Friends
std::istream &	operator>> (std::istream &is, WifiMode &mode)
	Serialize WifiMode from istream (human-readable). More...

class	WifiMode
	allow WifiMode class access More...

Detailed Description

create WifiMode class instances and keep track of them.

This factory ensures that each WifiMode created has a unique name and assigns to each of them a unique integer.

Definition at line 263 of file wifi-mode.h.

Member Typedef Documentation

typedef std::vector<WifiModeItem> ns3::WifiModeFactory::WifiModeItemList

private

typedef for a vector of WifiModeItem.

Definition at line 359 of file wifi-mode.h.

Constructor & Destructor Documentation

ns3::WifiModeFactory::WifiModeFactory ( )

private

Definition at line 676 of file wifi-mode.cc.

Member Function Documentation

uint32_t ns3::WifiModeFactory::AllocateUid ( std::string uniqueUid )

private

Allocate a WifiModeItem from a given uniqueUid.

Parameters

uniqueUid

Returns: uid

Definition at line 777 of file wifi-mode.cc.

References m_itemList.

Referenced by CreateWifiMcs(), CreateWifiMode(), and GetFactory().

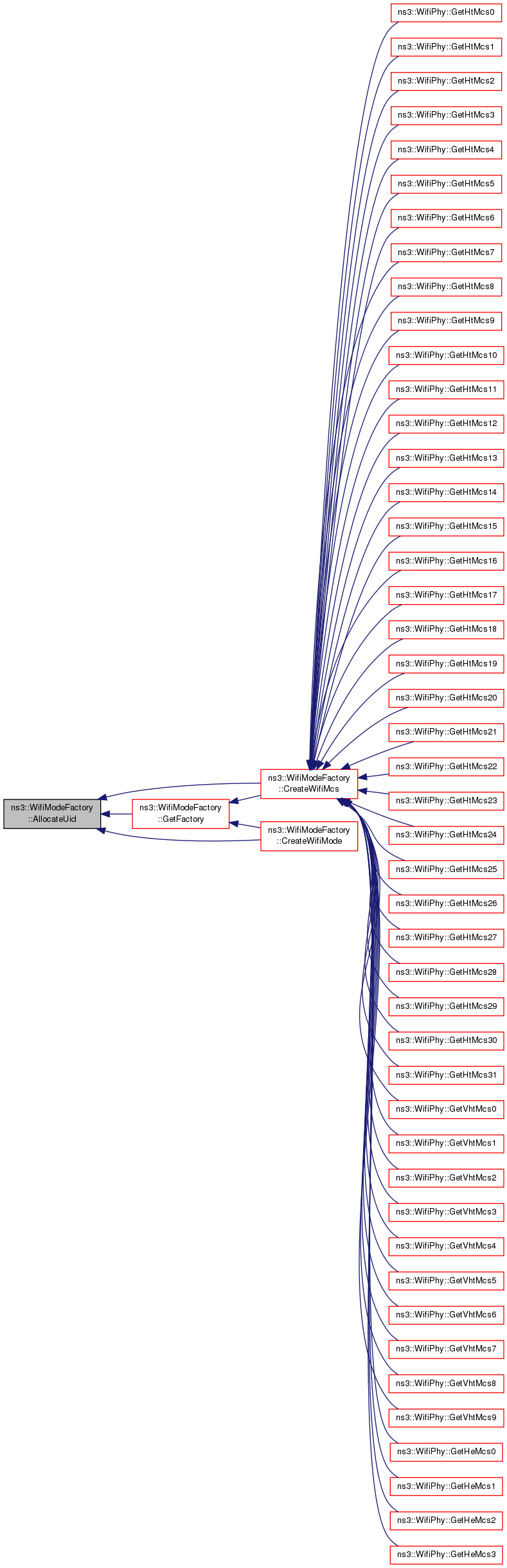

Here is the caller graph for this function:

WifiMode ns3::WifiModeFactory::CreateWifiMcs	(	std::string	uniqueName,
		uint8_t	mcsValue,
		WifiModulationClass	modClass
	)

static

Parameters

uniqueName	the name of the associated WifiMode. This name must be unique accross all instances.
mcsValue	the mcs value
modClass	the class of modulation

Returns: WifiMode

Create a HT or VHT WifiMode.

Definition at line 719 of file wifi-mode.cc.

References AllocateUid(), ns3::WifiModeFactory::WifiModeItem::codingRate, ns3::WifiModeFactory::WifiModeItem::constellationSize, Get(), GetFactory(), ns3::WifiModeFactory::WifiModeItem::isMandatory, ns3::WifiModeFactory::WifiModeItem::mcsValue, ns3::WifiModeFactory::WifiModeItem::modClass, NS_ASSERT, ns3::WifiModeFactory::WifiModeItem::uniqueUid, ns3::WIFI_CODE_RATE_UNDEFINED, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_VHT, and WifiMode.

Referenced by ns3::WifiPhy::GetHeMcs0(), ns3::WifiPhy::GetHeMcs1(), ns3::WifiPhy::GetHeMcs10(), ns3::WifiPhy::GetHeMcs11(), ns3::WifiPhy::GetHeMcs2(), ns3::WifiPhy::GetHeMcs3(), ns3::WifiPhy::GetHeMcs4(), ns3::WifiPhy::GetHeMcs5(), ns3::WifiPhy::GetHeMcs6(), ns3::WifiPhy::GetHeMcs7(), ns3::WifiPhy::GetHeMcs8(), ns3::WifiPhy::GetHeMcs9(), ns3::WifiPhy::GetHtMcs0(), ns3::WifiPhy::GetHtMcs1(), ns3::WifiPhy::GetHtMcs10(), ns3::WifiPhy::GetHtMcs11(), ns3::WifiPhy::GetHtMcs12(), ns3::WifiPhy::GetHtMcs13(), ns3::WifiPhy::GetHtMcs14(), ns3::WifiPhy::GetHtMcs15(), ns3::WifiPhy::GetHtMcs16(), ns3::WifiPhy::GetHtMcs17(), ns3::WifiPhy::GetHtMcs18(), ns3::WifiPhy::GetHtMcs19(), ns3::WifiPhy::GetHtMcs2(), ns3::WifiPhy::GetHtMcs20(), ns3::WifiPhy::GetHtMcs21(), ns3::WifiPhy::GetHtMcs22(), ns3::WifiPhy::GetHtMcs23(), ns3::WifiPhy::GetHtMcs24(), ns3::WifiPhy::GetHtMcs25(), ns3::WifiPhy::GetHtMcs26(), ns3::WifiPhy::GetHtMcs27(), ns3::WifiPhy::GetHtMcs28(), ns3::WifiPhy::GetHtMcs29(), ns3::WifiPhy::GetHtMcs3(), ns3::WifiPhy::GetHtMcs30(), ns3::WifiPhy::GetHtMcs31(), ns3::WifiPhy::GetHtMcs4(), ns3::WifiPhy::GetHtMcs5(), ns3::WifiPhy::GetHtMcs6(), ns3::WifiPhy::GetHtMcs7(), ns3::WifiPhy::GetHtMcs8(), ns3::WifiPhy::GetHtMcs9(), ns3::WifiPhy::GetVhtMcs0(), ns3::WifiPhy::GetVhtMcs1(), ns3::WifiPhy::GetVhtMcs2(), ns3::WifiPhy::GetVhtMcs3(), ns3::WifiPhy::GetVhtMcs4(), ns3::WifiPhy::GetVhtMcs5(), ns3::WifiPhy::GetVhtMcs6(), ns3::WifiPhy::GetVhtMcs7(), ns3::WifiPhy::GetVhtMcs8(), and ns3::WifiPhy::GetVhtMcs9().

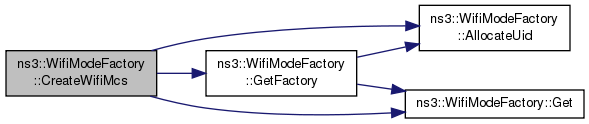

Here is the call graph for this function:

WifiMode ns3::WifiModeFactory::CreateWifiMode	(	std::string	uniqueName,
		WifiModulationClass	modClass,
		bool	isMandatory,
		WifiCodeRate	codingRate,
		uint16_t	constellationSize
	)

static

Parameters

uniqueName	the name of the associated WifiMode. This name must be unique accross all instances.
modClass	the class of modulation
isMandatory	true if this WifiMode is mandatory, false otherwise.
codingRate	if convolutional coding is used for this rate then this parameter specifies the convolutional coding rate used. If there is no explicit convolutional coding step (e.g., for DSSS rates) then the caller should set this parameter to WIFI_CODE_RATE_UNCODED.
constellationSize	the order of the constellation used.

Returns: WifiMode

Create a WifiMode (not used for HT or VHT).

Definition at line 681 of file wifi-mode.cc.

References AllocateUid(), ns3::WifiModeFactory::WifiModeItem::codingRate, ns3::WifiModeFactory::WifiModeItem::constellationSize, Get(), GetFactory(), ns3::WifiModeFactory::WifiModeItem::isMandatory, ns3::WifiModeFactory::WifiModeItem::mcsValue, ns3::WifiModeFactory::WifiModeItem::modClass, NS_ASSERT, NS_FATAL_ERROR, ns3::WifiModeFactory::WifiModeItem::uniqueUid, ns3::WIFI_CODE_RATE_UNDEFINED, ns3::WIFI_MOD_CLASS_DSSS, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HR_DSSS, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_UNKNOWN, ns3::WIFI_MOD_CLASS_VHT, and WifiMode.

Referenced by ns3::WifiPhy::GetDsssRate11Mbps(), ns3::WifiPhy::GetDsssRate1Mbps(), ns3::WifiPhy::GetDsssRate2Mbps(), ns3::WifiPhy::GetDsssRate5_5Mbps(), ns3::WifiPhy::GetErpOfdmRate12Mbps(), ns3::WifiPhy::GetErpOfdmRate18Mbps(), ns3::WifiPhy::GetErpOfdmRate24Mbps(), ns3::WifiPhy::GetErpOfdmRate36Mbps(), ns3::WifiPhy::GetErpOfdmRate48Mbps(), ns3::WifiPhy::GetErpOfdmRate54Mbps(), ns3::WifiPhy::GetErpOfdmRate6Mbps(), ns3::WifiPhy::GetErpOfdmRate9Mbps(), ns3::WifiPhy::GetOfdmRate12Mbps(), ns3::WifiPhy::GetOfdmRate12MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate12MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate13_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate18Mbps(), ns3::WifiPhy::GetOfdmRate18MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate1_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate24Mbps(), ns3::WifiPhy::GetOfdmRate24MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate27MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate2_25MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate36Mbps(), ns3::WifiPhy::GetOfdmRate3MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate3MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate48Mbps(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate4_5MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate54Mbps(), ns3::WifiPhy::GetOfdmRate6Mbps(), ns3::WifiPhy::GetOfdmRate6MbpsBW10MHz(), ns3::WifiPhy::GetOfdmRate6MbpsBW5MHz(), ns3::WifiPhy::GetOfdmRate9Mbps(), ns3::WifiPhy::GetOfdmRate9MbpsBW10MHz(), and ns3::WifiPhy::GetOfdmRate9MbpsBW5MHz().

Here is the call graph for this function:

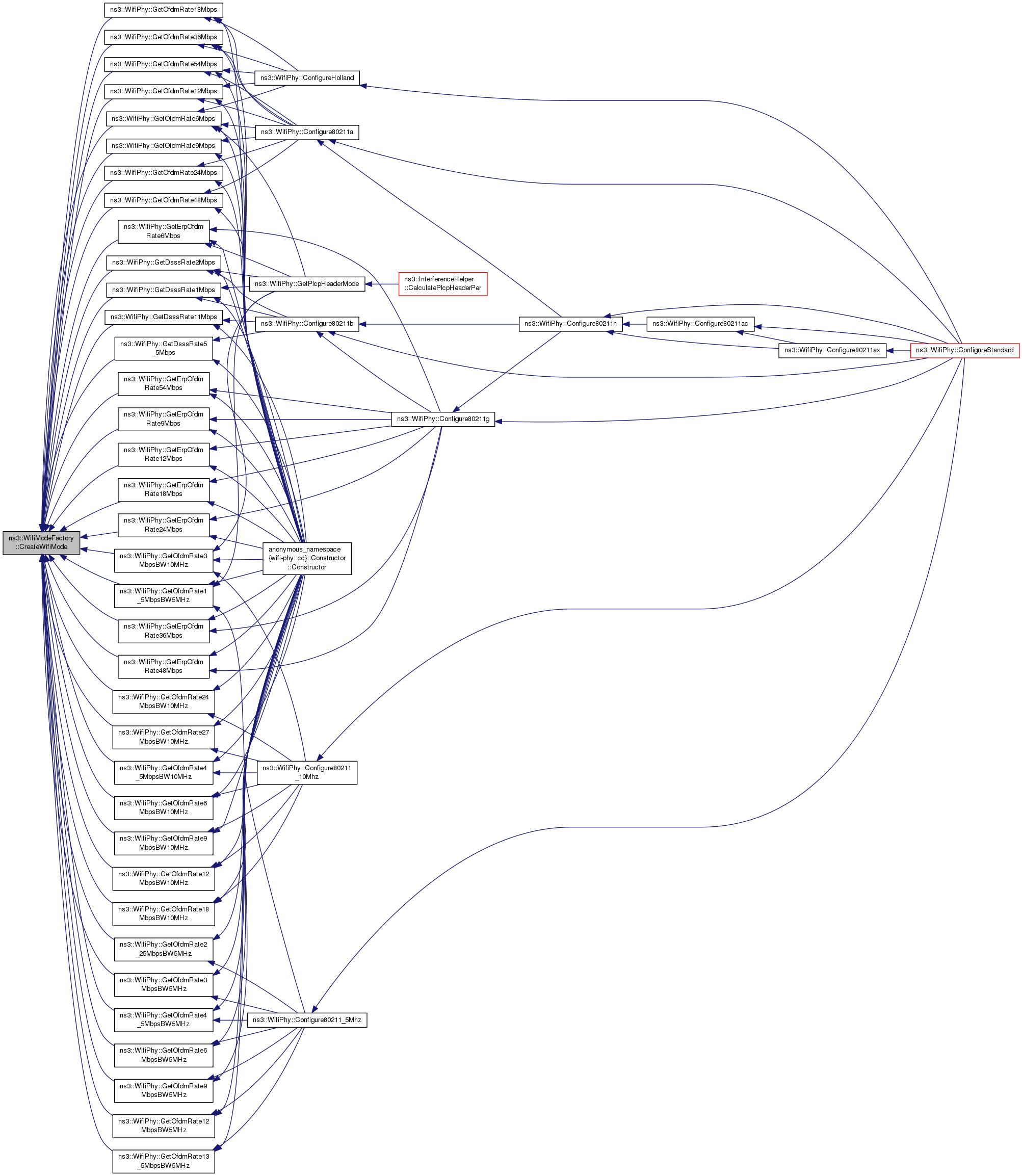

Here is the caller graph for this function:

WifiModeFactory::WifiModeItem * ns3::WifiModeFactory::Get ( uint32_t uid )

private

Return a WifiModeItem at the given uid index.

Parameters

uid

Returns: WifiModeItem at the given uid

Definition at line 795 of file wifi-mode.cc.

References m_itemList, and NS_ASSERT.

Referenced by CreateWifiMcs(), CreateWifiMode(), ns3::WifiMode::GetCodeRate(), ns3::WifiMode::GetConstellationSize(), ns3::WifiMode::GetDataRate(), GetFactory(), ns3::WifiMode::GetMcsValue(), ns3::WifiMode::GetModulationClass(), ns3::WifiMode::GetNonHtReferenceRate(), ns3::WifiMode::GetUniqueName(), ns3::WifiMode::IsAllowed(), ns3::WifiMode::IsHigherDataRate(), and ns3::WifiMode::IsMandatory().

Here is the caller graph for this function:

WifiModeFactory * ns3::WifiModeFactory::GetFactory ( void )

staticprivate

Return a WifiModeFactory.

Returns: a WifiModeFactory

Definition at line 802 of file wifi-mode.cc.

References AllocateUid(), ns3::WifiModeFactory::WifiModeItem::codingRate, ns3::WifiModeFactory::WifiModeItem::constellationSize, Get(), ns3::WifiModeFactory::WifiModeItem::isMandatory, ns3::WifiModeFactory::WifiModeItem::mcsValue, ns3::WifiModeFactory::WifiModeItem::modClass, ns3::WifiModeFactory::WifiModeItem::uniqueUid, ns3::WIFI_CODE_RATE_UNDEFINED, and ns3::WIFI_MOD_CLASS_UNKNOWN.

Referenced by CreateWifiMcs(), CreateWifiMode(), ns3::WifiMode::GetCodeRate(), ns3::WifiMode::GetConstellationSize(), ns3::WifiMode::GetDataRate(), ns3::WifiMode::GetMcsValue(), ns3::WifiMode::GetModulationClass(), ns3::WifiMode::GetNonHtReferenceRate(), ns3::WifiMode::GetUniqueName(), ns3::WifiMode::IsAllowed(), ns3::WifiMode::IsHigherDataRate(), ns3::WifiMode::IsMandatory(), ns3::operator>>(), and ns3::WifiMode::WifiMode().

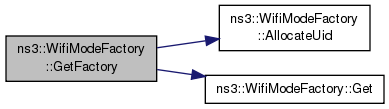

Here is the call graph for this function:

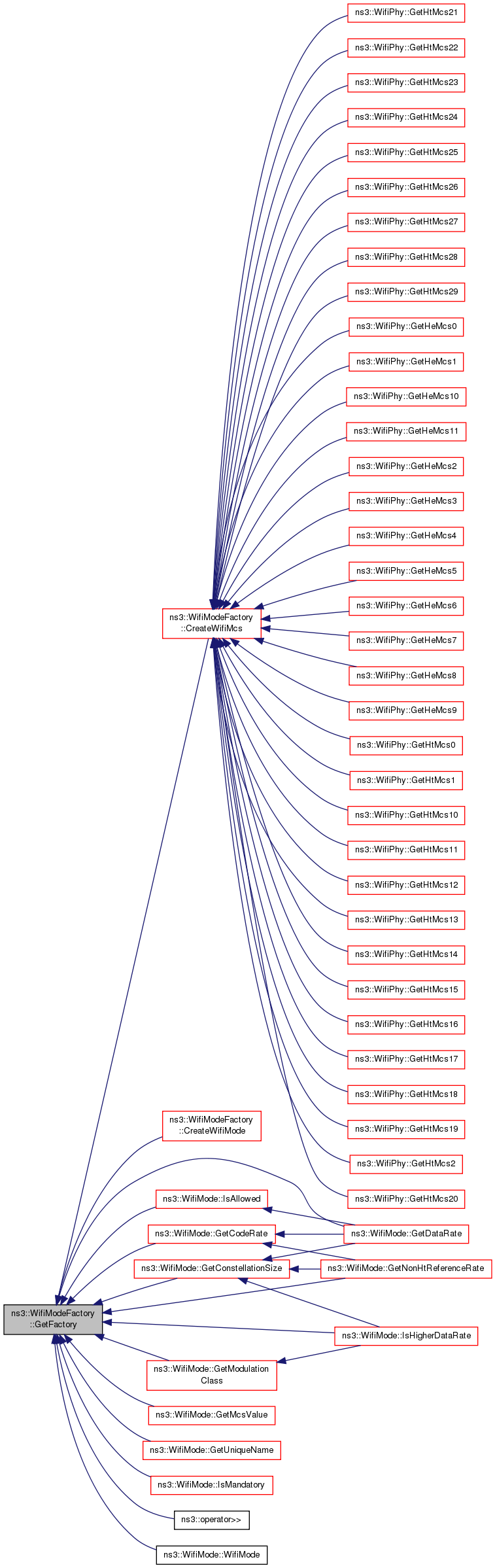

Here is the caller graph for this function:

WifiMode ns3::WifiModeFactory::Search ( std::string name ) const

private

Search and return WifiMode from a given name.

Parameters

name	human-readable WifiMode

Returns: WifiMode

Definition at line 742 of file wifi-mode.cc.

References m_itemList, NS_FATAL_ERROR, NS_LOG_UNCOND, and WifiMode.

Referenced by ns3::operator>>(), and ns3::WifiMode::WifiMode().

Here is the caller graph for this function:

Friends And Related Function Documentation

std::istream& operator>>	(	std::istream &	is,
		WifiMode &	mode
	)

friend

Serialize WifiMode from istream (human-readable).

Parameters

is	std::istream
mode

Returns: std::istream

Definition at line 63 of file wifi-mode.cc.

friend class WifiMode

friend

allow WifiMode class access

Definition at line 305 of file wifi-mode.h.

Referenced by CreateWifiMcs(), CreateWifiMode(), and Search().

Member Data Documentation

WifiModeItemList ns3::WifiModeFactory::m_itemList

private

item list

Definition at line 360 of file wifi-mode.h.

Referenced by AllocateUid(), Get(), and Search().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-mode.h
src/wifi/model/wifi-mode.cc
