ns3::WifiSpectrumValueHelper Class Reference

This class defines all functions to create a spectrum model for Wi-Fi based on a a spectral model aligned with an OFDM subcarrier spacing of 312.5 KHz (model also reused for DSSS modulations) More...

#include "wifi-spectrum-value-helper.h"

Public Member Functions

virtual ~WifiSpectrumValueHelper ()
 Destructor. More...


Static Public Member Functions

static Ptr< SpectrumValueCreateDsssTxPowerSpectralDensity (uint32_t centerFrequency, double txPowerW, uint8_t guardBandwidth)
 Create a transmit power spectral density corresponding to DSSS. More...

static Ptr< SpectrumValueCreateHeOfdmTxPowerSpectralDensity (uint32_t centerFrequency, uint8_t channelWidth, double txPowerW, uint8_t guardBandwidth)
 Create a transmit power spectral density corresponding to OFDM High Efficiency (HE) (802.11ax). More...

static Ptr< SpectrumValueCreateHtOfdmTxPowerSpectralDensity (uint32_t centerFrequency, uint8_t channelWidth, double txPowerW, uint8_t guardBandwidth)
 Create a transmit power spectral density corresponding to OFDM High Throughput (HT) (802.11n/ac). More...

static Ptr< SpectrumValueCreateNoisePowerSpectralDensity (uint32_t centerFrequency, uint8_t channelWidth, double bandBandwidth, double noiseFigure, uint8_t guardBandwidth)
 Create a power spectral density corresponding to the noise. More...

static Ptr< SpectrumValueCreateNoisePowerSpectralDensity (double noiseFigure, Ptr< SpectrumModel > spectrumModel)
 Create a thermal noise power spectral density. More...

static Ptr< SpectrumValueCreateOfdmTxPowerSpectralDensity (uint32_t centerFrequency, uint8_t channelWidth, double txPowerW, uint8_t guardBandwidth)
 Create a transmit power spectral density corresponding to OFDM (802.11a/g). More...

static Ptr< SpectrumValueCreateRfFilter (uint32_t centerFrequency, uint8_t channelWidth, double bandBandwidth, uint8_t guardBandwidth)
 Create a spectral density corresponding to the RF filter. More...

static Ptr< SpectrumModelGetSpectrumModel (uint32_t centerFrequency, uint8_t channelWidth, double bandBandwidth, uint8_t guardBandwidth)
 Return a SpectrumModel instance corresponding to the center frequency and channel width. More...


Detailed Description

This class defines all functions to create a spectrum model for Wi-Fi based on a a spectral model aligned with an OFDM subcarrier spacing of 312.5 KHz (model also reused for DSSS modulations)

Definition at line 36 of file wifi-spectrum-value-helper.h.

Constructor & Destructor Documentation

ns3::WifiSpectrumValueHelper::~WifiSpectrumValueHelper ( )
virtual

Destructor.

Definition at line 571 of file wifi-spectrum-value-helper.cc.

Member Function Documentation

Ptr< SpectrumValue > ns3::WifiSpectrumValueHelper::CreateDsssTxPowerSpectralDensity ( uint32_t  centerFrequency,
double  txPowerW,
uint8_t  guardBandwidth
)
static

Create a transmit power spectral density corresponding to DSSS.

The center frequency typically corresponds to 802.11b channel center frequencies but is not restricted to those frequencies.

Parameters
centerFrequencycenter frequency (MHz)
txPowerWtransmit power (W) to allocate
guardBandwidthwidth of the guard band (MHz)
Returns
a pointer to a newly allocated SpectrumValue representing the DSSS Transmit Power Spectral Density in W/Hz

Definition at line 119 of file wifi-spectrum-value-helper.cc.

References ns3::SpectrumValue::ConstBandsBegin(), ns3::SpectrumModel::GetNumBands(), GetSpectrumModel(), ns3::SpectrumValue::GetSpectrumModel(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::SpectrumValue::ValuesBegin().

Referenced by ns3::SpectrumWifiPhy::GetTxPowerSpectralDensity().

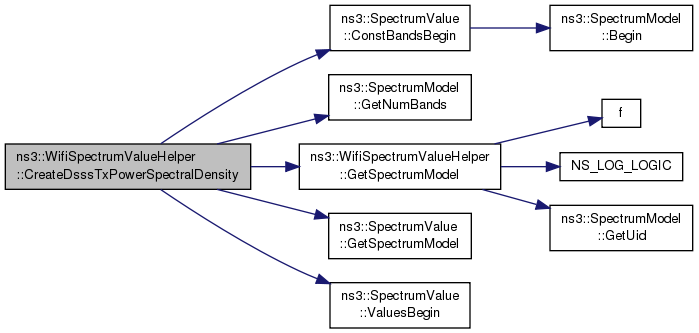

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ptr< SpectrumValue > ns3::WifiSpectrumValueHelper::CreateHeOfdmTxPowerSpectralDensity ( uint32_t  centerFrequency,
uint8_t  channelWidth,
double  txPowerW,
uint8_t  guardBandwidth
)
static

Create a transmit power spectral density corresponding to OFDM High Efficiency (HE) (802.11ax).

Channel width may vary between 20, 40, 80, and 160 MHz.

Parameters
centerFrequencycenter frequency (MHz)
channelWidthchannel width (MHz)
txPowerWtransmit power (W) to allocate
guardBandwidthwidth of the guard band (MHz)
Returns
a pointer to a newly allocated SpectrumValue representing the HE OFDM Transmit Power Spectral Density in W/Hz for each Band

Definition at line 382 of file wifi-spectrum-value-helper.cc.

References ns3::SpectrumValue::ConstBandsBegin(), ns3::SpectrumModel::GetNumBands(), GetSpectrumModel(), ns3::SpectrumValue::GetSpectrumModel(), ns3::Integral(), NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::SpectrumValue::ValuesBegin().

Referenced by ns3::SpectrumWifiPhy::GetTxPowerSpectralDensity().

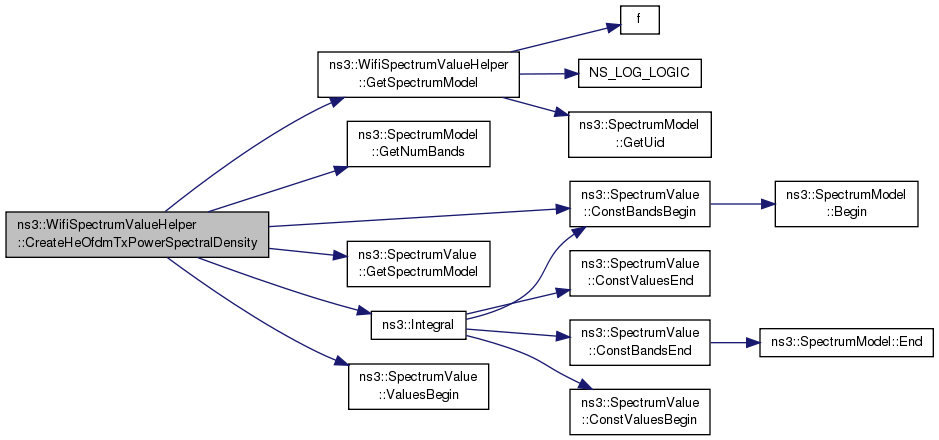

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ptr< SpectrumValue > ns3::WifiSpectrumValueHelper::CreateHtOfdmTxPowerSpectralDensity ( uint32_t  centerFrequency,
uint8_t  channelWidth,
double  txPowerW,
uint8_t  guardBandwidth
)
static

Create a transmit power spectral density corresponding to OFDM High Throughput (HT) (802.11n/ac).

Channel width may vary between 20, 40, 80, and 160 MHz.

Parameters
centerFrequencycenter frequency (MHz)
channelWidthchannel width (MHz)
txPowerWtransmit power (W) to allocate
guardBandwidthwidth of the guard band (MHz)
Returns
a pointer to a newly allocated SpectrumValue representing the HT OFDM Transmit Power Spectral Density in W/Hz for each Band

Definition at line 214 of file wifi-spectrum-value-helper.cc.

References ns3::SpectrumValue::ConstBandsBegin(), ns3::SpectrumModel::GetNumBands(), GetSpectrumModel(), ns3::SpectrumValue::GetSpectrumModel(), ns3::Integral(), NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::SpectrumValue::ValuesBegin().

Referenced by ns3::SpectrumWifiPhy::GetTxPowerSpectralDensity().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ptr< SpectrumValue > ns3::WifiSpectrumValueHelper::CreateNoisePowerSpectralDensity ( uint32_t  centerFrequency,
uint8_t  channelWidth,
double  bandBandwidth,
double  noiseFigure,
uint8_t  guardBandwidth
)
static

Create a power spectral density corresponding to the noise.

Parameters
centerFrequencycenter frequency (MHz)
channelWidthchannel width (MHz)
bandBandwidthwidth of each band (Hz)
noiseFigurethe noise figure in dB w.r.t. a reference temperature of 290K
guardBandwidthwidth of the guard band (MHz)
Returns
a pointer to a newly allocated SpectrumValue representing the noise Power Spectral Density in W/Hz for each Band

Definition at line 517 of file wifi-spectrum-value-helper.cc.

References GetSpectrumModel().

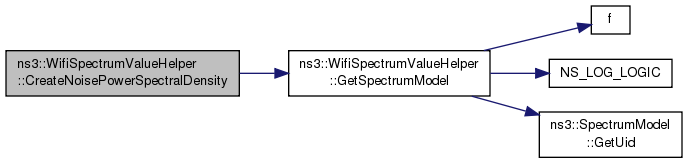

+ Here is the call graph for this function:

Ptr< SpectrumValue > ns3::WifiSpectrumValueHelper::CreateNoisePowerSpectralDensity ( double  noiseFigure,
Ptr< SpectrumModel spectrumModel
)
static

Create a thermal noise power spectral density.

Parameters
noiseFigurethe noise figure
spectrumModelthe spectrum model
Returns
a pointer to a newly allocated SpectrumValue representing the noise Power Spectral Density in W/Hz corresponding to thermal noise, for each Band

Definition at line 524 of file wifi-spectrum-value-helper.cc.

References ns3::Integral(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

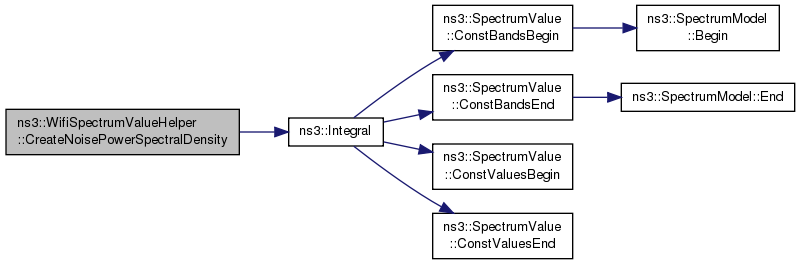

+ Here is the call graph for this function:

Ptr< SpectrumValue > ns3::WifiSpectrumValueHelper::CreateOfdmTxPowerSpectralDensity ( uint32_t  centerFrequency,
uint8_t  channelWidth,
double  txPowerW,
uint8_t  guardBandwidth
)
static

Create a transmit power spectral density corresponding to OFDM (802.11a/g).

Channel width may vary between 20, 10, and 5 MHz.

Parameters
centerFrequencycenter frequency (MHz)
channelWidthchannel width (MHz)
txPowerWtransmit power (W) to allocate
guardBandwidthwidth of the guard band (MHz)
Returns
a pointer to a newly allocated SpectrumValue representing the OFDM Transmit Power Spectral Density in W/Hz for each Band

Definition at line 143 of file wifi-spectrum-value-helper.cc.

References ns3::SpectrumValue::ConstBandsBegin(), ns3::SpectrumModel::GetNumBands(), GetSpectrumModel(), ns3::SpectrumValue::GetSpectrumModel(), ns3::Integral(), NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::SpectrumValue::ValuesBegin().

Referenced by ns3::SpectrumWifiPhy::GetTxPowerSpectralDensity().

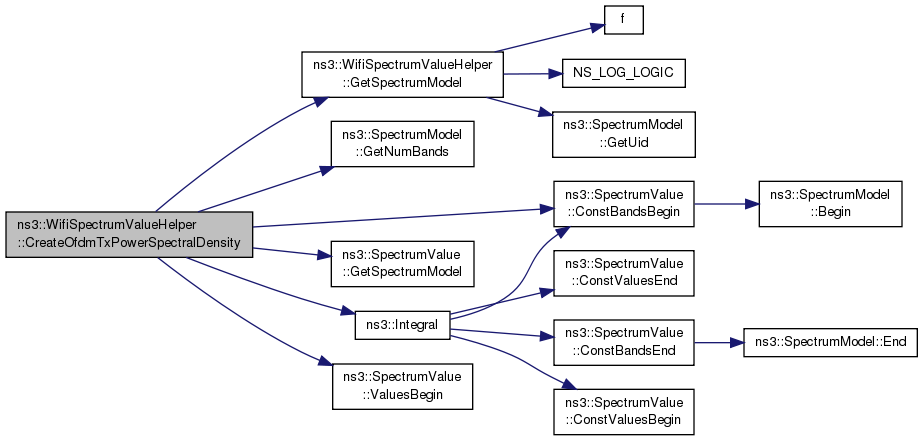

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ptr< SpectrumValue > ns3::WifiSpectrumValueHelper::CreateRfFilter ( uint32_t  centerFrequency,
uint8_t  channelWidth,
double  bandBandwidth,
uint8_t  guardBandwidth
)
static

Create a spectral density corresponding to the RF filter.

Parameters
centerFrequencycenter frequency (MHz)
channelWidthchannel width (MHz)
bandBandwidthwidth of each band (Hz)
guardBandwidthwidth of the guard band (MHz)
Returns
a pointer to a SpectrumValue representing the RF filter applied to an received power spectral density

Definition at line 542 of file wifi-spectrum-value-helper.cc.

References ns3::SpectrumValue::ConstBandsBegin(), ns3::SpectrumModel::GetNumBands(), GetSpectrumModel(), ns3::SpectrumValue::GetSpectrumModel(), NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::SpectrumValue::ValuesBegin().

Referenced by ns3::SpectrumWifiPhy::StartRx().

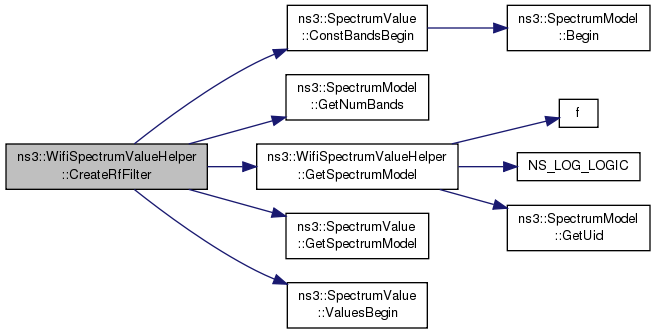

+ Here is the call graph for this function:

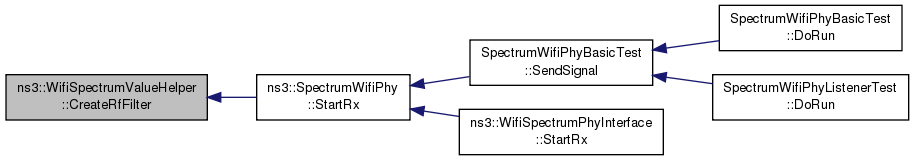

+ Here is the caller graph for this function:

Ptr< SpectrumModel > ns3::WifiSpectrumValueHelper::GetSpectrumModel ( uint32_t  centerFrequency,
uint8_t  channelWidth,
double  bandBandwidth,
uint8_t  guardBandwidth
)
static

Return a SpectrumModel instance corresponding to the center frequency and channel width.

The model includes +/- 10 MHz of guard bands (i.e. the model will span (channelWidth + 20) MHz of bandwidth).

Parameters
centerFrequencycenter frequency (MHz)
channelWidthchannel width (MHz)
bandBandwidthwidth of each band (Hz)
guardBandwidthwidth of the guard band (MHz)
Returns
the static SpectrumModel instance corresponding to the given carrier frequency and channel width configuration.

Definition at line 69 of file wifi-spectrum-value-helper.cc.

References f(), ns3::BandInfo::fc, ns3::BandInfo::fh, ns3::BandInfo::fl, ns3::SpectrumModel::GetUid(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, and NS_LOG_LOGIC().

Referenced by CreateDsssTxPowerSpectralDensity(), CreateHeOfdmTxPowerSpectralDensity(), CreateHtOfdmTxPowerSpectralDensity(), CreateNoisePowerSpectralDensity(), CreateOfdmTxPowerSpectralDensity(), CreateRfFilter(), ns3::SpectrumWifiPhy::GetRxSpectrumModel(), and ns3::SpectrumWifiPhy::ResetSpectrumModel().

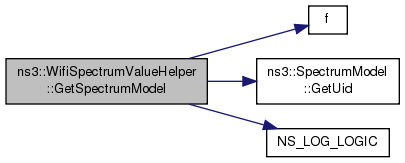

+ Here is the call graph for this function:

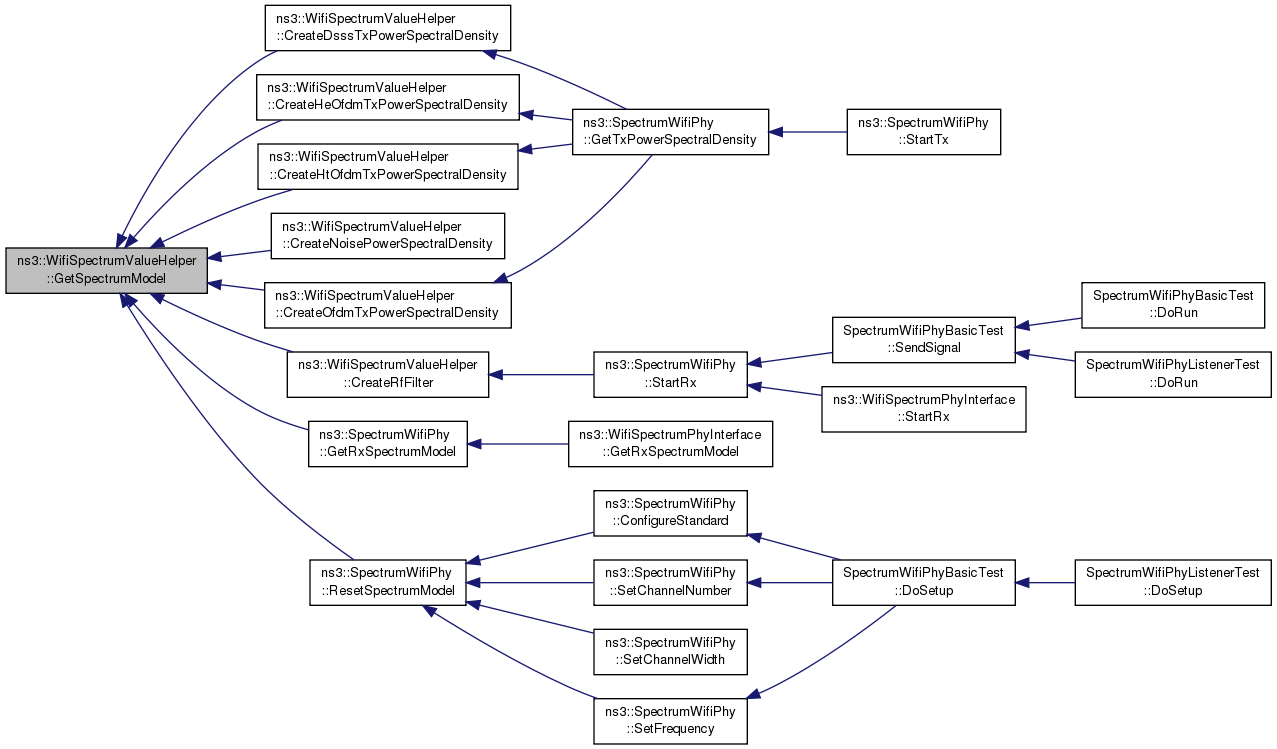

+ Here is the caller graph for this function:


The documentation for this class was generated from the following files:
