ns3::aodv::RrepHeader Class Reference

Route Reply (RREP) Message Format. More...

#include "aodv-packet.h"

+ Inheritance diagram for ns3::aodv::RrepHeader:

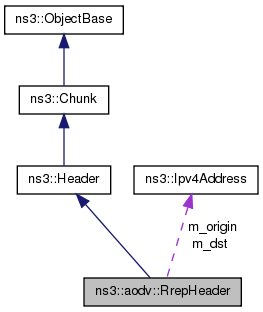

+ Collaboration diagram for ns3::aodv::RrepHeader:

Public Member Functions

 RrepHeader (uint8_t prefixSize=0, uint8_t hopCount=0, Ipv4Address dst=Ipv4Address(), uint32_t dstSeqNo=0, Ipv4Address origin=Ipv4Address(), Time lifetime=MilliSeconds(0))
 constructor More...

uint32_t Deserialize (Buffer::Iterator start)

bool GetAckRequired () const
 get the ack required flag More...

Ipv4Address GetDst () const
 Get the destination address. More...

uint32_t GetDstSeqno () const
 Get the destination sequence number. More...

uint8_t GetHopCount () const
 Get the hop count. More...

TypeId GetInstanceTypeId () const
 Get the most derived TypeId for this Object. More...

Time GetLifeTime () const
 Get the lifetime. More...

Ipv4Address GetOrigin () const
 Get the origin address. More...

uint8_t GetPrefixSize () const
 Set the pefix size. More...

uint32_t GetSerializedSize () const

bool operator== (RrepHeader const &o) const
 Comparison operator. More...

void Print (std::ostream &os) const

void Serialize (Buffer::Iterator start) const

void SetAckRequired (bool f)
 Set the ack required flag. More...

void SetDst (Ipv4Address a)
 Set the destination address. More...

void SetDstSeqno (uint32_t s)
 Set the destination sequence number. More...

void SetHello (Ipv4Address src, uint32_t srcSeqNo, Time lifetime)
 Configure RREP to be a Hello message. More...

void SetHopCount (uint8_t count)
 Set the hop count. More...

void SetLifeTime (Time t)
 Set the lifetime. More...

void SetOrigin (Ipv4Address a)
 Set the origin address. More...

void SetPrefixSize (uint8_t sz)
 Set the prefix size. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Ipv4Address m_dst
 Destination IP Address. More...

uint32_t m_dstSeqNo
 Destination Sequence Number. More...

uint8_t m_flags
 A - acknowledgment required flag. More...

uint8_t m_hopCount
 Hop Count. More...

uint32_t m_lifeTime
 Lifetime (in milliseconds) More...

Ipv4Address m_origin
 Source IP Address. More...

uint8_t m_prefixSize
 Prefix Size. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Route Reply (RREP) Message Format.

Introspection did not find any typical Config paths.

0                   1                   2                   3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|     Type      |R|A|    Reserved     |Prefix Sz|   Hop Count   |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                     Destination IP address                    |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                  Destination Sequence Number                  |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Originator IP address                      |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                           Lifetime                            |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 335 of file aodv-packet.h.

Constructor & Destructor Documentation

ns3::aodv::RrepHeader::RrepHeader ( uint8_t  prefixSize = 0,
uint8_t  hopCount = 0,
Ipv4Address  dst = Ipv4Address (),
uint32_t  dstSeqNo = 0,
Ipv4Address  origin = Ipv4Address (),
Time  lifetime = MilliSeconds (0)
)

constructor

Parameters
prefixSizethe prefix size (0)
hopCountthe hop count (0)
dstthe destination IP address
dstSeqNothe destination sequence number
originthe origin IP address
lifetimethe lifetime

Definition at line 299 of file aodv-packet.cc.

References ns3::Time::GetMilliSeconds(), and m_lifeTime.

+ Here is the call graph for this function:

Member Function Documentation

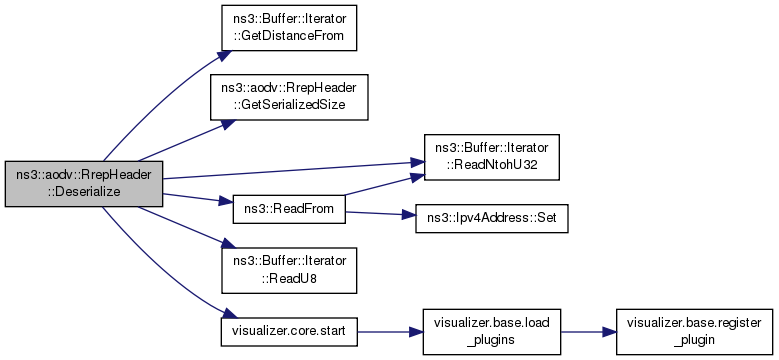

uint32_t ns3::aodv::RrepHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 349 of file aodv-packet.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), GetSerializedSize(), m_dst, m_dstSeqNo, m_flags, m_hopCount, m_lifeTime, m_origin, m_prefixSize, NS_ASSERT, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

+ Here is the call graph for this function:

bool ns3::aodv::RrepHeader::GetAckRequired ( ) const

get the ack required flag

Returns
the ack required flag

Definition at line 405 of file aodv-packet.cc.

References m_flags.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvReply().

+ Here is the caller graph for this function:

Ipv4Address ns3::aodv::RrepHeader::GetDst ( ) const
inline

Get the destination address.

Returns
the destination address

Definition at line 391 of file aodv-packet.h.

References m_dst.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::ProcessHello(), and ns3::aodv::RoutingProtocol::RecvReply().

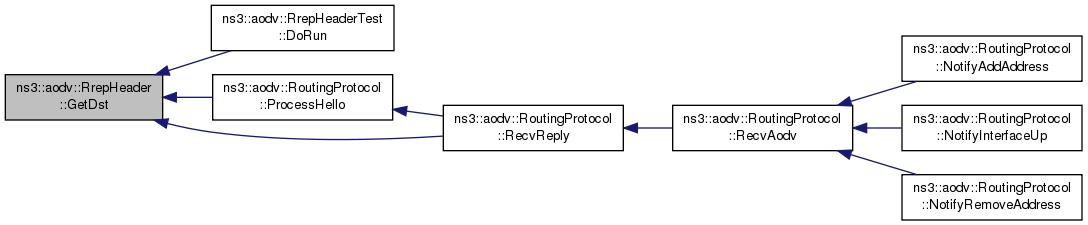

+ Here is the caller graph for this function:

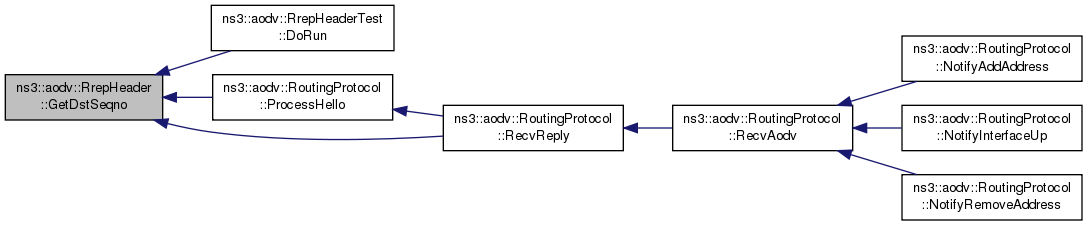

uint32_t ns3::aodv::RrepHeader::GetDstSeqno ( ) const
inline

Get the destination sequence number.

Returns
the destination sequence number

Definition at line 407 of file aodv-packet.h.

References m_dstSeqNo.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::ProcessHello(), and ns3::aodv::RoutingProtocol::RecvReply().

+ Here is the caller graph for this function:

uint8_t ns3::aodv::RrepHeader::GetHopCount ( ) const
inline

Get the hop count.

Returns
the hop count

Definition at line 375 of file aodv-packet.h.

References m_hopCount.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvReply().

+ Here is the caller graph for this function:

TypeId ns3::aodv::RrepHeader::GetInstanceTypeId ( ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 325 of file aodv-packet.cc.

References GetTypeId().

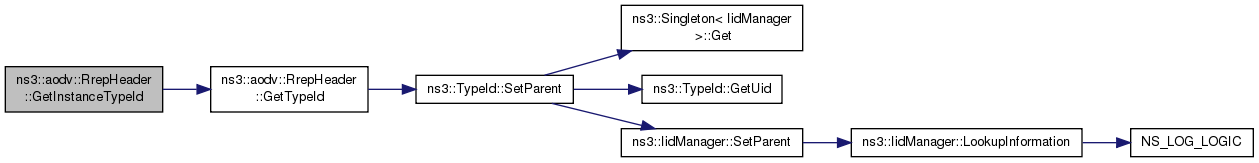

+ Here is the call graph for this function:

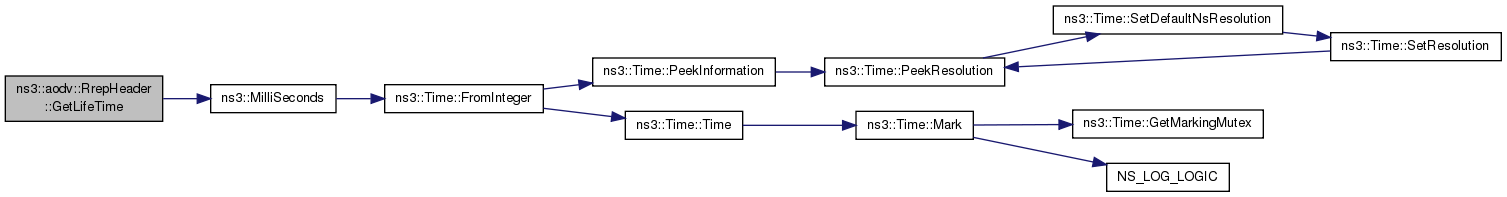

Time ns3::aodv::RrepHeader::GetLifeTime ( ) const

Get the lifetime.

Returns
the lifetime

Definition at line 385 of file aodv-packet.cc.

References m_lifeTime, and ns3::MilliSeconds().

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::ProcessHello(), and ns3::aodv::RoutingProtocol::RecvReply().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ipv4Address ns3::aodv::RrepHeader::GetOrigin ( ) const
inline

Get the origin address.

Returns
the origin address

Definition at line 423 of file aodv-packet.h.

References m_origin.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvReply().

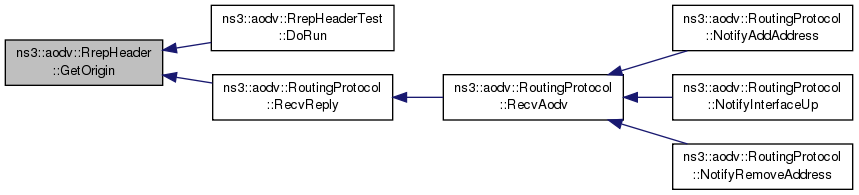

+ Here is the caller graph for this function:

uint8_t ns3::aodv::RrepHeader::GetPrefixSize ( ) const

Set the pefix size.

Returns
the prefix size

Definition at line 417 of file aodv-packet.cc.

References m_prefixSize.

Referenced by ns3::aodv::RrepHeaderTest::DoRun().

+ Here is the caller graph for this function:

uint32_t ns3::aodv::RrepHeader::GetSerializedSize ( ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 331 of file aodv-packet.cc.

Referenced by Deserialize().

+ Here is the caller graph for this function:

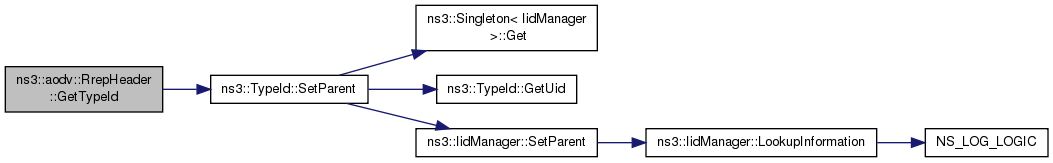

TypeId ns3::aodv::RrepHeader::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 314 of file aodv-packet.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::aodv::RrepHeader::operator== ( RrepHeader const &  o) const

Comparison operator.

Parameters
oRREP header to compare
Returns
true if the RREP headers are equal

Definition at line 423 of file aodv-packet.cc.

References m_dst, m_dstSeqNo, m_flags, m_hopCount, m_lifeTime, m_origin, and m_prefixSize.

void ns3::aodv::RrepHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 367 of file aodv-packet.cc.

References m_dst, m_dstSeqNo, m_lifeTime, m_origin, and m_prefixSize.

Referenced by ns3::aodv::operator<<().

+ Here is the caller graph for this function:

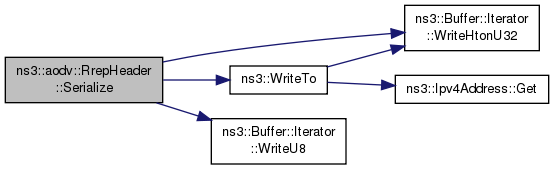

void ns3::aodv::RrepHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 337 of file aodv-packet.cc.

References m_dst, m_dstSeqNo, m_flags, m_hopCount, m_lifeTime, m_origin, m_prefixSize, ns3::Buffer::Iterator::WriteHtonU32(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

+ Here is the call graph for this function:

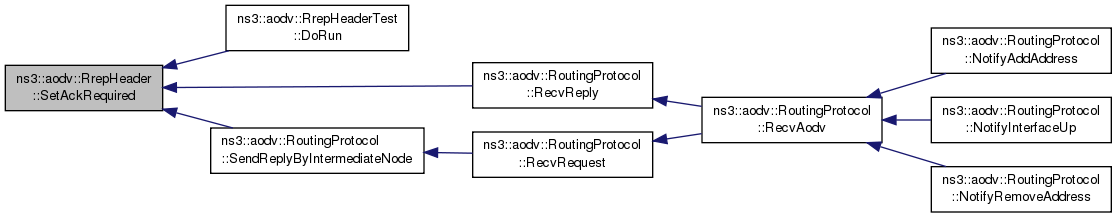

void ns3::aodv::RrepHeader::SetAckRequired ( bool  f)

Set the ack required flag.

Parameters
fthe ack required flag

Definition at line 392 of file aodv-packet.cc.

References m_flags.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::RecvReply(), and ns3::aodv::RoutingProtocol::SendReplyByIntermediateNode().

+ Here is the caller graph for this function:

void ns3::aodv::RrepHeader::SetDst ( Ipv4Address  a)
inline

Set the destination address.

Parameters
athe destination address

Definition at line 383 of file aodv-packet.h.

References m_dst.

Referenced by ns3::aodv::RrepHeaderTest::DoRun().

+ Here is the caller graph for this function:

void ns3::aodv::RrepHeader::SetDstSeqno ( uint32_t  s)
inline

Set the destination sequence number.

Parameters
sthe destination sequence number

Definition at line 399 of file aodv-packet.h.

References m_dstSeqNo.

Referenced by ns3::aodv::RrepHeaderTest::DoRun().

+ Here is the caller graph for this function:

void ns3::aodv::RrepHeader::SetHello ( Ipv4Address  src,
uint32_t  srcSeqNo,
Time  lifetime
)

Configure RREP to be a Hello message.

Parameters
srcthe source IP address
srcSeqNothe source sequence number
lifetimethe lifetime of the message

Definition at line 431 of file aodv-packet.cc.

References ns3::Time::GetMilliSeconds(), m_dst, m_dstSeqNo, m_flags, m_hopCount, m_lifeTime, m_origin, and m_prefixSize.

Referenced by ns3::aodv::RrepHeaderTest::DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::aodv::RrepHeader::SetHopCount ( uint8_t  count)
inline

Set the hop count.

Parameters
countthe hop count

Definition at line 367 of file aodv-packet.h.

References m_hopCount.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvReply().

+ Here is the caller graph for this function:

void ns3::aodv::RrepHeader::SetLifeTime ( Time  t)

Set the lifetime.

Parameters
tthe lifetime

Definition at line 379 of file aodv-packet.cc.

References ns3::Time::GetMilliSeconds(), and m_lifeTime.

Referenced by ns3::aodv::RrepHeaderTest::DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::aodv::RrepHeader::SetOrigin ( Ipv4Address  a)
inline

Set the origin address.

Parameters
athe origin address

Definition at line 415 of file aodv-packet.h.

References m_origin.

Referenced by ns3::aodv::RrepHeaderTest::DoRun().

+ Here is the caller graph for this function:

void ns3::aodv::RrepHeader::SetPrefixSize ( uint8_t  sz)

Set the prefix size.

Parameters
szthe prefix size

Definition at line 411 of file aodv-packet.cc.

References m_prefixSize.

Referenced by ns3::aodv::RrepHeaderTest::DoRun().

+ Here is the caller graph for this function:

Member Data Documentation

Ipv4Address ns3::aodv::RrepHeader::m_dst
private

Destination IP Address.

Definition at line 479 of file aodv-packet.h.

Referenced by Deserialize(), GetDst(), operator==(), Print(), Serialize(), SetDst(), and SetHello().

uint32_t ns3::aodv::RrepHeader::m_dstSeqNo
private

Destination Sequence Number.

Definition at line 480 of file aodv-packet.h.

Referenced by Deserialize(), GetDstSeqno(), operator==(), Print(), Serialize(), SetDstSeqno(), and SetHello().

uint8_t ns3::aodv::RrepHeader::m_flags
private

A - acknowledgment required flag.

Definition at line 476 of file aodv-packet.h.

Referenced by Deserialize(), GetAckRequired(), operator==(), Serialize(), SetAckRequired(), and SetHello().

uint8_t ns3::aodv::RrepHeader::m_hopCount
private

Hop Count.

Definition at line 478 of file aodv-packet.h.

Referenced by Deserialize(), GetHopCount(), operator==(), Serialize(), SetHello(), and SetHopCount().

uint32_t ns3::aodv::RrepHeader::m_lifeTime
private

Lifetime (in milliseconds)

Definition at line 482 of file aodv-packet.h.

Referenced by Deserialize(), GetLifeTime(), operator==(), Print(), RrepHeader(), Serialize(), SetHello(), and SetLifeTime().

Ipv4Address ns3::aodv::RrepHeader::m_origin
private

Source IP Address.

Definition at line 481 of file aodv-packet.h.

Referenced by Deserialize(), GetOrigin(), operator==(), Print(), Serialize(), SetHello(), and SetOrigin().

uint8_t ns3::aodv::RrepHeader::m_prefixSize
private

Prefix Size.

Definition at line 477 of file aodv-packet.h.

Referenced by Deserialize(), GetPrefixSize(), operator==(), Print(), Serialize(), SetHello(), and SetPrefixSize().


The documentation for this class was generated from the following files:
