A Discrete-Event Network Simulator
API
ns3::dot11s::IeLinkMetricReport Class Reference

a IEEE 802.11s Mesh ID 7.3.2.88 of 802.11s draft 3.0 More...

#include "ie-dot11s-metric-report.h"

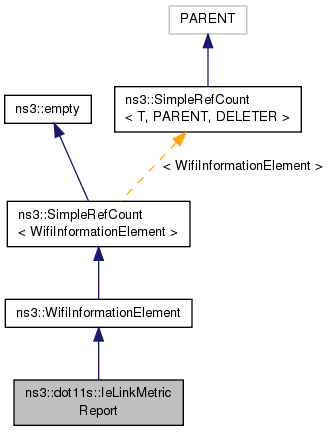

+ Inheritance diagram for ns3::dot11s::IeLinkMetricReport:
+ Collaboration diagram for ns3::dot11s::IeLinkMetricReport:

Public Member Functions

 IeLinkMetricReport ()

 IeLinkMetricReport (uint32_t metric)
 Constructor. More...

virtual uint8_t DeserializeInformationField (Buffer::Iterator start, uint8_t length)
 Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

virtual WifiInformationElementId ElementId () const

virtual uint8_t GetInformationFieldSize () const
 Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

uint32_t GetMetric ()
 Get metric value. More...

virtual void Print (std::ostream &os) const
 Generate human-readable form of IE. More...

virtual void SerializeInformationField (Buffer::Iterator i) const
 Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

void SetMetric (uint32_t metric)
 Set metric value. More...

- Public Member Functions inherited from ns3::WifiInformationElement
virtual ~WifiInformationElement ()

Buffer::Iterator Deserialize (Buffer::Iterator i)
 Deserialize entire IE, which must be present. More...

Buffer::Iterator DeserializeIfPresent (Buffer::Iterator i)
 Deserialize entire IE if it is present. More...

uint16_t GetSerializedSize () const
 Get the size of the serialized IE including Element ID and length fields. More...

virtual bool operator< (WifiInformationElement const &a) const
 Compare information elements using Element ID. More...

virtual bool operator== (WifiInformationElement const &a) const
 Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

Buffer::Iterator Serialize (Buffer::Iterator i) const
 Serialize entire IE including Element ID and length fields. More...

- Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...


Private Attributes

uint32_t m_metric
 metric More...


Friends

bool operator< (const IeLinkMetricReport &a, const IeLinkMetricReport &b)
 less than operator More...

bool operator== (const IeLinkMetricReport &a, const IeLinkMetricReport &b)
 equality operator More...

bool operator> (const IeLinkMetricReport &a, const IeLinkMetricReport &b)
 greater than operator More...


Detailed Description

a IEEE 802.11s Mesh ID 7.3.2.88 of 802.11s draft 3.0

Definition at line 34 of file ie-dot11s-metric-report.h.

Constructor & Destructor Documentation

ns3::dot11s::IeLinkMetricReport::IeLinkMetricReport ( )

Definition at line 26 of file ie-dot11s-metric-report.cc.

ns3::dot11s::IeLinkMetricReport::IeLinkMetricReport ( uint32_t  metric)

Constructor.

Parameters
metricthe metric

Definition at line 30 of file ie-dot11s-metric-report.cc.

References m_metric.

Member Function Documentation

uint8_t ns3::dot11s::IeLinkMetricReport::DeserializeInformationField ( Buffer::Iterator  start,
uint8_t  length
)
virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters
startan iterator which points to where the information should be written.
length
Returns
the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 60 of file ie-dot11s-metric-report.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_metric, ns3::Buffer::Iterator::ReadLsbtohU32(), and visualizer.core::start().

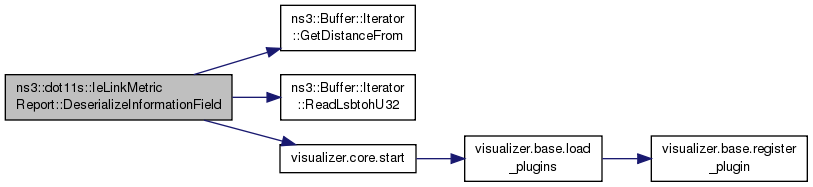

+ Here is the call graph for this function:

WifiInformationElementId ns3::dot11s::IeLinkMetricReport::ElementId ( ) const
virtual
Returns
Own unique Element ID

Implements ns3::WifiInformationElement.

Definition at line 35 of file ie-dot11s-metric-report.cc.

References IE_MESH_LINK_METRIC_REPORT.

uint8_t ns3::dot11s::IeLinkMetricReport::GetInformationFieldSize ( ) const
virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns
the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 40 of file ie-dot11s-metric-report.cc.

uint32_t ns3::dot11s::IeLinkMetricReport::GetMetric ( void  )

Get metric value.

Returns
the metric

Definition at line 45 of file ie-dot11s-metric-report.cc.

References m_metric.

void ns3::dot11s::IeLinkMetricReport::Print ( std::ostream &  os) const
virtual

Generate human-readable form of IE.

Parameters
osoutput stream

Reimplemented from ns3::WifiInformationElement.

Definition at line 67 of file ie-dot11s-metric-report.cc.

References m_metric.

Referenced by ns3::dot11s::operator<<().

+ Here is the caller graph for this function:

void ns3::dot11s::IeLinkMetricReport::SerializeInformationField ( Buffer::Iterator  start) const
virtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters
startan iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 55 of file ie-dot11s-metric-report.cc.

References m_metric, and ns3::Buffer::Iterator::WriteHtolsbU32().

+ Here is the call graph for this function:

void ns3::dot11s::IeLinkMetricReport::SetMetric ( uint32_t  metric)

Set metric value.

Parameters
metricthe metric

Definition at line 50 of file ie-dot11s-metric-report.cc.

References m_metric.

Friends And Related Function Documentation

bool operator< ( const IeLinkMetricReport a,
const IeLinkMetricReport b
)
friend

less than operator

Parameters
alhs
blhs
Returns
true if equal

Definition at line 77 of file ie-dot11s-metric-report.cc.

bool operator== ( const IeLinkMetricReport a,
const IeLinkMetricReport b
)
friend

equality operator

Parameters
alhs
blhs
Returns
true if equal

Definition at line 72 of file ie-dot11s-metric-report.cc.

bool operator> ( const IeLinkMetricReport a,
const IeLinkMetricReport b
)
friend

greater than operator

Parameters
alhs
blhs
Returns
true if equal

Definition at line 82 of file ie-dot11s-metric-report.cc.

Member Data Documentation


The documentation for this class was generated from the following files:
