An object with some attributes that we can play with using config. More...

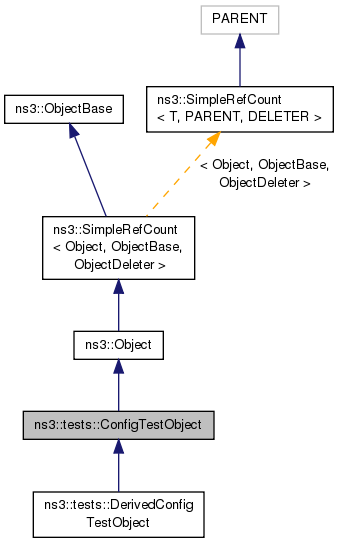

Inheritance diagram for ns3::tests::ConfigTestObject:

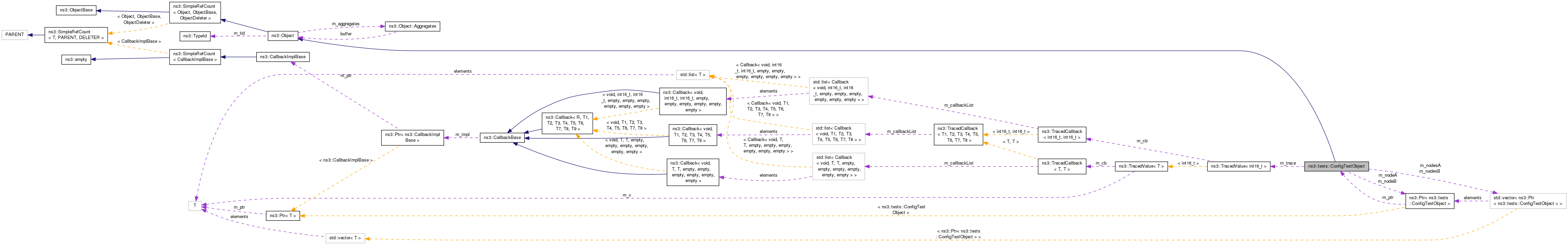

Collaboration diagram for ns3::tests::ConfigTestObject:

Public Member Functions
void	AddNodeA (Ptr< ConfigTestObject > a)
	Add node A function. More...

void	AddNodeB (Ptr< ConfigTestObject > b)
	Add node B function. More...

int8_t	GetA (void) const
	Get node A function. More...

int8_t	GetB (void) const
	Get node b function. More...

void	SetNodeA (Ptr< ConfigTestObject > a)
	Set node A function. More...

void	SetNodeB (Ptr< ConfigTestObject > b)
	Set node b function. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
int8_t	m_a
	A attribute target. More...

int8_t	m_b
	B attribute target. More...

Ptr< ConfigTestObject >	m_nodeA
	NodeA attribute target. More...

Ptr< ConfigTestObject >	m_nodeB
	NodeB attribute target. More...

std::vector< Ptr< ConfigTestObject > >	m_nodesA
	NodesA attribute target. More...

std::vector< Ptr< ConfigTestObject > >	m_nodesB
	NodesB attribute target. More...

TracedValue< int16_t >	m_trace
	Source TraceSource target. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

An object with some attributes that we can play with using config.

Definition at line 59 of file config-test-suite.cc.

Member Function Documentation

void ns3::tests::ConfigTestObject::AddNodeA ( Ptr< ConfigTestObject > a )

Add node A function.

Parameters

a	test object a

Definition at line 164 of file config-test-suite.cc.

References m_nodesA.

void ns3::tests::ConfigTestObject::AddNodeB ( Ptr< ConfigTestObject > b )

Add node B function.

Parameters

b	test object b

Definition at line 170 of file config-test-suite.cc.

References m_nodesB.

int8_t ns3::tests::ConfigTestObject::GetA ( void ) const

Get node A function.

Returns: the value of node a

Definition at line 176 of file config-test-suite.cc.

References m_a.

int8_t ns3::tests::ConfigTestObject::GetB ( void ) const

Get node b function.

Returns: the value of node b

Definition at line 182 of file config-test-suite.cc.

References m_b.

TypeId ns3::tests::ConfigTestObject::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 112 of file config-test-suite.cc.

References m_a, m_b, m_nodeA, m_nodeB, m_nodesA, m_nodesB, m_trace, ns3::MakeIntegerAccessor(), ns3::MakeObjectVectorAccessor(), ns3::MakePointerAccessor(), ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

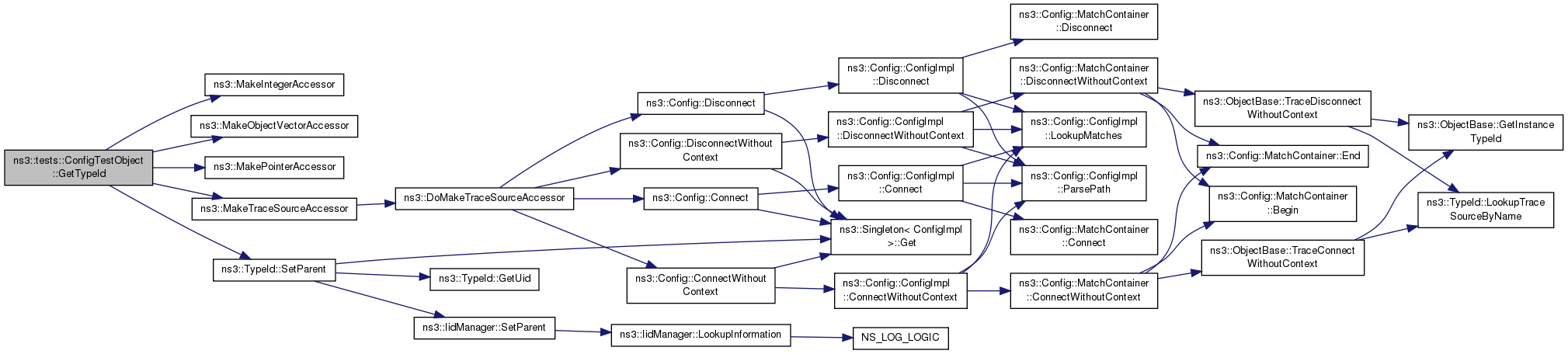

Here is the call graph for this function:

void ns3::tests::ConfigTestObject::SetNodeA ( Ptr< ConfigTestObject > a )

Set node A function.

Parameters

a	test object a

Definition at line 152 of file config-test-suite.cc.

References m_nodeA.

void ns3::tests::ConfigTestObject::SetNodeB ( Ptr< ConfigTestObject > b )

Set node b function.

Parameters

b	test object b

Definition at line 158 of file config-test-suite.cc.

References m_nodeB.

Member Data Documentation

int8_t ns3::tests::ConfigTestObject::m_a

private

A attribute target.

Definition at line 106 of file config-test-suite.cc.

Referenced by GetA(), and GetTypeId().

int8_t ns3::tests::ConfigTestObject::m_b

private

B attribute target.

Definition at line 107 of file config-test-suite.cc.

Referenced by GetB(), and GetTypeId().

Ptr<ConfigTestObject> ns3::tests::ConfigTestObject::m_nodeA

private

NodeA attribute target.

Definition at line 104 of file config-test-suite.cc.

Referenced by GetTypeId(), and SetNodeA().

Ptr<ConfigTestObject> ns3::tests::ConfigTestObject::m_nodeB

private

NodeB attribute target.

Definition at line 105 of file config-test-suite.cc.

Referenced by GetTypeId(), and SetNodeB().

std::vector<Ptr<ConfigTestObject> > ns3::tests::ConfigTestObject::m_nodesA

private

NodesA attribute target.

Definition at line 102 of file config-test-suite.cc.

Referenced by AddNodeA(), and GetTypeId().

std::vector<Ptr<ConfigTestObject> > ns3::tests::ConfigTestObject::m_nodesB

private

NodesB attribute target.

Definition at line 103 of file config-test-suite.cc.

Referenced by AddNodeB(), and GetTypeId().

TracedValue<int16_t> ns3::tests::ConfigTestObject::m_trace

private

Source TraceSource target.

Definition at line 108 of file config-test-suite.cc.

Referenced by GetTypeId().

The documentation for this class was generated from the following file:

src/core/test/config-test-suite.cc
