dl-mac-messages.h File Reference

#include <stdint.h>
#include "ns3/buffer.h"
#include <list>
#include "ns3/mac48-address.h"
#include "ns3/header.h"
#include <vector>
#include "cid.h"

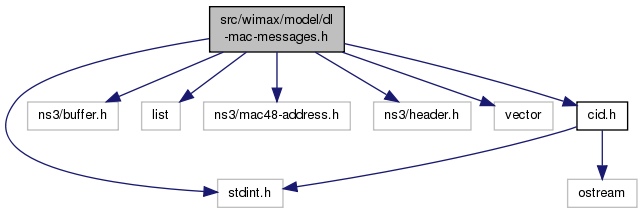

Include dependency graph for dl-mac-messages.h:

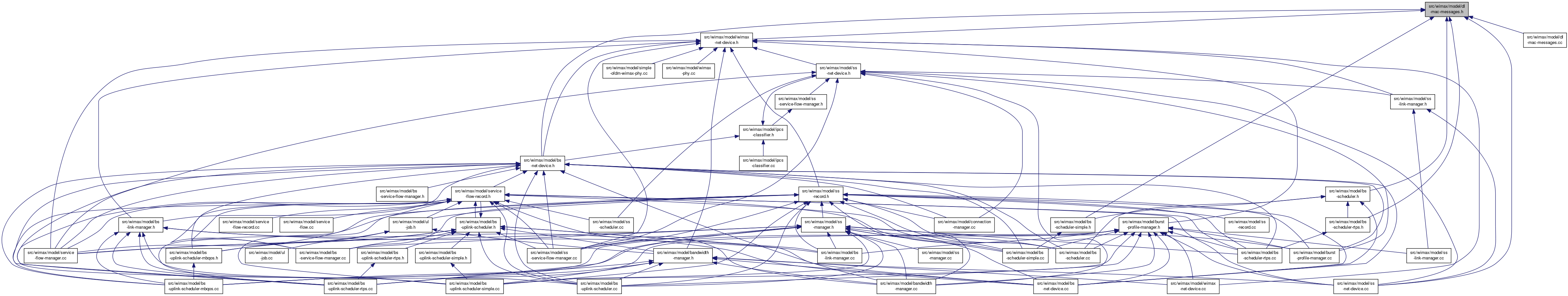

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	ns3::Dcd
	This class implements Downlink channel descriptor as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.1 Downlink Channel Descriptor (DCD) message, page 45. More...
class	ns3::DcdChannelEncodings
	This class implements the DCD channel encodings as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 11.4.1 DCD channel encodings, page 659. More...
class	ns3::DlMap
	This class implements DL-MAP as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 8.2.1.8.1 Compressed DL-MAP, page 402. More...
class	ns3::OfdmDcdChannelEncodings
	This class implements the OFDM DCD channel encodings as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems". More...
class	ns3::OfdmDlBurstProfile
	This class implements the OFDM Downlink burst profile descriptor as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 8.2.1.10 Burst profile formats page 416. More...
class	ns3::OfdmDlMapIe
	This class implements the OFDM DL-MAP information element as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.43.6 Compact DL-MAP IE page 109. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Macros
#define	DCD_H
#define	DL_MAP_H
#define	OFDM_DCD_CHANNEL_ENCODINGS_H
#define	OFDM_DL_BURST_PROFILE_H
#define	OFDM_DL_MAP_IE_H

Macro Definition Documentation

#define DCD_H

Definition at line 343 of file dl-mac-messages.h.

#define DL_MAP_H

Definition at line 528 of file dl-mac-messages.h.

#define OFDM_DCD_CHANNEL_ENCODINGS_H

Definition at line 121 of file dl-mac-messages.h.

#define OFDM_DL_BURST_PROFILE_H

Definition at line 238 of file dl-mac-messages.h.

#define OFDM_DL_MAP_IE_H

Definition at line 435 of file dl-mac-messages.h.
