A Discrete-Event Network Simulator
API
ObjectMap Attribute

Attribute implementation for ObjectMap. More...

+ Collaboration diagram for ObjectMap Attribute:

Files

file  object-map.h
 ns3::ObjectMap attribute value declarations and template implementations.


Classes

class  ns3::ObjectMapChecker
 AttributeChecker implementation for ObjectMapValue. More...


Typedefs

typedef ObjectPtrContainerValue ns3::ObjectMapValue
 ObjectMapValue is an alias for ObjectPtrContainerValue. More...


Functions

template<typename T , typename U >
Ptr< const AttributeAccessor > ns3::MakeObjectMapAccessor (U T::*memberVariable)
 MakeAccessorHelper implementation for ObjectVector. More...

template<typename T , typename U , typename INDEX >
Ptr< const AttributeAccessor > ns3::MakeObjectMapAccessor (Ptr< U >(T::*get)(INDEX) const, INDEX(T::*getN)(void) const)
 Create an AttributeAccessor using a container class indexed get method. More...

template<typename T , typename U , typename INDEX >
Ptr< const AttributeAccessor > ns3::MakeObjectMapAccessor (INDEX(T::*getN)(void) const, Ptr< U >(T::*get)(INDEX) const)
 Create an AttributeAccessor using a container class indexed get method. More...

template<typename T >
Ptr< const AttributeChecker > ns3::MakeObjectMapChecker (void)


Detailed Description

Attribute implementation for ObjectMap.

Typedef Documentation

typedef ObjectPtrContainerValue ns3::ObjectMapValue

ObjectMapValue is an alias for ObjectPtrContainerValue.

Definition at line 40 of file object-map.h.

Function Documentation

template<typename T , typename U >
Ptr< const AttributeAccessor > ns3::MakeObjectMapAccessor ( U T::*  memberVariable)

MakeAccessorHelper implementation for ObjectVector.

Template Parameters
V[explicit] The specific AttributeValue type to use to represent the Attribute.
T[deduced] The class holding the data member.
U[deduced] The type of the data member.
Parameters
[in]memberVariableThe address of the data member.
Returns
The AttributeAccessor.

Definition at line 80 of file object-map.h.

References NS_ASSERT.

Referenced by ns3::LteEnbNetDevice::GetTypeId(), ns3::LteUeNetDevice::GetTypeId(), ns3::TrafficControlLayer::GetTypeId(), AttributeObjectTest::GetTypeId(), ns3::UeManager::GetTypeId(), ns3::LteUeRrc::GetTypeId(), ns3::WaveNetDevice::GetTypeId(), and ns3::LteEnbRrc::GetTypeId().

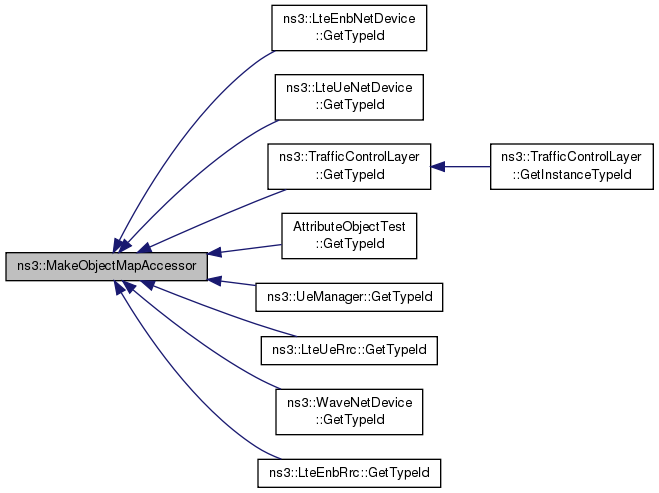

+ Here is the caller graph for this function:

template<typename T , typename U , typename INDEX >
Ptr< const AttributeAccessor > ns3::MakeObjectMapAccessor ( Ptr< U >(T::*)(INDEX) const  get,
INDEX(T::*)(void) const  getN
)

Create an AttributeAccessor using a container class indexed get method.

The two versions of this function differ only in argument order.

Template Parameters
T[deduced] The container class type.
U[deduced] The type of object the get method returns.
INDEX[deduced] The type of the index variable.
Parameters
[in]getThe class method to get a specific instance from the container.
[in]getNThe class method to return the number of objects in the container.
Returns
The AttributeAccessor.

Definition at line 125 of file object-map.h.

template<typename T , typename U , typename INDEX >
Ptr< const AttributeAccessor > ns3::MakeObjectMapAccessor ( INDEX(T::*)(void) const  getN,
Ptr< U >(T::*)(INDEX) const  get
)

Create an AttributeAccessor using a container class indexed get method.

The two versions of this function differ only in argument order.

Template Parameters
T[deduced] The container class type.
U[deduced] The type of object the get method returns.
INDEX[deduced] The type of the index variable.
Parameters
[in]getThe class method to get a specific instance from the container.
[in]getNThe class method to return the number of objects in the container.
Returns
The AttributeAccessor.

Definition at line 133 of file object-map.h.

template<typename T >
Ptr< const AttributeChecker > ns3::MakeObjectMapChecker ( void  )
Returns
The AttributeChecker.
See also
AttributeChecker

Definition at line 118 of file object-map.h.
