#include "wifi-information-element.h"

Include dependency graph for ht-capabilities.h:

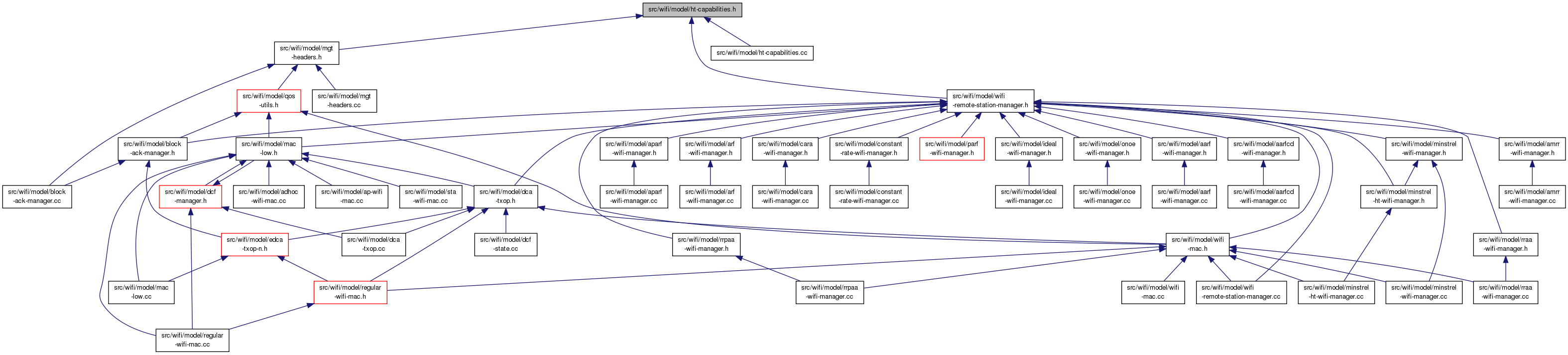

This graph shows which files directly or indirectly include this file:

Classes
class	ns3::HtCapabilities
	The HT Capabilities Information ElementThis class knows how to serialise and deserialise the HT Capabilities Information Element. More...

class	ns3::HtCapabilitiesChecker
	AttributeChecker implementation for HtCapabilitiesValue. More...

class	ns3::HtCapabilitiesValue
	AttributeValue implementation for HtCapabilities. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Macros
#define	MAX_SUPPORTED_MCS (77)
	This defines the maximum number of supported MCSs that a STA is allowed to have. More...

Functions
template<typename T1 >
Ptr< const AttributeAccessor >	ns3::MakeHtCapabilitiesAccessor (T1 a1)
	Create an AttributeAccessor for a class data member, or a lone class get functor or set method. More...

template<typename T1 , typename T2 >
Ptr< const AttributeAccessor >	ns3::MakeHtCapabilitiesAccessor (T1 a1, T2 a2)
	Create an AttributeAccessor using a pair of get functor and set methods from a class. More...

Ptr< const AttributeChecker >	ns3::MakeHtCapabilitiesChecker (void)

std::ostream &	ns3::operator<< (std::ostream &os, const HtCapabilities &htcapabilities)
	output stream output operator More...

std::istream &	ns3::operator>> (std::istream &is, HtCapabilities &htcapabilities)
	input stream input operator More...

Macro Definition Documentation

#define MAX_SUPPORTED_MCS (77)

This defines the maximum number of supported MCSs that a STA is allowed to have.

Currently this number is set for IEEE 802.11n

Definition at line 31 of file ht-capabilities.h.

Classes
