ns3::IdealWifiRemoteStation Struct Reference

hold per-remote-station state for Ideal Wifi manager. More...

+ Inheritance diagram for ns3::IdealWifiRemoteStation:

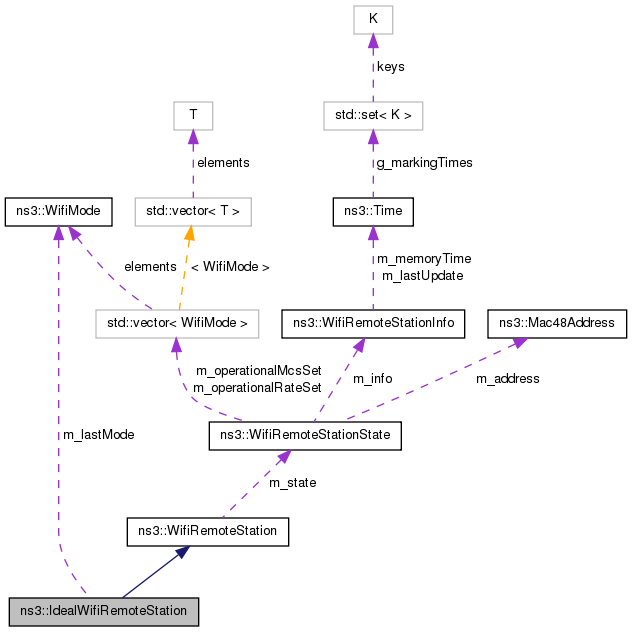

+ Collaboration diagram for ns3::IdealWifiRemoteStation:

Public Attributes

WifiMode m_lastMode
 Mode most recently used to the remote station. More...

double m_lastSnrCached
 SNR most recently used to select a rate. More...

double m_lastSnrObserved
 SNR of most recently reported packet sent to the remote station. More...

double m_nss
 SNR most recently used to select a rate. More...

- Public Attributes inherited from ns3::WifiRemoteStation
uint32_t m_slrc
 STA long retry count. More...

uint32_t m_ssrc
 STA short retry count. More...

WifiRemoteStationStatem_state
 Remote station state. More...

uint8_t m_tid
 traffic ID More...


Additional Inherited Members

- Public Member Functions inherited from ns3::WifiRemoteStation
virtual ~WifiRemoteStation ()


Detailed Description

hold per-remote-station state for Ideal Wifi manager.

This struct extends from WifiRemoteStation struct to hold additional information required by the Ideal Wifi manager

Definition at line 33 of file ideal-wifi-manager.cc.

Member Data Documentation

WifiMode ns3::IdealWifiRemoteStation::m_lastMode

Mode most recently used to the remote station.

Definition at line 38 of file ideal-wifi-manager.cc.

Referenced by ns3::IdealWifiManager::DoCreateStation(), and ns3::IdealWifiManager::DoGetDataTxVector().

double ns3::IdealWifiRemoteStation::m_lastSnrCached

SNR most recently used to select a rate.

Definition at line 36 of file ideal-wifi-manager.cc.

Referenced by ns3::IdealWifiManager::DoCreateStation(), and ns3::IdealWifiManager::DoGetDataTxVector().

double ns3::IdealWifiRemoteStation::m_lastSnrObserved

SNR of most recently reported packet sent to the remote station.

Definition at line 35 of file ideal-wifi-manager.cc.

Referenced by ns3::IdealWifiManager::DoCreateStation(), ns3::IdealWifiManager::DoGetDataTxVector(), and ns3::IdealWifiManager::DoReportAmpduTxStatus().

double ns3::IdealWifiRemoteStation::m_nss

SNR most recently used to select a rate.

Definition at line 37 of file ideal-wifi-manager.cc.

Referenced by ns3::IdealWifiManager::DoCreateStation(), and ns3::IdealWifiManager::DoGetDataTxVector().


The documentation for this struct was generated from the following file:
