ns3::LrWpanSpectrumSignalParameters Struct Reference

Signal parameters for LrWpan. More...

#include "lr-wpan-spectrum-signal-parameters.h"

+ Inheritance diagram for ns3::LrWpanSpectrumSignalParameters:

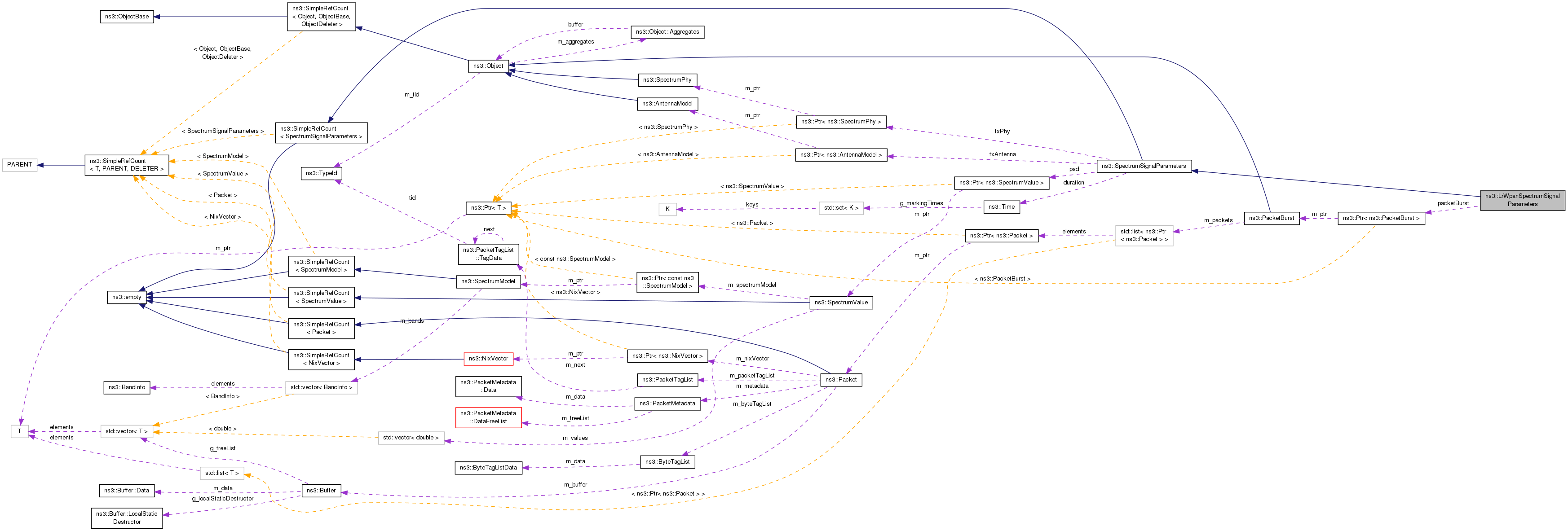

+ Collaboration diagram for ns3::LrWpanSpectrumSignalParameters:

Public Member Functions

 LrWpanSpectrumSignalParameters (void)
 default constructor More...

 LrWpanSpectrumSignalParameters (const LrWpanSpectrumSignalParameters &p)
 copy constructor More...

virtual Ptr< SpectrumSignalParametersCopy (void)
 make a "virtual" copy of this class, where "virtual" refers to the fact that if the actual object is a derived class of SpectrumSignalParameters, then the copy is also a derived class of the same type. More...

- Public Member Functions inherited from ns3::SpectrumSignalParameters
 SpectrumSignalParameters ()
 default constructor More...

 SpectrumSignalParameters (const SpectrumSignalParameters &p)
 copy constructor More...

virtual ~SpectrumSignalParameters ()
 destructor More...

- Public Member Functions inherited from ns3::SimpleRefCount< SpectrumSignalParameters >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...


Public Attributes

Ptr< PacketBurstpacketBurst
 The packet burst being transmitted with this signal. More...

- Public Attributes inherited from ns3::SpectrumSignalParameters
Time duration
 The duration of the packet transmission. More...

Ptr< SpectrumValuepsd
 The Power Spectral Density of the waveform, in linear units. More...

Ptr< AntennaModeltxAntenna
 The AntennaModel instance that was used to transmit this signal. More...

Ptr< SpectrumPhytxPhy
 The SpectrumPhy instance that is making the transmission. More...


Detailed Description

Signal parameters for LrWpan.

Definition at line 36 of file lr-wpan-spectrum-signal-parameters.h.

Constructor & Destructor Documentation

ns3::LrWpanSpectrumSignalParameters::LrWpanSpectrumSignalParameters ( void  )

default constructor

Definition at line 29 of file lr-wpan-spectrum-signal-parameters.cc.

References NS_LOG_FUNCTION.

ns3::LrWpanSpectrumSignalParameters::LrWpanSpectrumSignalParameters ( const LrWpanSpectrumSignalParameters p)

copy constructor

Parameters
pthe object to copy from.

Definition at line 34 of file lr-wpan-spectrum-signal-parameters.cc.

References NS_LOG_FUNCTION, and packetBurst.

Member Function Documentation

Ptr< SpectrumSignalParameters > ns3::LrWpanSpectrumSignalParameters::Copy ( void  )
virtual

make a "virtual" copy of this class, where "virtual" refers to the fact that if the actual object is a derived class of SpectrumSignalParameters, then the copy is also a derived class of the same type.

Each class inheriting from SpectrumSignalParameters should override this method and use it to call the copy constructor of the derived class.

Returns
a copy of the (possibly derived) class

Reimplemented from ns3::SpectrumSignalParameters.

Definition at line 42 of file lr-wpan-spectrum-signal-parameters.cc.

References NS_LOG_FUNCTION.

Member Data Documentation

Ptr<PacketBurst> ns3::LrWpanSpectrumSignalParameters::packetBurst

The packet burst being transmitted with this signal.

Definition at line 56 of file lr-wpan-spectrum-signal-parameters.h.

Referenced by LrWpanSpectrumSignalParameters().


The documentation for this struct was generated from the following files:
