#include "wimax-mac-queue.h"

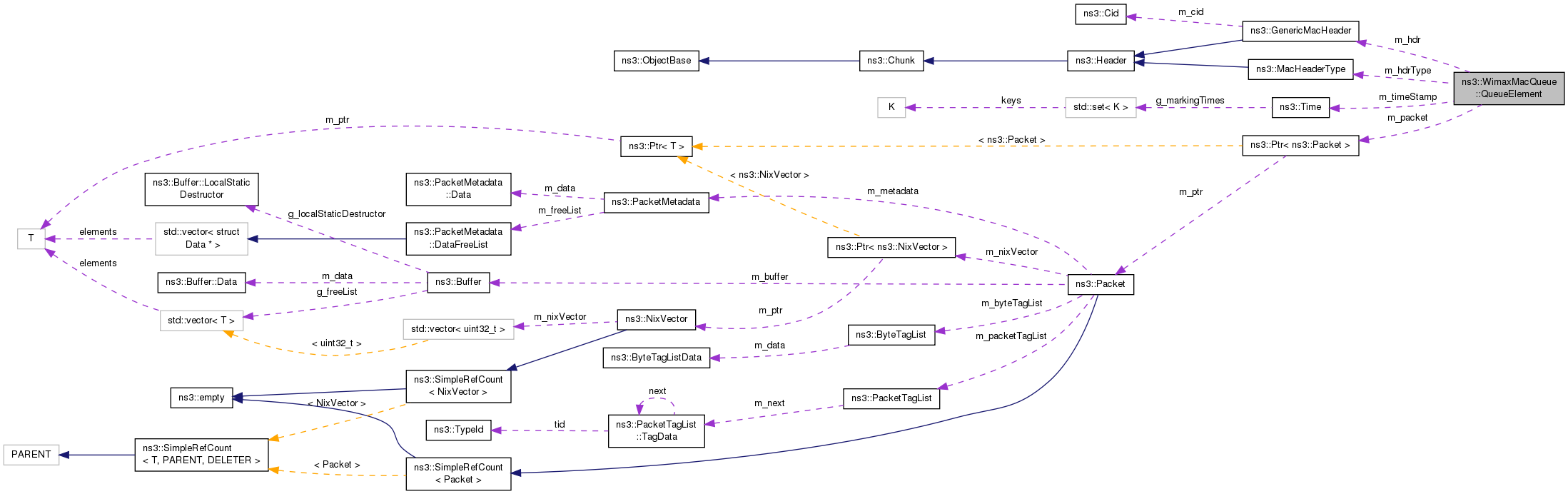

Collaboration diagram for ns3::WimaxMacQueue::QueueElement:

Public Member Functions
	QueueElement (void)

	QueueElement (Ptr< Packet > packet, const MacHeaderType &hdrType, const GenericMacHeader &hdr, Time timeStamp)
	Constructor. More...

uint32_t	GetSize (void) const
	Get size function. More...

void	SetFragmentation (void)
	Set fragmentation. More...

void	SetFragmentNumber (void)
	Set fragment number. More...

void	SetFragmentOffset (uint32_t offset)
	Set fragment offset. More...

Public Attributes
bool	m_fragmentation
	To manage fragmentation feature, each QueueElement have 3 new fields: m_fragmentation that becomes true when the fragmentation starts; m_fragmentNumber that is incremented when a new fragment is sent m_fragmentOffset that tracks the start of the next fragment into the packet. More...

uint32_t	m_fragmentNumber
	incremented when a new fragment is sent More...

uint32_t	m_fragmentOffset
	tracks the start of the next fragment into the packet More...

GenericMacHeader	m_hdr
	header More...

MacHeaderType	m_hdrType
	header type More...

Ptr< Packet >	m_packet
	packet More...

Time	m_timeStamp
	timestamp More...

Detailed Description

QueueElement structure.

Definition at line 193 of file wimax-mac-queue.h.

Constructor & Destructor Documentation

ns3::WimaxMacQueue::QueueElement::QueueElement ( void )

Definition at line 36 of file wimax-mac-queue.cc.

ns3::WimaxMacQueue::QueueElement::QueueElement	(	Ptr< Packet >	packet,
		const MacHeaderType &	hdrType,
		const GenericMacHeader &	hdr,
		Time	timeStamp
	)

Constructor.

Parameters

packet	the packet
hdrType	MAC header type
hdr	MAC header
timeStamp	time stamp

Definition at line 48 of file wimax-mac-queue.cc.

Member Function Documentation

uint32_t ns3::WimaxMacQueue::QueueElement::GetSize ( void ) const

Get size function.

Returns: the size

Definition at line 62 of file wimax-mac-queue.cc.

References ns3::MacHeaderType::HEADER_TYPE_GENERIC.

Referenced by ns3::WimaxMacQueue::Dequeue(), and ns3::WimaxMacQueue::Enqueue().

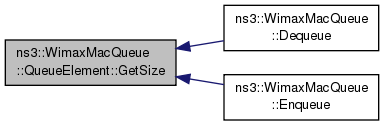

Here is the caller graph for this function:

void ns3::WimaxMacQueue::QueueElement::SetFragmentation ( void )

Set fragmentation.

Definition at line 644 of file wimax-mac-queue.cc.

References m_fragmentation.

void ns3::WimaxMacQueue::QueueElement::SetFragmentNumber ( void )

Set fragment number.

Definition at line 650 of file wimax-mac-queue.cc.

void ns3::WimaxMacQueue::QueueElement::SetFragmentOffset ( uint32_t offset )

Set fragment offset.

Parameters

offset the offset

Definition at line 656 of file wimax-mac-queue.cc.

Member Data Documentation

bool ns3::WimaxMacQueue::QueueElement::m_fragmentation

To manage fragmentation feature, each QueueElement have 3 new fields: m_fragmentation that becomes true when the fragmentation starts; m_fragmentNumber that is incremented when a new fragment is sent m_fragmentOffset that tracks the start of the next fragment into the packet.

becomes true when the fragmentation starts

Definition at line 224 of file wimax-mac-queue.h.

Referenced by ns3::WimaxMacQueue::CheckForFragmentation(), ns3::WimaxMacQueue::Dequeue(), and SetFragmentation().

uint32_t ns3::WimaxMacQueue::QueueElement::m_fragmentNumber

incremented when a new fragment is sent

Definition at line 225 of file wimax-mac-queue.h.

Referenced by ns3::WimaxMacQueue::Dequeue().

uint32_t ns3::WimaxMacQueue::QueueElement::m_fragmentOffset

tracks the start of the next fragment into the packet

Definition at line 226 of file wimax-mac-queue.h.

Referenced by ns3::WimaxMacQueue::Dequeue(), and ns3::WimaxMacQueue::GetFirstPacketPayloadSize().

GenericMacHeader ns3::WimaxMacQueue::QueueElement::m_hdr
