wifi-phy.h File Reference

#include <map>
#include "ns3/callback.h"
#include "ns3/event-id.h"
#include "ns3/mobility-model.h"
#include "ns3/random-variable-stream.h"
#include "ns3/channel.h"
#include "wifi-phy-standard.h"
#include "interference-helper.h"
#include "ns3/node.h"
#include "ns3/string.h"

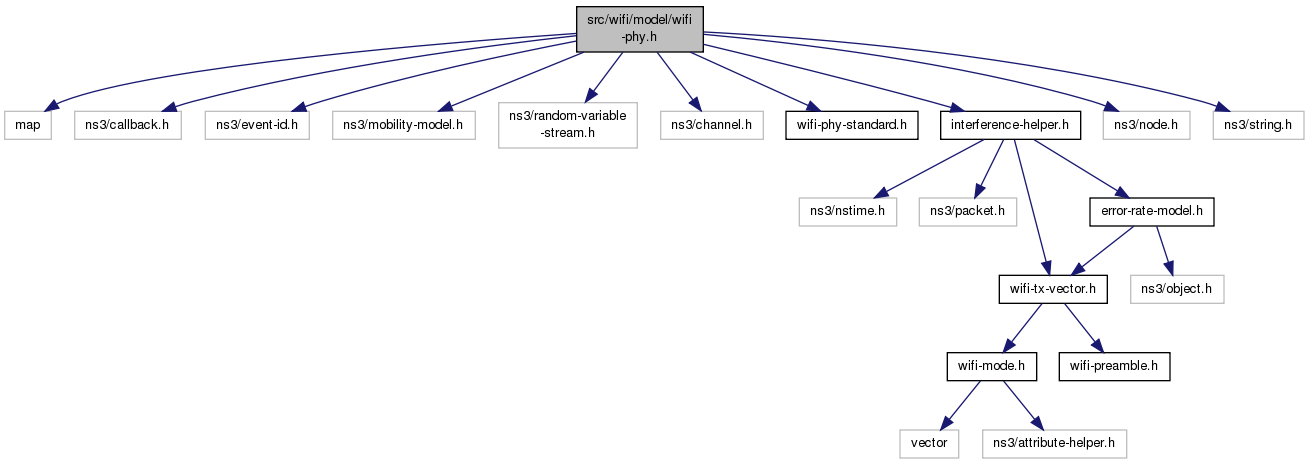

Include dependency graph for wifi-phy.h:

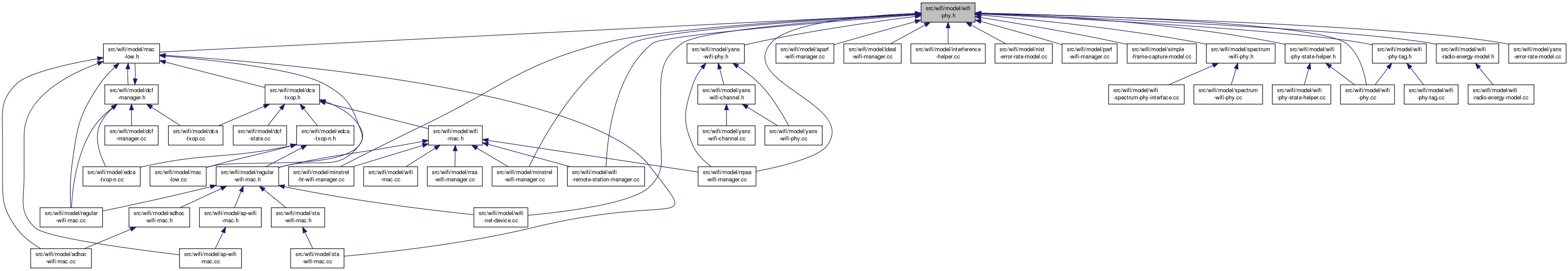

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ns3::MpduInfo
	MpduInfo structure. More...
struct	ns3::SignalNoiseDbm
	SignalNoiseDbm structure. More...
class	ns3::WifiPhy
	802.11 PHY layer model More...
class	ns3::WifiPhyListener
	receive notifications about phy events. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Macros
#define	HE_PHY   125
#define	HT_PHY   127
#define	VHT_PHY   126

Enumerations
enum	ns3::MpduType { ns3::NORMAL_MPDU = 0, ns3::MPDU_IN_AGGREGATE, ns3::LAST_MPDU_IN_AGGREGATE }
	This enumeration defines the type of an MPDU. More...

Functions
std::ostream &	ns3::operator<< (std::ostream &os, WifiPhy::State state)

Macro Definition Documentation

#define HE_PHY   125

Definition at line 38 of file wifi-phy.h.

Referenced by ns3::WifiPhy::Configure80211ax(), and ns3::WifiPhy::GetMembershipSelectorModes().

#define HT_PHY   127

Definition at line 40 of file wifi-phy.h.

Referenced by ns3::WifiPhy::Configure80211n(), ns3::WifiPhy::ConfigureHtDeviceMcsSet(), and ns3::WifiPhy::GetMembershipSelectorModes().

#define VHT_PHY   126

Definition at line 39 of file wifi-phy.h.

Referenced by ns3::WifiPhy::Configure80211ac(), and ns3::WifiPhy::GetMembershipSelectorModes().
