Ipv6ForwardingTest Class Reference

IPv6 Forwarding Test. More...

Inheritance diagram for Ipv6ForwardingTest:

Collaboration diagram for Ipv6ForwardingTest:

Public Member Functions
	Ipv6ForwardingTest ()
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
void	ReceivePkt (Ptr< Socket > socket)
	Receive data. More...
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
void	DoSendData (Ptr< Socket > socket, std::string to)
	Send data. More...
void	SendData (Ptr< Socket > socket, std::string to)
	Send data. More...

Private Attributes
Ptr< Packet >	m_receivedPacket
	Received packet. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

IPv6 Forwarding Test.

Definition at line 54 of file ipv6-forwarding-test.cc.

Constructor & Destructor Documentation

Ipv6ForwardingTest::Ipv6ForwardingTest

(

)

Definition at line 82 of file ipv6-forwarding-test.cc.

Member Function Documentation

void Ipv6ForwardingTest::DoRun ( void  )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 116 of file ipv6-forwarding-test.cc.

References ns3::Ipv6::AddAddress(), ns3::SocketFactory::CreateSocket(), ns3::NetDeviceContainer::Get(), ns3::Ipv6::GetInterfaceForDevice(), ns3::Object::GetObject(), ns3::Packet::GetSize(), ns3::SimpleNetDeviceHelper::Install(), ns3::InternetStackHelper::Install(), m_receivedPacket, ns3::MakeCallback(), first::nodes, NS_TEST_EXPECT_MSG_EQ, ReceivePkt(), ns3::Packet::RemoveAllByteTags(), SendData(), ns3::Socket::SetAllowBroadcast(), ns3::ObjectBase::SetAttribute(), ns3::Ipv6StaticRouting::SetDefaultRoute(), and ns3::SimpleNetDeviceHelper::SetNetDevicePointToPointMode().

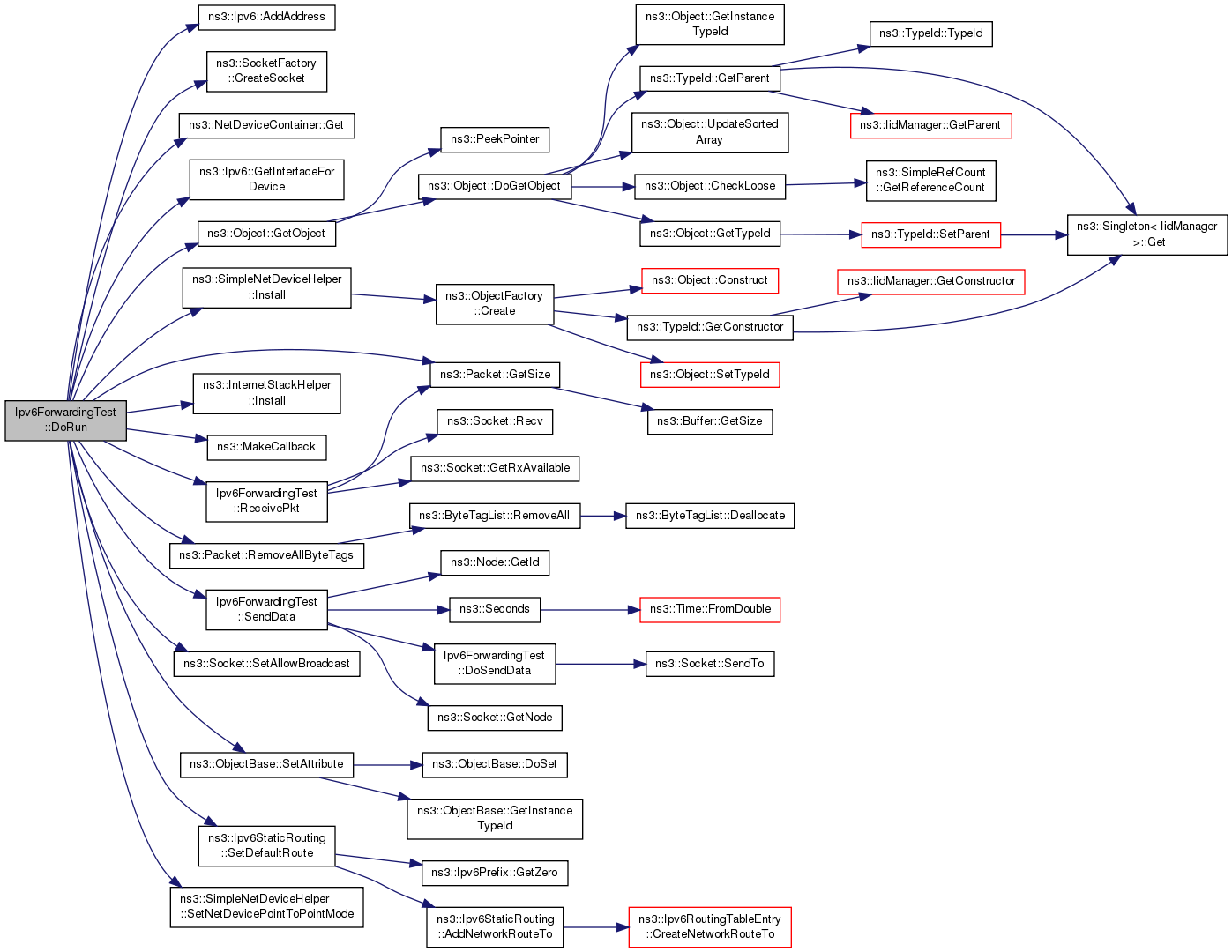

Here is the call graph for this function:

void Ipv6ForwardingTest::DoSendData ( Ptr< Socket >  socket, std::string  to  )

private

Send data.

Parameters

socket	The sending socket.
to	Destination address.

Definition at line 99 of file ipv6-forwarding-test.cc.

References NS_TEST_EXPECT_MSG_EQ, and ns3::Socket::SendTo().

Referenced by SendData().

Here is the call graph for this function:

Here is the caller graph for this function:

void Ipv6ForwardingTest::ReceivePkt

(

Ptr< Socket >

socket

)

Receive data.

Parameters

socket

The receiving socket.

Definition at line 87 of file ipv6-forwarding-test.cc.

References ns3::Socket::GetRxAvailable(), ns3::Packet::GetSize(), m_receivedPacket, max, NS_ASSERT, and ns3::Socket::Recv().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

void Ipv6ForwardingTest::SendData ( Ptr< Socket >  socket, std::string  to  )

private

Send data.

Parameters

socket	The sending socket.
to	Destination address.

Definition at line 107 of file ipv6-forwarding-test.cc.

References DoSendData(), ns3::Node::GetId(), ns3::Socket::GetNode(), m_receivedPacket, and ns3::Seconds().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

Ptr<Packet> Ipv6ForwardingTest::m_receivedPacket

private

Received packet.

Definition at line 56 of file ipv6-forwarding-test.cc.

Referenced by DoRun(), ReceivePkt(), and SendData().

---

The documentation for this class was generated from the following file:

• src/internet/test/ipv6-forwarding-test.cc
