The downlink DlHarqFeedbackLteControlMessage defines the specific messages for transmitting the DL HARQ feedback through PUCCH. More...

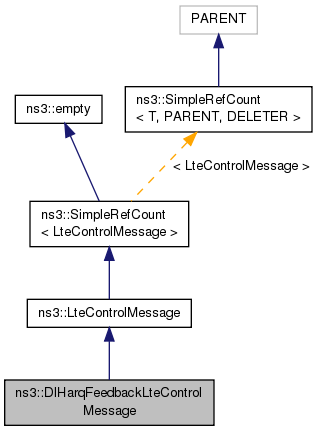

Inheritance diagram for ns3::DlHarqFeedbackLteControlMessage:

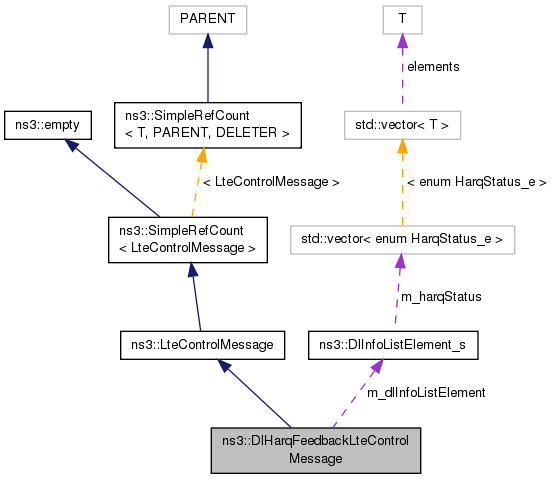

Collaboration diagram for ns3::DlHarqFeedbackLteControlMessage:

Public Member Functions
	DlHarqFeedbackLteControlMessage (void)

virtual	~DlHarqFeedbackLteControlMessage (void)

DlInfoListElement_s	GetDlHarqFeedback (void)
	Get DL HARQ informations. More...

void	SetDlHarqFeedback (DlInfoListElement_s m)
	add a DL HARQ feedback record into the message. More...

Public Member Functions inherited from ns3::LteControlMessage
	LteControlMessage (void)

virtual	~LteControlMessage (void)

MessageType	GetMessageType (void)
	Get the type of the message. More...

void	SetMessageType (MessageType type)
	Set the type of the message. More...

Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Additional Inherited Members
Public Types inherited from ns3::LteControlMessage
enum	MessageType { DL_DCI, UL_DCI, DL_CQI, UL_CQI, BSR, DL_HARQ, RACH_PREAMBLE, RAR, MIB, SIB1 }
	The type of the message NOTE: The messages sent by UE are filtered by the LteEnbPhy::ReceiveLteControlMessageList in order to remove the ones that has been already handoff by the eNB for avoiding propagation of spurious messages. More...
