A FIFO packet queue that drops tail-end packets on overflow. More...

#include "drop-tail-queue.h"

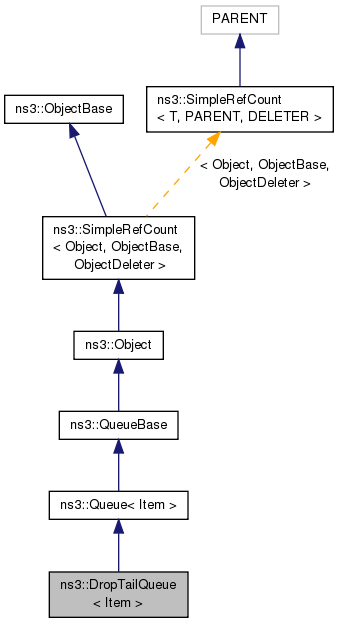

Inheritance diagram for ns3::DropTailQueue< Item >:

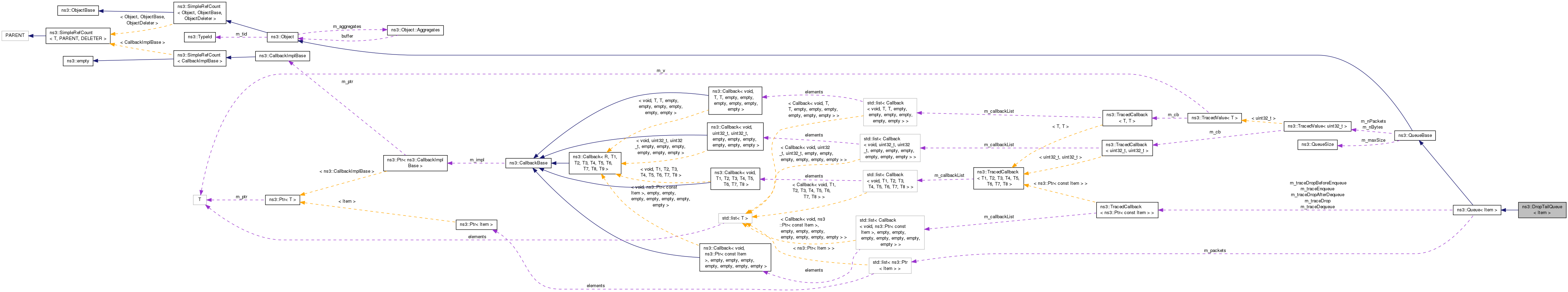

Collaboration diagram for ns3::DropTailQueue< Item >:

Public Member Functions
	DropTailQueue ()
	DropTailQueue Constructor. More...

virtual	~DropTailQueue ()

virtual Ptr< Item >	Dequeue (void)
	Remove an item from the Queue (each subclass defines the position), counting it as dequeued. More...

virtual bool	Enqueue (Ptr< Item > item)
	Place an item into the Queue (each subclass defines the position) More...

virtual Ptr< const Item >	Peek (void) const
	Get a copy of an item in the queue (each subclass defines the position) without removing it. More...

virtual Ptr< Item >	Remove (void)
	Remove an item from the Queue (each subclass defines the position), counting it as dropped. More...

Public Member Functions inherited from ns3::Queue< Item >
	Queue ()

virtual	~Queue ()

void	Flush (void)
	Flush the queue. More...

Public Member Functions inherited from ns3::QueueBase
	QueueBase ()

virtual	~QueueBase ()

QueueSize	GetCurrentSize (void) const

uint32_t	GetMaxBytes (void) const

uint32_t	GetMaxPackets (void) const

QueueSize	GetMaxSize (void) const

QueueBase::QueueMode	GetMode (void) const
	Get the operating mode of this device. More...

uint32_t	GetNBytes (void) const

uint32_t	GetNPackets (void) const

uint32_t	GetTotalDroppedBytes (void) const

uint32_t	GetTotalDroppedBytesAfterDequeue (void) const

uint32_t	GetTotalDroppedBytesBeforeEnqueue (void) const

uint32_t	GetTotalDroppedPackets (void) const

uint32_t	GetTotalDroppedPacketsAfterDequeue (void) const

uint32_t	GetTotalDroppedPacketsBeforeEnqueue (void) const

uint32_t	GetTotalReceivedBytes (void) const

uint32_t	GetTotalReceivedPackets (void) const

bool	IsEmpty (void) const

void	ResetStatistics (void)
	Resets the counts for dropped packets, dropped bytes, received packets, and received bytes. More...

void	SetMaxBytes (uint32_t maxBytes)
	Set the maximum amount of bytes that can be stored in this queue. More...

void	SetMaxPackets (uint32_t maxPackets)
	Set the maximum amount of packets that can be stored in this queue. More...

void	SetMaxSize (QueueSize size)
	Set the maximum size of this queue. More...

void	SetMode (QueueBase::QueueMode mode)
	Set the operating mode of this device. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Queue< Item >
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::QueueBase
static void	AppendItemTypeIfNotPresent (std::string &typeId, const std::string &itemType)
	Append the item type to the provided type ID if the latter does not end with '>'. More...

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
	NS_LOG_TEMPLATE_DECLARE
	redefinition of the log component More...

Additional Inherited Members
Public Types inherited from ns3::QueueBase
enum	QueueMode { QUEUE_MODE_PACKETS, QUEUE_MODE_BYTES }
	Enumeration of the modes supported in the class. More...

Protected Types inherited from ns3::Queue< Item >
typedef std::list< Ptr< Item > >::const_iterator	ConstIterator
	Const iterator. More...

Protected Member Functions inherited from ns3::Queue< Item >
Ptr< Item >	DoDequeue (ConstIterator pos)
	Pull the item to dequeue from the queue. More...

bool	DoEnqueue (ConstIterator pos, Ptr< Item > item)
	Push an item in the queue. More...

Ptr< const Item >	DoPeek (ConstIterator pos) const
	Peek the front item in the queue. More...

Ptr< Item >	DoRemove (ConstIterator pos)
	Pull the item to drop from the queue. More...

void	DropAfterDequeue (Ptr< Item > item)
	Drop a packet after dequeue. More...

void	DropBeforeEnqueue (Ptr< Item > item)
	Drop a packet before enqueue. More...

ConstIterator	Head (void) const
	Get a const iterator which refers to the first item in the queue. More...

ConstIterator	Tail (void) const
	Get a const iterator which indicates past-the-last item in the queue. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...
