ns3::EdcaParameterSet Class Reference

The EDCA Parameter SetThis class knows how to serialise and deserialise the EDCA Parameter Set. More...

#include "edca-parameter-set.h"

Inheritance diagram for ns3::EdcaParameterSet:

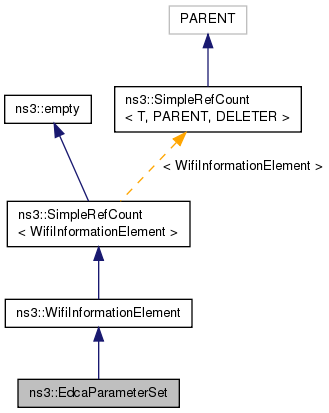

Collaboration diagram for ns3::EdcaParameterSet:

Public Member Functions
	EdcaParameterSet ()
uint8_t	DeserializeInformationField (Buffer::Iterator start, uint8_t length)
	Deserialize information field function. More...
WifiInformationElementId	ElementId () const
	Element ID function. More...
uint8_t	GetBeAci (void) const
	Return the AC_BE ACI field in the EdcaParameterSet information element. More...
uint8_t	GetBeAcm (void) const
	Return the AC_BE ACM field in the EdcaParameterSet information element. More...
uint8_t	GetBeAifsn (void) const
	Return the AC_BE AIFSN field in the EdcaParameterSet information element. More...
uint32_t	GetBeCWmax (void) const
	Return the AC_BE CWmax field in the EdcaParameterSet information element. More...
uint32_t	GetBeCWmin (void) const
	Return the AC_BE CWmin field in the EdcaParameterSet information element. More...
uint16_t	GetBeTXOPLimit (void) const
	Return the AC_BE TXOP Limit field in the EdcaParameterSet information element. More...
uint8_t	GetBkAci (void) const
	Return the AC_BK ACI field in the EdcaParameterSet information element. More...
uint8_t	GetBkAcm (void) const
	Return the AC_BK ACM field in the EdcaParameterSet information element. More...
uint8_t	GetBkAifsn (void) const
	Return the AC_BK AIFSN field in the EdcaParameterSet information element. More...
uint32_t	GetBkCWmax (void) const
	Return the AC_BK CWmax field in the EdcaParameterSet information element. More...
uint32_t	GetBkCWmin (void) const
	Return the AC_BK CWmin field in the EdcaParameterSet information element. More...
uint16_t	GetBkTXOPLimit (void) const
	Return the AC_BK TXOP Limit field in the EdcaParameterSet information element. More...
uint8_t	GetInformationFieldSize () const
	Get information field size function. More...
uint8_t	GetQosInfo (void) const
	Return the QoS Info field in the EdcaParameterSet information element. More...
uint16_t	GetSerializedSize () const
	Return the serialized size of this EDCA Parameter Set. More...
uint8_t	GetViAci (void) const
	Return the AC_VI ACI field in the EdcaParameterSet information element. More...
uint8_t	GetViAcm (void) const
	Return the AC_VI ACM field in the EdcaParameterSet information element. More...
uint8_t	GetViAifsn (void) const
	Return the AC_VI AIFSN field in the EdcaParameterSet information element. More...
uint32_t	GetViCWmax (void) const
	Return the AC_VI CWmax field in the EdcaParameterSet information element. More...
uint32_t	GetViCWmin (void) const
	Return the AC_VI CWmin field in the EdcaParameterSet information element. More...
uint16_t	GetViTXOPLimit (void) const
	Return the AC_VI TXOP Limit field in the EdcaParameterSet information element. More...
uint8_t	GetVoAci (void) const
	Return the AC_VO ACI field in the EdcaParameterSet information element. More...
uint8_t	GetVoAcm (void) const
	Return the AC_VO ACM field in the EdcaParameterSet information element. More...
uint8_t	GetVoAifsn (void) const
	Return the AC_VO AIFSN field in the EdcaParameterSet information element. More...
uint32_t	GetVoCWmax (void) const
	Return the AC_VO CWmax field in the EdcaParameterSet information element. More...
uint32_t	GetVoCWmin (void) const
	Return the AC_VO CWmin field in the EdcaParameterSet information element. More...
uint16_t	GetVoTXOPLimit (void) const
	Return the AC_VO TXOP Limit field in the EdcaParameterSet information element. More...
uint8_t	IsQosSupported (void) const
	Is QOS supported function. More...
Buffer::Iterator	Serialize (Buffer::Iterator start) const
	This information element is a bit special in that it is only included if the STA is a QoS STA. More...
void	SerializeInformationField (Buffer::Iterator start) const
	Serialize information field function. More...
void	SetBeAci (uint8_t aci)
	Set the AC_BE ACI field in the EdcaParameterSet information element. More...
void	SetBeAcm (uint8_t acm)
	Set the AC_BE ACM field in the EdcaParameterSet information element. More...
void	SetBeAifsn (uint8_t aifsn)
	Set the AC_BE AIFSN field in the EdcaParameterSet information element. More...
void	SetBeCWmax (uint32_t cwMax)
	Set the AC_BE CWmax field in the EdcaParameterSet information element. More...
void	SetBeCWmin (uint32_t cwMin)
	Set the AC_BE CWmin field in the EdcaParameterSet information element. More...
void	SetBeTXOPLimit (uint16_t txop)
	Set the AC_BE TXOP Limit field in the EdcaParameterSet information element. More...
void	SetBkAci (uint8_t aci)
	Set the AC_BK ACI field in the EdcaParameterSet information element. More...
void	SetBkAcm (uint8_t acm)
	Set the AC_BK ACM field in the EdcaParameterSet information element. More...
void	SetBkAifsn (uint8_t aifsn)
	Set the AC_BK AIFSN field in the EdcaParameterSet information element. More...
void	SetBkCWmax (uint32_t cwMax)
	Set the AC_BK CWmax field in the EdcaParameterSet information element. More...
void	SetBkCWmin (uint32_t cwMin)
	Set the AC_BK CWmin field in the EdcaParameterSet information element. More...
void	SetBkTXOPLimit (uint16_t txop)
	Set the AC_BK TXOP Limit field in the EdcaParameterSet information element. More...
void	SetQosInfo (uint8_t qosInfo)
	Set the QoS Info field in the EdcaParameterSet information element. More...
void	SetQosSupported (uint8_t qosSupported)
	Set QOS supported function. More...
void	SetViAci (uint8_t aci)
	Set the AC_VI ACI field in the EdcaParameterSet information element. More...
void	SetViAcm (uint8_t acm)
	Set the AC_VI ACM field in the EdcaParameterSet information element. More...
void	SetViAifsn (uint8_t aifsn)
	Set the AC_VI AIFSN field in the EdcaParameterSet information element. More...
void	SetViCWmax (uint32_t cwMax)
	Set the AC_VI CWmax field in the EdcaParameterSet information element. More...
void	SetViCWmin (uint32_t cwMin)
	Set the AC_VI CWmin field in the EdcaParameterSet information element. More...
void	SetViTXOPLimit (uint16_t txop)
	Set the AC_VI TXOP Limit field in the EdcaParameterSet information element. More...
void	SetVoAci (uint8_t aci)
	Set the AC_VO ACI field in the EdcaParameterSet information element. More...
void	SetVoAcm (uint8_t acm)
	Set the AC_VO ACM field in the EdcaParameterSet information element. More...
void	SetVoAifsn (uint8_t aifsn)
	Set the AC_VO AIFSN field in the EdcaParameterSet information element. More...
void	SetVoCWmax (uint32_t cwMax)
	Set the AC_VO CWmax field in the EdcaParameterSet information element. More...
void	SetVoCWmin (uint32_t cwMin)
	Set the AC_VO CWmin field in the EdcaParameterSet information element. More...
void	SetVoTXOPLimit (uint16_t txop)
	Set the AC_VO TXOP Limit field in the EdcaParameterSet information element. More...
Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()
Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE, which must be present. More...
Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE if it is present. More...
uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields. More...
virtual bool	operator== (WifiInformationElement const &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...
virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...
Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...
Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
uint32_t	m_acBE
	AC_BE. More...
uint32_t	m_acBK
	AC_BK. More...
uint32_t	m_acVI
	AC_VI. More...
uint32_t	m_acVO
	AC_VO. More...
uint8_t	m_qosInfo
	QOS info. More...
bool	m_qosSupported
	This is used to decide whether this element should be added to the frame or not. More...
uint8_t	m_reserved
	reserved More...

Detailed Description

The EDCA Parameter Set

This class knows how to serialise and deserialise the EDCA Parameter Set.

Definition at line 34 of file edca-parameter-set.h.

Constructor & Destructor Documentation

ns3::EdcaParameterSet::EdcaParameterSet

(

)

Definition at line 26 of file edca-parameter-set.cc.

Member Function Documentation

uint8_t ns3::EdcaParameterSet::DeserializeInformationField ( Buffer::Iterator  start, uint8_t  length  )

virtual

Deserialize information field function.

Parameters

start	the iterator
length	the length

Returns

the size

Implements ns3::WifiInformationElement.

Definition at line 413 of file edca-parameter-set.cc.

References m_acBE, m_acBK, m_acVI, m_acVO, m_qosInfo, m_reserved, ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

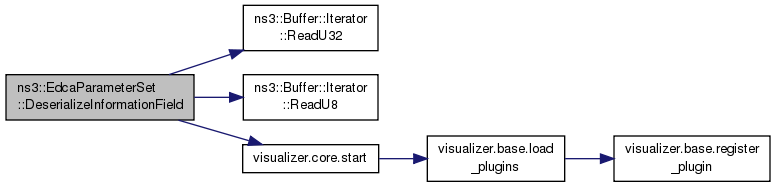

Here is the call graph for this function:

WifiInformationElementId ns3::EdcaParameterSet::ElementId ( ) const

virtual

Element ID function.

Returns

the wifi information element ID

Implements ns3::WifiInformationElement.

Definition at line 38 of file edca-parameter-set.cc.

References IE_EDCA_PARAMETER_SET.

uint8_t ns3::EdcaParameterSet::GetBeAci

(

void

)

const

Return the AC_BE ACI field in the EdcaParameterSet information element.

Returns

the AC_BE ACI field in the EdcaParameterSet information element

Definition at line 232 of file edca-parameter-set.cc.

References m_acBE.

uint8_t ns3::EdcaParameterSet::GetBeAcm

(

void

)

const

Return the AC_BE ACM field in the EdcaParameterSet information element.

Returns

the AC_BE ACM field in the EdcaParameterSet information element

Definition at line 226 of file edca-parameter-set.cc.

References m_acBE.

uint8_t ns3::EdcaParameterSet::GetBeAifsn

(

void

)

const

Return the AC_BE AIFSN field in the EdcaParameterSet information element.

Returns

the AC_BE AIFSN field in the EdcaParameterSet information element

Definition at line 220 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint32_t ns3::EdcaParameterSet::GetBeCWmax

(

void

)

const

Return the AC_BE CWmax field in the EdcaParameterSet information element.

Returns

the AC_BE CWmax field in the EdcaParameterSet information element

Definition at line 245 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint32_t ns3::EdcaParameterSet::GetBeCWmin

(

void

)

const

Return the AC_BE CWmin field in the EdcaParameterSet information element.

Returns

the AC_BE CWmin field in the EdcaParameterSet information element

Definition at line 238 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint16_t ns3::EdcaParameterSet::GetBeTXOPLimit

(

void

)

const

Return the AC_BE TXOP Limit field in the EdcaParameterSet information element.

Returns

the AC_BE TXOP Limit field in the EdcaParameterSet information element

Definition at line 252 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint8_t ns3::EdcaParameterSet::GetBkAci

(

void

)

const

Return the AC_BK ACI field in the EdcaParameterSet information element.

Returns

the AC_BK ACI field in the EdcaParameterSet information element

Definition at line 270 of file edca-parameter-set.cc.

References m_acBK.

uint8_t ns3::EdcaParameterSet::GetBkAcm

(

void

)

const

Return the AC_BK ACM field in the EdcaParameterSet information element.

Returns

the AC_BK ACM field in the EdcaParameterSet information element

Definition at line 264 of file edca-parameter-set.cc.

References m_acBK.

uint8_t ns3::EdcaParameterSet::GetBkAifsn

(

void

)

const

Return the AC_BK AIFSN field in the EdcaParameterSet information element.

Returns

the AC_BK AIFSN field in the EdcaParameterSet information element

Definition at line 258 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint32_t ns3::EdcaParameterSet::GetBkCWmax

(

void

)

const

Return the AC_BK CWmax field in the EdcaParameterSet information element.

Returns

the AC_BK CWmax field in the EdcaParameterSet information element

Definition at line 283 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint32_t ns3::EdcaParameterSet::GetBkCWmin

(

void

)

const

Return the AC_BK CWmin field in the EdcaParameterSet information element.

Returns

the AC_BK CWmin field in the EdcaParameterSet information element

Definition at line 276 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint16_t ns3::EdcaParameterSet::GetBkTXOPLimit

(

void

)

const

Return the AC_BK TXOP Limit field in the EdcaParameterSet information element.

Returns

the AC_BK TXOP Limit field in the EdcaParameterSet information element

Definition at line 290 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint8_t ns3::EdcaParameterSet::GetInformationFieldSize ( void  ) const

virtual

Get information field size function.

Returns

the information field size

Implements ns3::WifiInformationElement.

Definition at line 372 of file edca-parameter-set.cc.

References m_qosSupported, and NS_ASSERT.

uint8_t ns3::EdcaParameterSet::GetQosInfo

(

void

)

const

Return the QoS Info field in the EdcaParameterSet information element.

Returns

the QoS Info field in the EdcaParameterSet information element

Definition at line 214 of file edca-parameter-set.cc.

References m_qosInfo.

uint16_t ns3::EdcaParameterSet::GetSerializedSize

(

void

)

const

Return the serialized size of this EDCA Parameter Set.

Returns

the serialized size of this EDCA Parameter Set

Definition at line 389 of file edca-parameter-set.cc.

References ns3::WifiInformationElement::GetSerializedSize(), and m_qosSupported.

Referenced by ns3::MgtAssocResponseHeader::GetSerializedSize(), and ns3::MgtProbeResponseHeader::GetSerializedSize().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::EdcaParameterSet::GetViAci

(

void

)

const

Return the AC_VI ACI field in the EdcaParameterSet information element.

Returns

the AC_VI ACI field in the EdcaParameterSet information element

Definition at line 308 of file edca-parameter-set.cc.

References m_acVI.

uint8_t ns3::EdcaParameterSet::GetViAcm

(

void

)

const

Return the AC_VI ACM field in the EdcaParameterSet information element.

Returns

the AC_VI ACM field in the EdcaParameterSet information element

Definition at line 302 of file edca-parameter-set.cc.

References m_acVI.

uint8_t ns3::EdcaParameterSet::GetViAifsn

(

void

)

const

Return the AC_VI AIFSN field in the EdcaParameterSet information element.

Returns

the AC_VI AIFSN field in the EdcaParameterSet information element

Definition at line 296 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint32_t ns3::EdcaParameterSet::GetViCWmax

(

void

)

const

Return the AC_VI CWmax field in the EdcaParameterSet information element.

Returns

the AC_VI CWmax field in the EdcaParameterSet information element

Definition at line 321 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint32_t ns3::EdcaParameterSet::GetViCWmin

(

void

)

const

Return the AC_VI CWmin field in the EdcaParameterSet information element.

Returns

the AC_VI CWmin field in the EdcaParameterSet information element

Definition at line 314 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint16_t ns3::EdcaParameterSet::GetViTXOPLimit

(

void

)

const

Return the AC_VI TXOP Limit field in the EdcaParameterSet information element.

Returns

the AC_VI TXOP Limit field in the EdcaParameterSet information element

Definition at line 328 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint8_t ns3::EdcaParameterSet::GetVoAci

(

void

)

const

Return the AC_VO ACI field in the EdcaParameterSet information element.

Returns

the AC_VO ACI field in the EdcaParameterSet information element

Definition at line 346 of file edca-parameter-set.cc.

References m_acVO.

uint8_t ns3::EdcaParameterSet::GetVoAcm

(

void

)

const

Return the AC_VO ACM field in the EdcaParameterSet information element.

Returns

the AC_VO ACM field in the EdcaParameterSet information element

Definition at line 340 of file edca-parameter-set.cc.

References m_acVO.

uint8_t ns3::EdcaParameterSet::GetVoAifsn

(

void

)

const

Return the AC_VO AIFSN field in the EdcaParameterSet information element.

Returns

the AC_VO AIFSN field in the EdcaParameterSet information element

Definition at line 334 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint32_t ns3::EdcaParameterSet::GetVoCWmax

(

void

)

const

Return the AC_VO CWmax field in the EdcaParameterSet information element.

Returns

the AC_VO CWmax field in the EdcaParameterSet information element

Definition at line 359 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint32_t ns3::EdcaParameterSet::GetVoCWmin

(

void

)

const

Return the AC_VO CWmin field in the EdcaParameterSet information element.

Returns

the AC_VO CWmin field in the EdcaParameterSet information element

Definition at line 352 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint16_t ns3::EdcaParameterSet::GetVoTXOPLimit

(

void

)

const

Return the AC_VO TXOP Limit field in the EdcaParameterSet information element.

Returns

the AC_VO TXOP Limit field in the EdcaParameterSet information element

Definition at line 366 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

uint8_t ns3::EdcaParameterSet::IsQosSupported

(

void

)

const

Is QOS supported function.

Returns

the is QOS supported indicator

Definition at line 50 of file edca-parameter-set.cc.

References m_acBE, m_acBK, m_acVI, and m_acVO.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

Buffer::Iterator ns3::EdcaParameterSet::Serialize

(

Buffer::Iterator

start

)

const

This information element is a bit special in that it is only included if the STA is a QoS STA.

To support this we override the Serialize and GetSerializedSize methods of WifiInformationElement.

Parameters

start

Returns

an iterator

Definition at line 379 of file edca-parameter-set.cc.

References m_qosSupported, and ns3::WifiInformationElement::Serialize().

Referenced by ns3::MgtAssocResponseHeader::Serialize(), and ns3::MgtProbeResponseHeader::Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SerializeInformationField ( Buffer::Iterator  start ) const

virtual

Serialize information field function.

Parameters

start

the iterator

Implements ns3::WifiInformationElement.

Definition at line 399 of file edca-parameter-set.cc.

References m_acBE, m_acBK, m_acVI, m_acVO, m_qosInfo, m_qosSupported, m_reserved, ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

void ns3::EdcaParameterSet::SetBeAci

(

uint8_t

aci

)

Set the AC_BE ACI field in the EdcaParameterSet information element.

Parameters

aci	the AC_BE ACI field in the EdcaParameterSet information element

Definition at line 74 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetBeAcm

(

uint8_t

acm

)

Set the AC_BE ACM field in the EdcaParameterSet information element.

Parameters

acm	the AC_BE ACM field in the EdcaParameterSet information element

Definition at line 68 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetBeAifsn

(

uint8_t

aifsn

)

Set the AC_BE AIFSN field in the EdcaParameterSet information element.

Parameters

aifsn

the AC_BE AIFSN field in the EdcaParameterSet information element

Definition at line 62 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetBeCWmax

(

uint32_t

cwMax

)

Set the AC_BE CWmax field in the EdcaParameterSet information element.

Parameters

cwMax

the AC_BE CWmax field in the EdcaParameterSet information element

Definition at line 87 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetBeCWmin

(

uint32_t

cwMin

)

Set the AC_BE CWmin field in the EdcaParameterSet information element.

Parameters

cwMin

the AC_BE CWmin field in the EdcaParameterSet information element

Definition at line 80 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetBeTXOPLimit

(

uint16_t

txop

)

Set the AC_BE TXOP Limit field in the EdcaParameterSet information element.

Parameters

txop	the AC_BE TXOP Limit field in the EdcaParameterSet information element

Definition at line 94 of file edca-parameter-set.cc.

References m_acBE.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetBkAci

(

uint8_t

aci

)

Set the AC_BK ACI field in the EdcaParameterSet information element.

Parameters

aci	the AC_BK ACI field in the EdcaParameterSet information element

Definition at line 112 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetBkAcm

(

uint8_t

acm

)

Set the AC_BK ACM field in the EdcaParameterSet information element.

Parameters

acm	the AC_BK ACM field in the EdcaParameterSet information element

Definition at line 106 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetBkAifsn

(

uint8_t

aifsn

)

Set the AC_BK AIFSN field in the EdcaParameterSet information element.

Parameters

aifsn

the AC_BB AIFSN field in the EdcaParameterSet information element

Definition at line 100 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetBkCWmax

(

uint32_t

cwMax

)

Set the AC_BK CWmax field in the EdcaParameterSet information element.

Parameters

cwMax

the AC_BK CWmax field in the EdcaParameterSet information element

Definition at line 125 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetBkCWmin

(

uint32_t

cwMin

)

Set the AC_BK CWmin field in the EdcaParameterSet information element.

Parameters

cwMin

the AC_BK CWmin field in the EdcaParameterSet information element

Definition at line 118 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetBkTXOPLimit

(

uint16_t

txop

)

Set the AC_BK TXOP Limit field in the EdcaParameterSet information element.

Parameters

txop	the AC_BK TXOP Limit field in the EdcaParameterSet information element

Definition at line 132 of file edca-parameter-set.cc.

References m_acBK.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetQosInfo

(

uint8_t

qosInfo

)

Set the QoS Info field in the EdcaParameterSet information element.

Parameters

qosInfo

the QoS Info field in the EdcaParameterSet information element

Definition at line 56 of file edca-parameter-set.cc.

References m_qosInfo.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetQosSupported

(

uint8_t

qosSupported

)

Set QOS supported function.

Parameters

qosSupported

the QOS supported indicator

Definition at line 44 of file edca-parameter-set.cc.

References m_qosSupported.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetViAci

(

uint8_t

aci

)

Set the AC_VI ACI field in the EdcaParameterSet information element.

Parameters

aci	the AC_VI ACI field in the EdcaParameterSet information element

Definition at line 150 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetViAcm

(

uint8_t

acm

)

Set the AC_VI ACM field in the EdcaParameterSet information element.

Parameters

acm	the AC_VI ACM field in the EdcaParameterSet information element

Definition at line 144 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetViAifsn

(

uint8_t

aifsn

)

Set the AC_VI AIFSN field in the EdcaParameterSet information element.

Parameters

aifsn

the AC_VI AIFSN field in the EdcaParameterSet information element

Definition at line 138 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetViCWmax

(

uint32_t

cwMax

)

Set the AC_VI CWmax field in the EdcaParameterSet information element.

Parameters

cwMax

the AC_VI CWmax field in the EdcaParameterSet information element

Definition at line 163 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetViCWmin

(

uint32_t

cwMin

)

Set the AC_VI CWmin field in the EdcaParameterSet information element.

Parameters

cwMin

the AC_VI CWmin field in the EdcaParameterSet information element

Definition at line 156 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetViTXOPLimit

(

uint16_t

txop

)

Set the AC_VI TXOP Limit field in the EdcaParameterSet information element.

Parameters

txop	the AC_VI TXOP Limit field in the EdcaParameterSet information element

Definition at line 170 of file edca-parameter-set.cc.

References m_acVI.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetVoAci

(

uint8_t

aci

)

Set the AC_VO ACI field in the EdcaParameterSet information element.

Parameters

aci	the AC_VO ACI field in the EdcaParameterSet information element

Definition at line 188 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetVoAcm

(

uint8_t

acm

)

Set the AC_VO ACM field in the EdcaParameterSet information element.

Parameters

acm	the AC_VO ACM field in the EdcaParameterSet information element

Definition at line 182 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetVoAifsn

(

uint8_t

aifsn

)

Set the AC_VO AIFSN field in the EdcaParameterSet information element.

Parameters

aifsn

the AC_VO AIFSN field in the EdcaParameterSet information element

Definition at line 176 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetVoCWmax

(

uint32_t

cwMax

)

Set the AC_VO CWmax field in the EdcaParameterSet information element.

Parameters

cwMax

the AC_VO CWmax field in the EdcaParameterSet information element

Definition at line 201 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetVoCWmin

(

uint32_t

cwMin

)

Set the AC_VO CWmin field in the EdcaParameterSet information element.

Parameters

cwMin

the AC_VO CWmin field in the EdcaParameterSet information element

Definition at line 194 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

void ns3::EdcaParameterSet::SetVoTXOPLimit

(

uint16_t

txop

)

Set the AC_VO TXOP Limit field in the EdcaParameterSet information element.

Parameters

txop	the AC_VO TXOP Limit field in the EdcaParameterSet information element

Definition at line 208 of file edca-parameter-set.cc.

References m_acVO.

Referenced by ns3::ApWifiMac::GetEdcaParameterSet().

Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::EdcaParameterSet::m_acBE

private

AC_BE.

Definition at line 396 of file edca-parameter-set.h.

Referenced by DeserializeInformationField(), GetBeAci(), GetBeAcm(), GetBeAifsn(), GetBeCWmax(), GetBeCWmin(), GetBeTXOPLimit(), IsQosSupported(), SerializeInformationField(), SetBeAci(), SetBeAcm(), SetBeAifsn(), SetBeCWmax(), SetBeCWmin(), and SetBeTXOPLimit().

uint32_t ns3::EdcaParameterSet::m_acBK

private

AC_BK.

Definition at line 397 of file edca-parameter-set.h.

Referenced by DeserializeInformationField(), GetBkAci(), GetBkAcm(), GetBkAifsn(), GetBkCWmax(), GetBkCWmin(), GetBkTXOPLimit(), IsQosSupported(), SerializeInformationField(), SetBkAci(), SetBkAcm(), SetBkAifsn(), SetBkCWmax(), SetBkCWmin(), and SetBkTXOPLimit().

uint32_t ns3::EdcaParameterSet::m_acVI

private

AC_VI.

Definition at line 398 of file edca-parameter-set.h.

Referenced by DeserializeInformationField(), GetViAci(), GetViAcm(), GetViAifsn(), GetViCWmax(), GetViCWmin(), GetViTXOPLimit(), IsQosSupported(), SerializeInformationField(), SetViAci(), SetViAcm(), SetViAifsn(), SetViCWmax(), SetViCWmin(), and SetViTXOPLimit().

uint32_t ns3::EdcaParameterSet::m_acVO

private

AC_VO.

Definition at line 399 of file edca-parameter-set.h.

Referenced by DeserializeInformationField(), GetVoAci(), GetVoAcm(), GetVoAifsn(), GetVoCWmax(), GetVoCWmin(), GetVoTXOPLimit(), IsQosSupported(), SerializeInformationField(), SetVoAci(), SetVoAcm(), SetVoAifsn(), SetVoCWmax(), SetVoCWmin(), and SetVoTXOPLimit().

uint8_t ns3::EdcaParameterSet::m_qosInfo

private

QOS info.

Definition at line 394 of file edca-parameter-set.h.

Referenced by DeserializeInformationField(), GetQosInfo(), SerializeInformationField(), and SetQosInfo().

bool ns3::EdcaParameterSet::m_qosSupported

private

This is used to decide whether this element should be added to the frame or not.

Definition at line 402 of file edca-parameter-set.h.

Referenced by GetInformationFieldSize(), GetSerializedSize(), Serialize(), SerializeInformationField(), and SetQosSupported().

uint8_t ns3::EdcaParameterSet::m_reserved

private

reserved

Definition at line 395 of file edca-parameter-set.h.

Referenced by DeserializeInformationField(), and SerializeInformationField().

---

The documentation for this class was generated from the following files:

• src/wifi/model/edca-parameter-set.h
• src/wifi/model/edca-parameter-set.cc
