ns3::Mac64Address Class Reference

an EUI-64 address More...

#include "mac64-address.h"

Public Member Functions
	Mac64Address ()
	Mac64Address (const char *str)
void	CopyFrom (const uint8_t buffer[8])
void	CopyTo (uint8_t buffer[8]) const
	operator Address () const

Static Public Member Functions
static Mac64Address	Allocate (void)
	Allocate a new Mac64Address. More...
static Mac64Address	ConvertFrom (const Address &address)
static bool	IsMatchingType (const Address &address)

Private Member Functions
Address	ConvertTo (void) const

Static Private Member Functions
static uint8_t	GetType (void)
	Return the Type of address. More...

Private Attributes
uint8_t	m_address [8]
	address value More...

Friends
bool	operator!= (const Mac64Address &a, const Mac64Address &b)
	Not equal to operator. More...
bool	operator< (const Mac64Address &a, const Mac64Address &b)
	Less than operator. More...
std::ostream &	operator<< (std::ostream &os, const Mac64Address &address)
	Stream insertion operator. More...
bool	operator== (const Mac64Address &a, const Mac64Address &b)
	Equal to operator. More...
std::istream &	operator>> (std::istream &is, Mac64Address &address)
	Stream extraction operator. More...

Detailed Description

an EUI-64 address

This class can contain 64 bit IEEE addresses.

See also

Mac64Address Attribute

Definition at line 43 of file mac64-address.h.

Constructor & Destructor Documentation

ns3::Mac64Address::Mac64Address

(

)

Definition at line 60 of file mac64-address.cc.

References m_address, and NS_LOG_FUNCTION.

ns3::Mac64Address::Mac64Address

(

const char *

str

)

Parameters

str	a string representing the new Mac64Address

The format of the string is "xx:xx:xx:xx:xx:xx"

Definition at line 65 of file mac64-address.cc.

References ASCII_a, ASCII_COLON, ASCII_ZERO, ns3::AsciiToLowCase(), m_address, NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

Mac64Address ns3::Mac64Address::Allocate ( void  )

static

Allocate a new Mac64Address.

Returns

newly allocated mac64Address

Definition at line 137 of file mac64-address.cc.

References first::address, m_address, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::LteHelper::InstallSingleUeDevice(), and ns3::LrWpanMac::LrWpanMac().

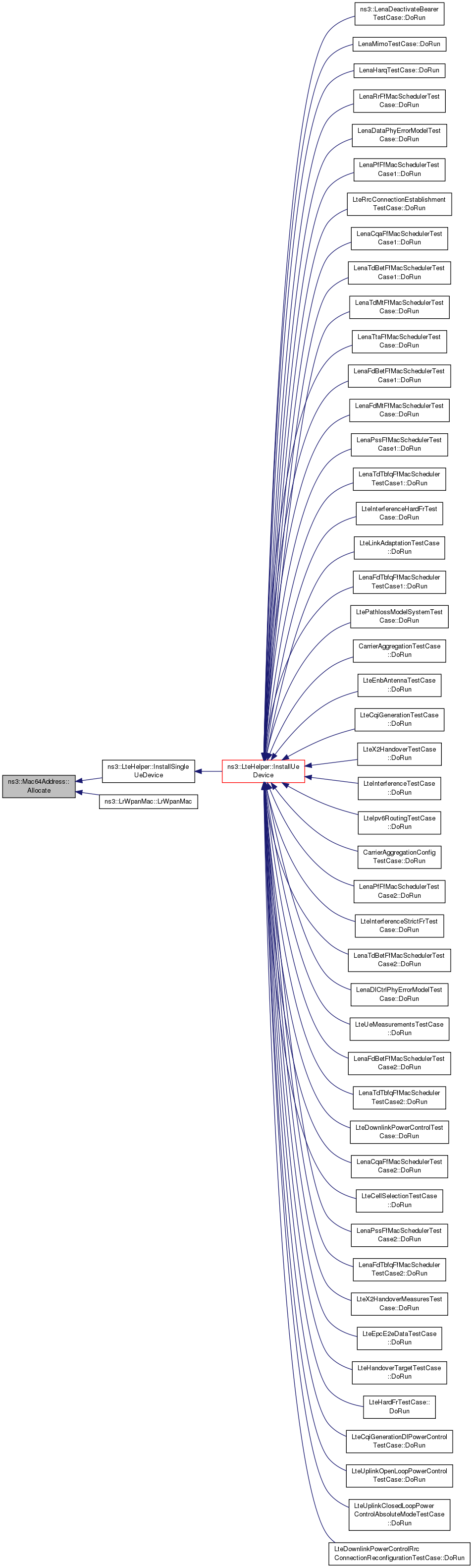

Here is the caller graph for this function:

Mac64Address ns3::Mac64Address::ConvertFrom ( const Address &  address )

static

Parameters

address

a polymorphic address

Returns

a new Mac64Address from the polymorphic address

This function performs a type check and asserts if the type of the input address is not compatible with an Mac64Address.

Definition at line 120 of file mac64-address.cc.

References ns3::Address::CheckCompatible(), ns3::Address::CopyTo(), GetType(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6L3Protocol::AddAutoconfiguredAddress(), ns3::Ipv6Interface::DoSetup(), ns3::SixLowPanNetDevice::MakeGlobalAddressFromMac(), ns3::SixLowPanNetDevice::MakeLinkLocalAddressFromMac(), ns3::Ipv6AddressHelper::NewAddress(), ns3::Ipv6L3Protocol::RemoveAutoconfiguredAddress(), and ns3::LteNetDevice::SetAddress().

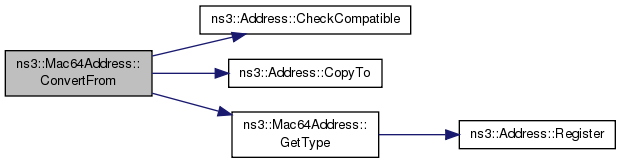

Here is the call graph for this function:

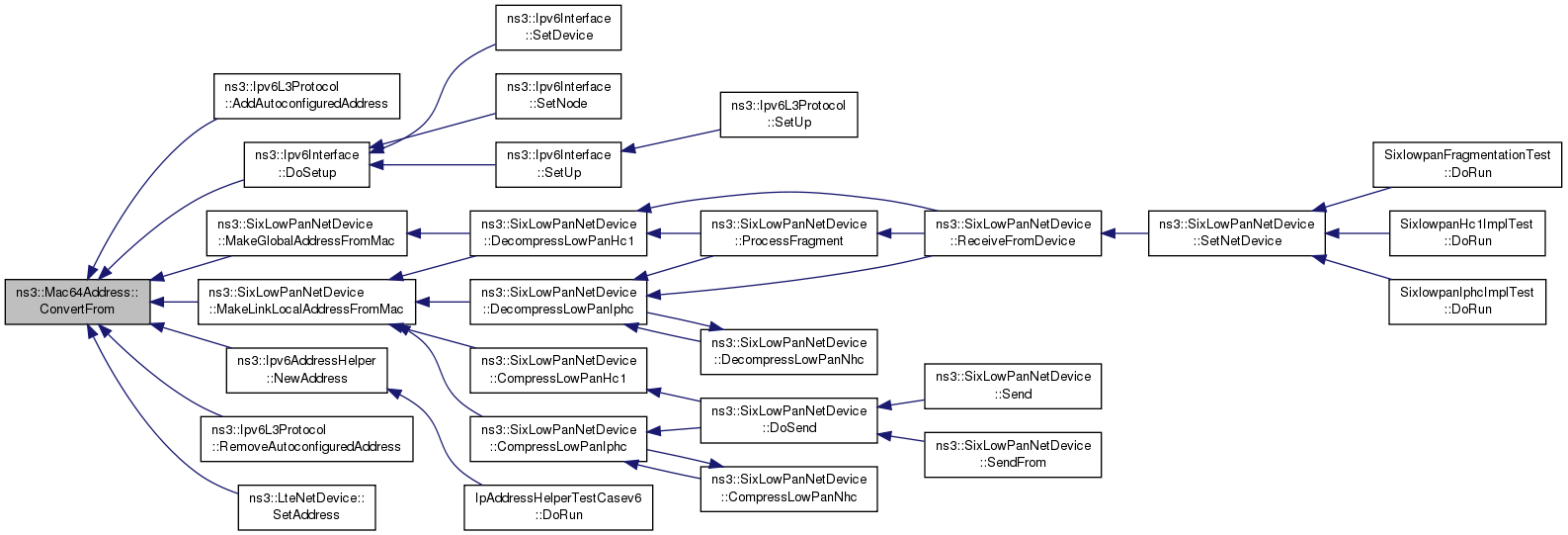

Here is the caller graph for this function:

Address ns3::Mac64Address::ConvertTo ( void  ) const

private

Returns

a new Address instance

Convert an instance of this class to a polymorphic Address instance.

Definition at line 130 of file mac64-address.cc.

References GetType(), m_address, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Mac64Address::CopyFrom

(

const uint8_t

buffer[8]

)

Parameters

buffer

address in network order

Copy the input address to our internal buffer.

Definition at line 97 of file mac64-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::ReadFrom().

Here is the caller graph for this function:

void ns3::Mac64Address::CopyTo

(

uint8_t

buffer[8]

)

const

Parameters

buffer

address in network order

Copy the internal address to the input buffer.

Definition at line 103 of file mac64-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6Address::MakeAutoconfiguredAddress(), ns3::Ipv6Address::MakeAutoconfiguredLinkLocalAddress(), ns3::operator<<(), and ns3::WriteTo().

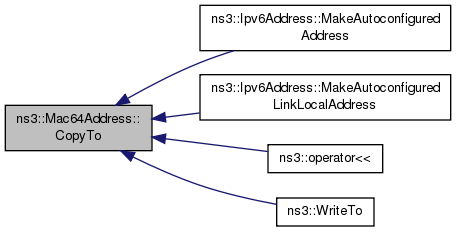

Here is the caller graph for this function:

uint8_t ns3::Mac64Address::GetType ( void  )

staticprivate

Return the Type of address.

Returns

type of address

Definition at line 154 of file mac64-address.cc.

References NS_LOG_FUNCTION_NOARGS, and ns3::Address::Register().

Referenced by ConvertFrom(), ConvertTo(), and IsMatchingType().

Here is the call graph for this function:

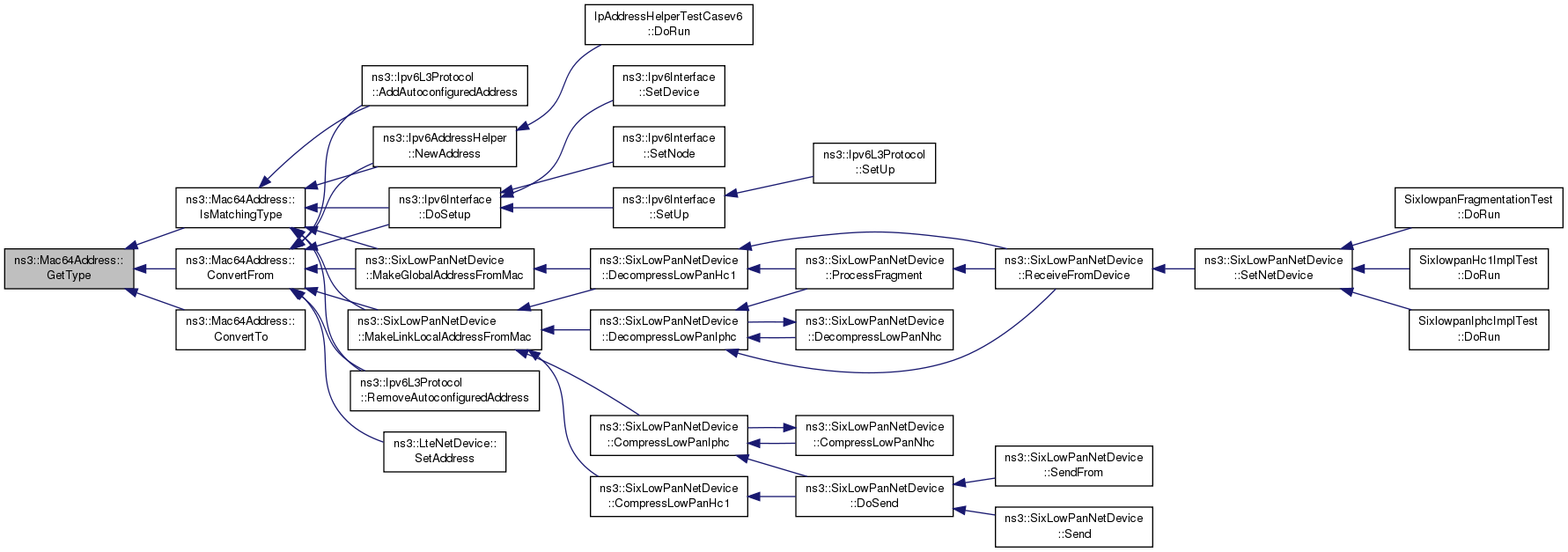

Here is the caller graph for this function:

bool ns3::Mac64Address::IsMatchingType ( const Address &  address )

static

Parameters

address

address to test

Returns

true if the address matches, false otherwise.

Definition at line 110 of file mac64-address.cc.

References ns3::Address::CheckCompatible(), GetType(), and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6L3Protocol::AddAutoconfiguredAddress(), ns3::Ipv6Interface::DoSetup(), ns3::SixLowPanNetDevice::MakeGlobalAddressFromMac(), ns3::SixLowPanNetDevice::MakeLinkLocalAddressFromMac(), ns3::Ipv6AddressHelper::NewAddress(), and ns3::Ipv6L3Protocol::RemoveAutoconfiguredAddress().

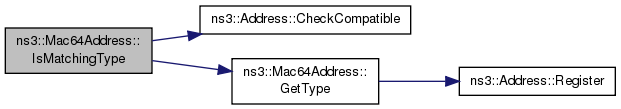

Here is the call graph for this function:

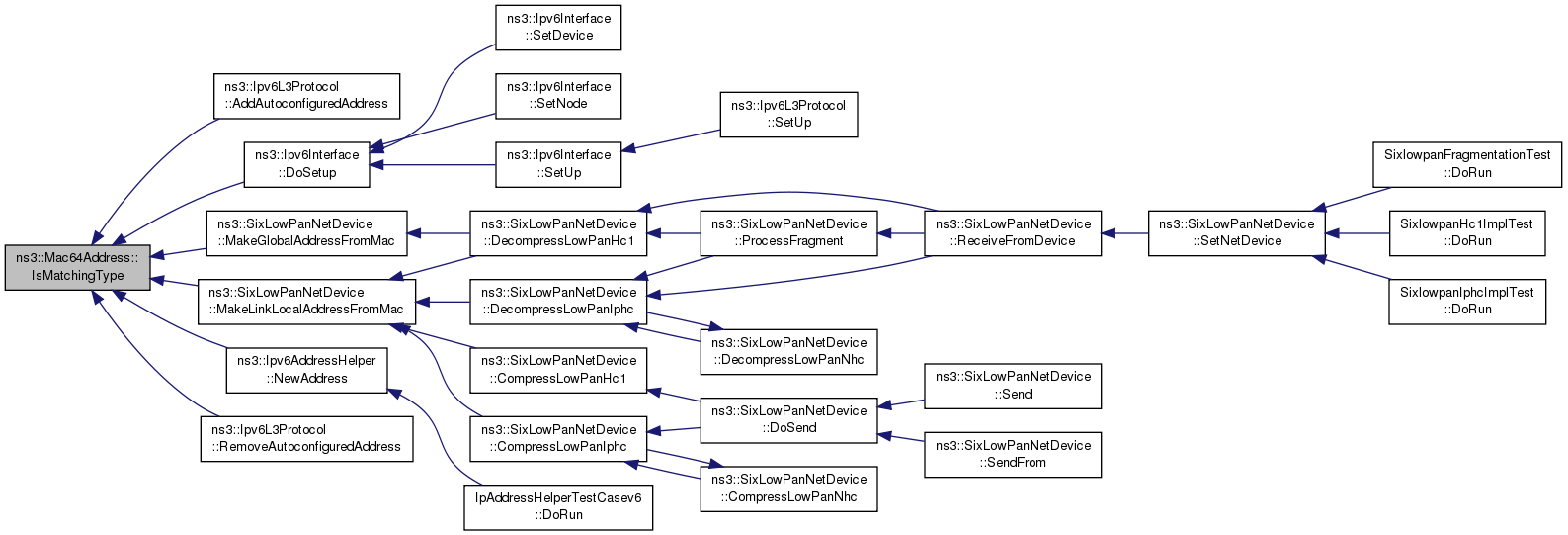

Here is the caller graph for this function:

ns3::Mac64Address::operator Address

(

)

const

Returns

a new Address instance

Convert an instance of this class to a polymorphic Address instance.

Definition at line 115 of file mac64-address.cc.

Friends And Related Function Documentation

bool operator!= ( const Mac64Address &  a, const Mac64Address &  b  )

friend

Not equal to operator.

Parameters

a	the first operand
b	the first operand

Returns

true if the operands are not equal

Definition at line 164 of file mac64-address.h.

bool operator< ( const Mac64Address &  a, const Mac64Address &  b  )

friend

Less than operator.

Parameters

a	the first operand
b	the first operand

Returns

true if the operand a is less than operand b

Definition at line 168 of file mac64-address.h.

std::ostream& operator<< ( std::ostream &  os, const Mac64Address &  address  )

friend

Stream insertion operator.

Parameters

os	the stream
address	the address

Returns

a reference to the stream

Definition at line 161 of file mac64-address.cc.

bool operator== ( const Mac64Address &  a, const Mac64Address &  b  )

friend

Equal to operator.

Parameters

a	the first operand
b	the first operand

Returns

true if the operands are equal

Definition at line 160 of file mac64-address.h.

std::istream& operator>> ( std::istream &  is, Mac64Address &  address  )

friend

Stream extraction operator.

Parameters

is	the stream
address	the address

Returns

a reference to the stream

Definition at line 179 of file mac64-address.cc.

Member Data Documentation

uint8_t ns3::Mac64Address::m_address[8]

private

address value

Definition at line 150 of file mac64-address.h.

Referenced by Allocate(), ConvertTo(), CopyFrom(), CopyTo(), Mac64Address(), ns3::operator!=(), ns3::operator<(), ns3::operator==(), and ns3::operator>>().

---

The documentation for this class was generated from the following files:

• src/network/utils/mac64-address.h
• src/network/utils/mac64-address.cc
