control how a packet is transmitted. More...

#include "mac-low-transmission-parameters.h"

Public Member Functions
	MacLowTransmissionParameters ()

void	DisableAck (void)
	Do not wait for Ack after data transmission. More...

void	DisableNextData (void)
	Do not attempt to send data burst after current transmission. More...

void	DisableRts (void)
	Do not send rts and wait for cts before sending data. More...

void	EnableAck (void)
	Wait ACKTimeout for an ACK. More...

void	EnableBasicBlockAck (void)
	Wait BASICBLOCKACKTimeout for a Basic Block Ack Response frame. More...

void	EnableCompressedBlockAck (void)
	Wait COMPRESSEDBLOCKACKTimeout for a Compressed Block Ack Response frame. More...

void	EnableFastAck (void)

void	EnableMultiTidBlockAck (void)
	NOT IMPLEMENTED FOR NOW. More...

void	EnableNextData (uint32_t size)

void	EnableRts (void)
	Send a RTS, and wait CTSTimeout for a CTS. More...

void	EnableSuperFastAck (void)

uint32_t	GetNextPacketSize (void) const

bool	HasNextPacket (void) const

bool	MustSendRts (void) const

bool	MustWaitAck (void) const

bool	MustWaitBasicBlockAck (void) const

bool	MustWaitCompressedBlockAck (void) const

bool	MustWaitFastAck (void) const

bool	MustWaitMultiTidBlockAck (void) const

bool	MustWaitNormalAck (void) const

bool	MustWaitSuperFastAck (void) const

Private Types
enum	{ ACK_NONE, ACK_NORMAL, ACK_FAST, ACK_SUPER_FAST, BLOCK_ACK_BASIC, BLOCK_ACK_COMPRESSED, BLOCK_ACK_MULTI_TID }
	wait ack enumerated type More...

Private Attributes
uint32_t	m_nextSize
	the next size More...

bool	m_sendRts
	send an RTS? More...

enum ns3::MacLowTransmissionParameters:: { ... }	m_waitAck
	wait ack enumerated type More...

Friends
std::ostream &	operator<< (std::ostream &os, const MacLowTransmissionParameters &params)
	Serialize MacLowTransmissionParameters to ostream in a human-readable form. More...

Detailed Description

control how a packet is transmitted.

The ns3::MacLow::StartTransmission method expects an instance of this class to describe how the packet should be transmitted.

Definition at line 39 of file mac-low-transmission-parameters.h.

Constructor & Destructor Documentation

ns3::MacLowTransmissionParameters::MacLowTransmissionParameters ( )

Definition at line 27 of file mac-low-transmission-parameters.cc.

Member Function Documentation

void ns3::MacLowTransmissionParameters::DisableAck ( void )

Do not wait for Ack after data transmission.

Typically used for Broadcast and multicast frames.

Definition at line 83 of file mac-low-transmission-parameters.cc.

References ACK_NONE, and m_waitAck.

Referenced by ns3::EdcaTxopN::HasTxop(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), ns3::MacLow::SendBlockAckResponse(), and ns3::EdcaTxopN::StartNextPacket().

Here is the caller graph for this function:

void ns3::MacLowTransmissionParameters::DisableNextData ( void )

Do not attempt to send data burst after current transmission.

Definition at line 41 of file mac-low-transmission-parameters.cc.

References m_nextSize.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::DcaTxop::StartNextFragment(), and ns3::EdcaTxopN::StartNextPacket().

Here is the caller graph for this function:

void ns3::MacLowTransmissionParameters::DisableRts ( void )

Do not send rts and wait for cts before sending data.

Definition at line 95 of file mac-low-transmission-parameters.cc.

References m_sendRts.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::DcaTxop::StartNextFragment(), and ns3::MacLow::StartTransmission().

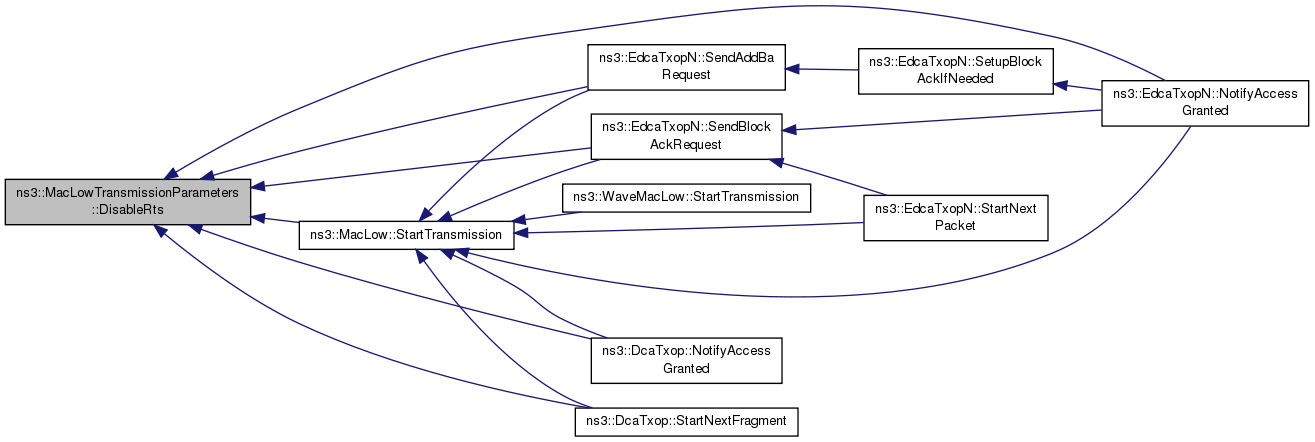

Here is the caller graph for this function:

void ns3::MacLowTransmissionParameters::EnableAck ( void )

Wait ACKTimeout for an ACK.

If we get an ACK on time, call MacLowTransmissionListener::GotAck. Call MacLowTransmissionListener::MissedAck otherwise.

Definition at line 77 of file mac-low-transmission-parameters.cc.

References ACK_NORMAL, and m_waitAck.

Referenced by ns3::EdcaTxopN::HasTxop(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::DcaTxop::StartNextFragment(), ns3::EdcaTxopN::StartNextPacket(), and ns3::MacLow::StartTransmission().

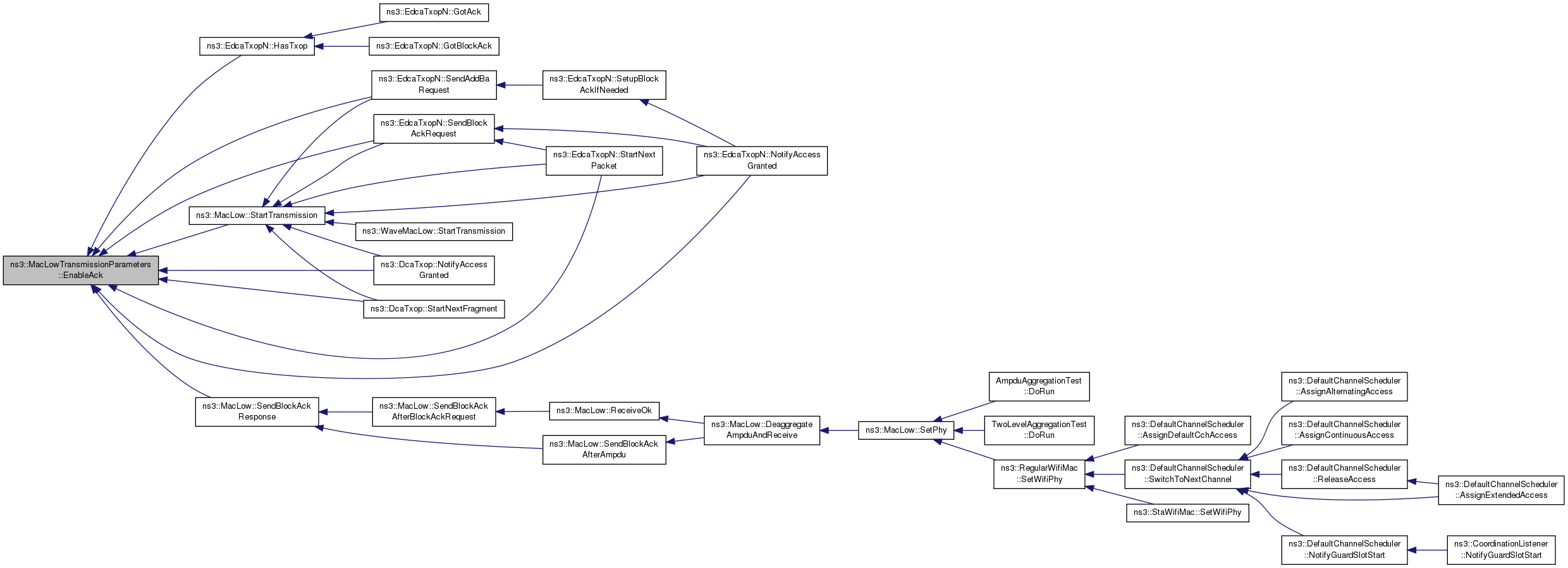

Here is the caller graph for this function:

void ns3::MacLowTransmissionParameters::EnableBasicBlockAck ( void )

Wait BASICBLOCKACKTimeout for a Basic Block Ack Response frame.

Definition at line 53 of file mac-low-transmission-parameters.cc.

References BLOCK_ACK_BASIC, and m_waitAck.

Referenced by ns3::EdcaTxopN::SendBlockAckRequest().

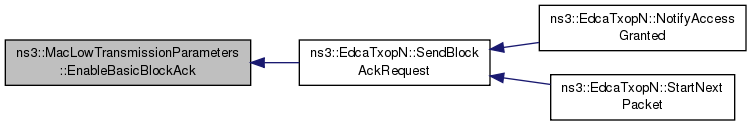

Here is the caller graph for this function:

void ns3::MacLowTransmissionParameters::EnableCompressedBlockAck ( void )

Wait COMPRESSEDBLOCKACKTimeout for a Compressed Block Ack Response frame.

Definition at line 59 of file mac-low-transmission-parameters.cc.

References BLOCK_ACK_COMPRESSED, and m_waitAck.

Referenced by ns3::EdcaTxopN::SendBlockAckRequest(), and ns3::MacLow::StartTransmission().

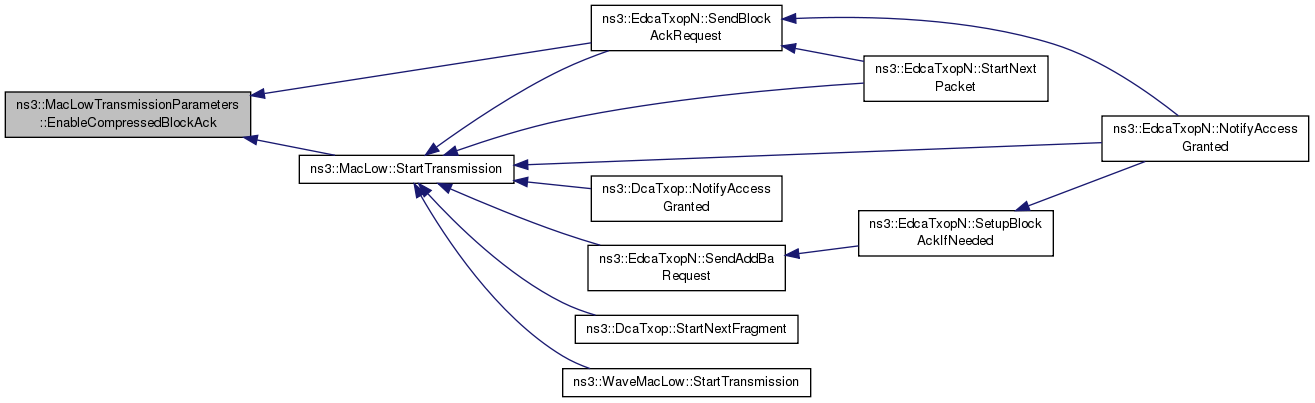

Here is the caller graph for this function:

void ns3::MacLowTransmissionParameters::EnableFastAck ( void )

wait PIFS after end-of-tx. If idle, call MacLowTransmissionListener::MissedAck.
if busy at end-of-tx+PIFS, wait end-of-rx
if Ack ok at end-of-rx, call MacLowTransmissionListener::GotAck.
if Ack not ok at end-of-rx, report call MacLowTransmissionListener::MissedAck at end-of-rx+SIFS.

This is really complicated but it is needed for proper HCCA support.

Definition at line 71 of file mac-low-transmission-parameters.cc.

References ACK_FAST, and m_waitAck.

void ns3::MacLowTransmissionParameters::EnableMultiTidBlockAck ( void )

NOT IMPLEMENTED FOR NOW.

Definition at line 65 of file mac-low-transmission-parameters.cc.

References BLOCK_ACK_MULTI_TID, and m_waitAck.

void ns3::MacLowTransmissionParameters::EnableNextData ( uint32_t size )

Parameters

size	size of next data to send after current packet is sent.

Add the transmission duration of the next data to the durationId of the outgoing packet and call MacLowTransmissionListener::StartNextFragment at the end of the current transmission + SIFS.

Definition at line 35 of file mac-low-transmission-parameters.cc.

References m_nextSize.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), and ns3::DcaTxop::StartNextFragment().

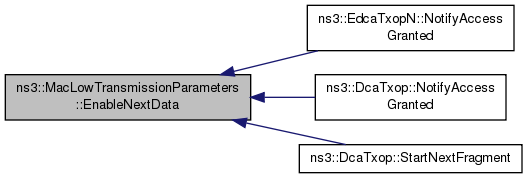

Here is the caller graph for this function:

void ns3::MacLowTransmissionParameters::EnableRts ( void )

Send a RTS, and wait CTSTimeout for a CTS.

If we get a CTS on time, call MacLowTransmissionListener::GotCts and send data. Otherwise, call MacLowTransmissionListener::MissedCts and do not send data.

Definition at line 89 of file mac-low-transmission-parameters.cc.

References m_sendRts.

Referenced by ns3::MacLow::StartTransmission().

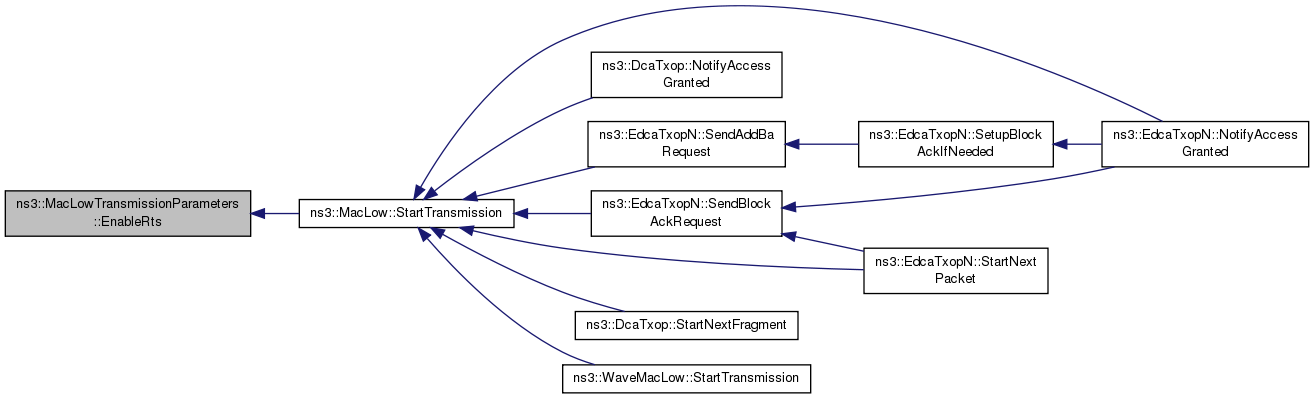

Here is the caller graph for this function:
