Radiotap header implementation. More...

#include "radiotap-header.h"

Inheritance diagram for ns3::RadiotapHeader:

Collaboration diagram for ns3::RadiotapHeader:

Public Types
enum	AmpduFlags { A_MPDU_STATUS_NONE = 0x00, A_MPDU_STATUS_REPORT_ZERO_LENGTH = 0x01, A_MPDU_STATUS_IS_ZERO_LENGTH = 0x02, A_MPDU_STATUS_LAST_KNOWN = 0x04, A_MPDU_STATUS_LAST = 0x08, A_MPDU_STATUS_DELIMITER_CRC_ERROR = 0x10, A_MPDU_STATUS_DELIMITER_CRC_KNOWN = 0x20 }
	A-MPDU status flags. More...

enum	ChannelFlags { CHANNEL_FLAG_NONE = 0x0000, CHANNEL_FLAG_TURBO = 0x0010, CHANNEL_FLAG_CCK = 0x0020, CHANNEL_FLAG_OFDM = 0x0040, CHANNEL_FLAG_SPECTRUM_2GHZ = 0x0080, CHANNEL_FLAG_SPECTRUM_5GHZ = 0x0100, CHANNEL_FLAG_PASSIVE = 0x0200, CHANNEL_FLAG_DYNAMIC = 0x0400, CHANNEL_FLAG_GFSK = 0x0800 }
	Channel flags. More...

enum	FrameFlag { FRAME_FLAG_NONE = 0x00, FRAME_FLAG_CFP = 0x01, FRAME_FLAG_SHORT_PREAMBLE = 0x02, FRAME_FLAG_WEP = 0x04, FRAME_FLAG_FRAGMENTED = 0x08, FRAME_FLAG_FCS_INCLUDED = 0x10, FRAME_FLAG_DATA_PADDING = 0x20, FRAME_FLAG_BAD_FCS = 0x40, FRAME_FLAG_SHORT_GUARD = 0x80 }
	Frame flags. More...

enum	McsFlags { MCS_FLAGS_NONE = 0x00, MCS_FLAGS_BANDWIDTH_40 = 0x01, MCS_FLAGS_BANDWIDTH_20L = 0x02, MCS_FLAGS_BANDWIDTH_20U = 0x03, MCS_FLAGS_GUARD_INTERVAL = 0x04, MCS_FLAGS_HT_GREENFIELD = 0x08, MCS_FLAGS_FEC_TYPE = 0x10, MCS_FLAGS_STBC_STREAMS = 0x60, MCS_FLAGS_NESS_BIT_0 = 0x80 }
	MCS flags. More...

enum	McsKnown { MCS_KNOWN_NONE = 0x00, MCS_KNOWN_BANDWIDTH = 0x01, MCS_KNOWN_INDEX = 0x02, MCS_KNOWN_GUARD_INTERVAL = 0x04, MCS_KNOWN_HT_FORMAT = 0x08, MCS_KNOWN_FEC_TYPE = 0x10, MCS_KNOWN_STBC = 0x20, MCS_KNOWN_NESS = 0x40, MCS_KNOWN_NESS_BIT_1 = 0x80 }
	MCS known bits. More...

enum	VhtFlags { VHT_FLAGS_NONE = 0x00, VHT_FLAGS_STBC = 0x01, VHT_FLAGS_TXOP_PS_NOT_ALLOWED = 0x02, VHT_FLAGS_GUARD_INTERVAL = 0x04, VHT_FLAGS_SHORT_GI_NSYM_DISAMBIGUATION = 0x08, VHT_FLAGS_LDPC_EXTRA_OFDM_SYMBOL = 0x10, VHT_FLAGS_BEAMFORMED = 0x20 }
	VHT flags. More...

enum	VhtKnown { VHT_KNOWN_NONE = 0x0000, VHT_KNOWN_STBC = 0x0001, VHT_KNOWN_TXOP_PS_NOT_ALLOWED = 0x0002, VHT_KNOWN_GUARD_INTERVAL = 0x0004, VHT_KNOWN_SHORT_GI_NSYM_DISAMBIGUATION = 0x0008, VHT_KNOWN_LDPC_EXTRA_OFDM_SYMBOL = 0x0010, VHT_KNOWN_BEAMFORMED = 0x0020, VHT_KNOWN_BANDWIDTH = 0x0040, VHT_KNOWN_GROUP_ID = 0x0080, VHT_KNOWN_PARTIAL_AID = 0x0100 }
	VHT known bits. More...

Public Member Functions
	RadiotapHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)
	This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. More...

uint16_t	GetAmpduStatusFlags (void) const
	Get the A-MPDU status flags. More...

uint32_t	GetAmpduStatusRef (void) const
	Get the A-MPDU reference number. More...

uint8_t	GetAntennaNoisePower (void) const
	Get the RF noise power at the antenna as a decibel difference from an arbitrary, fixed reference. More...

uint8_t	GetAntennaSignalPower (void) const
	Get the RF signal power at the antenna as a decibel difference from an arbitrary, fixed reference. More...

uint16_t	GetChannelFlags (void) const
	Get the channel flags of the transmitted or received frame. More...

uint16_t	GetChannelFrequency (void) const
	Get the transmit/receive data rate in units of 500 kbps. More...

uint8_t	GetFrameFlags (void) const
	Get the frame flags of the transmitted or received frame. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

uint8_t	GetMcsFlags (void) const
	Get the MCS flags. More...

uint8_t	GetMcsKnown (void) const
	Get the MCS known bitmap. More...

uint8_t	GetMcsRate (void) const
	Get the MCS index value. More...

uint8_t	GetRate (void) const
	Get the transmit/receive channel frequency in units of megahertz. More...

virtual uint32_t	GetSerializedSize (void) const
	This method is used by Packet::AddHeader to store the header into the byte buffer of a packet. More...

uint64_t	GetTsft (void) const
	Get the Time Synchronization Function Timer (TSFT) value. More...

uint8_t	GetVhtBandwidth (void) const
	Get the VHT bandwidth field value. More...

uint8_t	GetVhtCoding (void) const
	Get the VHT coding field value. More...

uint8_t	GetVhtFlags (void) const
	Get the VHT flags. More...

uint8_t	GetVhtGroupId (void) const
	Get the VHT group_id field value. More...

uint16_t	GetVhtKnown (void) const
	Get the VHT known bitmap. More...

uint8_t	GetVhtMcsNssUser1 () const
	Get the VHT mcs_nss field value for user 1. More...

uint8_t	GetVhtMcsNssUser2 () const
	Get the VHT mcs_nss field value for user 2. More...

uint8_t	GetVhtMcsNssUser3 () const
	Get the VHT mcs_nss field value for user 3. More...

uint8_t	GetVhtMcsNssUser4 () const
	Get the VHT mcs_nss field value for user 4. More...

uint8_t	GetVhtPartialAid (void) const
	Get the VHT partial_aid field value. More...

virtual void	Print (std::ostream &os) const
	This method is used by Packet::Print to print the content of the header as ascii data to a C++ output stream. More...

virtual void	Serialize (Buffer::Iterator start) const
	This method is used by Packet::AddHeader to store the header into the byte buffer of a packet. More...

void	SetAmpduStatus (uint32_t referenceNumber, uint16_t flags, uint8_t crc)
	Set the A-MPDU status fields. More...

void	SetAntennaNoisePower (double noise)
	Set the RF noise power at the antenna as a decibel difference from an arbitrary, fixed reference. More...

void	SetAntennaSignalPower (double signal)
	Set the RF signal power at the antenna as a decibel difference from an arbitrary, fixed reference. More...

void	SetChannelFrequencyAndFlags (uint16_t frequency, uint16_t flags)
	Set the transmit/receive channel frequency and flags. More...

void	SetFrameFlags (uint8_t flags)
	Set the frame flags of the transmitted or received frame. More...

void	SetMcsFields (uint8_t known, uint8_t flags, uint8_t mcs)
	Set the MCS fields. More...

void	SetRate (uint8_t rate)
	Set the transmit/receive channel frequency in units of megahertz. More...

void	SetTsft (uint64_t tsft)
	Set the Time Synchronization Function Timer (TSFT) value. More...

void	SetVhtFields (uint16_t known, uint8_t flags, uint8_t bandwidth, uint8_t mcs_nss[4], uint8_t coding, uint8_t group_id, uint16_t partial_aid)
	Set the VHT fields. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
enum	RadiotapFlags { RADIOTAP_TSFT = 0x00000001, RADIOTAP_FLAGS = 0x00000002, RADIOTAP_RATE = 0x00000004, RADIOTAP_CHANNEL = 0x00000008, RADIOTAP_FHSS = 0x00000010, RADIOTAP_DBM_ANTSIGNAL = 0x00000020, RADIOTAP_DBM_ANTNOISE = 0x00000040, RADIOTAP_LOCK_QUALITY = 0x00000080, RADIOTAP_TX_ATTENUATION = 0x00000100, RADIOTAP_DB_TX_ATTENUATION = 0x00000200, RADIOTAP_DBM_TX_POWER = 0x00000400, RADIOTAP_ANTENNA = 0x00000800, RADIOTAP_DB_ANTSIGNAL = 0x00001000, RADIOTAP_DB_ANTNOISE = 0x00002000, RADIOTAP_RX_FLAGS = 0x00004000, RADIOTAP_MCS = 0x00080000, RADIOTAP_AMPDU_STATUS = 0x00100000, RADIOTAP_VHT = 0x00200000, RADIOTAP_EXT = 0x10000000 }
	Radiotap flags. More...

Private Attributes
uint8_t	m_ampduStatusCRC
	A-MPDU Status Flags, delimiter CRC value. More...

uint16_t	m_ampduStatusFlags
	A-MPDU Status Flags, information about the received A-MPDU. More...

uint8_t	m_ampduStatusPad
	A-MPDU Status Flags, padding before A-MPDU Status Field. More...

uint32_t	m_ampduStatusRef
	A-MPDU Status Flags, reference number. More...

int8_t	m_antennaNoise
	RF noise power at the antenna, dB difference from an arbitrary, fixed reference. More...

int8_t	m_antennaSignal
	RF signal power at the antenna, dB difference from an arbitrary, fixed reference. More...

uint16_t	m_channelFlags
	Tx/Rx channel flags. More...

uint16_t	m_channelFreq
	Tx/Rx frequency in MHz. More...

uint8_t	m_channelPad
	Tx/Rx channel padding. More...

uint8_t	m_flags
	Properties of transmitted and received frames. More...

uint16_t	m_length
	entire length of radiotap data + header More...

uint8_t	m_mcsFlags
	MCS Flags, flags field. More...

uint8_t	m_mcsKnown
	MCS Flags, known information field. More...

uint8_t	m_mcsRate
	MCS Flags, mcs rate index. More...

uint32_t	m_present
	bits describing which fields follow header More...

uint8_t	m_rate
	TX/RX data rate in units of 500 kbps. More...

uint64_t	m_tsft
	Time Synchronization Function Timer (when the first bit of the MPDU arrived at the MAC) More...

uint8_t	m_vhtBandwidth
	VHT bandwidth field. More...

uint8_t	m_vhtCoding
	VHT coding field. More...

uint8_t	m_vhtFlags
	VHT flags field. More...

uint8_t	m_vhtGroupId
	VHT group_id field. More...

uint16_t	m_vhtKnown
	VHT known field. More...

uint8_t	m_vhtMcsNss [4]
	VHT mcs_nss field. More...

uint8_t	m_vhtPad
	VHT padding. More...

uint16_t	m_vhtPartialAid
	VHT partial_aid field. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Radiotap header implementation.

Introspection did not find any typical Config paths.

Radiotap is a de facto standard for 802.11 frame injection and reception. The radiotap header format is a mechanism to supply additional information about frames, from the driver to userspace applications such as libpcap, and from a userspace application to the driver for transmission.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 64 bytes (on a 64-bit architecture).

Definition at line 38 of file radiotap-header.h.

Member Enumeration Documentation

enum ns3::RadiotapHeader::AmpduFlags

A-MPDU status flags.

Enumerator
A_MPDU_STATUS_NONE	No flags set.
A_MPDU_STATUS_REPORT_ZERO_LENGTH	Driver reports 0-length subframes.
A_MPDU_STATUS_IS_ZERO_LENGTH	Frame is 0-length subframe (valid only if 0x0001 is set)
A_MPDU_STATUS_LAST_KNOWN	Last subframe is known (should be set for all subframes in an A-MPDU)
A_MPDU_STATUS_LAST	This frame is the last subframe.
A_MPDU_STATUS_DELIMITER_CRC_ERROR	Delimiter CRC error.
A_MPDU_STATUS_DELIMITER_CRC_KNOWN	Delimiter CRC value known: the delimiter CRC value field is valid.

Definition at line 291 of file radiotap-header.h.

enum ns3::RadiotapHeader::ChannelFlags

Channel flags.

Enumerator
CHANNEL_FLAG_NONE	No flags set.
CHANNEL_FLAG_TURBO	Turbo Channel.
CHANNEL_FLAG_CCK	CCK channel.
CHANNEL_FLAG_OFDM	OFDM channel.
CHANNEL_FLAG_SPECTRUM_2GHZ	2 GHz spectrum channel
CHANNEL_FLAG_SPECTRUM_5GHZ	5 GHz spectrum channel
CHANNEL_FLAG_PASSIVE	Only passive scan allowed.
CHANNEL_FLAG_DYNAMIC	Dynamic CCK-OFDM channel.
CHANNEL_FLAG_GFSK	GFSK channel (FHSS PHY)

Definition at line 158 of file radiotap-header.h.

enum ns3::RadiotapHeader::FrameFlag

Frame flags.

Enumerator
FRAME_FLAG_NONE	No flags set.
FRAME_FLAG_CFP	Frame sent/received during CFP.
FRAME_FLAG_SHORT_PREAMBLE	Frame sent/received with short preamble.
FRAME_FLAG_WEP	Frame sent/received with WEP encryption.
FRAME_FLAG_FRAGMENTED	Frame sent/received with fragmentation.
FRAME_FLAG_FCS_INCLUDED	Frame includes FCS.
FRAME_FLAG_DATA_PADDING	Frame has padding between 802.11 header and payload (to 32-bit boundary)
FRAME_FLAG_BAD_FCS	Frame failed FCS check.
FRAME_FLAG_SHORT_GUARD	Frame used short guard interval (HT)

Definition at line 117 of file radiotap-header.h.

enum ns3::RadiotapHeader::McsFlags

MCS flags.

Enumerator
MCS_FLAGS_NONE	Default: 20 MHz, long guard interval, mixed HT format and BCC FEC type.
MCS_FLAGS_BANDWIDTH_40	40 MHz
MCS_FLAGS_BANDWIDTH_20L	20L (20 MHz in lower half of 40 MHz channel)
MCS_FLAGS_BANDWIDTH_20U	20U (20 MHz in upper half of 40 MHz channel)
MCS_FLAGS_GUARD_INTERVAL	Short guard interval.
MCS_FLAGS_HT_GREENFIELD	Greenfield HT format.
MCS_FLAGS_FEC_TYPE	LDPC FEC type.
MCS_FLAGS_STBC_STREAMS	STBC enabled.
MCS_FLAGS_NESS_BIT_0	Ness - bit 0 (LSB) of Number of extension spatial streams.

Definition at line 247 of file radiotap-header.h.

enum ns3::RadiotapHeader::McsKnown

MCS known bits.

Enumerator
MCS_KNOWN_NONE	No flags set.
MCS_KNOWN_BANDWIDTH	Bandwidth.
MCS_KNOWN_INDEX	MCS index known.
MCS_KNOWN_GUARD_INTERVAL	Guard interval.
MCS_KNOWN_HT_FORMAT	HT format.
MCS_KNOWN_FEC_TYPE	FEC type.
MCS_KNOWN_STBC	STBC known.
MCS_KNOWN_NESS	Ness known (Number of extension spatial streams)
MCS_KNOWN_NESS_BIT_1	Ness data - bit 1 (MSB) of Number of extension spatial streams.

Definition at line 231 of file radiotap-header.h.

enum ns3::RadiotapHeader::RadiotapFlags

private

Radiotap flags.

Enumerator
RADIOTAP_TSFT
RADIOTAP_FLAGS
RADIOTAP_RATE
RADIOTAP_CHANNEL
RADIOTAP_FHSS
RADIOTAP_DBM_ANTSIGNAL
RADIOTAP_DBM_ANTNOISE
RADIOTAP_LOCK_QUALITY
RADIOTAP_TX_ATTENUATION
RADIOTAP_DB_TX_ATTENUATION
RADIOTAP_DBM_TX_POWER
RADIOTAP_ANTENNA
RADIOTAP_DB_ANTSIGNAL
RADIOTAP_DB_ANTNOISE
RADIOTAP_RX_FLAGS
RADIOTAP_MCS
RADIOTAP_AMPDU_STATUS
RADIOTAP_VHT
RADIOTAP_EXT

Definition at line 437 of file radiotap-header.h.

enum ns3::RadiotapHeader::VhtFlags

VHT flags.

Enumerator
VHT_FLAGS_NONE	No flags set.
VHT_FLAGS_STBC	Set if all spatial streams of all users have space-time block coding.
VHT_FLAGS_TXOP_PS_NOT_ALLOWED	Set if STAs may not doze during TXOP (valid only for AP transmitters).
VHT_FLAGS_GUARD_INTERVAL	Short guard interval.
VHT_FLAGS_SHORT_GI_NSYM_DISAMBIGUATION	Set if NSYM mod 10 = 9 (valid only if short GI is used).
VHT_FLAGS_LDPC_EXTRA_OFDM_SYMBOL	Set if one or more users are using LDPC and the encoding process resulted in extra OFDM symbol(s)
VHT_FLAGS_BEAMFORMED	Set if beamforming is used (valid for SU PPDUs only).

Definition at line 344 of file radiotap-header.h.

enum ns3::RadiotapHeader::VhtKnown

VHT known bits.

Enumerator
VHT_KNOWN_NONE	No flags set.
VHT_KNOWN_STBC	Space-time block coding (1 if all spatial streams of all users have STBC, 0 otherwise).
VHT_KNOWN_TXOP_PS_NOT_ALLOWED	TXOP_PS_NOT_ALLOWED known.
VHT_KNOWN_GUARD_INTERVAL	Guard interval.
VHT_KNOWN_SHORT_GI_NSYM_DISAMBIGUATION	Short GI NSYM disambiguation known.
VHT_KNOWN_LDPC_EXTRA_OFDM_SYMBOL	LDPC extra OFDM symbol known.
VHT_KNOWN_BEAMFORMED	Beamformed known/applicable (this flag should be set to zero for MU PPDUs).
VHT_KNOWN_BANDWIDTH	Bandwidth known.
VHT_KNOWN_GROUP_ID	Group ID known.
VHT_KNOWN_PARTIAL_AID	Partial AID known/applicable.

Definition at line 327 of file radiotap-header.h.

Constructor & Destructor Documentation

ns3::RadiotapHeader::RadiotapHeader ( )

Definition at line 33 of file radiotap-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::RadiotapHeader::Deserialize ( Buffer::Iterator start )

virtual

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet.

The data read is expected to match bit-for-bit the representation of this header in real networks.

Parameters

start An iterator which points to where the header should written.

Returns: The number of bytes read.

Implements ns3::Header.

Definition at line 263 of file radiotap-header.cc.

References m_ampduStatusCRC, m_ampduStatusFlags, m_ampduStatusPad, m_ampduStatusRef, m_antennaNoise, m_antennaSignal, m_channelFlags, m_channelFreq, m_channelPad, m_flags, m_length, m_mcsFlags, m_mcsKnown, m_mcsRate, m_present, m_rate, m_tsft, m_vhtBandwidth, m_vhtCoding, m_vhtFlags, m_vhtGroupId, m_vhtKnown, m_vhtMcsNss, m_vhtPad, m_vhtPartialAid, ns3::Buffer::Iterator::Next(), NS_ASSERT_MSG(), NS_LOG_FUNCTION, RADIOTAP_AMPDU_STATUS, RADIOTAP_ANTENNA, RADIOTAP_CHANNEL, RADIOTAP_DB_ANTNOISE, RADIOTAP_DB_ANTSIGNAL, RADIOTAP_DB_TX_ATTENUATION, RADIOTAP_DBM_ANTNOISE, RADIOTAP_DBM_ANTSIGNAL, RADIOTAP_DBM_TX_POWER, RADIOTAP_FHSS, RADIOTAP_FLAGS, RADIOTAP_LOCK_QUALITY, RADIOTAP_MCS, RADIOTAP_RATE, RADIOTAP_RX_FLAGS, RADIOTAP_TSFT, RADIOTAP_TX_ATTENUATION, RADIOTAP_VHT, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU64(), and ns3::Buffer::Iterator::ReadU8().

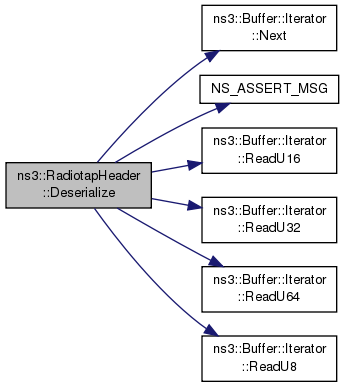

Here is the call graph for this function:

uint16_t ns3::RadiotapHeader::GetAmpduStatusFlags ( void ) const

Get the A-MPDU status flags.

Returns: The A-MPDU status flags.

Definition at line 731 of file radiotap-header.cc.

References m_ampduStatusFlags, and NS_LOG_FUNCTION.

uint32_t ns3::RadiotapHeader::GetAmpduStatusRef ( void ) const

Get the A-MPDU reference number.

Returns: The A-MPDU reference number.

Definition at line 724 of file radiotap-header.cc.

References m_ampduStatusRef, and NS_LOG_FUNCTION.

uint8_t ns3::RadiotapHeader::GetAntennaNoisePower ( void ) const

Get the RF noise power at the antenna as a decibel difference from an arbitrary, fixed reference.

Returns: The RF noise power at the antenna as a decibel difference from an arbitrary, fixed reference.

Definition at line 663 of file radiotap-header.cc.

References m_antennaNoise, and NS_LOG_FUNCTION.

uint8_t ns3::RadiotapHeader::GetAntennaSignalPower ( void ) const

Get the RF signal power at the antenna as a decibel difference from an arbitrary, fixed reference.

Returns: The RF signal power at the antenna as a decibel difference from an arbitrary, fixed reference.

Definition at line 630 of file radiotap-header.cc.

References m_antennaSignal, and NS_LOG_FUNCTION.

uint16_t ns3::RadiotapHeader::GetChannelFlags ( void ) const

Get the channel flags of the transmitted or received frame.

Returns: The frame flags.

See also: ChannelFlags.

Definition at line 597 of file radiotap-header.cc.

References m_channelFlags, and NS_LOG_FUNCTION.

uint16_t ns3::RadiotapHeader::GetChannelFrequency ( void ) const

Get the transmit/receive data rate in units of 500 kbps.

Returns: The transmit/receive data rate in units of 500 kbps.

Definition at line 590 of file radiotap-header.cc.

References m_channelFreq, and NS_LOG_FUNCTION.

uint8_t ns3::RadiotapHeader::GetFrameFlags ( void ) const

Get the frame flags of the transmitted or received frame.

Returns: The frame flags.

See also: FrameFlags.

Definition at line 544 of file radiotap-header.cc.

References m_flags, and NS_LOG_FUNCTION.

TypeId ns3::RadiotapHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 69 of file radiotap-header.cc.

References GetTypeId().

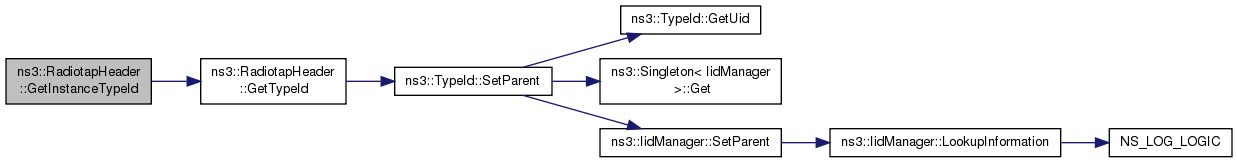

Here is the call graph for this function:

uint8_t ns3::RadiotapHeader::GetMcsFlags ( void ) const

Get the MCS flags.

Returns: The MCS flags.

Definition at line 693 of file radiotap-header.cc.

References m_mcsFlags, and NS_LOG_FUNCTION.

uint8_t ns3::RadiotapHeader::GetMcsKnown ( void ) const

Get the MCS known bitmap.

Returns: The MCS known bitmap.

Definition at line 686 of file radiotap-header.cc.

References m_mcsKnown, and NS_LOG_FUNCTION.

uint8_t ns3::RadiotapHeader::GetMcsRate ( void ) const

Get the MCS index value.

Returns: The MCS index value.

Definition at line 700 of file radiotap-header.cc.

References m_mcsRate, and NS_LOG_FUNCTION.

uint8_t ns3::RadiotapHeader::GetRate ( void ) const

Get the transmit/receive channel frequency in units of megahertz.

Returns: The transmit/receive channel frequency in units of megahertz.

Definition at line 566 of file radiotap-header.cc.

References m_rate, and NS_LOG_FUNCTION.

uint32_t ns3::RadiotapHeader::GetSerializedSize ( void ) const

virtual

This method is used by Packet::AddHeader to store the header into the byte buffer of a packet.

This method returns the number of bytes which are needed to store the header data during a Serialize.

Returns: The expected size of the header.

Implements ns3::Header.

Definition at line 75 of file radiotap-header.cc.

References m_length, and NS_LOG_FUNCTION.

uint64_t ns3::RadiotapHeader::GetTsft ( void ) const

Get the Time Synchronization Function Timer (TSFT) value.

Valid for received frames only.

Returns: The value in microseconds of the MAC's 64-bit 802.11 Time Synchronization Function timer when the first bit of the MPDU arrived at the MAC.

Definition at line 522 of file radiotap-header.cc.

References m_tsft, and NS_LOG_FUNCTION.

TypeId ns3::RadiotapHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 57 of file radiotap-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

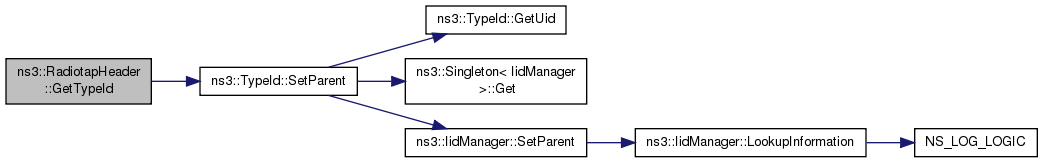

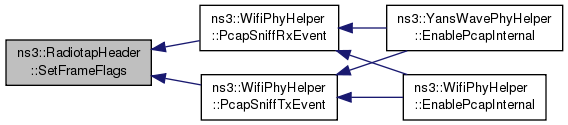

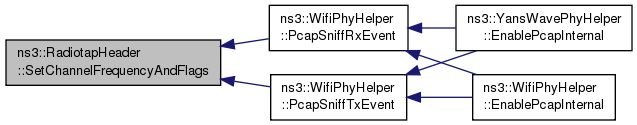

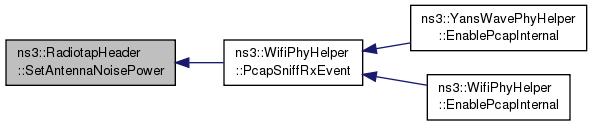

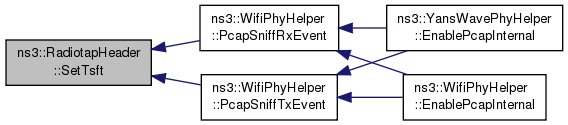

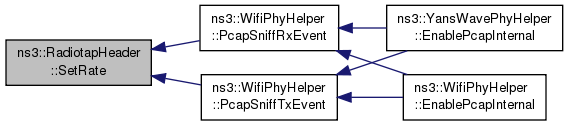

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::RadiotapHeader::GetVhtBandwidth ( void ) const

Get the VHT bandwidth field value.

Returns: The VHT bandwidth field value.

Definition at line 776 of file radiotap-header.cc.

References m_vhtBandwidth, and NS_LOG_FUNCTION.

uint8_t ns3::RadiotapHeader::GetVhtCoding ( void ) const

Get the VHT coding field value.

Returns: The VHT coding field value.

Definition at line 811 of file radiotap-header.cc.

References m_vhtCoding, and NS_LOG_FUNCTION.

uint8_t ns3::RadiotapHeader::GetVhtFlags ( void ) const

Get the VHT flags.

Returns: The VHT flags.

Definition at line 769 of file radiotap-header.cc.

References m_vhtFlags, and NS_LOG_FUNCTION.

uint8_t ns3::RadiotapHeader::GetVhtGroupId ( void ) const

Get the VHT group_id field value.

Returns: The VHT group_id field value.

Definition at line 818 of file radiotap-header.cc.

References m_vhtGroupId, and NS_LOG_FUNCTION.

uint16_t ns3::RadiotapHeader::GetVhtKnown ( void ) const

Get the VHT known bitmap.

Returns: The MCS known bitmap.

Definition at line 762 of file radiotap-header.cc.

References m_vhtKnown, and NS_LOG_FUNCTION.

uint8_t ns3::RadiotapHeader::GetVhtMcsNssUser1 ( ) const

Get the VHT mcs_nss field value for user 1.

Returns: The VHT mcs_nss field value for user 1.

Definition at line 783 of file radiotap-header.cc.

References m_vhtMcsNss, and NS_LOG_FUNCTION.

uint8_t ns3::RadiotapHeader::GetVhtMcsNssUser2 ( ) const

Get the VHT mcs_nss field value for user 2.

Returns: The VHT mcs_nss field value for user 2.

Definition at line 790 of file radiotap-header.cc.

References m_vhtMcsNss, and NS_LOG_FUNCTION.

uint8_t ns3::RadiotapHeader::GetVhtMcsNssUser3 ( ) const

Get the VHT mcs_nss field value for user 3.

Returns: The VHT mcs_nss field value for user 3.

Definition at line 797 of file radiotap-header.cc.

References m_vhtMcsNss, and NS_LOG_FUNCTION.

uint8_t ns3::RadiotapHeader::GetVhtMcsNssUser4 ( ) const

Get the VHT mcs_nss field value for user 4.

Returns: The VHT mcs_nss field value for user 4.

Definition at line 804 of file radiotap-header.cc.

References m_vhtMcsNss, and NS_LOG_FUNCTION.

uint8_t ns3::RadiotapHeader::GetVhtPartialAid ( void ) const

Get the VHT partial_aid field value.

Returns: The VHT partial_aid field value.

Definition at line 825 of file radiotap-header.cc.

References m_vhtPartialAid, and NS_LOG_FUNCTION.

void ns3::RadiotapHeader::Print ( std::ostream & os ) const

virtual

This method is used by Packet::Print to print the content of the header as ascii data to a C++ output stream.

Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace.

eg: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Parameters

os	The output stream

Implements ns3::Header.

Definition at line 480 of file radiotap-header.cc.

References m_ampduStatusFlags, m_antennaNoise, m_antennaSignal, m_channelFlags, m_channelFreq, m_flags, m_mcsFlags, m_mcsKnown, m_mcsRate, m_rate, m_tsft, m_vhtBandwidth, m_vhtCoding, m_vhtFlags, m_vhtGroupId, m_vhtKnown, m_vhtMcsNss, m_vhtPartialAid, and NS_LOG_FUNCTION.

void ns3::RadiotapHeader::Serialize ( Buffer::Iterator start ) const

virtual

This method is used by Packet::AddHeader to store the header into the byte buffer of a packet.

The data written is expected to match bit-for-bit the representation of this header in a real network.

Parameters

start An iterator which points to where the header should be written.

Implements ns3::Header.

Definition at line 82 of file radiotap-header.cc.

References m_ampduStatusCRC, m_ampduStatusFlags, m_ampduStatusPad, m_ampduStatusRef, m_antennaNoise, m_antennaSignal, m_channelFlags, m_channelFreq, m_channelPad, m_flags, m_length, m_mcsFlags, m_mcsKnown, m_mcsRate, m_present, m_rate, m_tsft, m_vhtBandwidth, m_vhtCoding, m_vhtFlags, m_vhtGroupId, m_vhtKnown, m_vhtMcsNss, m_vhtPad, m_vhtPartialAid, NS_LOG_FUNCTION, RADIOTAP_AMPDU_STATUS, RADIOTAP_ANTENNA, RADIOTAP_CHANNEL, RADIOTAP_DB_ANTNOISE, RADIOTAP_DB_ANTSIGNAL, RADIOTAP_DB_TX_ATTENUATION, RADIOTAP_DBM_ANTNOISE, RADIOTAP_DBM_ANTSIGNAL, RADIOTAP_DBM_TX_POWER, RADIOTAP_FHSS, RADIOTAP_FLAGS, RADIOTAP_LOCK_QUALITY, RADIOTAP_MCS, RADIOTAP_RATE, RADIOTAP_RX_FLAGS, RADIOTAP_TSFT, RADIOTAP_TX_ATTENUATION, RADIOTAP_VHT, ns3::Buffer::Iterator::WriteU16(), ns3::Buffer::Iterator::WriteU32(), ns3::Buffer::Iterator::WriteU64(), and ns3::Buffer::Iterator::WriteU8().

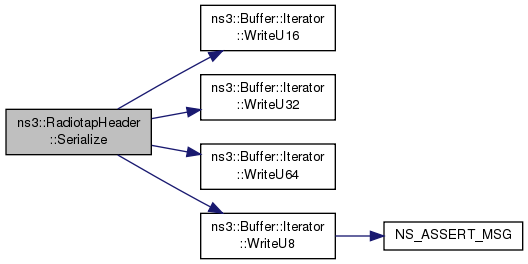

Here is the call graph for this function:

void ns3::RadiotapHeader::SetAmpduStatus	(	uint32_t	referenceNumber,
		uint16_t	flags,
		uint8_t	crc
	)

Set the A-MPDU status fields.

Parameters

referenceNumber	The A-MPDU reference number to identify all subframes belonging to the same A-MPDU.
flags	The flags to set.
crc	The CRC value value.

Definition at line 707 of file radiotap-header.cc.

References m_ampduStatusCRC, m_ampduStatusFlags, m_ampduStatusPad, m_ampduStatusRef, m_length, m_present, NS_LOG_FUNCTION, NS_LOG_LOGIC(), and RADIOTAP_AMPDU_STATUS.

Referenced by ns3::WifiPhyHelper::PcapSniffRxEvent(), and ns3::WifiPhyHelper::PcapSniffTxEvent().

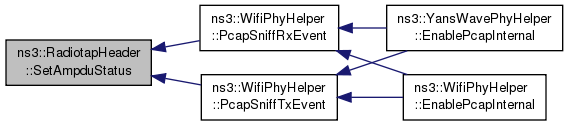

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadiotapHeader::SetAntennaNoisePower ( double noise )

Set the RF noise power at the antenna as a decibel difference from an arbitrary, fixed reference.

Parameters

noise The RF noise power at the antenna as a decibel difference from an arbitrary, fixed reference.

Definition at line 637 of file radiotap-header.cc.

References m_antennaNoise, m_length, m_present, NS_LOG_FUNCTION, NS_LOG_LOGIC(), and RADIOTAP_DBM_ANTNOISE.

Referenced by ns3::WifiPhyHelper::PcapSniffRxEvent().

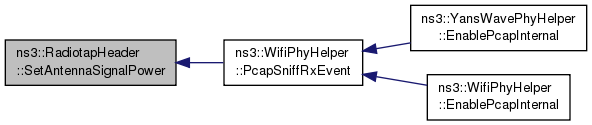

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadiotapHeader::SetAntennaSignalPower ( double signal )

Set the RF signal power at the antenna as a decibel difference from an arbitrary, fixed reference.

Parameters

signal The RF signal power at the antenna as a decibel difference from an arbitrary, fixed reference;

Definition at line 604 of file radiotap-header.cc.

References m_antennaSignal, m_length, m_present, NS_LOG_FUNCTION, NS_LOG_LOGIC(), and RADIOTAP_DBM_ANTSIGNAL.

Referenced by ns3::WifiPhyHelper::PcapSniffRxEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadiotapHeader::SetChannelFrequencyAndFlags	(	uint16_t	frequency,
		uint16_t	flags
	)

Set the transmit/receive channel frequency and flags.

Parameters

frequency	The transmit/receive data rate in units of 500 kbps.
flags	The flags to set.

See also: ChannelFlags

Definition at line 573 of file radiotap-header.cc.

References m_channelFlags, m_channelFreq, m_channelPad, m_length, m_present, NS_LOG_FUNCTION, NS_LOG_LOGIC(), and RADIOTAP_CHANNEL.

Referenced by ns3::WifiPhyHelper::PcapSniffRxEvent(), and ns3::WifiPhyHelper::PcapSniffTxEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadiotapHeader::SetFrameFlags ( uint8_t flags )

Set the frame flags of the transmitted or received frame.

Parameters

flags flags to set.

Definition at line 529 of file radiotap-header.cc.

References m_flags, m_length, m_present, NS_LOG_FUNCTION, NS_LOG_LOGIC(), and RADIOTAP_FLAGS.

Referenced by ns3::WifiPhyHelper::PcapSniffRxEvent(), and ns3::WifiPhyHelper::PcapSniffTxEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadiotapHeader::SetMcsFields	(	uint8_t	known,
		uint8_t	flags,
		uint8_t	mcs
	)

Set the MCS fields.

Parameters

known	The kwown flags.
flags	The flags to set.
mcs	The MCS index value.

Definition at line 670 of file radiotap-header.cc.

References m_length, m_mcsFlags, m_mcsKnown, m_mcsRate, m_present, NS_LOG_FUNCTION, NS_LOG_LOGIC(), and RADIOTAP_MCS.

Referenced by ns3::WifiPhyHelper::PcapSniffRxEvent(), and ns3::WifiPhyHelper::PcapSniffTxEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadiotapHeader::SetRate ( uint8_t rate )

Set the transmit/receive channel frequency in units of megahertz.

Parameters

rate	the transmit/receive channel frequency in units of megahertz.

Definition at line 551 of file radiotap-header.cc.

References m_length, m_present, m_rate, NS_LOG_FUNCTION, NS_LOG_LOGIC(), and RADIOTAP_RATE.

Referenced by ns3::WifiPhyHelper::PcapSniffRxEvent(), and ns3::WifiPhyHelper::PcapSniffTxEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadiotapHeader::SetTsft ( uint64_t tsft )

Set the Time Synchronization Function Timer (TSFT) value.

Valid for received frames only.

Parameters

tsft	Value in microseconds of the MAC's 64-bit 802.11 Time Synchronization Function timer when the first bit of the MPDU arrived at the MAC.

Definition at line 507 of file radiotap-header.cc.

References m_length, m_present, m_tsft, NS_LOG_FUNCTION, NS_LOG_LOGIC(), and RADIOTAP_TSFT.

Referenced by ns3::WifiPhyHelper::PcapSniffRxEvent(), and ns3::WifiPhyHelper::PcapSniffTxEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadiotapHeader::SetVhtFields	(	uint16_t	known,
		uint8_t	flags,
		uint8_t	bandwidth,
		uint8_t	mcs_nss[4],
		uint8_t	coding,
		uint8_t	group_id,
		uint16_t	partial_aid
	)

Set the VHT fields.

Parameters

known	The kwown flags.
flags	The flags to set.
bandwidth	The bandwidth value.
mcs_nss	The mcs_nss value.
coding	The coding value.
group_id	The group_id value.
partial_aid	The partial_aid value.

Definition at line 738 of file radiotap-header.cc.

References m_length, m_present, m_vhtBandwidth, m_vhtCoding, m_vhtFlags, m_vhtGroupId, m_vhtKnown, m_vhtMcsNss, m_vhtPad, m_vhtPartialAid, NS_LOG_FUNCTION, NS_LOG_LOGIC(), and RADIOTAP_VHT.

Referenced by ns3::WifiPhyHelper::PcapSniffRxEvent(), and ns3::WifiPhyHelper::PcapSniffTxEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::RadiotapHeader::m_ampduStatusCRC

private

A-MPDU Status Flags, delimiter CRC value.

Definition at line 479 of file radiotap-header.h.

Referenced by Deserialize(), Serialize(), and SetAmpduStatus().

uint16_t ns3::RadiotapHeader::m_ampduStatusFlags

private

A-MPDU Status Flags, information about the received A-MPDU.

Definition at line 478 of file radiotap-header.h.

Referenced by Deserialize(), GetAmpduStatusFlags(), Print(), Serialize(), and SetAmpduStatus().

uint8_t ns3::RadiotapHeader::m_ampduStatusPad

private

A-MPDU Status Flags, padding before A-MPDU Status Field.

Definition at line 476 of file radiotap-header.h.

Referenced by Deserialize(), Serialize(), and SetAmpduStatus().

uint32_t ns3::RadiotapHeader::m_ampduStatusRef

private

A-MPDU Status Flags, reference number.

Definition at line 477 of file radiotap-header.h.

Referenced by Deserialize(), GetAmpduStatusRef(), Serialize(), and SetAmpduStatus().

int8_t ns3::RadiotapHeader::m_antennaNoise

private

RF noise power at the antenna, dB difference from an arbitrary, fixed reference.

Definition at line 470 of file radiotap-header.h.

Referenced by Deserialize(), GetAntennaNoisePower(), Print(), Serialize(), and SetAntennaNoisePower().

int8_t ns3::RadiotapHeader::m_antennaSignal

private

RF signal power at the antenna, dB difference from an arbitrary, fixed reference.

Definition at line 469 of file radiotap-header.h.

Referenced by Deserialize(), GetAntennaSignalPower(), Print(), Serialize(), and SetAntennaSignalPower().

uint16_t ns3::RadiotapHeader::m_channelFlags

private

Tx/Rx channel flags.

Definition at line 468 of file radiotap-header.h.

Referenced by Deserialize(), GetChannelFlags(), Print(), Serialize(), and SetChannelFrequencyAndFlags().

uint16_t ns3::RadiotapHeader::m_channelFreq

private

Tx/Rx frequency in MHz.

Definition at line 467 of file radiotap-header.h.

Referenced by Deserialize(), GetChannelFrequency(), Print(), Serialize(), and SetChannelFrequencyAndFlags().

uint8_t ns3::RadiotapHeader::m_channelPad

private

Tx/Rx channel padding.

Definition at line 466 of file radiotap-header.h.

Referenced by Deserialize(), Serialize(), and SetChannelFrequencyAndFlags().

uint8_t ns3::RadiotapHeader::m_flags

private

Properties of transmitted and received frames.

Definition at line 464 of file radiotap-header.h.

Referenced by Deserialize(), GetFrameFlags(), Print(), Serialize(), and SetFrameFlags().

uint16_t ns3::RadiotapHeader::m_length

private

entire length of radiotap data + header

Definition at line 460 of file radiotap-header.h.

Referenced by Deserialize(), GetSerializedSize(), Serialize(), SetAmpduStatus(), SetAntennaNoisePower(), SetAntennaSignalPower(), SetChannelFrequencyAndFlags(), SetFrameFlags(), SetMcsFields(), SetRate(), SetTsft(), and SetVhtFields().

uint8_t ns3::RadiotapHeader::m_mcsFlags

private

MCS Flags, flags field.

Definition at line 473 of file radiotap-header.h.

Referenced by Deserialize(), GetMcsFlags(), Print(), Serialize(), and SetMcsFields().

uint8_t ns3::RadiotapHeader::m_mcsKnown

private

MCS Flags, known information field.

Definition at line 472 of file radiotap-header.h.

Referenced by Deserialize(), GetMcsKnown(), Print(), Serialize(), and SetMcsFields().

uint8_t ns3::RadiotapHeader::m_mcsRate

private

MCS Flags, mcs rate index.

Definition at line 474 of file radiotap-header.h.

Referenced by Deserialize(), GetMcsRate(), Print(), Serialize(), and SetMcsFields().

uint32_t ns3::RadiotapHeader::m_present

private

bits describing which fields follow header

Definition at line 461 of file radiotap-header.h.

Referenced by Deserialize(), Serialize(), SetAmpduStatus(), SetAntennaNoisePower(), SetAntennaSignalPower(), SetChannelFrequencyAndFlags(), SetFrameFlags(), SetMcsFields(), SetRate(), SetTsft(), and SetVhtFields().

uint8_t ns3::RadiotapHeader::m_rate

private

TX/RX data rate in units of 500 kbps.

Definition at line 465 of file radiotap-header.h.

Referenced by Deserialize(), GetRate(), Print(), Serialize(), and SetRate().

uint64_t ns3::RadiotapHeader::m_tsft

private

Time Synchronization Function Timer (when the first bit of the MPDU arrived at the MAC)

Definition at line 463 of file radiotap-header.h.

Referenced by Deserialize(), GetTsft(), Print(), Serialize(), and SetTsft().

uint8_t ns3::RadiotapHeader::m_vhtBandwidth

private

VHT bandwidth field.

Definition at line 484 of file radiotap-header.h.

Referenced by Deserialize(), GetVhtBandwidth(), Print(), Serialize(), and SetVhtFields().

uint8_t ns3::RadiotapHeader::m_vhtCoding

private

VHT coding field.

Definition at line 486 of file radiotap-header.h.

Referenced by Deserialize(), GetVhtCoding(), Print(), Serialize(), and SetVhtFields().

uint8_t ns3::RadiotapHeader::m_vhtFlags

private

VHT flags field.

Definition at line 483 of file radiotap-header.h.

Referenced by Deserialize(), GetVhtFlags(), Print(), Serialize(), and SetVhtFields().

uint8_t ns3::RadiotapHeader::m_vhtGroupId

private

VHT group_id field.

Definition at line 487 of file radiotap-header.h.

Referenced by Deserialize(), GetVhtGroupId(), Print(), Serialize(), and SetVhtFields().

uint16_t ns3::RadiotapHeader::m_vhtKnown

private

VHT known field.

Definition at line 482 of file radiotap-header.h.

Referenced by Deserialize(), GetVhtKnown(), Print(), Serialize(), and SetVhtFields().

uint8_t ns3::RadiotapHeader::m_vhtMcsNss[4]

private

VHT mcs_nss field.

Definition at line 485 of file radiotap-header.h.

Referenced by Deserialize(), GetVhtMcsNssUser1(), GetVhtMcsNssUser2(), GetVhtMcsNssUser3(), GetVhtMcsNssUser4(), Print(), Serialize(), and SetVhtFields().

uint8_t ns3::RadiotapHeader::m_vhtPad

private

VHT padding.

Definition at line 481 of file radiotap-header.h.

Referenced by Deserialize(), Serialize(), and SetVhtFields().

uint16_t ns3::RadiotapHeader::m_vhtPartialAid

private

VHT partial_aid field.

Definition at line 488 of file radiotap-header.h.

Referenced by Deserialize(), GetVhtPartialAid(), Print(), Serialize(), and SetVhtFields().

The documentation for this class was generated from the following files:

src/network/utils/radiotap-header.h
src/network/utils/radiotap-header.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
