This class is used by the base station to store some information related to subscriber station in the cell. More...

#include "ss-record.h"

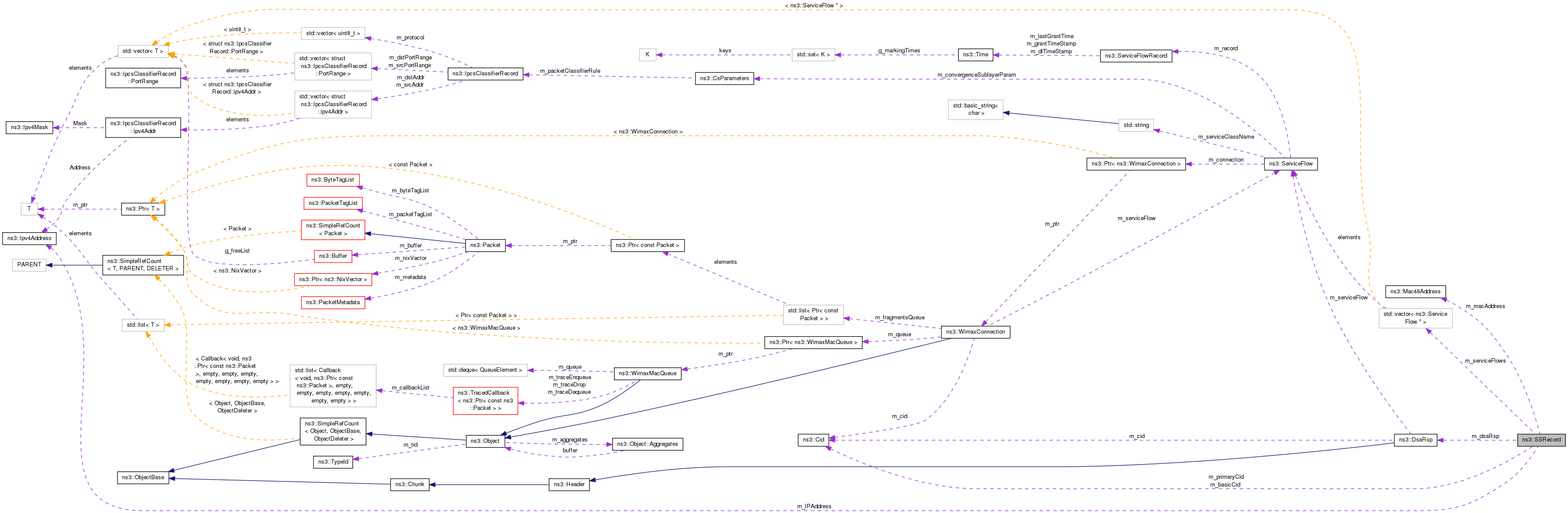

Collaboration diagram for ns3::SSRecord:

Public Member Functions
	SSRecord (void)

	SSRecord (Mac48Address macAddress)
	Constructor. More...

	SSRecord (Mac48Address macAddress, Ipv4Address IPaddress)
	Constructor. More...

	~SSRecord (void)

void	AddServiceFlow (ServiceFlow *serviceFlow)
	Add service flow. More...

void	DisablePollForRanging (void)
	Disable poll for ranging. More...

void	EnablePollForRanging (void)
	Enable poll for ranging funtion. More...

bool	GetAreServiceFlowsAllocated (void) const
	Check if service flows are allocated. More...

Cid	GetBasicCid (void) const
	Get basic CID. More...

DsaRsp	GetDsaRsp (void) const
	Get DSA response. More...

uint8_t	GetDsaRspRetries (void) const
	Get DSA response retries. More...

bool	GetHasServiceFlowBe (void) const
	Check if at least one flow has scheduling type SF_TYPE_BE. More...

bool	GetHasServiceFlowNrtps (void) const
	Check if at least one flow has scheduling type SF_TYPE_NRTPS. More...

bool	GetHasServiceFlowRtps (void) const
	Check if at least one flow has scheduling type SF_TYPE_RTPS. More...

bool	GetHasServiceFlowUgs (void) const
	Check if at least one flow has scheduling type SF_TYPE_UGS. More...

uint8_t	GetInvitedRangRetries (void) const
	Get invited range retries. More...

Ipv4Address	GetIPAddress (void)
	Get IP address. More...

bool	GetIsBroadcastSS (void)
	Get is broadcast SS. More...

Mac48Address	GetMacAddress (void) const
	Get MAC address. More...

WimaxPhy::ModulationType	GetModulationType (void) const
	Get modulation type. More...

bool	GetPollForRanging (void) const
	Get poll for ranging. More...

bool	GetPollMeBit (void) const
	Get poll ME bit. More...

Cid	GetPrimaryCid (void) const
	Get primary CID. More...

uint8_t	GetRangingCorrectionRetries (void) const
	Get ranging correction retries. More...

WimaxNetDevice::RangingStatus	GetRangingStatus (void) const
	Get ranging status. More...

std::vector< ServiceFlow * >	GetServiceFlows (enum ServiceFlow::SchedulingType schedulingType) const
	Get service flows. More...

uint16_t	GetSfTransactionId (void) const
	Get SF transaction ID. More...

void	IncrementDsaRspRetries (void)
	Increment DAS response retries. More...

void	IncrementInvitedRangingRetries (void)
	Increment invited ranging retries. More...

void	IncrementRangingCorrectionRetries (void)
	Increment ranging correction retries. More...

void	ResetInvitedRangingRetries (void)
	Reset invited ranging retries. More...

void	ResetRangingCorrectionRetries (void)
	Reset ranging correction retries. More...

void	SetAreServiceFlowsAllocated (bool val)
	Set are service flows allocated. More...

void	SetBasicCid (Cid basicCid)
	Set basic CID. More...

void	SetDsaRsp (DsaRsp dsaRsp)
	Set DSA response. More...

void	SetDsaRspRetries (uint8_t dsaRspRetries)
	Set DSA response retries. More...

void	SetIPAddress (Ipv4Address IPaddress)
	Set IP address. More...

void	SetIsBroadcastSS (bool broadcast_enable)
	Set is broadcast SS. More...

void	SetMacAddress (Mac48Address macAddress)
	Set MAC address. More...

void	SetModulationType (WimaxPhy::ModulationType modulationType)
	Set modulation type. More...

void	SetPollMeBit (bool pollMeBit)
	Set poll ME bit. More...

void	SetPrimaryCid (Cid primaryCid)
	Set primary CID. More...

void	SetRangingStatus (WimaxNetDevice::RangingStatus rangingStatus)
	Set ranging status. More...

void	SetSfTransactionId (uint16_t sfTransactionId)
	Set SF transaction ID. More...

Private Member Functions
void	Initialize (void)
	Initialize. More...

Private Attributes
bool	m_areServiceFlowsAllocated
	are service floes allowed More...

Cid	m_basicCid
	basic CID More...

bool	m_broadcast
	broadcast? More...

DsaRsp	m_dsaRsp
	DSA response. More...

uint8_t	m_dsaRspRetries
	DAS response retries. More...

uint8_t	m_invitedRangingRetries
	invited ranging retries More...

Ipv4Address	m_IPAddress
	IP address. More...

Mac48Address	m_macAddress
	MAC address. More...

WimaxPhy::ModulationType	m_modulationType
	least robust burst profile (modulation type) for this SS More...

bool	m_pollForRanging
	poll for ranging More...

bool	m_pollMeBit
	if PM (poll me) bit set for this SS More...

Cid	m_primaryCid
	primary CID More...

uint8_t	m_rangingCorrectionRetries
	ranging correction retries More...

WimaxNetDevice::RangingStatus	m_rangingStatus
	ranging status More...

std::vector< ServiceFlow * > *	m_serviceFlows
	service flows More...

uint16_t	m_sfTransactionId
	SF transaction ID. More...

Detailed Description

This class is used by the base station to store some information related to subscriber station in the cell.

Definition at line 43 of file ss-record.h.

Constructor & Destructor Documentation

ns3::SSRecord::SSRecord ( void )

Definition at line 28 of file ss-record.cc.

References Initialize().

Here is the call graph for this function:

ns3::SSRecord::SSRecord ( Mac48Address macAddress )

Constructor.

Parameters

macAddress MAC address

Definition at line 33 of file ss-record.cc.

References Initialize(), and m_macAddress.

Here is the call graph for this function:

ns3::SSRecord::SSRecord	(	Mac48Address	macAddress,
		Ipv4Address	IPaddress
	)

Constructor.

Parameters

macAddress	MAC address
IPaddress	IP address

Definition at line 39 of file ss-record.cc.

References Initialize(), m_IPAddress, and m_macAddress.

Here is the call graph for this function:

ns3::SSRecord::~SSRecord ( void )

Definition at line 68 of file ss-record.cc.

References m_serviceFlows.

Member Function Documentation

void ns3::SSRecord::AddServiceFlow ( ServiceFlow * serviceFlow )

Add service flow.

Parameters

serviceFlow the service flow

Definition at line 224 of file ss-record.cc.

References m_serviceFlows.

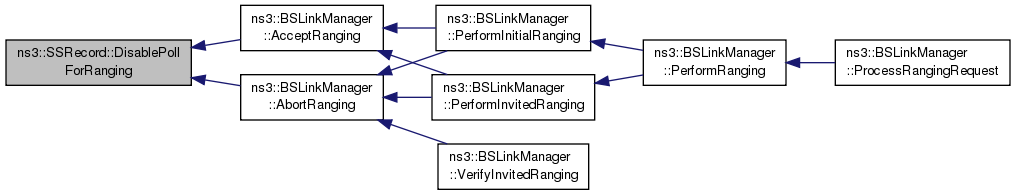

void ns3::SSRecord::DisablePollForRanging ( void )

Disable poll for ranging.

Definition at line 188 of file ss-record.cc.

References m_pollForRanging.

Referenced by ns3::BSLinkManager::AbortRanging(), and ns3::BSLinkManager::AcceptRanging().

Here is the caller graph for this function:

void ns3::SSRecord::EnablePollForRanging ( void )

Enable poll for ranging funtion.

Definition at line 182 of file ss-record.cc.

References m_pollForRanging.

Referenced by ns3::BSLinkManager::PerformInitialRanging().

Here is the caller graph for this function:

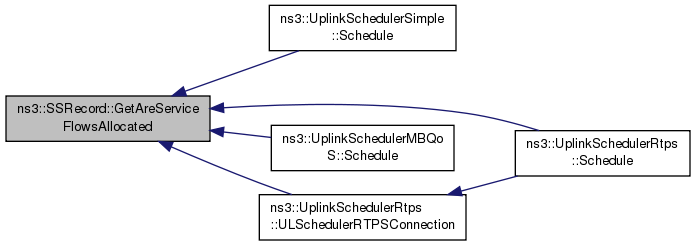

bool ns3::SSRecord::GetAreServiceFlowsAllocated ( void ) const

Check if service flows are allocated.

Returns: true if service flows are allocated

Definition at line 206 of file ss-record.cc.

References m_areServiceFlowsAllocated.

Referenced by ns3::UplinkSchedulerSimple::Schedule(), ns3::UplinkSchedulerRtps::Schedule(), ns3::UplinkSchedulerMBQoS::Schedule(), and ns3::UplinkSchedulerRtps::ULSchedulerRTPSConnection().

Here is the caller graph for this function:

Cid ns3::SSRecord::GetBasicCid ( void ) const

Get basic CID.

Returns: the basic CID

Definition at line 92 of file ss-record.cc.

References m_basicCid.

Referenced by ns3::SSManager::DeleteSSRecord(), ns3::SSManager::GetSSRecord(), ns3::BSLinkManager::PerformInitialRanging(), ns3::UplinkSchedulerSimple::Schedule(), ns3::UplinkSchedulerRtps::Schedule(), ns3::UplinkSchedulerMBQoS::Schedule(), ns3::UplinkSchedulerRtps::ULSchedulerRTPSConnection(), and ns3::BSLinkManager::VerifyInvitedRanging().

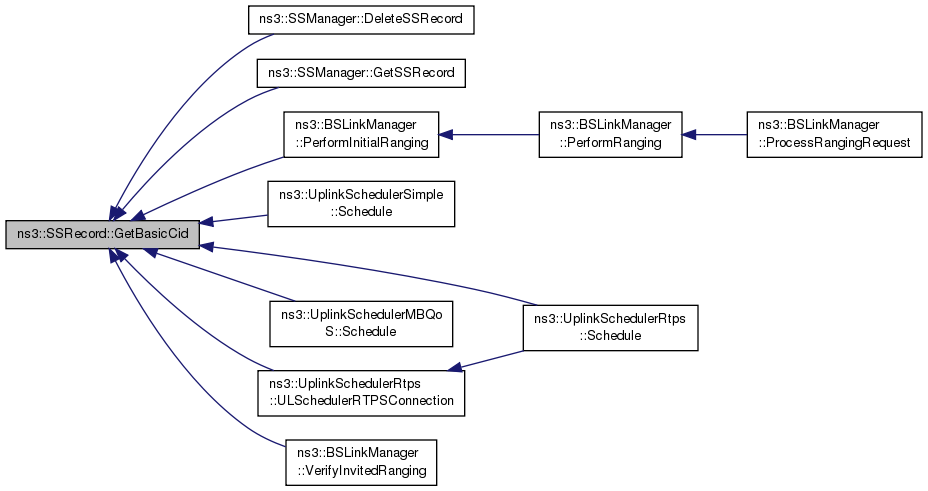

Here is the caller graph for this function:

DsaRsp ns3::SSRecord::GetDsaRsp ( void ) const

Get DSA response.

Returns: the DSA response

Definition at line 342 of file ss-record.cc.

References m_dsaRsp.

uint8_t ns3::SSRecord::GetDsaRspRetries ( void ) const

Get DSA response retries.

Returns: the DSA response retries

Definition at line 330 of file ss-record.cc.

References m_dsaRspRetries.

bool ns3::SSRecord::GetHasServiceFlowBe ( void ) const

Check if at least one flow has scheduling type SF_TYPE_BE.

Returns: true if at least one flow has scheduling type SF_TYPE_BE

Definition at line 294 of file ss-record.cc.

References m_serviceFlows, and ns3::ServiceFlow::SF_TYPE_BE.

Referenced by ns3::UplinkSchedulerMBQoS::Schedule().

Here is the caller graph for this function:

bool ns3::SSRecord::GetHasServiceFlowNrtps ( void ) const

Check if at least one flow has scheduling type SF_TYPE_NRTPS.

Returns: true if at least one flow has scheduling type SF_TYPE_NRTPS

Definition at line 281 of file ss-record.cc.

References m_serviceFlows, and ns3::ServiceFlow::SF_TYPE_NRTPS.

Referenced by ns3::UplinkSchedulerMBQoS::Schedule().

Here is the caller graph for this function:

bool ns3::SSRecord::GetHasServiceFlowRtps ( void ) const

Check if at least one flow has scheduling type SF_TYPE_RTPS.

Returns: true if at least one flow has scheduling type SF_TYPE_RTPS

Definition at line 268 of file ss-record.cc.

References m_serviceFlows, and ns3::ServiceFlow::SF_TYPE_RTPS.

Referenced by ns3::UplinkSchedulerMBQoS::Schedule().

Here is the caller graph for this function:

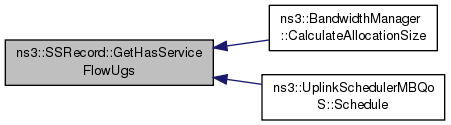

bool ns3::SSRecord::GetHasServiceFlowUgs ( void ) const

Check if at least one flow has scheduling type SF_TYPE_UGS.

Returns: true if at least one flow has scheduling type SF_TYPE_UGS

Definition at line 255 of file ss-record.cc.

References m_serviceFlows, and ns3::ServiceFlow::SF_TYPE_UGS.

Referenced by ns3::BandwidthManager::CalculateAllocationSize(), and ns3::UplinkSchedulerMBQoS::Schedule().

Here is the caller graph for this function:

uint8_t ns3::SSRecord::GetInvitedRangRetries ( void ) const

Get invited range retries.

Returns: the invited range retries

Definition at line 140 of file ss-record.cc.

References m_invitedRangingRetries.

Referenced by ns3::BSLinkManager::VerifyInvitedRanging().

Here is the caller graph for this function:

Ipv4Address ns3::SSRecord::GetIPAddress ( void )

Get IP address.

Returns: the IP address

Definition at line 80 of file ss-record.cc.

References m_IPAddress.

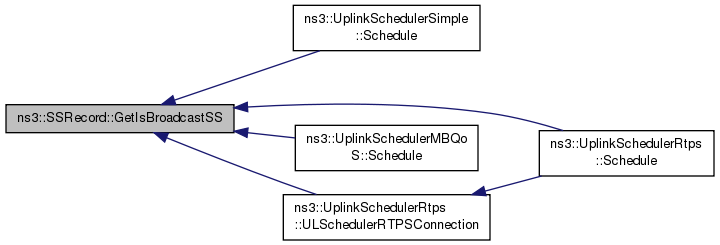

bool ns3::SSRecord::GetIsBroadcastSS ( void )

Get is broadcast SS.

Returns: the is broadcast SS flag

Definition at line 249 of file ss-record.cc.

References m_broadcast.

Referenced by ns3::UplinkSchedulerSimple::Schedule(), ns3::UplinkSchedulerRtps::Schedule(), ns3::UplinkSchedulerMBQoS::Schedule(), and ns3::UplinkSchedulerRtps::ULSchedulerRTPSConnection().

Here is the caller graph for this function:

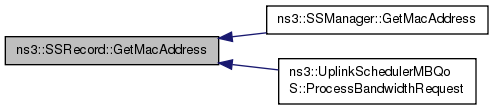

Mac48Address ns3::SSRecord::GetMacAddress ( void ) const

Get MAC address.

Returns: the MAC address

Definition at line 116 of file ss-record.cc.

References m_macAddress.

Referenced by ns3::SSManager::GetMacAddress(), and ns3::UplinkSchedulerMBQoS::ProcessBandwidthRequest().

Here is the caller graph for this function:

WimaxPhy::ModulationType ns3::SSRecord::GetModulationType ( void ) const

Get modulation type.

Returns: the modulation type

Definition at line 164 of file ss-record.cc.

References m_modulationType.

Referenced by ns3::UplinkSchedulerMBQoS::CountSymbolsJobs(), ns3::UplinkSchedulerSimple::Schedule(), ns3::UplinkSchedulerRtps::Schedule(), ns3::UplinkSchedulerMBQoS::Schedule(), ns3::UplinkSchedulerSimple::SetupServiceFlow(), ns3::UplinkSchedulerMBQoS::SetupServiceFlow(), ns3::UplinkSchedulerRtps::SetupServiceFlow(), and ns3::UplinkSchedulerRtps::ULSchedulerRTPSConnection().

Here is the caller graph for this function:

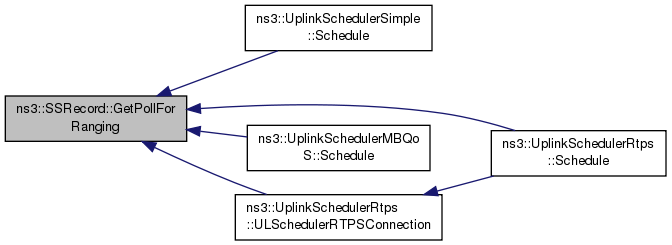

bool ns3::SSRecord::GetPollForRanging ( void ) const

Get poll for ranging.

Returns: the poll for ranging flag

Definition at line 194 of file ss-record.cc.

References m_pollForRanging.

Referenced by ns3::UplinkSchedulerSimple::Schedule(), ns3::UplinkSchedulerRtps::Schedule(), ns3::UplinkSchedulerMBQoS::Schedule(), and ns3::UplinkSchedulerRtps::ULSchedulerRTPSConnection().

Here is the caller graph for this function:

bool ns3::SSRecord::GetPollMeBit ( void ) const

Get poll ME bit.

Returns: the poll me bit

Definition at line 218 of file ss-record.cc.

References m_pollMeBit.

Referenced by ns3::BandwidthManager::CalculateAllocationSize().

Here is the caller graph for this function:

Cid ns3::SSRecord::GetPrimaryCid ( void ) const

Get primary CID.

Returns: the CID

Definition at line 104 of file ss-record.cc.

References m_primaryCid.

Referenced by ns3::SSManager::DeleteSSRecord(), and ns3::SSManager::GetSSRecord().

Here is the caller graph for this function:

uint8_t ns3::SSRecord::GetRangingCorrectionRetries ( void ) const

Get ranging correction retries.

Returns: the ranging correction retries

Definition at line 122 of file ss-record.cc.

References m_rangingCorrectionRetries.

Referenced by ns3::BSLinkManager::PerformInvitedRanging().

Here is the caller graph for this function:

WimaxNetDevice::RangingStatus ns3::SSRecord::GetRangingStatus ( void ) const

Get ranging status.

Returns: the ranging status

Definition at line 176 of file ss-record.cc.

References m_rangingStatus.

Referenced by ns3::SSManager::IsRegistered(), ns3::UplinkSchedulerSimple::Schedule(), ns3::UplinkSchedulerRtps::Schedule(), ns3::UplinkSchedulerMBQoS::Schedule(), and ns3::UplinkSchedulerRtps::ULSchedulerRTPSConnection().

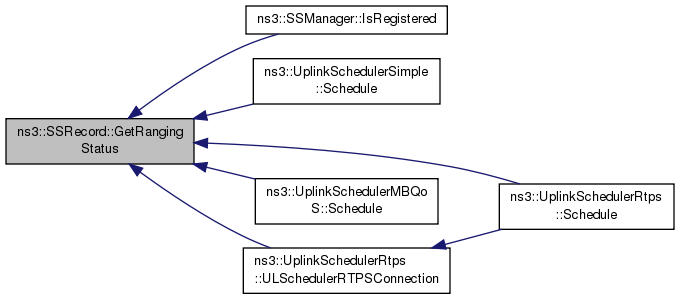

Here is the caller graph for this function:

std::vector< ServiceFlow * > ns3::SSRecord::GetServiceFlows ( enum ServiceFlow::SchedulingType schedulingType ) const

Get service flows.

Parameters

schedulingType the scheduling type

Returns: the service flow

Definition at line 229 of file ss-record.cc.

References m_serviceFlows, and ns3::ServiceFlow::SF_TYPE_ALL.

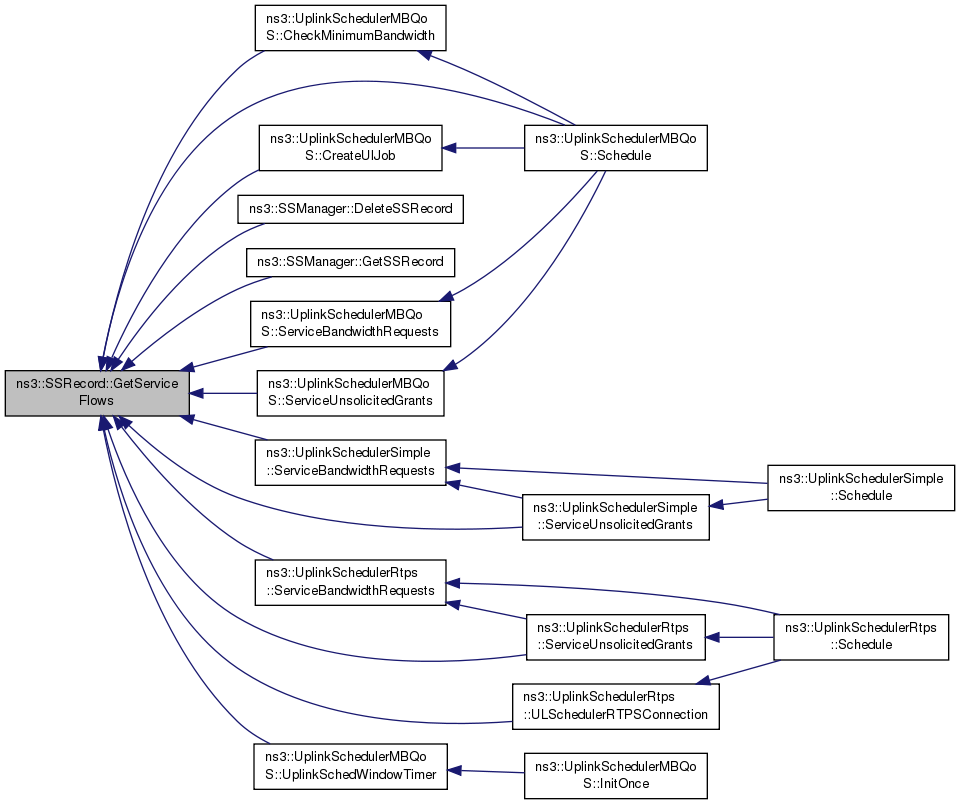

Here is the caller graph for this function:

uint16_t ns3::SSRecord::GetSfTransactionId ( void ) const

Get SF transaction ID.

Returns: the SF transaction ID

Definition at line 312 of file ss-record.cc.

References m_sfTransactionId.

void ns3::SSRecord::IncrementDsaRspRetries ( void )

Increment DAS response retries.

Definition at line 324 of file ss-record.cc.

References m_dsaRspRetries.

void ns3::SSRecord::IncrementInvitedRangingRetries ( void )

Increment invited ranging retries.

Definition at line 152 of file ss-record.cc.

References m_invitedRangingRetries.

Referenced by ns3::BSLinkManager::VerifyInvitedRanging().

Here is the caller graph for this function:

void ns3::SSRecord::IncrementRangingCorrectionRetries ( void )

Increment ranging correction retries.

Definition at line 134 of file ss-record.cc.

References m_rangingCorrectionRetries.

Referenced by ns3::BSLinkManager::PerformInvitedRanging().

Here is the caller graph for this function:

void ns3::SSRecord::Initialize ( void )

private

Initialize.

Definition at line 47 of file ss-record.cc.

References m_areServiceFlowsAllocated, m_basicCid, m_broadcast, m_dsaRsp, m_dsaRspRetries, m_invitedRangingRetries, m_modulationType, m_pollForRanging, m_pollMeBit, m_primaryCid, m_rangingCorrectionRetries, m_rangingStatus, m_serviceFlows, m_sfTransactionId, ns3::WimaxPhy::MODULATION_TYPE_BPSK_12, and ns3::WimaxNetDevice::RANGING_STATUS_EXPIRED.

Referenced by SSRecord().

Here is the caller graph for this function:

void ns3::SSRecord::ResetInvitedRangingRetries ( void )

Reset invited ranging retries.

Definition at line 146 of file ss-record.cc.

References m_invitedRangingRetries.

Referenced by ns3::BSLinkManager::PerformInitialRanging(), and ns3::BSLinkManager::PerformInvitedRanging().

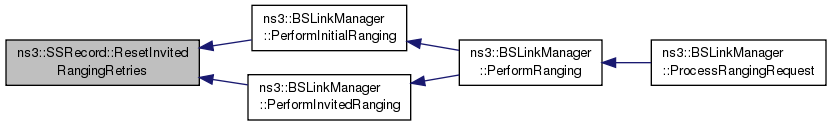

Here is the caller graph for this function:

void ns3::SSRecord::ResetRangingCorrectionRetries ( void )

Reset ranging correction retries.

Definition at line 128 of file ss-record.cc.

References m_rangingCorrectionRetries.

Referenced by ns3::BSLinkManager::PerformInitialRanging().

Here is the caller graph for this function:

void ns3::SSRecord::SetAreServiceFlowsAllocated ( bool val )

Set are service flows allocated.

Parameters

val	the service flows allocated flag

Definition at line 200 of file ss-record.cc.

References m_areServiceFlowsAllocated.

void ns3::SSRecord::SetBasicCid ( Cid basicCid )

Set basic CID.

Parameters

basicCid the basic CID

Definition at line 86 of file ss-record.cc.

References m_basicCid.

Referenced by ns3::ConnectionManager::AllocateManagementConnections().

Here is the caller graph for this function:

void ns3::SSRecord::SetDsaRsp ( DsaRsp dsaRsp )

Set DSA response.

Parameters

dsaRsp the DSA response

Definition at line 336 of file ss-record.cc.

References m_dsaRsp.

void ns3::SSRecord::SetDsaRspRetries ( uint8_t dsaRspRetries )

Set DSA response retries.

Parameters

dsaRspRetries the DSA response retries

Definition at line 318 of file ss-record.cc.

References m_dsaRspRetries.

void ns3::SSRecord::SetIPAddress ( Ipv4Address IPaddress )

Set IP address.

Parameters

IPaddress the IP address

Definition at line 75 of file ss-record.cc.

References m_IPAddress.

void ns3::SSRecord::SetIsBroadcastSS ( bool broadcast_enable )

Set is broadcast SS.

Parameters

broadcast_enable the broadcast enable flag

Definition at line 243 of file ss-record.cc.

References m_broadcast.

void ns3::SSRecord::SetMacAddress ( Mac48Address macAddress )

Set MAC address.

Parameters

macAddress the MAC address

Definition at line 110 of file ss-record.cc.

References m_macAddress.

void ns3::SSRecord::SetModulationType ( WimaxPhy::ModulationType modulationType )

Set modulation type.

Parameters

modulationType the modulation type

Definition at line 158 of file ss-record.cc.

References m_modulationType.

Referenced by ns3::BSLinkManager::PerformInitialRanging().

Here is the caller graph for this function:

void ns3::SSRecord::SetPollMeBit ( bool pollMeBit )

Set poll ME bit.

Parameters

pollMeBit the poll me bit

Definition at line 212 of file ss-record.cc.

References m_pollMeBit.

void ns3::SSRecord::SetPrimaryCid ( Cid primaryCid )

Set primary CID.

Parameters

primaryCid priamry CID

Definition at line 98 of file ss-record.cc.

References m_primaryCid.

Referenced by ns3::ConnectionManager::AllocateManagementConnections().

Here is the caller graph for this function:

void ns3::SSRecord::SetRangingStatus ( WimaxNetDevice::RangingStatus rangingStatus )

Set ranging status.

Parameters

rangingStatus the ranging status

Definition at line 170 of file ss-record.cc.

References m_rangingStatus.

Referenced by ns3::BSLinkManager::AbortRanging(), ns3::BSLinkManager::AcceptRanging(), and ns3::BSLinkManager::ContinueRanging().

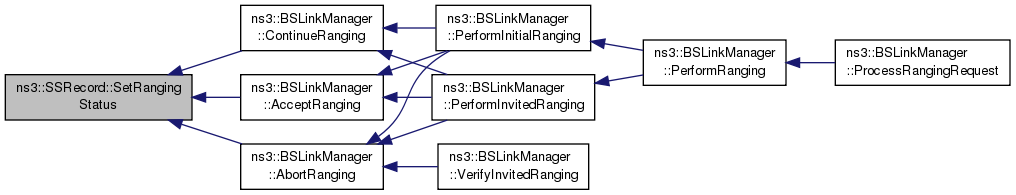

Here is the caller graph for this function:

void ns3::SSRecord::SetSfTransactionId ( uint16_t sfTransactionId )

Set SF transaction ID.

Parameters

sfTransactionId the SF transaction ID

Definition at line 307 of file ss-record.cc.

References m_sfTransactionId.

Member Data Documentation

bool ns3::SSRecord::m_areServiceFlowsAllocated

private

are service floes allowed

Definition at line 270 of file ss-record.h.

Referenced by GetAreServiceFlowsAllocated(), Initialize(), and SetAreServiceFlowsAllocated().

Cid ns3::SSRecord::m_basicCid

private

basic CID

Definition at line 261 of file ss-record.h.

Referenced by GetBasicCid(), Initialize(), and SetBasicCid().

bool ns3::SSRecord::m_broadcast

private

broadcast?

Definition at line 272 of file ss-record.h.

Referenced by GetIsBroadcastSS(), Initialize(), and SetIsBroadcastSS().

DsaRsp ns3::SSRecord::m_dsaRsp

private

DSA response.

Definition at line 279 of file ss-record.h.

Referenced by GetDsaRsp(), Initialize(), and SetDsaRsp().

uint8_t ns3::SSRecord::m_dsaRspRetries

private

DAS response retries.

Definition at line 278 of file ss-record.h.

Referenced by GetDsaRspRetries(), IncrementDsaRspRetries(), Initialize(), and SetDsaRspRetries().

uint8_t ns3::SSRecord::m_invitedRangingRetries

private

invited ranging retries

Definition at line 265 of file ss-record.h.

Referenced by GetInvitedRangRetries(), IncrementInvitedRangingRetries(), Initialize(), and ResetInvitedRangingRetries().

Ipv4Address ns3::SSRecord::m_IPAddress

private

IP address.

Definition at line 259 of file ss-record.h.

Referenced by GetIPAddress(), SetIPAddress(), and SSRecord().

Mac48Address ns3::SSRecord::m_macAddress

private

MAC address.

Definition at line 258 of file ss-record.h.

Referenced by GetMacAddress(), SetMacAddress(), and SSRecord().

WimaxPhy::ModulationType ns3::SSRecord::m_modulationType

private

least robust burst profile (modulation type) for this SS

Definition at line 267 of file ss-record.h.

Referenced by GetModulationType(), Initialize(), and SetModulationType().

bool ns3::SSRecord::m_pollForRanging

private

poll for ranging

Definition at line 269 of file ss-record.h.

Referenced by DisablePollForRanging(), EnablePollForRanging(), GetPollForRanging(), and Initialize().

bool ns3::SSRecord::m_pollMeBit

private

if PM (poll me) bit set for this SS

Definition at line 271 of file ss-record.h.

Referenced by GetPollMeBit(), Initialize(), and SetPollMeBit().

Cid ns3::SSRecord::m_primaryCid

private

primary CID

Definition at line 262 of file ss-record.h.

Referenced by GetPrimaryCid(), Initialize(), and SetPrimaryCid().

uint8_t ns3::SSRecord::m_rangingCorrectionRetries

private

ranging correction retries

Definition at line 264 of file ss-record.h.

Referenced by GetRangingCorrectionRetries(), IncrementRangingCorrectionRetries(), Initialize(), and ResetRangingCorrectionRetries().

WimaxNetDevice::RangingStatus ns3::SSRecord::m_rangingStatus

private

ranging status

Definition at line 268 of file ss-record.h.

Referenced by GetRangingStatus(), Initialize(), and SetRangingStatus().

std::vector<ServiceFlow*>* ns3::SSRecord::m_serviceFlows

private

service flows

Definition at line 274 of file ss-record.h.

Referenced by AddServiceFlow(), GetHasServiceFlowBe(), GetHasServiceFlowNrtps(), GetHasServiceFlowRtps(), GetHasServiceFlowUgs(), GetServiceFlows(), Initialize(), and ~SSRecord().

uint16_t ns3::SSRecord::m_sfTransactionId

private

SF transaction ID.

Definition at line 277 of file ss-record.h.

Referenced by GetSfTransactionId(), Initialize(), and SetSfTransactionId().

The documentation for this class was generated from the following files:

src/wimax/model/ss-record.h
src/wimax/model/ss-record.cc

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
