Assign WifiRadioEnergyModel to wifi devices. More...

#include "wifi-radio-energy-model-helper.h"

Inheritance diagram for ns3::WifiRadioEnergyModelHelper:

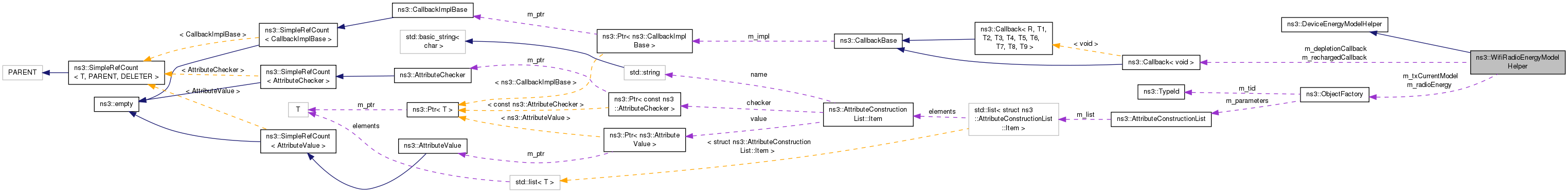

Collaboration diagram for ns3::WifiRadioEnergyModelHelper:

Public Member Functions
	WifiRadioEnergyModelHelper ()
	Construct a helper which is used to add a radio energy model to a node. More...

	~WifiRadioEnergyModelHelper ()
	Destroy a RadioEnergy Helper. More...

void	Set (std::string name, const AttributeValue &v)

void	SetDepletionCallback (WifiRadioEnergyModel::WifiRadioEnergyDepletionCallback callback)

void	SetRechargedCallback (WifiRadioEnergyModel::WifiRadioEnergyRechargedCallback callback)

void	SetTxCurrentModel (std::string name, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

Public Member Functions inherited from ns3::DeviceEnergyModelHelper
virtual	~DeviceEnergyModelHelper ()

DeviceEnergyModelContainer	Install (Ptr< NetDevice > device, Ptr< EnergySource > source) const

DeviceEnergyModelContainer	Install (NetDeviceContainer deviceContainer, EnergySourceContainer sourceContainer) const

Private Member Functions
virtual Ptr< DeviceEnergyModel >	DoInstall (Ptr< NetDevice > device, Ptr< EnergySource > source) const

Private Attributes
WifiRadioEnergyModel::WifiRadioEnergyDepletionCallback	m_depletionCallback
	radio energy depletion callback More...

ObjectFactory	m_radioEnergy
	radio energy More...

WifiRadioEnergyModel::WifiRadioEnergyRechargedCallback	m_rechargedCallback
	radio energy recharged callback More...

ObjectFactory	m_txCurrentModel
	transmit current model More...

Detailed Description

Assign WifiRadioEnergyModel to wifi devices.

This installer installs WifiRadioEnergyModel for only WifiNetDevice objects.

Definition at line 36 of file wifi-radio-energy-model-helper.h.

Constructor & Destructor Documentation

ns3::WifiRadioEnergyModelHelper::WifiRadioEnergyModelHelper ( )

Construct a helper which is used to add a radio energy model to a node.

Definition at line 27 of file wifi-radio-energy-model-helper.cc.

References m_depletionCallback, m_radioEnergy, m_rechargedCallback, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify(), and ns3::ObjectFactory::SetTypeId().

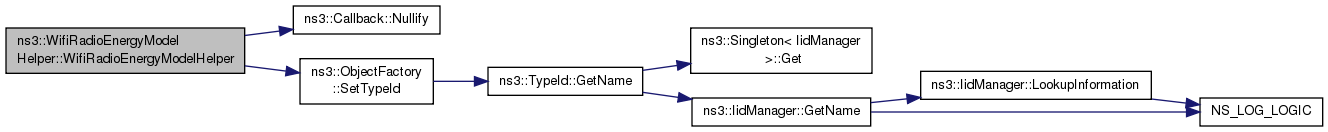

Here is the call graph for this function:

ns3::WifiRadioEnergyModelHelper::~WifiRadioEnergyModelHelper ( )

Destroy a RadioEnergy Helper.

Definition at line 34 of file wifi-radio-energy-model-helper.cc.

Member Function Documentation

Ptr< DeviceEnergyModel > ns3::WifiRadioEnergyModelHelper::DoInstall	(	Ptr< NetDevice >	device,
		Ptr< EnergySource >	source
	)		const

privatevirtual

Parameters

device	Pointer to the NetDevice to install DeviceEnergyModel.
source	Pointer to EnergySource to install.

Returns: Ptr<DeviceEnergyModel>

Implements DeviceEnergyModel::Install.

Implements ns3::DeviceEnergyModelHelper.

Definition at line 88 of file wifi-radio-energy-model-helper.cc.

References ns3::ObjectFactory::Create(), ns3::Object::GetObject(), ns3::ObjectFactory::GetTypeId(), ns3::TypeId::GetUid(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_depletionCallback, m_radioEnergy, m_rechargedCallback, m_txCurrentModel, ns3::MakeCallback(), NS_ASSERT, NS_FATAL_ERROR, ns3::WifiPhy::ResumeFromOff(), and ns3::WifiPhy::SetOffMode().

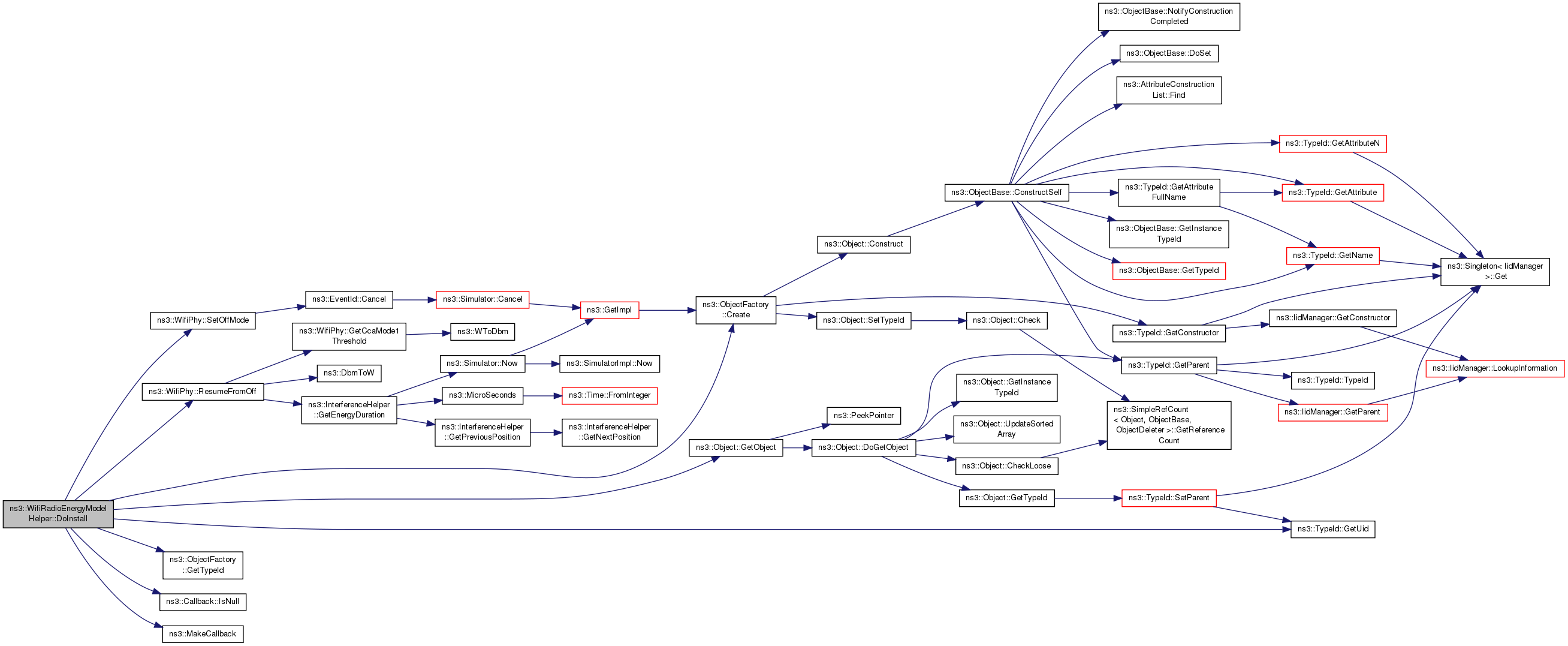

Here is the call graph for this function:

void ns3::WifiRadioEnergyModelHelper::Set	(	std::string	name,
		const AttributeValue &	v
	)

virtual

Parameters

name	the name of the attribute to set
v	the value of the attribute

Sets an attribute of the underlying PHY object.

Implements ns3::DeviceEnergyModelHelper.

Definition at line 39 of file wifi-radio-energy-model-helper.cc.

References m_radioEnergy, and ns3::ObjectFactory::Set().

Referenced by BatteryLifetimeTest::ConstantLoadTest(), and BatteryLifetimeTest::VariableLoadTest().

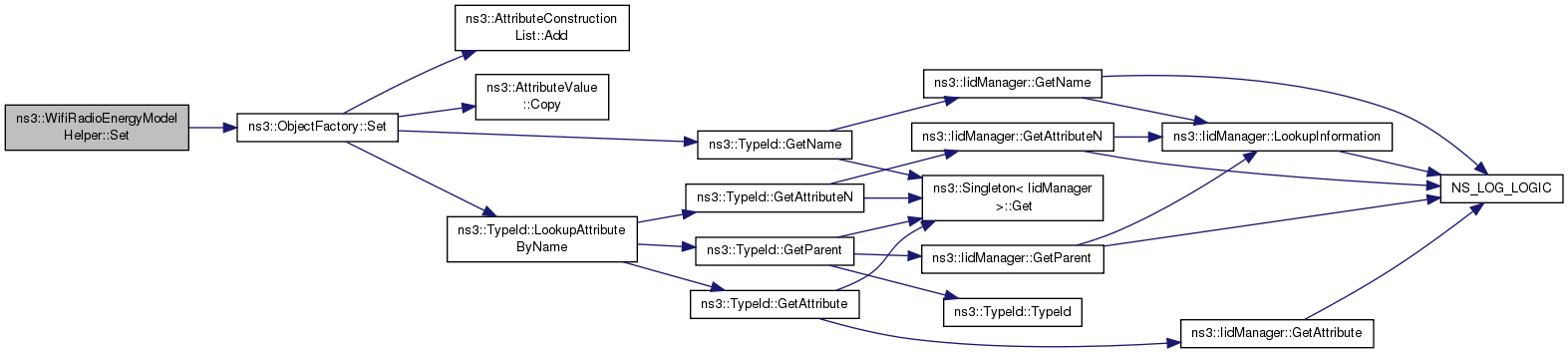

Here is the call graph for this function:

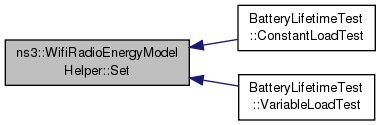

Here is the caller graph for this function:

void ns3::WifiRadioEnergyModelHelper::SetDepletionCallback ( WifiRadioEnergyModel::WifiRadioEnergyDepletionCallback callback )

Parameters

callback Callback function for energy depletion handling.

Sets the callback to be invoked when energy is depleted.

Definition at line 45 of file wifi-radio-energy-model-helper.cc.

References m_depletionCallback.

Referenced by BasicEnergyDepletionTest::DepletionTestCase().

Here is the caller graph for this function:

void ns3::WifiRadioEnergyModelHelper::SetRechargedCallback ( WifiRadioEnergyModel::WifiRadioEnergyRechargedCallback callback )

Parameters

callback Callback function for energy recharged handling.

Sets the callback to be invoked when energy is recharged.

Definition at line 52 of file wifi-radio-energy-model-helper.cc.

References m_rechargedCallback.

void ns3::WifiRadioEnergyModelHelper::SetTxCurrentModel	(	std::string	name,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue ()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`
	)

Parameters

name	the name of the model to set
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set
