Hash Functions

Generic Hash function interface. More...

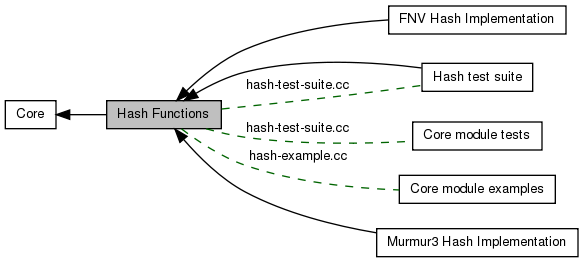

Collaboration diagram for Hash Functions:

Modules
	FNV Hash Implementation
	Hash test suite
	Murmur3 Hash Implementation

Files
file	hash-example.cc
	Example usage of ns3::Hash.
file	hash-fnv.cc
	ns3::Hash::Function::Fnv1a implementation.
file	hash-fnv.h
	ns3::Hash::Function::Fnv1a declaration.
file	hash-function.cc
	ns3::Hash::Implementation::GetHash64 defaul implementation.
file	hash-function.h
	ns3::Hash::Implementation, ns3::Hash::Function::Hash32 and ns3::Hash::Function::Hash64 declarations.
file	hash-murmur3.cc
	ns3::Hash::Function::Murmur3 implementation.
file	hash-murmur3.h
	ns3::Hash::Function::Murmur3 declaration.
file	hash-test-suite.cc
	Hash test suite.
file	hash.cc
	ns3::Hasher implementation.
file	hash.h
	ns3::Hasher, ns3::Hash32() and ns3::Hash64() function declarations.

Namespaces
	ns3::Hash
	Hash function implementations.
	ns3::Hash::Example
	Namespace for hasher-example.
	ns3::Hash::Function
	Hash functions.

Classes
class	ns3::Hash::Example::Collider
	Keep track of collisions. More...
class	ns3::Hash::Example::DictFiles
	Source word list files. More...
class	ns3::Hash::Example::Dictionary
	Word list and hashers to test. More...
class	ns3::Hash::Function::Fnv1a
	Fnv1a hash function implementation. More...
class	ns3::Hash::Function::Hash32
	Template for creating a Hash::Implementation from a 32-bit hash function. More...
class	ns3::Hash::Function::Hash64
	Template for creating a Hash::Implemetation from a 64-bit hash function. More...
class	ns3::Hasher
	Generic Hash function interface. More...
class	ns3::Hash::Implementation
	Hash function implementation base class. More...
class	ns3::Hash::Function::Murmur3
	Murmur3 hash function implementation. More...

Enumerations
enum	ns3::Hash::Example::Collider::Bits { ns3::Hash::Example::Collider::Bits32, ns3::Hash::Example::Collider::Bits64 }
	The size of hash function being tested. More...
enum	ns3::Hash::Function::Fnv1a::seed { ns3::Hash::Function::Fnv1a::SEED = 0x8BADF00D }
	Seed value. More...
enum	ns3::Hash::Function::Murmur3::seed { ns3::Hash::Function::Murmur3::SEED = 0x8BADF00D }
	Seed value. More...

Functions
uint32_t	ns3::Hash32 (const char *buffer, const size_t size)
	Compute 32-bit hash of a byte buffer, using the default hash function. More...
uint32_t	ns3::Hash32 (const std::string s)
	Compute 32-bit hash of a string, using the default hash function. More...
uint64_t	ns3::Hash64 (const char *buffer, const size_t size)
	Compute 64-bit hash of a byte buffer, using the default hash function. More...
uint64_t	ns3::Hash64 (const std::string s)
	Compute 64-bit hash of a string, using the default hash function. More...
typedef uint32_t(*	ns3::Hash::Hash32Function_ptr) (const char *, const size_t)
	Function pointer signatures for basic hash functions. More...
typedef uint64_t(*	ns3::Hash::Hash64Function_ptr) (const char *, const size_t)
	Function pointer signatures for basic hash functions. More...

Detailed Description

Generic Hash function interface.

See Hasher for main entry point. See hash-example.cc for example usage.

Typedef Documentation

typedef uint32_t(* ns3::Hash::Hash32Function_ptr) (const char *, const size_t)

Function pointer signatures for basic hash functions.

See Hash::Function::Hash32 or Hash::Function::Hash64

Definition at line 111 of file hash-function.h.

typedef uint64_t(* ns3::Hash::Hash64Function_ptr) (const char *, const size_t)

Function pointer signatures for basic hash functions.

See Hash::Function::Hash32 or Hash::Function::Hash64

Definition at line 112 of file hash-function.h.

Enumeration Type Documentation

enum ns3::Hash::Example::Collider::Bits

The size of hash function being tested.

Enumerator
Bits32	Use 32-bit hash function.
Bits64	Use 64-bit hash function.

Definition at line 130 of file hash-example.cc.

enum ns3::Hash::Function::Fnv1a::seed

private

Seed value.

Enumerator
SEED	Ate bad food.

Definition at line 99 of file hash-fnv.h.

enum ns3::Hash::Function::Murmur3::seed

private

Seed value.

This has to be a constant for all MPI ranks to generate the same hash from the same string.

Enumerator
SEED

Definition at line 102 of file hash-murmur3.h.

Function Documentation

uint32_t ns3::Hash32 ( const char *  buffer, const size_t  size  )

inline

Compute 32-bit hash of a byte buffer, using the default hash function.

Parameters

[in]	buffer	Pointer to the beginning of the buffer.
[in]	size	Length of the buffer, in bytes.

Returns

32-bit hash of the buffer.

Definition at line 276 of file hash.h.

References ns3::Hasher::GetHash32().

Referenced by ns3::FqCoDelIpv4PacketFilter::DoClassify(), ns3::FqCoDelIpv6PacketFilter::DoClassify(), and ns3::tests::DefaultHashTestCase::DoRun().

Here is the call graph for this function:

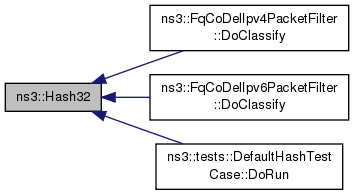

Here is the caller graph for this function:

uint32_t ns3::Hash32 ( const std::string  s )

inline

Compute 32-bit hash of a string, using the default hash function.

Parameters

[in]

s

String to hash.

Returns

32-bit hash of the string.

Definition at line 290 of file hash.h.

References ns3::Hasher::GetHash32().

Here is the call graph for this function:

uint64_t ns3::Hash64 ( const char *  buffer, const size_t  size  )

inline

Compute 64-bit hash of a byte buffer, using the default hash function.

Parameters

[in]	buffer	Pointer to the beginning of the buffer.
[in]	size	Length of the buffer, in bytes.

Returns

64-bit hash of the buffer.

Definition at line 283 of file hash.h.

References ns3::Hasher::GetHash64().

Referenced by ns3::tests::DefaultHashTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

uint64_t ns3::Hash64 ( const std::string  s )

inline

Compute 64-bit hash of a string, using the default hash function.

Parameters

[in]

s

String to hash.

Returns

64-bit hash of the string.

Definition at line 297 of file hash.h.

References ns3::Hasher::GetHash64().

Here is the call graph for this function:
