Socket

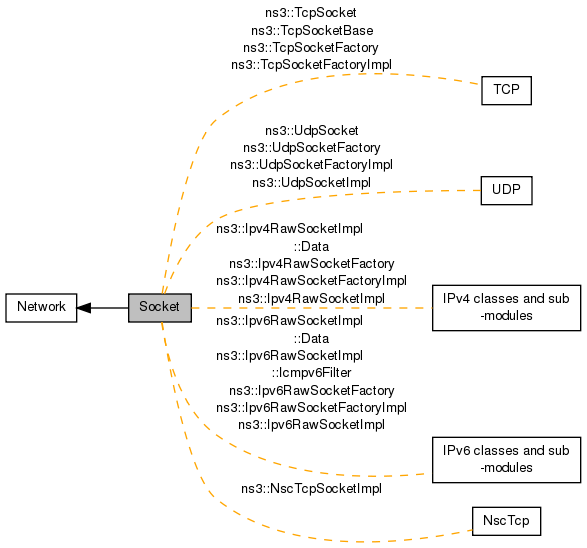

Collaboration diagram for Socket:

Classes
struct	ns3::Ipv6RawSocketImpl::Data
	IPv6 raw data and additional information. More...
struct	ns3::Ipv4RawSocketImpl::Data
	IPv4 raw data and additional information. More...
struct	ns3::Ipv6RawSocketImpl::Icmpv6Filter
	Struct to hold the ICMPv6 filter. More...
class	ns3::Ipv4RawSocketFactory
	API to create RAW socket instances. More...
class	ns3::Ipv4RawSocketFactoryImpl
	Implementation of IPv4 raw socket factory. More...
class	ns3::Ipv4RawSocketImpl
	IPv4 raw socket. More...
class	ns3::Ipv6RawSocketFactory
	API to create IPv6 RAW socket instances. More...
class	ns3::Ipv6RawSocketFactoryImpl
	Implementation of IPv6 raw socket factory. More...
class	ns3::Ipv6RawSocketImpl
	IPv6 raw socket. More...
class	ns3::NscTcpSocketImpl
	Socket logic for the NSC TCP sockets. More...
class	ns3::PacketSocket
	A PacketSocket is a link between an application and a net device. More...
class	ns3::PacketSocketClient
	A simple client. More...
class	ns3::PacketSocketFactory
	This can be used as an interface in a node in order for the node to generate PacketSockets that can connect to net devices. More...
class	ns3::PacketSocketServer
	A server using PacketSocket. More...
class	ns3::Socket
	A low-level Socket API based loosely on the BSD Socket API. More...
class	ns3::SocketFactory
	Object to create transport layer instances that provide a socket API to applications. More...
class	ns3::TcpSocket
	(abstract) base class of all TcpSockets More...
class	ns3::TcpSocketBase
	A base class for implementation of a stream socket using TCP. More...
class	ns3::TcpSocketFactory
	API to create TCP socket instances. More...
class	ns3::TcpSocketFactoryImpl
	socket factory implementation for native ns-3 TCP More...
class	ns3::UdpSocket
	(abstract) base class of all UdpSockets More...
class	ns3::UdpSocketFactory
	API to create UDP socket instances. More...
class	ns3::UdpSocketFactoryImpl
	Object to create UDP socket instances. More...
class	ns3::UdpSocketImpl
	A sockets interface to UDP. More...

Enumerations
enum	ns3::Socket::Ipv6MulticastFilterMode { ns3::Socket::INCLUDE =1, ns3::Socket::EXCLUDE }
	Enumeration of the possible filter of a socket. More...
enum	ns3::Socket::SocketErrno {   ns3::Socket::ERROR_NOTERROR, ns3::Socket::ERROR_ISCONN, ns3::Socket::ERROR_NOTCONN, ns3::Socket::ERROR_MSGSIZE,   ns3::Socket::ERROR_AGAIN, ns3::Socket::ERROR_SHUTDOWN, ns3::Socket::ERROR_OPNOTSUPP, ns3::Socket::ERROR_AFNOSUPPORT,   ns3::Socket::ERROR_INVAL, ns3::Socket::ERROR_BADF, ns3::Socket::ERROR_NOROUTETOHOST, ns3::Socket::ERROR_NODEV,   ns3::Socket::ERROR_ADDRNOTAVAIL, ns3::Socket::ERROR_ADDRINUSE, ns3::Socket::SOCKET_ERRNO_LAST }
	Enumeration of the possible errors returned by a socket. More...
enum	ns3::Socket::SocketPriority {   ns3::Socket::NS3_PRIO_BESTEFFORT = 0, ns3::Socket::NS3_PRIO_FILLER = 1, ns3::Socket::NS3_PRIO_BULK = 2, ns3::Socket::NS3_PRIO_INTERACTIVE_BULK = 4,   ns3::Socket::NS3_PRIO_INTERACTIVE = 6, ns3::Socket::NS3_PRIO_CONTROL = 7 }
	Enumeration of the possible socket priorities. More...
enum	ns3::Socket::SocketType { ns3::Socket::NS3_SOCK_STREAM, ns3::Socket::NS3_SOCK_SEQPACKET, ns3::Socket::NS3_SOCK_DGRAM, ns3::Socket::NS3_SOCK_RAW }
	Enumeration of the possible socket types. More...
enum	ns3::PacketSocket::State { ns3::PacketSocket::STATE_OPEN, ns3::PacketSocket::STATE_BOUND, ns3::PacketSocket::STATE_CONNECTED, ns3::PacketSocket::STATE_CLOSED }
	States of the socket. More...

Detailed Description

Enumeration Type Documentation

enum ns3::Socket::Ipv6MulticastFilterMode

Enumeration of the possible filter of a socket.

A socket can have filters on specific sources to include only packets incoming from them, or to exclude packets incoming from specific sources. Moreover, inclusion and exclusion also works as a leave, since "joining" a group without allowed sources is equivalent to leaving it.

Enumerator
INCLUDE
EXCLUDE

Definition at line 138 of file socket.h.

enum ns3::Socket::SocketErrno

Enumeration of the possible errors returned by a socket.

Enumerator
ERROR_NOTERROR
ERROR_ISCONN
ERROR_NOTCONN
ERROR_MSGSIZE
ERROR_AGAIN
ERROR_SHUTDOWN
ERROR_OPNOTSUPP
ERROR_AFNOSUPPORT
ERROR_INVAL
ERROR_BADF
ERROR_NOROUTETOHOST
ERROR_NODEV
ERROR_ADDRNOTAVAIL
ERROR_ADDRINUSE
SOCKET_ERRNO_LAST

Definition at line 82 of file socket.h.

enum ns3::Socket::SocketPriority

Enumeration of the possible socket priorities.

Names and corresponding values are derived from the Linux TC_PRIO_* macros

Enumerator
NS3_PRIO_BESTEFFORT
NS3_PRIO_FILLER
NS3_PRIO_BULK
NS3_PRIO_INTERACTIVE_BULK
NS3_PRIO_INTERACTIVE
NS3_PRIO_CONTROL

Definition at line 118 of file socket.h.

enum ns3::Socket::SocketType

Enumeration of the possible socket types.

Enumerator
NS3_SOCK_STREAM
NS3_SOCK_SEQPACKET
NS3_SOCK_DGRAM
NS3_SOCK_RAW

Definition at line 104 of file socket.h.

enum ns3::PacketSocket::State

private

States of the socket.

Enumerator
STATE_OPEN
STATE_BOUND
STATE_CONNECTED
STATE_CLOSED

Definition at line 188 of file packet-socket.h.
