Classes
class	ns3::AdhocAlohaNoackIdealPhyHelper
	create the AlohaNoackNetDevice More...

class	ns3::AlohaNoackMacHeader
	Header for the AlohaNoack NetDevice. More...

class	ns3::AlohaNoackNetDevice
	This devices implements the following features: More...

struct	ns3::BandInfo
	The building block of a SpectrumModel. More...

class	ns3::ConstantSpectrumPropagationLossModel
	A Constant (fixed) propagation loss. More...

class	ns3::FriisSpectrumPropagationLossModel
	Friis spectrum propagation loss model. More...

class	GlobalPathlossDatabase
	Store the last pathloss value for each TX-RX pair. More...

class	ns3::HalfDuplexIdealPhy
	This PHY layer implementation realizes an ideal OFDM PHY which transmits half-duplex (i.e., it can either receive or transmit at a given time). More...

struct	ns3::HalfDuplexIdealPhySignalParameters
	Signal parameters for HalfDuplexIdealPhy. More...

class	ns3::MicrowaveOvenSpectrumModel5MhzInitializer
	Init a static class containing the MWO #2 model (5Mhz) More...

class	ns3::MicrowaveOvenSpectrumModel6MhzInitializer
	Init a static class containing the MWO #1 model (6Mhz) More...

class	ns3::MicrowaveOvenSpectrumValueHelper
	This class provides methods for the creation of SpectrumValue instances that mimic the Power Spectral Density of commercial microwave ovens based on the measurements reported in the following paper: Tanim M. More...

class	ns3::MultiModelSpectrumChannel
	This SpectrumChannel implementation can handle the presence of SpectrumPhy instances which can use different spectrum models, i.e., different SpectrumModel. More...

class	ns3::NonCommunicatingNetDevice
	This class implements a device which does not communicate, in the sense that it does not interact with the above protocol stack. More...

class	ns3::RxSpectrumModelInfo
	The Rx spectrum model information. More...

class	ns3::ShannonSpectrumErrorModel
	This class implements the error model described in this paper: N. More...

class	ns3::SingleModelSpectrumChannel
	SpectrumChannel implementation which handles a single spectrum model. More...

class	ns3::SpectrumAnalyzer
	Simple SpectrumPhy implementation that averages the spectrum power density of incoming transmissions to produce a spectrogram. More...

class	ns3::SpectrumAnalyzerHelper
	Class to allow the Spectrum Analysis. More...

class	ns3::SpectrumChannel
	Defines the interface for spectrum-aware channel implementations. More...

class	ns3::SpectrumChannelHelper
	Setup a SpectrumChannel. More...

class	ns3::SpectrumConverter
	Class which implements a converter between SpectrumValue which are defined over different SpectrumModel. More...

class	ns3::SpectrumErrorModel
	Introspection did not find any typical Config paths. More...

class	ns3::SpectrumInterference
	This class implements a gaussian interference model, i.e., all incoming signals are added to the total interference. More...

class	ns3::SpectrumPhy
	Abstract base class for Spectrum-aware PHY layers. More...

class	ns3::SpectrumPhyHelper
	Create and configure several SpectrumPhy instances and connect them to a channel. More...

class	ns3::SpectrumPropagationLossModel
	spectrum-aware propagation loss model More...

struct	ns3::SpectrumSignalParameters
	This struct provides the generic signal representation to be used by all wireless technologies. More...

class	ns3::SpectrumValue
	Set of values corresponding to a given SpectrumModel. More...

class	ns3::TvSpectrumTransmitter
	SpectrumPhy implementation that creates a customizable TV transmitter which transmits a PSD spectrum specified by user-set attributes. More...

class	ns3::TvSpectrumTransmitterHelper
	Helper class which uses TvSpectrumTransmitter class to create customizable TV transmitter(s) that transmit PSD spectrum specified by user-set attributes. More...

class	ns3::TxSpectrumModelInfo
	The Tx spectrum model information. More...

class	ns3::WaveformGenerator
	Simple SpectrumPhy implementation that sends customizable waveform. More...

class	ns3::WaveformGeneratorHelper
	Create a Waveform generator, which can be used to inject specific noise in the channel. More...

class	ns3::WifiSpectrumValue5MhzFactory
	Implements Wifi SpectrumValue for the 2.4 GHz ISM band only, with a 5 MHz spectrum resolution. More...

class	ns3::WifiSpectrumValueHelper
	This class defines all functions to create a spectrum model for Wi-Fi based on a a spectral model aligned with an OFDM subcarrier spacing of 312.5 KHz (model also reused for DSSS modulations) More...

Typedefs
typedef std::map< SpectrumModelUid_t, RxSpectrumModelInfo >	ns3::RxSpectrumModelInfoMap_t
	Container: SpectrumModelUid_t, RxSpectrumModelInfo. More...

typedef std::map< SpectrumModelUid_t, SpectrumConverter >	ns3::SpectrumConverterMap_t
	Container: SpectrumModelUid_t, SpectrumConverter. More...

typedef std::map< SpectrumModelUid_t, TxSpectrumModelInfo >	ns3::TxSpectrumModelInfoMap_t
	Container: SpectrumModelUid_t, TxSpectrumModelInfo. More...

Enumerations
enum	ns3::TvSpectrumTransmitterHelper::Density { ns3::TvSpectrumTransmitterHelper::DENSITY_LOW, ns3::TvSpectrumTransmitterHelper::DENSITY_MEDIUM, ns3::TvSpectrumTransmitterHelper::DENSITY_HIGH }
	density of location that TV transmitters are being set up in More...

enum	ns3::TvSpectrumTransmitterHelper::Region { ns3::TvSpectrumTransmitterHelper::REGION_NORTH_AMERICA, ns3::TvSpectrumTransmitterHelper::REGION_JAPAN, ns3::TvSpectrumTransmitterHelper::REGION_EUROPE }
	geographical region that TV transmitters are being set up in More...

enum	ns3::AlohaNoackNetDevice::State { ns3::AlohaNoackNetDevice::IDLE, ns3::AlohaNoackNetDevice::TX, ns3::AlohaNoackNetDevice::RX }
	State of the NetDevice. More...

enum	ns3::HalfDuplexIdealPhy::State { ns3::HalfDuplexIdealPhy::IDLE, ns3::HalfDuplexIdealPhy::TX, ns3::HalfDuplexIdealPhy::RX }
	PHY states. More...

enum	ns3::TvSpectrumTransmitter::TvType { ns3::TvSpectrumTransmitter::TVTYPE_ANALOG, ns3::TvSpectrumTransmitter::TVTYPE_8VSB, ns3::TvSpectrumTransmitter::TVTYPE_COFDM }
	types of TV transmitters: analog, digital 8-VSB, or digital COFDM More...

Functions
static void	ns3::WriteAveragePowerSpectralDensityReport (Ptr< OutputStreamWrapper > streamWrapper, Ptr< const SpectrumValue > avgPowerSpectralDensity)
	Writes a report of the Average Power Spectral Density. More...

Variables
static class ns3::MicrowaveOvenSpectrumModel5MhzInitializer	ns3::g_MicrowaveOvenSpectrumModel5MhzInitializerInstance
	MWO model #2. More...

static class ns3::MicrowaveOvenSpectrumModel6MhzInitializer	ns3::g_MicrowaveOvenSpectrumModel6MhzInitializerInstance
	MWO model #1. More...

Detailed Description

Typedef Documentation

typedef std::map<SpectrumModelUid_t, RxSpectrumModelInfo> ns3::RxSpectrumModelInfoMap_t

Container: SpectrumModelUid_t, RxSpectrumModelInfo.

Definition at line 90 of file multi-model-spectrum-channel.h.

typedef std::map<SpectrumModelUid_t, SpectrumConverter> ns3::SpectrumConverterMap_t

Container: SpectrumModelUid_t, SpectrumConverter.

Definition at line 40 of file multi-model-spectrum-channel.h.

typedef std::map<SpectrumModelUid_t, TxSpectrumModelInfo> ns3::TxSpectrumModelInfoMap_t

Container: SpectrumModelUid_t, TxSpectrumModelInfo.

Definition at line 65 of file multi-model-spectrum-channel.h.

Enumeration Type Documentation

enum ns3::TvSpectrumTransmitterHelper::Density

density of location that TV transmitters are being set up in

Enumerator
DENSITY_LOW
DENSITY_MEDIUM
DENSITY_HIGH

Definition at line 86 of file tv-spectrum-transmitter-helper.h.

enum ns3::TvSpectrumTransmitterHelper::Region

geographical region that TV transmitters are being set up in

Enumerator
REGION_NORTH_AMERICA
REGION_JAPAN
REGION_EUROPE

Definition at line 76 of file tv-spectrum-transmitter-helper.h.

enum ns3::AlohaNoackNetDevice::State

State of the NetDevice.

Enumerator
IDLE	Idle state.
TX	Transmitting state.
RX	Receiving state.

Definition at line 65 of file aloha-noack-net-device.h.

enum ns3::HalfDuplexIdealPhy::State

PHY states.

Enumerator
IDLE	Idle state.
TX	Transmitting state.
RX	Receiving state.

Definition at line 88 of file half-duplex-ideal-phy.h.

enum ns3::TvSpectrumTransmitter::TvType

types of TV transmitters: analog, digital 8-VSB, or digital COFDM

Enumerator
TVTYPE_ANALOG
TVTYPE_8VSB
TVTYPE_COFDM

Definition at line 53 of file tv-spectrum-transmitter.h.

Function Documentation

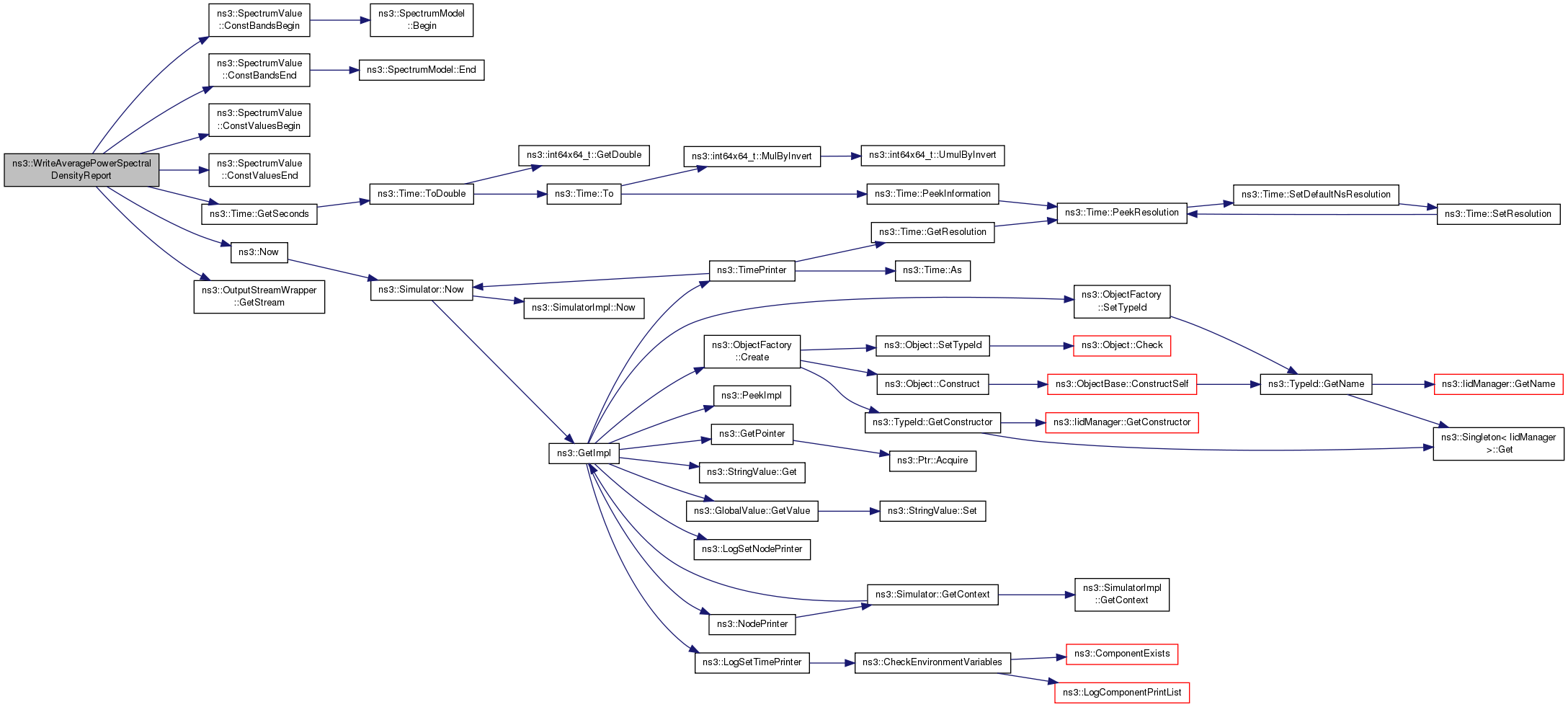

static void ns3::WriteAveragePowerSpectralDensityReport	(	Ptr< OutputStreamWrapper >	streamWrapper,
		Ptr< const SpectrumValue >	avgPowerSpectralDensity
	)
