ns3::LteRrcSap::AsConfig Struct Reference

AsConfig structure. More...

#include "lte-rrc-sap.h"

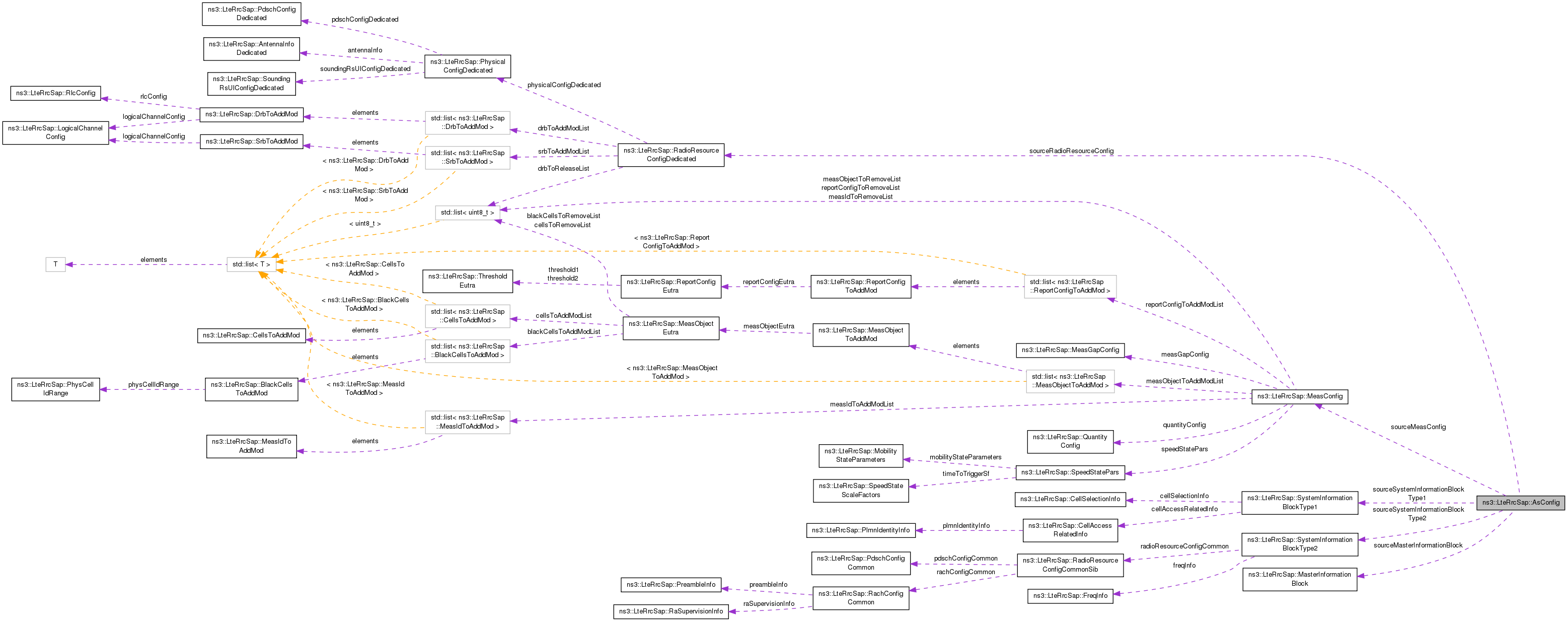

Collaboration diagram for ns3::LteRrcSap::AsConfig:

Public Attributes
uint32_t	sourceDlCarrierFreq
	source DL carrier frequency More...
MasterInformationBlock	sourceMasterInformationBlock
	source master information block More...
MeasConfig	sourceMeasConfig
	source measure config More...
RadioResourceConfigDedicated	sourceRadioResourceConfig
	source radio resource config More...
SystemInformationBlockType1	sourceSystemInformationBlockType1
	source system information block type 1 More...
SystemInformationBlockType2	sourceSystemInformationBlockType2
	source system information block type 2 More...
uint16_t	sourceUeIdentity
	source UE identity More...

Detailed Description

AsConfig structure.

Definition at line 608 of file lte-rrc-sap.h.

Member Data Documentation

uint32_t ns3::LteRrcSap::AsConfig::sourceDlCarrierFreq

source DL carrier frequency

Definition at line 616 of file lte-rrc-sap.h.

Referenced by ns3::HandoverPreparationInfoHeader::Deserialize(), HandoverPreparationInfoTestCase::DoRun(), ns3::UeManager::PrepareHandover(), ns3::HandoverPreparationInfoHeader::PreSerialize(), and ns3::HandoverPreparationInfoHeader::Print().

MasterInformationBlock ns3::LteRrcSap::AsConfig::sourceMasterInformationBlock

source master information block

Definition at line 613 of file lte-rrc-sap.h.

Referenced by ns3::HandoverPreparationInfoHeader::Deserialize(), HandoverPreparationInfoTestCase::DoRun(), ns3::UeManager::PrepareHandover(), ns3::HandoverPreparationInfoHeader::PreSerialize(), and ns3::HandoverPreparationInfoHeader::Print().

MeasConfig ns3::LteRrcSap::AsConfig::sourceMeasConfig

source measure config

Definition at line 610 of file lte-rrc-sap.h.

Referenced by ns3::HandoverPreparationInfoHeader::Deserialize(), HandoverPreparationInfoTestCase::DoRun(), ns3::UeManager::PrepareHandover(), and ns3::HandoverPreparationInfoHeader::PreSerialize().

RadioResourceConfigDedicated ns3::LteRrcSap::AsConfig::sourceRadioResourceConfig

source radio resource config

Definition at line 611 of file lte-rrc-sap.h.

Referenced by ns3::HandoverPreparationInfoHeader::Deserialize(), HandoverPreparationInfoTestCase::DoRun(), ns3::UeManager::PrepareHandover(), ns3::HandoverPreparationInfoHeader::PreSerialize(), and ns3::HandoverPreparationInfoHeader::Print().

SystemInformationBlockType1 ns3::LteRrcSap::AsConfig::sourceSystemInformationBlockType1

source system information block type 1

Definition at line 614 of file lte-rrc-sap.h.

Referenced by ns3::HandoverPreparationInfoHeader::Deserialize(), HandoverPreparationInfoTestCase::DoRun(), ns3::UeManager::PrepareHandover(), ns3::HandoverPreparationInfoHeader::PreSerialize(), and ns3::HandoverPreparationInfoHeader::Print().

SystemInformationBlockType2 ns3::LteRrcSap::AsConfig::sourceSystemInformationBlockType2

source system information block type 2

Definition at line 615 of file lte-rrc-sap.h.

Referenced by ns3::HandoverPreparationInfoHeader::Deserialize(), HandoverPreparationInfoTestCase::DoRun(), ns3::UeManager::PrepareHandover(), and ns3::HandoverPreparationInfoHeader::PreSerialize().

uint16_t ns3::LteRrcSap::AsConfig::sourceUeIdentity

source UE identity

Definition at line 612 of file lte-rrc-sap.h.

Referenced by ns3::HandoverPreparationInfoHeader::Deserialize(), HandoverPreparationInfoTestCase::DoRun(), ns3::UeManager::PrepareHandover(), ns3::HandoverPreparationInfoHeader::PreSerialize(), and ns3::HandoverPreparationInfoHeader::Print().

---

The documentation for this struct was generated from the following file:

• src/lte/model/lte-rrc-sap.h
