ns3::SchInfo Struct Reference

#include "channel-scheduler.h"

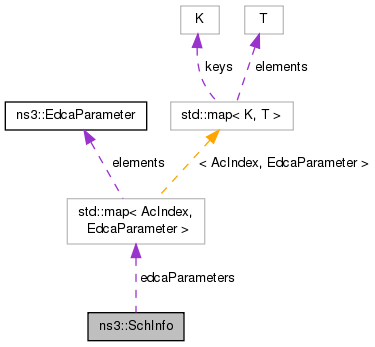

Collaboration diagram for ns3::SchInfo:

Public Member Functions
	SchInfo ()
	Initializer. More...
	SchInfo (uint32_t channel, bool immediate, uint32_t channelAccess)
	Initializer. More...
	SchInfo (uint32_t channel, bool immediate, uint32_t channelAccess, EdcaParameters edca)
	Initializer. More...

Public Attributes
uint32_t	channelNumber
	channel number More...
EdcaParameters	edcaParameters
	EDCA parameters. More...
uint8_t	extendedAccess
	extended access More...
bool	immediateAccess
	immediate access More...

Detailed Description

Parameters

channelNumber	channel number that the SCH service can be made available for communications.
operationalRateSet	OperationalRateSet if present, as specified in IEEE Std 802.11. valid range: 1-127.
immediateAccess	Indicates that the MLME should provide immediate access to the SCH and not wait until the next SCH interval.
extendedAccess	Indicates that the MLME should provide continuous access (during both SCH interval and CCH interval) to the SCH for ExtendedAccess control channel intervals. A value of 255 indicates indefinite access.
edcaParameters	If present, as specified in IEEE Std 802.11.

Definition at line 65 of file channel-scheduler.h.

Constructor & Destructor Documentation

ns3::SchInfo::SchInfo ( )

inline

Initializer.

Definition at line 73 of file channel-scheduler.h.

ns3::SchInfo::SchInfo ( uint32_t  channel, bool  immediate, uint32_t  channelAccess  )

inline

Initializer.

Parameters

channel	the channel number
immediate	true if immediate access
channelAccess

Definition at line 86 of file channel-scheduler.h.

ns3::SchInfo::SchInfo ( uint32_t  channel, bool  immediate, uint32_t  channelAccess, EdcaParameters  edca  )

inline

Initializer.

Parameters

channel	the channel number
immediate	true if immediate access
channelAccess
edca	the EDCA parameters

Definition at line 100 of file channel-scheduler.h.

Member Data Documentation

uint32_t ns3::SchInfo::channelNumber

channel number

Definition at line 67 of file channel-scheduler.h.

Referenced by ns3::ChannelScheduler::StartSch(), and ns3::WaveNetDevice::StartSch().

EdcaParameters ns3::SchInfo::edcaParameters

EDCA parameters.

Definition at line 71 of file channel-scheduler.h.

Referenced by ns3::ChannelScheduler::StartSch().

uint8_t ns3::SchInfo::extendedAccess

extended access

Definition at line 70 of file channel-scheduler.h.

Referenced by ns3::ChannelScheduler::StartSch().

bool ns3::SchInfo::immediateAccess

immediate access

Definition at line 69 of file channel-scheduler.h.

Referenced by ns3::ChannelScheduler::StartSch().

---

The documentation for this struct was generated from the following file:

• src/wave/model/channel-scheduler.h
