The Wifi MAC high model for a STA or AP in a BSS. More...

#include "infrastructure-wifi-mac.h"

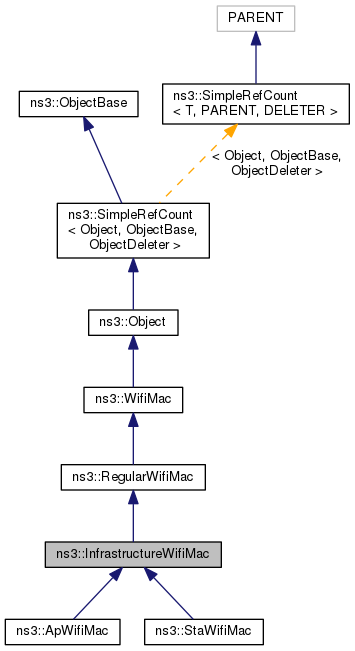

Inheritance diagram for ns3::InfrastructureWifiMac:

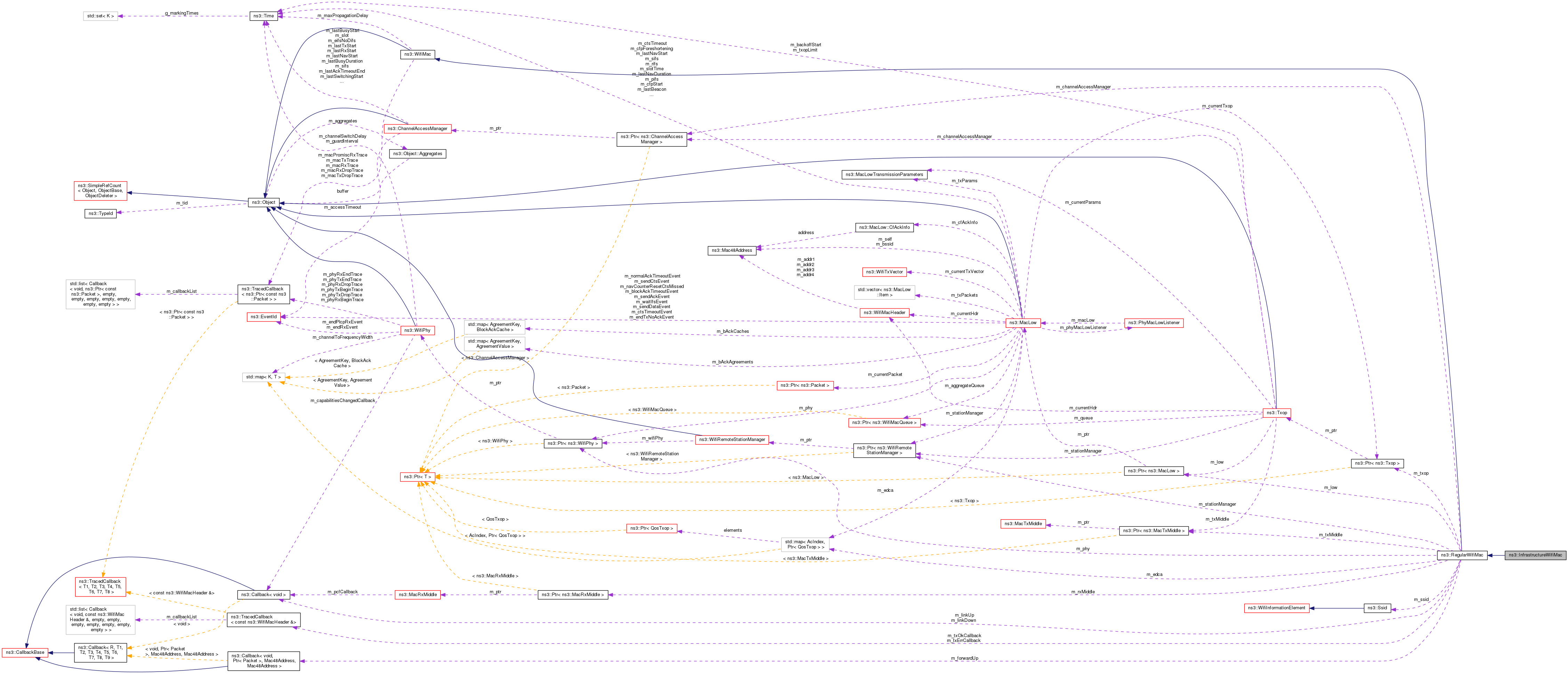

Collaboration diagram for ns3::InfrastructureWifiMac:

Public Member Functions
	InfrastructureWifiMac ()

virtual	~InfrastructureWifiMac ()

virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to)=0

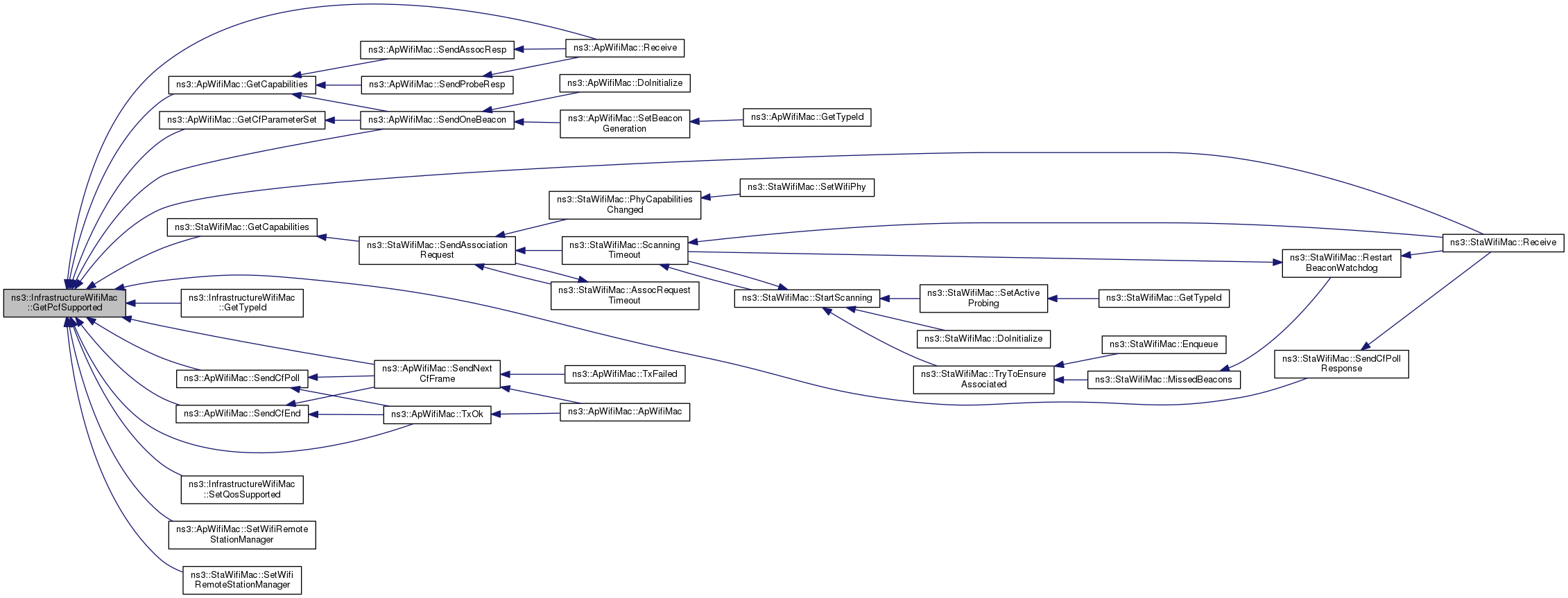

bool	GetPcfSupported () const
	Return whether the device supports PCF. More...

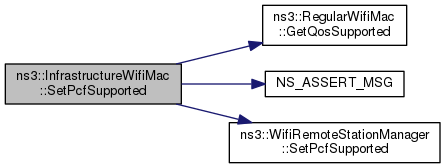

void	SetPcfSupported (bool enable)
	Enable or disable PCF support for the device. More...

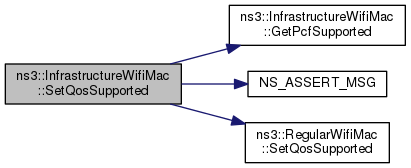

void	SetQosSupported (bool enable)
	Enable or disable QoS support for the device. More...

Public Member Functions inherited from ns3::RegularWifiMac
	RegularWifiMac ()

virtual	~RegularWifiMac ()

virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)

Time	GetAckTimeout (void) const

Mac48Address	GetAddress (void) const

Time	GetBasicBlockAckTimeout (void) const

Mac48Address	GetBssid (void) const

Time	GetCompressedBlockAckTimeout (void) const

Time	GetCtsTimeout (void) const

Time	GetEifsNoDifs (void) const

ExtendedCapabilities	GetExtendedCapabilities (void) const
	Return the extended capabilities of the device. More...

HeCapabilities	GetHeCapabilities (void) const
	Return the HE capabilities of the device. More...

HtCapabilities	GetHtCapabilities (void) const
	Return the HT capabilities of the device. More...

Time	GetPifs (void) const

Time	GetRifs (void) const

bool	GetRifsSupported (void) const

bool	GetShortSlotTimeSupported (void) const

Time	GetSifs (void) const

Time	GetSlot (void) const

Ssid	GetSsid (void) const

VhtCapabilities	GetVhtCapabilities (void) const
	Return the VHT capabilities of the device. More...

Ptr< WifiPhy >	GetWifiPhy (void) const

Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (void) const

void	ResetWifiPhy (void)
	removes attached WifiPhy device from this MAC. More...

void	SetAckTimeout (Time ackTimeout)

void	SetAddress (Mac48Address address)

void	SetBasicBlockAckTimeout (Time blockAckTimeout)

void	SetBssid (Mac48Address bssid)

void	SetCompressedBlockAckTimeout (Time blockAckTimeout)

void	SetCtsTimeout (Time ctsTimeout)

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self feature. More...

void	SetEifsNoDifs (Time eifsNoDifs)

void	SetForwardUpCallback (ForwardUpCallback upCallback)

void	SetLinkDownCallback (Callback< void > linkDown)

void	SetLinkUpCallback (Callback< void > linkUp)

void	SetPifs (Time pifs)

void	SetPromisc (void)
	Sets the interface in promiscuous mode. More...

void	SetRifs (Time rifs)

void	SetRifsSupported (bool enable)
	Enable or disable RIFS feature. More...

void	SetShortSlotTimeSupported (bool enable)
	Enable or disable short slot time feature. More...

void	SetSifs (Time sifs)

void	SetSlot (Time slotTime)

void	SetSsid (Ssid ssid)

virtual void	SetWifiPhy (const Ptr< WifiPhy > phy)

virtual void	SetWifiRemoteStationManager (const Ptr< WifiRemoteStationManager > stationManager)

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::WifiMac
void	ConfigureStandard (WifiPhyStandard standard)

void	NotifyPromiscRx (Ptr< const Packet > packet)

void	NotifyRx (Ptr< const Packet > packet)

void	NotifyRxDrop (Ptr< const Packet > packet)

void	NotifyTx (Ptr< const Packet > packet)

void	NotifyTxDrop (Ptr< const Packet > packet)

virtual void	SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0

void	SetMaxPropagationDelay (Time delay)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

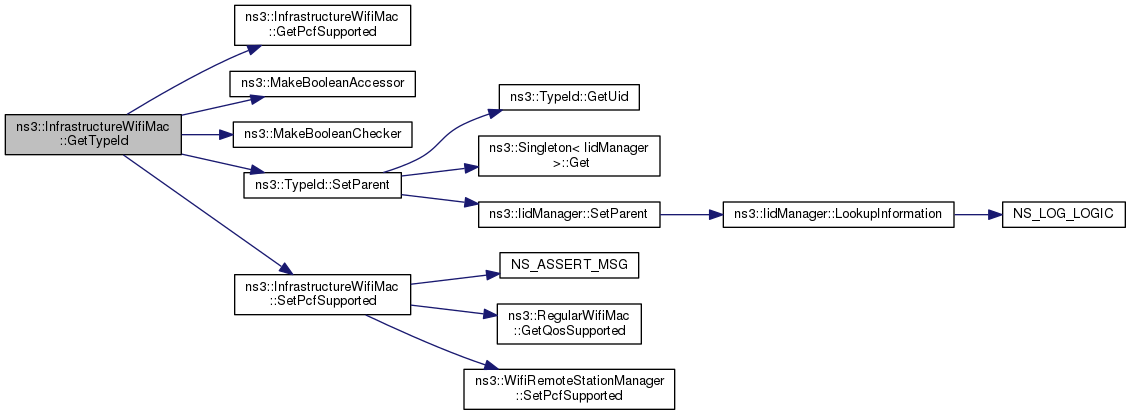

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::RegularWifiMac
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WifiMac
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
bool	m_pcfSupported
	This Boolean is set `true` iff this WifiMac support PCF. More...

Additional Inherited Members
Public Types inherited from ns3::RegularWifiMac
typedef Callback< void, Ptr< Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
	This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. More...

Protected Types inherited from ns3::RegularWifiMac
typedef std::map< AcIndex, Ptr< QosTxop > >	EdcaQueues
	This type defines a mapping between an Access Category index, and a pointer to the corresponding channel access function. More...

Protected Member Functions inherited from ns3::RegularWifiMac
void	ConfigureContentionWindow (uint32_t cwMin, uint32_t cwMax)

virtual void	DeaggregateAmsduAndForward (Ptr< Packet > aggregatedPacket, const WifiMacHeader *hdr)
	This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

void	FinishConfigureStandard (WifiPhyStandard standard)

void	ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
	Forward the packet up to the device. More...

Ptr< QosTxop >	GetBEQueue (void) const
	Accessor for the AC_BE channel access function. More...

Ptr< QosTxop >	GetBKQueue (void) const
	Accessor for the AC_BK channel access function. More...

bool	GetDsssSupported () const
	Return whether the device supports DSSS. More...

bool	GetErpSupported () const
	Return whether the device supports ERP. More...

bool	GetHeSupported () const
	Return whether the device supports HE. More...

bool	GetHtSupported () const
	Return whether the device supports HT. More...

bool	GetQosSupported () const
	Return whether the device supports QoS. More...

Ptr< Txop >	GetTxop (void) const
	Accessor for the DCF object. More...

bool	GetVhtSupported () const
	Return whether the device supports VHT. More...

Ptr< QosTxop >	GetVIQueue (void) const
	Accessor for the AC_VI channel access function. More...

Ptr< QosTxop >	GetVOQueue (void) const
	Accessor for the AC_VO channel access function. More...

virtual void	Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)
	This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received. More...

void	SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
	This method can be called to accept a received ADDBA Request. More...

void	SetDsssSupported (bool enable)
	Enable or disable DSSS support for the device. More...

void	SetErpSupported (bool enable)
	Enable or disable ERP support for the device. More...

void	SetHeSupported (bool enable)
	Enable or disable HE support for the device. More...

void	SetHtSupported (bool enable)
	Enable or disable HT support for the device. More...

void	SetTypeOfStation (TypeOfStation type)
	This method is invoked by a subclass to specify what type of station it is implementing. More...

void	SetVhtSupported (bool enable)
	Enable or disable VHT support for the device. More...

virtual void	TxFailed (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

virtual void	TxOk (const WifiMacHeader &hdr)
	The packet we sent was successfully received by the receiver (i.e. More...

Protected Member Functions inherited from ns3::WifiMac
void	ConfigureDcf (Ptr< Txop > dcf, uint32_t cwmin, uint32_t cwmax, bool isDsss, AcIndex ac)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::RegularWifiMac
Ptr< ChannelAccessManager >	m_channelAccessManager
	channel access manager More...

EdcaQueues	m_edca
	This is a map from Access Category index to the corresponding channel access function. More...

ForwardUpCallback	m_forwardUp
	Callback to forward packet up the stack. More...

Callback< void >	m_linkDown
	Callback when a link is down. More...

Callback< void >	m_linkUp
	Callback when a link is up. More...

Ptr< MacLow >	m_low
	MacLow (RTS, CTS, DATA, ACK etc.) More...

Ptr< WifiPhy >	m_phy
	Wifi PHY. More...

Ptr< MacRxMiddle >	m_rxMiddle
	RX middle (de-fragmentation etc.) More...

Ssid	m_ssid
	Service Set ID (SSID) More...

Ptr< WifiRemoteStationManager >	m_stationManager
	Remote station manager (rate control, RTS/CTS/fragmentation thresholds etc.) More...

Ptr< MacTxMiddle >	m_txMiddle
	TX middle (aggregation etc.) More...

Ptr< Txop >	m_txop
	This holds a pointer to the TXOP instance for this WifiMac - used for transmission of frames to non-QoS peers. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The Wifi MAC high model for a STA or AP in a BSS.

Config Paths

ns3::InfrastructureWifiMac is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/$ns3::InfrastructureWifiMac"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::InfrastructureWifiMac"

Attributes

PcfSupported: This Boolean attribute is set to enable PCF support at this STA
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

Attributes defined in parent class ns3::RegularWifiMac

QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
HtSupported: This Boolean attribute is set to enable 802.11n support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
VhtSupported: This Boolean attribute is set to enable 802.11ac support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
HeSupported: This Boolean attribute is set to enable 802.11ax support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
CtsToSelfSupported: Use CTS to Self when using a rate that is not in the basic rate set.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write
VO_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VO access class. Value 0 means A-MSDU is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11426
- Initial value: 0
- Flags: construct write
VI_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VI access class.Value 0 means A-MSDU is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11426
- Initial value: 0
- Flags: construct write
BE_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BE access class.Value 0 means A-MSDU is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11426
- Initial value: 0
- Flags: construct write
BK_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BK access class.Value 0 means A-MSDU is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11426
- Initial value: 0
- Flags: construct write
VO_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VO access class.Value 0 means A-MPDU is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
VI_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VI access class.Value 0 means A-MPDU is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 65535
- Flags: construct write
BE_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BE access class.Value 0 means A-MPDU is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 65535
- Flags: construct write
BK_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BK access class.Value 0 means A-MPDU is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
VO_BlockAckThreshold: If number of packets in VO queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
VI_BlockAckThreshold: If number of packets in VI queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
BE_BlockAckThreshold: If number of packets in BE queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
BK_BlockAckThreshold: If number of packets in BK queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
VO_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_VO. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
VI_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_VI. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
BE_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_BE. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
BK_BlockAckInactivityTimeout: Represents max time (blocks of 1024 micro seconds) allowed for block ackinactivity for AC_BK. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
ShortSlotTimeSupported: Whether or not short slot time is supported (only used by ERP APs or STAs).
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
RifsSupported: Whether or not RIFS is supported (only used by HT APs or STAs).
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
Txop: The Txop object.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::Txop>
- Flags: read
VO_Txop: Queue that manages packets belonging to AC_VO access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
VI_Txop: Queue that manages packets belonging to AC_VI access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
BE_Txop: Queue that manages packets belonging to AC_BE access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
BK_Txop: Queue that manages packets belonging to AC_BK access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read

Attributes defined in parent class ns3::WifiMac

CtsTimeout: When this timeout expires, the RTS/CTS handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +75000.0ns
- Flags: construct write read
AckTimeout: When this timeout expires, the DATA/ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +75000.0ns
- Flags: construct write read
BasicBlockAckTimeout: When this timeout expires, the BASIC_BLOCK_ACK_REQ/BASIC_BLOCK_ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +281000.0ns
- Flags: construct write read
CompressedBlockAckTimeout: When this timeout expires, the COMPRESSED_BLOCK_ACK_REQ/COMPRESSED_BLOCK_ACK handshake has failed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +107000.0ns
- Flags: construct write read
Sifs: The value of the SIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +16000.0ns
- Flags: construct write read
EifsNoDifs: The value of EIFS-DIFS.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +60000.0ns
- Flags: construct write read
Slot: The duration of a Slot.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +9000.0ns
- Flags: construct write read
Pifs: The value of the PIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +25000.0ns
- Flags: construct write read
Rifs: The value of the RIFS constant.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +2000.0ns
- Flags: construct write read
MaxPropagationDelay: The maximum propagation delay. Unused for now.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +3333.0ns
- Flags: construct write
Ssid: The ssid we want to belong to.
- Set with class: SsidValue
- Underlying type: Ssid
- Initial value: default
- Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::RegularWifiMac

TxOkHeader: The header of successfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback
TxErrHeader: The header of unsuccessfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback

TraceSources defined in parent class ns3::WifiMac

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
Callback signature: ns3::Packet::TracedCallback
MacTxDrop: A packet has been dropped in the MAC layer before transmission.
Callback signature: ns3::Packet::TracedCallback
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
Callback signature: ns3::Packet::TracedCallback

Size of this type is 360 bytes (on a 64-bit architecture).

Definition at line 33 of file infrastructure-wifi-mac.h.

Constructor & Destructor Documentation

◆ InfrastructureWifiMac()

ns3::InfrastructureWifiMac::InfrastructureWifiMac ( )

Definition at line 47 of file infrastructure-wifi-mac.cc.

References NS_LOG_FUNCTION.

◆ ~InfrastructureWifiMac()

ns3::InfrastructureWifiMac::~InfrastructureWifiMac ( )

virtual

Definition at line 53 of file infrastructure-wifi-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Enqueue()

virtual void ns3::InfrastructureWifiMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to
	)

pure virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::RegularWifiMac.

Implemented in ns3::StaWifiMac, and ns3::ApWifiMac.
