ns3::TimeSeriesAdaptor Class Reference

Takes probed values of different types and outputs the current time plus the value with both converted to doubles. More...

#include "time-series-adaptor.h"

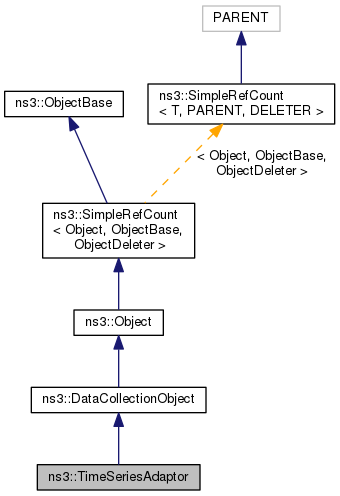

+ Inheritance diagram for ns3::TimeSeriesAdaptor:

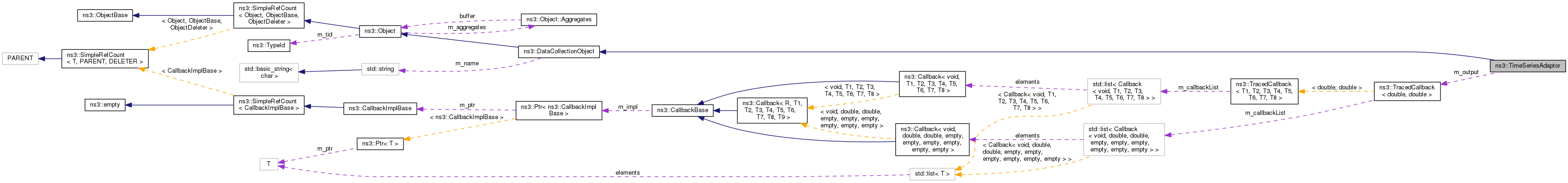

+ Collaboration diagram for ns3::TimeSeriesAdaptor:

Public Types

typedef void(* OutputTracedCallback) (const double now, const double data)
 TracedCallback signature for output trace. More...


Public Member Functions

 TimeSeriesAdaptor ()

virtual ~TimeSeriesAdaptor ()

void TraceSinkBoolean (bool oldData, bool newData)
 Trace sink for receiving data from bool valued trace sources. More...

void TraceSinkDouble (double oldData, double newData)
 Trace sink for receiving data from double valued trace sources. More...

void TraceSinkUinteger16 (uint16_t oldData, uint16_t newData)
 Trace sink for receiving data from uint16_t valued trace sources. More...

void TraceSinkUinteger32 (uint32_t oldData, uint32_t newData)
 Trace sink for receiving data from uint32_t valued trace sources. More...

void TraceSinkUinteger8 (uint8_t oldData, uint8_t newData)
 Trace sink for receiving data from uint8_t valued trace sources. More...

- Public Member Functions inherited from ns3::DataCollectionObject
 DataCollectionObject ()

virtual ~DataCollectionObject ()

void Disable (void)
 Unset the status of an individual object. More...

void Enable (void)
 Set the status of an individual object. More...

std::string GetName (void) const
 Get the object's name. More...

virtual bool IsEnabled (void) const
 Check the status of an individual object. More...

void SetName (std::string name)
 Set the object's name. All spaces are replaced by underscores. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::DataCollectionObject
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

TracedCallback< double, double > m_output
 output trace More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...

- Protected Attributes inherited from ns3::DataCollectionObject
bool m_enabled
 Object's activation state. More...

std::string m_name
 Name of the object within the data collection framework. More...


Detailed Description

Takes probed values of different types and outputs the current time plus the value with both converted to doubles.


Introspection did not find any typical Config paths.

The role of the TimeSeriesAdaptor class is that of an adaptor class, to take raw-valued probe data of different types, and output a tuple of two double values. The first is a timestamp which may be set to different resolutions (e.g. Seconds, Milliseconds, etc.) in the future, but which presently is hardcoded to Seconds. The second is the conversion of a non-double value to a double value (possibly with loss of precision).

It should be noted that time series adaptors convert Simulation Time objects to double values in its output.


No Attributes are defined for this type.

Attributes defined in parent class ns3::DataCollectionObject

  • Name: Object's name
    • Set with class: StringValue
    • Underlying type:
    • Initial value: unnamed
    • Flags: construct write read
  • Enabled: Object's enabled status
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read

TraceSources

Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 48 of file time-series-adaptor.h.

Member Typedef Documentation

◆ OutputTracedCallback

typedef void(* ns3::TimeSeriesAdaptor::OutputTracedCallback) (const double now, const double data)

TracedCallback signature for output trace.

Parameters
[in]nowThe current time, in seconds.
[in]dataThe new data value.

Definition at line 121 of file time-series-adaptor.h.

Constructor & Destructor Documentation

◆ TimeSeriesAdaptor()

ns3::TimeSeriesAdaptor::TimeSeriesAdaptor ( )

Definition at line 52 of file time-series-adaptor.cc.

References NS_LOG_FUNCTION.

◆ ~TimeSeriesAdaptor()

ns3::TimeSeriesAdaptor::~TimeSeriesAdaptor ( )
virtual

Definition at line 57 of file time-series-adaptor.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetTypeId()

TypeId ns3::TimeSeriesAdaptor::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 37 of file time-series-adaptor.cc.

References m_output, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

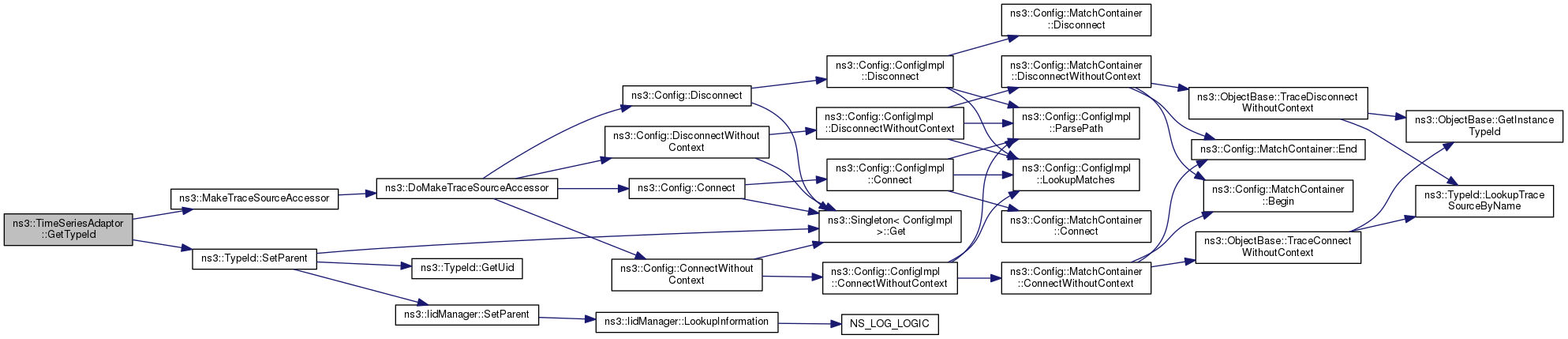

+ Here is the call graph for this function:

◆ TraceSinkBoolean()

void ns3::TimeSeriesAdaptor::TraceSinkBoolean ( bool  oldData,
bool  newData
)

Trace sink for receiving data from bool valued trace sources.

Parameters
oldDatathe original value.
newDatathe new value.

This method serves as a trace sink to bool valued trace sources.

Definition at line 79 of file time-series-adaptor.cc.

References NS_LOG_FUNCTION, and TraceSinkDouble().

Referenced by ns3::GnuplotHelper::ConnectProbeToAggregator(), and ns3::FileHelper::ConnectProbeToAggregator().

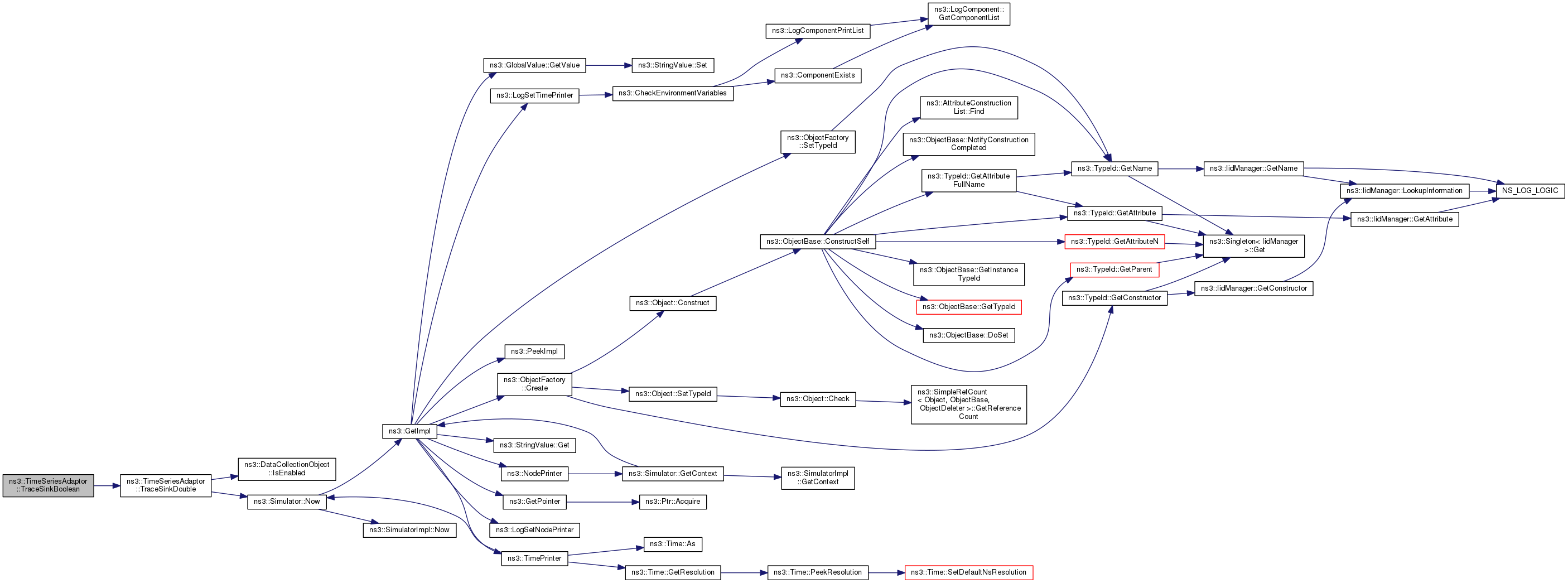

+ Here is the call graph for this function:

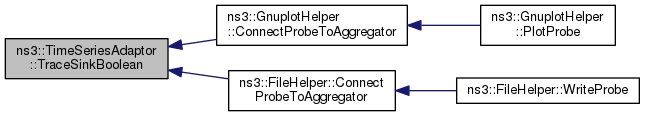

+ Here is the caller graph for this function:

◆ TraceSinkDouble()

void ns3::TimeSeriesAdaptor::TraceSinkDouble ( double  oldData,
double  newData
)

Trace sink for receiving data from double valued trace sources.

Parameters
oldDatathe original value.
newDatathe new value.

This method serves as a trace sink to double valued trace sources.

Definition at line 63 of file time-series-adaptor.cc.

References ns3::DataCollectionObject::IsEnabled(), m_output, ns3::Simulator::Now(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::GnuplotHelper::ConnectProbeToAggregator(), ns3::FileHelper::ConnectProbeToAggregator(), TraceSinkBoolean(), TraceSinkUinteger16(), TraceSinkUinteger32(), and TraceSinkUinteger8().

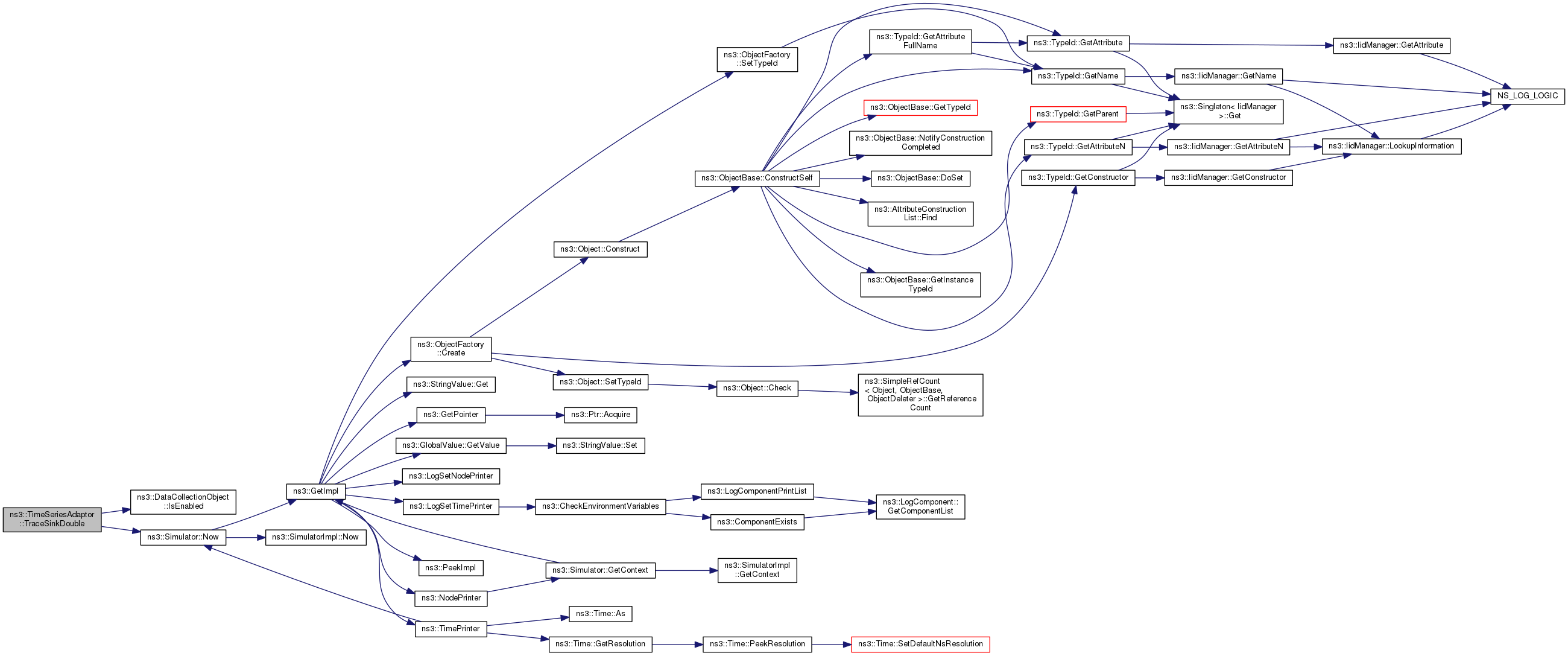

+ Here is the call graph for this function:

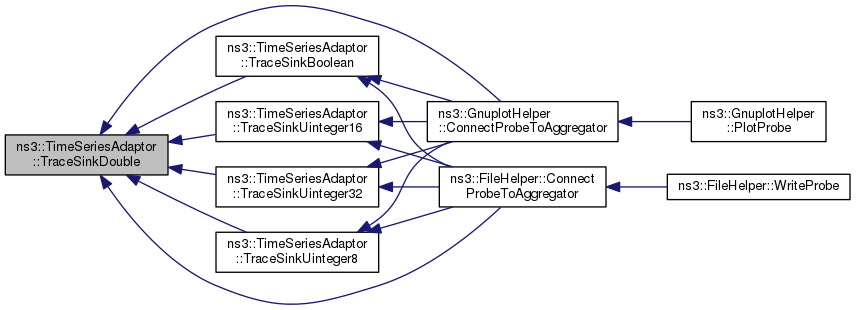

+ Here is the caller graph for this function:

◆ TraceSinkUinteger16()

void ns3::TimeSeriesAdaptor::TraceSinkUinteger16 ( uint16_t  oldData,
uint16_t  newData
)

Trace sink for receiving data from uint16_t valued trace sources.

Parameters
oldDatathe original value.
newDatathe new value.

This method serves as a trace sink to uint16_t valued trace sources.

Definition at line 97 of file time-series-adaptor.cc.

References NS_LOG_FUNCTION, and TraceSinkDouble().

Referenced by ns3::GnuplotHelper::ConnectProbeToAggregator(), and ns3::FileHelper::ConnectProbeToAggregator().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ TraceSinkUinteger32()

void ns3::TimeSeriesAdaptor::TraceSinkUinteger32 ( uint32_t  oldData,
uint32_t  newData
)

Trace sink for receiving data from uint32_t valued trace sources.

Parameters
oldDatathe original value.
newDatathe new value.

This method serves as a trace sink to uint32_t valued trace sources.

Definition at line 106 of file time-series-adaptor.cc.

References NS_LOG_FUNCTION, and TraceSinkDouble().

Referenced by ns3::GnuplotHelper::ConnectProbeToAggregator(), and ns3::FileHelper::ConnectProbeToAggregator().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ TraceSinkUinteger8()

void ns3::TimeSeriesAdaptor::TraceSinkUinteger8 ( uint8_t  oldData,
uint8_t  newData
)

Trace sink for receiving data from uint8_t valued trace sources.

Parameters
oldDatathe original value.
newDatathe new value.

This method serves as a trace sink to uint8_t valued trace sources.

Definition at line 88 of file time-series-adaptor.cc.

References NS_LOG_FUNCTION, and TraceSinkDouble().

Referenced by ns3::GnuplotHelper::ConnectProbeToAggregator(), and ns3::FileHelper::ConnectProbeToAggregator().

+ Here is the call graph for this function:

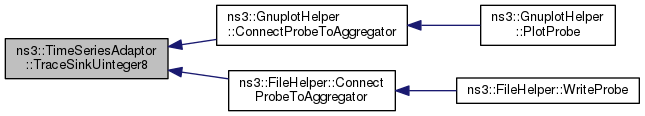

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_output

TracedCallback<double, double> ns3::TimeSeriesAdaptor::m_output
private

output trace

Definition at line 124 of file time-series-adaptor.h.

Referenced by GetTypeId(), and TraceSinkDouble().


The documentation for this class was generated from the following files:
