The IEEE 802.11ac VHT Capabilities. More...

#include "vht-capabilities.h"

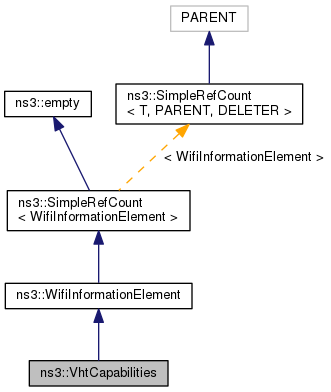

Inheritance diagram for ns3::VhtCapabilities:

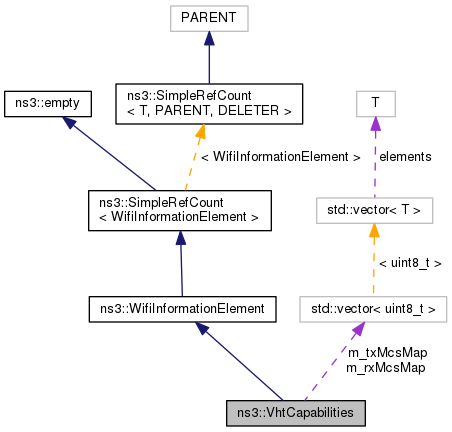

Collaboration diagram for ns3::VhtCapabilities:

Public Member Functions
	VhtCapabilities ()

uint8_t	DeserializeInformationField (Buffer::Iterator start, uint8_t length)
	Deserialize the information field. More...

WifiInformationElementId	ElementId () const
	Return the element ID. More...

uint8_t	GetInformationFieldSize () const
	Return the information field size. More...

uint16_t	GetRxHighestSupportedLgiDataRate () const
	Get the receive highest supported LGI data rate. More...

uint8_t	GetRxLdpc () const
	Get the receive LDPC. More...

uint8_t	GetRxStbc () const
	Get the receive STBC. More...

uint16_t	GetSerializedSize () const
	Get the serialized size. More...

uint8_t	GetSupportedChannelWidthSet () const
	Get the supported channel width set. More...

uint64_t	GetSupportedMcsAndNssSet () const
	Return the MCS and NSS field in the VHT Capabilities information element. More...

uint8_t	GetTxStbc () const
	Get the transmit STBC. More...

uint32_t	GetVhtCapabilitiesInfo () const
	Return the VHT Capabilities Info field in the VHT Capabilities information element. More...

bool	IsSupportedMcs (uint8_t mcs, uint8_t Nss) const
	Get the is MCS supported. More...

bool	IsSupportedRxMcs (uint8_t mcs) const
	Get the is receive MCS supported. More...

bool	IsSupportedTxMcs (uint8_t mcs) const
	Get the is transmit MCS supported. More...

Buffer::Iterator	Serialize (Buffer::Iterator start) const
	This information element is a bit special in that it is only included if the STA is an VHT STA. More...

void	SerializeInformationField (Buffer::Iterator start) const
	Serialize the information field. More...

void	SetMaxAmpduLengthExponent (uint8_t exponent)
	Set the maximum AMPDU length exponent. More...

void	SetMaxMpduLength (uint8_t length)
	Set the maximum MPDU length. More...

void	SetRxHighestSupportedLgiDataRate (uint16_t supporteddatarate)
	Set the receive highest supported LGI data rate. More...

void	SetRxLdpc (uint8_t rxldpc)
	Set the receive LDPC. More...

void	SetRxMcsMap (uint8_t mcs, uint8_t nss)

void	SetRxStbc (uint8_t rxstbc)
	Set the receive STBC. More...

void	SetShortGuardIntervalFor160Mhz (uint8_t shortguardinterval)
	Set the short guard interval 160 Mhz. More...

void	SetShortGuardIntervalFor80Mhz (uint8_t shortguardinterval)
	Set the short guard interval 80 Mhz. More...

void	SetSupportedChannelWidthSet (uint8_t channelwidthset)
	Set the supported channel width set. More...

void	SetSupportedMcsAndNssSet (uint64_t ctrl)
	Set the MCS and NSS field in the VHT Capabilities information element. More...

void	SetTxHighestSupportedLgiDataRate (uint16_t supporteddatarate)
	Set the transmit highest supported LGI data rate. More...

void	SetTxMcsMap (uint8_t mcs, uint8_t nss)

void	SetTxStbc (uint8_t txstbc)
	Set the transmit STBC. More...

void	SetVhtCapabilitiesInfo (uint32_t ctrl)
	Set the VHT Capabilities Info field in the VHT Capabilities information element. More...

void	SetVhtSupported (uint8_t vhtsupported)
	Set the VHT supported field. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE, which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE if it is present. More...

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields. More...

virtual bool	operator== (WifiInformationElement const &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
uint8_t	m_beamformeeStsCapable
	beam formee STS capable More...

uint8_t	m_htcVhtCapable
	HTC VHT capable. More...

uint8_t	m_maxAmpduLengthExponent
	maximum AMPDU length exponent More...

uint8_t	m_maxMpduLength
	maximum MPDU length More...

uint8_t	m_muBeamformeeCapable
	MU beam formee capable. More...

uint8_t	m_muBeamformerCapable
	MU beam former capable. More...

uint8_t	m_numberOfSoundingDimensions
	number of sounding dimensions More...

uint8_t	m_rxAntennaPatternConsistency
	receive antenna pattern consistency More...

uint16_t	m_rxHighestSupportedLongGuardIntervalDataRate
	receive highest supported long guard interval data rate More...

uint8_t	m_rxLdpc
	receive LDPC More...

std::vector< uint8_t >	m_rxMcsMap
	receive MCS map More...

uint8_t	m_rxStbc
	receive STBC More...

uint8_t	m_shortGuardIntervalFor160Mhz
	short guard interval 160 MHz More...

uint8_t	m_shortGuardIntervalFor80Mhz
	short guard interval 80 MHz More...

uint8_t	m_suBeamformeeCapable
	SU beam formee capable. More...

uint8_t	m_suBeamformerCapable
	SU beam former capable. More...

uint8_t	m_supportedChannelWidthSet
	supported channel width set More...

uint8_t	m_txAntennaPatternConsistency
	transmit antenna pattern consistency More...

uint16_t	m_txHighestSupportedLongGuardIntervalDataRate
	transmit highest supported long guard interval data rate More...

std::vector< uint8_t >	m_txMcsMap
	transmit MCS map More...

uint8_t	m_txStbc
	transmit STBC More...

uint8_t	m_vhtLinkAdaptationCapable
	VHT link adaptation capable. More...

uint8_t	m_vhtSupported
	This is used to decide if this element should be added to the frame or not. More...

uint8_t	m_vhtTxopPs
	VHT TXOP PS. More...

Detailed Description

The IEEE 802.11ac VHT Capabilities.

Definition at line 34 of file vht-capabilities.h.

Constructor & Destructor Documentation

◆ VhtCapabilities()

ns3::VhtCapabilities::VhtCapabilities ( )

Definition at line 26 of file vht-capabilities.cc.

References m_rxMcsMap, and m_txMcsMap.

Member Function Documentation

◆ DeserializeInformationField()

uint8_t ns3::VhtCapabilities::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

virtual

Deserialize the information field.

Parameters

start	the information field iterator
length	the information field

Returns: the information field

Implements ns3::WifiInformationElement.

Definition at line 111 of file vht-capabilities.cc.

References ns3::Buffer::Iterator::ReadLsbtohU32(), ns3::Buffer::Iterator::ReadLsbtohU64(), SetSupportedMcsAndNssSet(), SetVhtCapabilitiesInfo(), and visualizer.core::start().

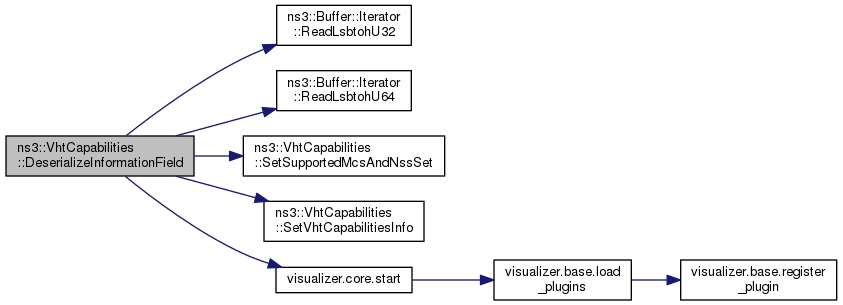

Here is the call graph for this function:

◆ ElementId()

WifiInformationElementId ns3::VhtCapabilities::ElementId ( ) const

virtual

Return the element ID.

Returns: the wifi information element ID

Implements ns3::WifiInformationElement.

Definition at line 60 of file vht-capabilities.cc.

References IE_VHT_CAPABILITIES.

◆ GetInformationFieldSize()

uint8_t ns3::VhtCapabilities::GetInformationFieldSize ( void ) const

virtual

Return the information field size.

Returns: the information field size

Implements ns3::WifiInformationElement.

Definition at line 72 of file vht-capabilities.cc.

References m_vhtSupported, and NS_ASSERT.

◆ GetRxHighestSupportedLgiDataRate()

uint16_t ns3::VhtCapabilities::GetRxHighestSupportedLgiDataRate ( ) const

Get the receive highest supported LGI data rate.

Returns: the receive highest supported LGI data rate.

Definition at line 368 of file vht-capabilities.cc.

References m_rxHighestSupportedLongGuardIntervalDataRate.

Referenced by ns3::ApWifiMac::Receive(), ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

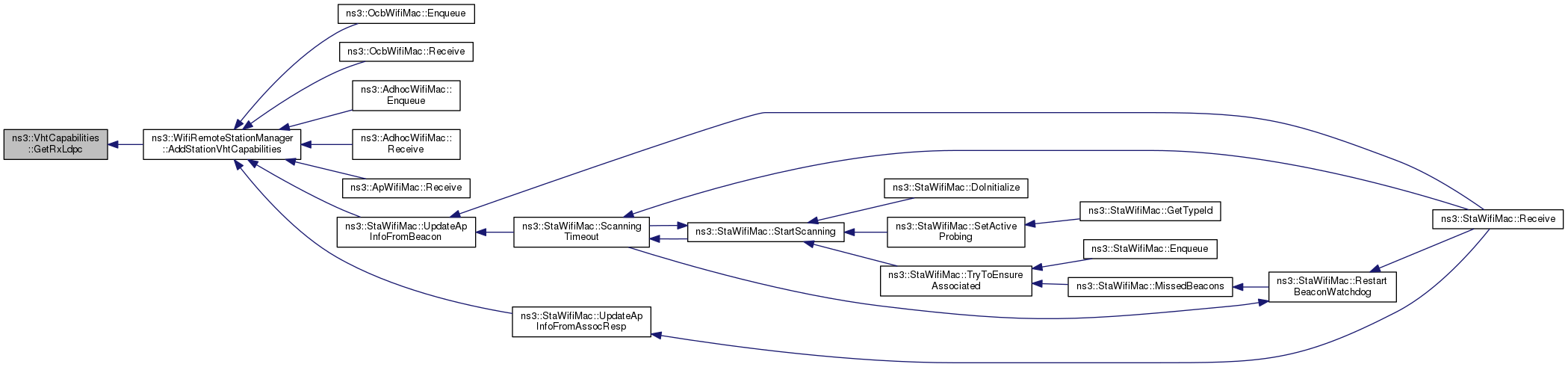

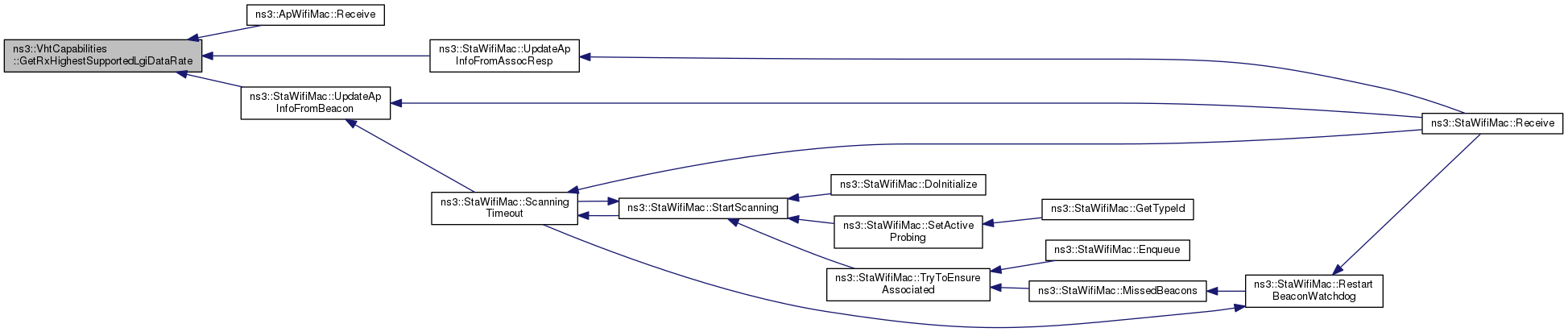

Here is the caller graph for this function:

◆ GetRxLdpc()

uint8_t ns3::VhtCapabilities::GetRxLdpc ( ) const

Get the receive LDPC.

Returns: the receive LDPC

Definition at line 331 of file vht-capabilities.cc.

References m_rxLdpc.

Referenced by ns3::WifiRemoteStationManager::AddStationVhtCapabilities().

Here is the caller graph for this function:

◆ GetRxStbc()

uint8_t ns3::VhtCapabilities::GetRxStbc ( ) const

Get the receive STBC.

Returns: the receive STBC

Definition at line 337 of file vht-capabilities.cc.

References m_rxStbc.

Referenced by ns3::WifiRemoteStationManager::AddStationVhtCapabilities().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint16_t ns3::VhtCapabilities::GetSerializedSize ( void ) const

Get the serialized size.

Returns: the serialized size

Definition at line 90 of file vht-capabilities.cc.

References ns3::WifiInformationElement::GetSerializedSize(), and m_vhtSupported.

Referenced by ns3::MgtAssocRequestHeader::GetSerializedSize(), ns3::MgtReassocRequestHeader::GetSerializedSize(), ns3::MgtAssocResponseHeader::GetSerializedSize(), ns3::MgtProbeRequestHeader::GetSerializedSize(), and ns3::MgtProbeResponseHeader::GetSerializedSize().

Here is the call graph for this function:

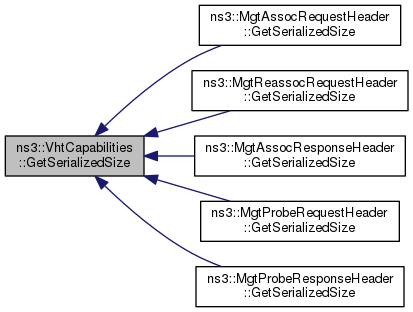

Here is the caller graph for this function:

◆ GetSupportedChannelWidthSet()

uint8_t ns3::VhtCapabilities::GetSupportedChannelWidthSet ( ) const

Get the supported channel width set.

Returns: the maximum MPDU length

Definition at line 325 of file vht-capabilities.cc.

References m_supportedChannelWidthSet.

Referenced by ns3::WifiRemoteStationManager::AddStationVhtCapabilities().

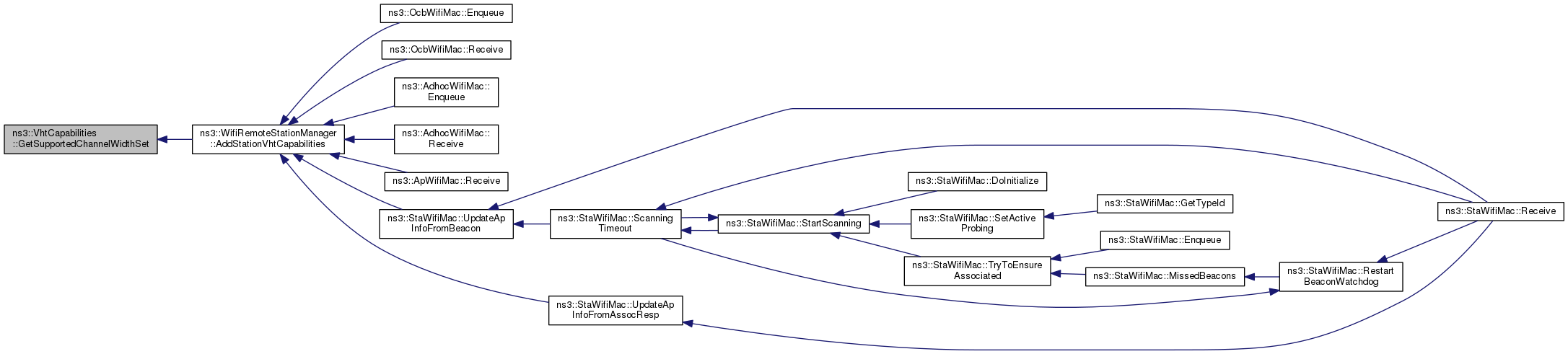

Here is the caller graph for this function:

◆ GetSupportedMcsAndNssSet()

uint64_t ns3::VhtCapabilities::GetSupportedMcsAndNssSet ( ) const

Return the MCS and NSS field in the VHT Capabilities information element.

Returns: the MCS and NSS field in the VHT Capabilities information element

Definition at line 191 of file vht-capabilities.cc.

References m_rxHighestSupportedLongGuardIntervalDataRate, m_rxMcsMap, m_txHighestSupportedLongGuardIntervalDataRate, m_txMcsMap, and sample-rng-plot::n.

Referenced by ns3::operator<<(), and SerializeInformationField().

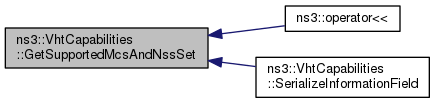

Here is the caller graph for this function:

◆ GetTxStbc()

uint8_t ns3::VhtCapabilities::GetTxStbc ( ) const

Get the transmit STBC.

Returns: the transmit STBC

Definition at line 343 of file vht-capabilities.cc.

References m_txStbc.

Referenced by ns3::WifiRemoteStationManager::AddStationVhtCapabilities().

Here is the caller graph for this function:

◆ GetVhtCapabilitiesInfo()

uint32_t ns3::VhtCapabilities::GetVhtCapabilitiesInfo ( ) const

Return the VHT Capabilities Info field in the VHT Capabilities information element.

Returns: the VHT Capabilities Info field in the VHT Capabilities information element

Definition at line 147 of file vht-capabilities.cc.

References m_beamformeeStsCapable, m_htcVhtCapable, m_maxAmpduLengthExponent, m_maxMpduLength, m_muBeamformeeCapable, m_muBeamformerCapable, m_numberOfSoundingDimensions, m_rxAntennaPatternConsistency, m_rxLdpc, m_rxStbc, m_shortGuardIntervalFor160Mhz, m_shortGuardIntervalFor80Mhz, m_suBeamformeeCapable, m_suBeamformerCapable, m_supportedChannelWidthSet, m_txAntennaPatternConsistency, m_txStbc, m_vhtLinkAdaptationCapable, and m_vhtTxopPs.

Referenced by ns3::operator<<(), ns3::ApWifiMac::Receive(), and SerializeInformationField().

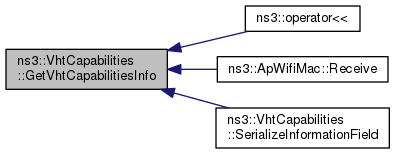

Here is the caller graph for this function:

◆ IsSupportedMcs()

bool ns3::VhtCapabilities::IsSupportedMcs	(	uint8_t	mcs,
		uint8_t	Nss
	)		const

Get the is MCS supported.

Parameters

mcs	the MCS
Nss	the NSS

Returns: the is MCS supported

Definition at line 349 of file vht-capabilities.cc.

References m_rxMcsMap.

Referenced by ns3::WifiRemoteStationManager::AddStationVhtCapabilities().

Here is the caller graph for this function:

◆ IsSupportedRxMcs()

bool ns3::VhtCapabilities::IsSupportedRxMcs ( uint8_t mcs ) const

Get the is receive MCS supported.

Parameters

mcs the MCS

Returns: is receive MCS supported

Definition at line 294 of file vht-capabilities.cc.

References m_rxMcsMap, and NS_ASSERT.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

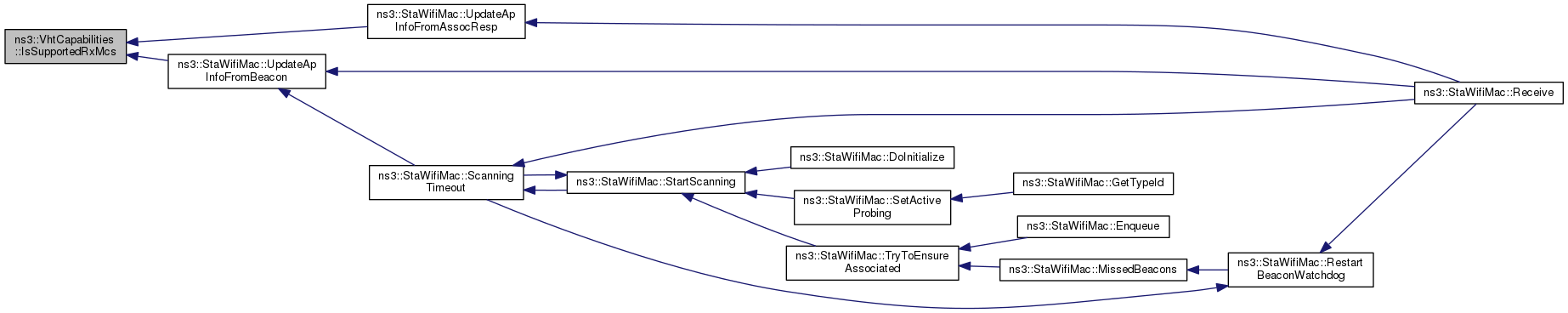

Here is the caller graph for this function:

◆ IsSupportedTxMcs()

bool ns3::VhtCapabilities::IsSupportedTxMcs ( uint8_t mcs ) const

Get the is transmit MCS supported.

Parameters

mcs the MCS

Returns: is transmit MCS supported

Definition at line 275 of file vht-capabilities.cc.

References m_txMcsMap, and NS_ASSERT.

Referenced by ns3::ApWifiMac::Receive().

Here is the caller graph for this function:

◆ Serialize()

Buffer::Iterator ns3::VhtCapabilities::Serialize ( Buffer::Iterator start ) const

This information element is a bit special in that it is only included if the STA is an VHT STA.

To support this we override the Serialize and GetSerializedSize methods of WifiInformationElement.

Parameters

start the iterator

Returns: the serialized size

Definition at line 80 of file vht-capabilities.cc.

References m_vhtSupported, and ns3::WifiInformationElement::Serialize().

Referenced by ns3::MgtAssocRequestHeader::Serialize(), ns3::MgtReassocRequestHeader::Serialize(), ns3::MgtAssocResponseHeader::Serialize(), ns3::MgtProbeRequestHeader::Serialize(), and ns3::MgtProbeResponseHeader::Serialize().

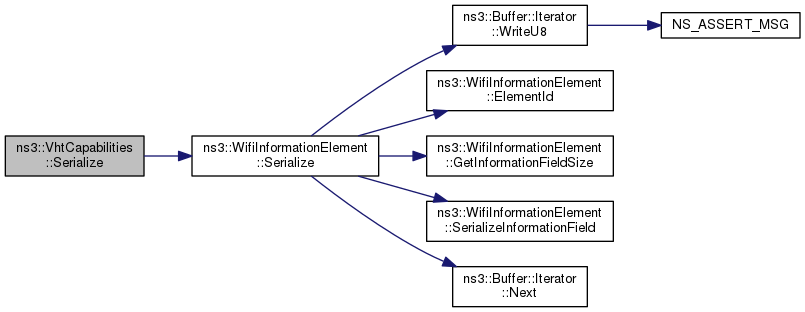

Here is the call graph for this function:

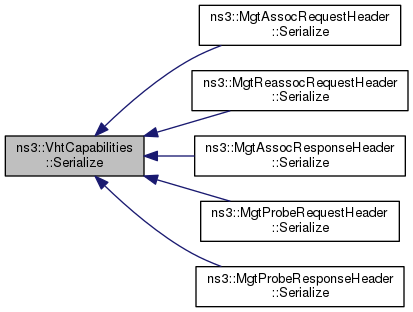

Here is the caller graph for this function:

◆ SerializeInformationField()

void ns3::VhtCapabilities::SerializeInformationField ( Buffer::Iterator start ) const

virtual

Serialize the information field.

Parameters

start the information field iterator

Implements ns3::WifiInformationElement.

Definition at line 100 of file vht-capabilities.cc.

References GetSupportedMcsAndNssSet(), GetVhtCapabilitiesInfo(), m_vhtSupported, and visualizer.core::start().

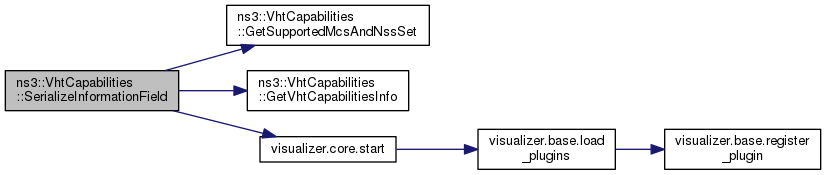

Here is the call graph for this function:

◆ SetMaxAmpduLengthExponent()

void ns3::VhtCapabilities::SetMaxAmpduLengthExponent ( uint8_t exponent )

Set the maximum AMPDU length exponent.

Parameters

exponent the maximum AMPDU length exponent

Definition at line 253 of file vht-capabilities.cc.

References m_maxAmpduLengthExponent.

Referenced by ns3::RegularWifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetMaxMpduLength()

void ns3::VhtCapabilities::SetMaxMpduLength ( uint8_t length )

Set the maximum MPDU length.

Parameters

length the maximum MPDU length

Definition at line 211 of file vht-capabilities.cc.

References m_maxMpduLength.

Referenced by ns3::RegularWifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetRxHighestSupportedLgiDataRate()

void ns3::VhtCapabilities::SetRxHighestSupportedLgiDataRate ( uint16_t supporteddatarate )

Set the receive highest supported LGI data rate.

Parameters

supporteddatarate receive highest supported LGI data rate

Definition at line 313 of file vht-capabilities.cc.

References m_rxHighestSupportedLongGuardIntervalDataRate.

Referenced by ns3::RegularWifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetRxLdpc()

void ns3::VhtCapabilities::SetRxLdpc ( uint8_t rxldpc )

Set the receive LDPC.

Parameters

rxldpc the receive LDPC

Definition at line 223 of file vht-capabilities.cc.

References m_rxLdpc.

Referenced by ns3::RegularWifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetRxMcsMap()

void ns3::VhtCapabilities::SetRxMcsMap	(	uint8_t	mcs,
		uint8_t	nss
	)

Parameters

mcs	Max MCS value (between 7 and 9)
nss	Spatial stream for which the Max MCS value is being set

Definition at line 259 of file vht-capabilities.cc.

References m_rxMcsMap, and NS_ASSERT.

Referenced by ns3::RegularWifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetRxStbc()

void ns3::VhtCapabilities::SetRxStbc ( uint8_t rxstbc )

Set the receive STBC.

Parameters

rxstbc the receive STBC

Definition at line 241 of file vht-capabilities.cc.

References m_rxStbc.

Referenced by ns3::RegularWifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetShortGuardIntervalFor160Mhz()

void ns3::VhtCapabilities::SetShortGuardIntervalFor160Mhz ( uint8_t shortguardinterval )

Set the short guard interval 160 Mhz.

Parameters

shortguardinterval the short guard interval 160 Mhz

Definition at line 235 of file vht-capabilities.cc.

References m_shortGuardIntervalFor160Mhz.

Referenced by ns3::RegularWifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetShortGuardIntervalFor80Mhz()

void ns3::VhtCapabilities::SetShortGuardIntervalFor80Mhz ( uint8_t shortguardinterval )

Set the short guard interval 80 Mhz.

Parameters

shortguardinterval the short guard interval 80 Mhz

Definition at line 229 of file vht-capabilities.cc.

References m_shortGuardIntervalFor80Mhz.

Referenced by ns3::RegularWifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetSupportedChannelWidthSet()

void ns3::VhtCapabilities::SetSupportedChannelWidthSet ( uint8_t channelwidthset )

Set the supported channel width set.

Parameters

channelwidthset the supported channel width set

Definition at line 217 of file vht-capabilities.cc.

References m_supportedChannelWidthSet.

Referenced by ns3::RegularWifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetSupportedMcsAndNssSet()

void ns3::VhtCapabilities::SetSupportedMcsAndNssSet ( uint64_t ctrl )

Set the MCS and NSS field in the VHT Capabilities information element.

Parameters

ctrl	the MCS and NSS field in the VHT Capabilities information element

Definition at line 173 of file vht-capabilities.cc.

References m_rxHighestSupportedLongGuardIntervalDataRate, m_rxMcsMap, m_txHighestSupportedLongGuardIntervalDataRate, m_txMcsMap, and sample-rng-plot::n.

Referenced by DeserializeInformationField().

Here is the caller graph for this function:

◆ SetTxHighestSupportedLgiDataRate()

void ns3::VhtCapabilities::SetTxHighestSupportedLgiDataRate ( uint16_t supporteddatarate )

Set the transmit highest supported LGI data rate.

Parameters

supporteddatarate transmit highest supported LGI data rate

Definition at line 319 of file vht-capabilities.cc.

References m_txHighestSupportedLongGuardIntervalDataRate.

Referenced by ns3::RegularWifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetTxMcsMap()

void ns3::VhtCapabilities::SetTxMcsMap	(	uint8_t	mcs,
		uint8_t	nss
	)

Parameters

mcs	Max MCS value (between 7 and 9)
nss	Spatial stream for which the Max MCS value is being set

Definition at line 267 of file vht-capabilities.cc.

References m_txMcsMap, and NS_ASSERT.

Referenced by ns3::RegularWifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetTxStbc()

void ns3::VhtCapabilities::SetTxStbc ( uint8_t txstbc )

Set the transmit STBC.

Parameters

txstbc the receive STBC

Definition at line 247 of file vht-capabilities.cc.

References m_txStbc.

Referenced by ns3::RegularWifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

◆ SetVhtCapabilitiesInfo()

void ns3::VhtCapabilities::SetVhtCapabilitiesInfo ( uint32_t ctrl )

Set the VHT Capabilities Info field in the VHT Capabilities information element.

Parameters

ctrl	the VHT Capabilities Info field in the VHT Capabilities information element

Definition at line 123 of file vht-capabilities.cc.

References m_beamformeeStsCapable, m_htcVhtCapable, m_maxAmpduLengthExponent, m_maxMpduLength, m_muBeamformeeCapable, m_muBeamformerCapable, m_numberOfSoundingDimensions, m_rxAntennaPatternConsistency, m_rxLdpc, m_rxStbc, m_shortGuardIntervalFor160Mhz, m_shortGuardIntervalFor80Mhz, m_suBeamformeeCapable, m_suBeamformerCapable, m_supportedChannelWidthSet, m_txAntennaPatternConsistency, m_txStbc, m_vhtLinkAdaptationCapable, and m_vhtTxopPs.

Referenced by DeserializeInformationField().

Here is the caller graph for this function:

◆ SetVhtSupported()

void ns3::VhtCapabilities::SetVhtSupported ( uint8_t vhtsupported )

Set the VHT supported field.

Parameters

vhtsupported the VHT supported field

Definition at line 66 of file vht-capabilities.cc.

References m_vhtSupported.

Referenced by ns3::RegularWifiMac::GetVhtCapabilities().

Here is the caller graph for this function:

Member Data Documentation

◆ m_beamformeeStsCapable

uint8_t ns3::VhtCapabilities::m_beamformeeStsCapable

private

beam formee STS capable

Definition at line 255 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_htcVhtCapable

uint8_t ns3::VhtCapabilities::m_htcVhtCapable

private

HTC VHT capable.

Definition at line 260 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_maxAmpduLengthExponent

uint8_t ns3::VhtCapabilities::m_maxAmpduLengthExponent

private

maximum AMPDU length exponent

Definition at line 261 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), SetMaxAmpduLengthExponent(), and SetVhtCapabilitiesInfo().

◆ m_maxMpduLength

uint8_t ns3::VhtCapabilities::m_maxMpduLength

private

maximum MPDU length

Definition at line 246 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), SetMaxMpduLength(), and SetVhtCapabilitiesInfo().

◆ m_muBeamformeeCapable

uint8_t ns3::VhtCapabilities::m_muBeamformeeCapable

private

MU beam formee capable.

Definition at line 258 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_muBeamformerCapable

uint8_t ns3::VhtCapabilities::m_muBeamformerCapable

private

MU beam former capable.

Definition at line 257 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_numberOfSoundingDimensions

uint8_t ns3::VhtCapabilities::m_numberOfSoundingDimensions

private

number of sounding dimensions

Definition at line 256 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_rxAntennaPatternConsistency

uint8_t ns3::VhtCapabilities::m_rxAntennaPatternConsistency

private

receive antenna pattern consistency

Definition at line 263 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_rxHighestSupportedLongGuardIntervalDataRate

uint16_t ns3::VhtCapabilities::m_rxHighestSupportedLongGuardIntervalDataRate

private

receive highest supported long guard interval data rate

Definition at line 268 of file vht-capabilities.h.

Referenced by GetRxHighestSupportedLgiDataRate(), GetSupportedMcsAndNssSet(), SetRxHighestSupportedLgiDataRate(), and SetSupportedMcsAndNssSet().

◆ m_rxLdpc

uint8_t ns3::VhtCapabilities::m_rxLdpc

private

receive LDPC

Definition at line 248 of file vht-capabilities.h.

Referenced by GetRxLdpc(), GetVhtCapabilitiesInfo(), SetRxLdpc(), and SetVhtCapabilitiesInfo().

◆ m_rxMcsMap

std::vector<uint8_t> ns3::VhtCapabilities::m_rxMcsMap

private

receive MCS map

Definition at line 267 of file vht-capabilities.h.

Referenced by GetSupportedMcsAndNssSet(), IsSupportedMcs(), IsSupportedRxMcs(), SetRxMcsMap(), SetSupportedMcsAndNssSet(), and VhtCapabilities().

◆ m_rxStbc

uint8_t ns3::VhtCapabilities::m_rxStbc

private

receive STBC

Definition at line 252 of file vht-capabilities.h.

Referenced by GetRxStbc(), GetVhtCapabilitiesInfo(), SetRxStbc(), and SetVhtCapabilitiesInfo().

◆ m_shortGuardIntervalFor160Mhz

uint8_t ns3::VhtCapabilities::m_shortGuardIntervalFor160Mhz

private

short guard interval 160 MHz

Definition at line 250 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), SetShortGuardIntervalFor160Mhz(), and SetVhtCapabilitiesInfo().

◆ m_shortGuardIntervalFor80Mhz

uint8_t ns3::VhtCapabilities::m_shortGuardIntervalFor80Mhz

private

short guard interval 80 MHz

Definition at line 249 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), SetShortGuardIntervalFor80Mhz(), and SetVhtCapabilitiesInfo().

◆ m_suBeamformeeCapable

uint8_t ns3::VhtCapabilities::m_suBeamformeeCapable

private

SU beam formee capable.

Definition at line 254 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_suBeamformerCapable

uint8_t ns3::VhtCapabilities::m_suBeamformerCapable

private

SU beam former capable.

Definition at line 253 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_supportedChannelWidthSet

uint8_t ns3::VhtCapabilities::m_supportedChannelWidthSet

private

supported channel width set

Definition at line 247 of file vht-capabilities.h.

Referenced by GetSupportedChannelWidthSet(), GetVhtCapabilitiesInfo(), SetSupportedChannelWidthSet(), and SetVhtCapabilitiesInfo().

◆ m_txAntennaPatternConsistency

uint8_t ns3::VhtCapabilities::m_txAntennaPatternConsistency

private

transmit antenna pattern consistency

Definition at line 264 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_txHighestSupportedLongGuardIntervalDataRate

uint16_t ns3::VhtCapabilities::m_txHighestSupportedLongGuardIntervalDataRate

private

transmit highest supported long guard interval data rate

Definition at line 270 of file vht-capabilities.h.

Referenced by GetSupportedMcsAndNssSet(), SetSupportedMcsAndNssSet(), and SetTxHighestSupportedLgiDataRate().

◆ m_txMcsMap

std::vector<uint8_t> ns3::VhtCapabilities::m_txMcsMap

private

transmit MCS map

Definition at line 269 of file vht-capabilities.h.

Referenced by GetSupportedMcsAndNssSet(), IsSupportedTxMcs(), SetSupportedMcsAndNssSet(), SetTxMcsMap(), and VhtCapabilities().

◆ m_txStbc

uint8_t ns3::VhtCapabilities::m_txStbc

private

transmit STBC

Definition at line 251 of file vht-capabilities.h.

Referenced by GetTxStbc(), GetVhtCapabilitiesInfo(), SetTxStbc(), and SetVhtCapabilitiesInfo().

◆ m_vhtLinkAdaptationCapable

uint8_t ns3::VhtCapabilities::m_vhtLinkAdaptationCapable

private

VHT link adaptation capable.

Definition at line 262 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

◆ m_vhtSupported

uint8_t ns3::VhtCapabilities::m_vhtSupported

private

This is used to decide if this element should be added to the frame or not.

Definition at line 273 of file vht-capabilities.h.

Referenced by GetInformationFieldSize(), GetSerializedSize(), Serialize(), SerializeInformationField(), and SetVhtSupported().

◆ m_vhtTxopPs

uint8_t ns3::VhtCapabilities::m_vhtTxopPs

private

VHT TXOP PS.

Definition at line 259 of file vht-capabilities.h.

Referenced by GetVhtCapabilitiesInfo(), and SetVhtCapabilitiesInfo().

The documentation for this class was generated from the following files:

src/wifi/model/vht-capabilities.h
src/wifi/model/vht-capabilities.cc

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ VhtCapabilities()

Member Function Documentation

◆ DeserializeInformationField()

◆ ElementId()

◆ GetInformationFieldSize()

◆ GetRxHighestSupportedLgiDataRate()

◆ GetRxLdpc()

◆ GetRxStbc()

◆ GetSerializedSize()

◆ GetSupportedChannelWidthSet()

◆ GetSupportedMcsAndNssSet()

◆ GetTxStbc()

◆ GetVhtCapabilitiesInfo()

◆ IsSupportedMcs()

◆ IsSupportedRxMcs()

◆ IsSupportedTxMcs()

◆ Serialize()

◆ SerializeInformationField()

◆ SetMaxAmpduLengthExponent()

◆ SetMaxMpduLength()

◆ SetRxHighestSupportedLgiDataRate()

◆ SetRxLdpc()

◆ SetRxMcsMap()

◆ SetRxStbc()

◆ SetShortGuardIntervalFor160Mhz()

◆ SetShortGuardIntervalFor80Mhz()

◆ SetSupportedChannelWidthSet()

◆ SetSupportedMcsAndNssSet()

◆ SetTxHighestSupportedLgiDataRate()

◆ SetTxMcsMap()

◆ SetTxStbc()

◆ SetVhtCapabilitiesInfo()

◆ SetVhtSupported()

Member Data Documentation

◆ m_beamformeeStsCapable

◆ m_htcVhtCapable

◆ m_maxAmpduLengthExponent

◆ m_maxMpduLength

◆ m_muBeamformeeCapable

◆ m_muBeamformerCapable

◆ m_numberOfSoundingDimensions

◆ m_rxAntennaPatternConsistency

◆ m_rxHighestSupportedLongGuardIntervalDataRate

◆ m_rxLdpc

◆ m_rxMcsMap

◆ m_rxStbc

◆ m_shortGuardIntervalFor160Mhz

◆ m_shortGuardIntervalFor80Mhz

◆ m_suBeamformeeCapable

◆ m_suBeamformerCapable

◆ m_supportedChannelWidthSet

◆ m_txAntennaPatternConsistency

◆ m_txHighestSupportedLongGuardIntervalDataRate

◆ m_txMcsMap

◆ m_txStbc

◆ m_vhtLinkAdaptationCapable

◆ m_vhtSupported

◆ m_vhtTxopPs
