ns3::EmuNetDevice Class Reference

A Device for an Emu Network Link. More...

#include <emu-net-device.h>

Inheritance diagram for ns3::EmuNetDevice:

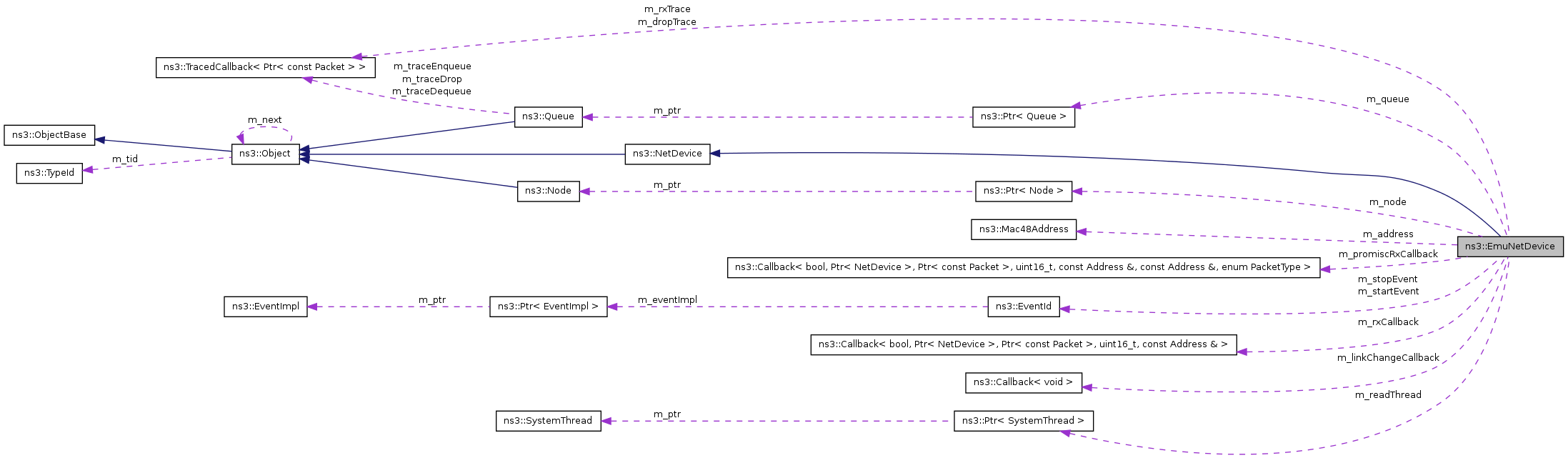

Collaboration diagram for ns3::EmuNetDevice:

List of all members.

Public Member Functions
	EmuNetDevice ()
virtual	~EmuNetDevice ()
void	SetDataRate (DataRate bps)
void	Start (Time tStart)
void	Stop (Time tStop)
void	SetQueue (Ptr< Queue > queue)
void	SetAddress (Mac48Address addr)
virtual void	SetName (const std::string name)
virtual std::string	GetName (void) const
virtual void	SetIfIndex (const uint32_t index)
virtual uint32_t	GetIfIndex (void) const
virtual Ptr< Channel >	GetChannel (void) const
virtual Address	GetAddress (void) const
virtual bool	SetMtu (const uint16_t mtu)
virtual uint16_t	GetMtu (void) const
virtual bool	IsLinkUp (void) const
virtual void	SetLinkChangeCallback (Callback< void > callback)
virtual bool	IsBroadcast (void) const
virtual Address	GetBroadcast (void) const
virtual bool	IsMulticast (void) const
virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group.
virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided.
virtual bool	IsPointToPoint (void) const
virtual bool	IsBridge (void) const
virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)
virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)
virtual Ptr< Node >	GetNode (void) const
virtual void	SetNode (Ptr< Node > node)
virtual bool	NeedsArp (void) const
virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)
virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)
virtual bool	SupportsSendFrom (void) const
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::EmuNetDevice.
Private Member Functions
virtual void	DoDispose (void)
void	CreateSocket (void)
std::string	FindCreator (void)
Ptr< Queue >	GetQueue (void) const
void	StartDevice (void)
void	StopDevice (void)
void	ReadThread (void)
void	ForwardUp (uint8_t *buf, uint32_t len)
void	AddHeader (Ptr< Packet > p, uint16_t protocolNumber)
bool	ProcessHeader (Ptr< Packet > p, uint16_t &param)
bool	TransmitStart (Ptr< Packet > p)
Private Attributes
Ptr< Queue >	m_queue
TracedCallback< Ptr< const Packet > >	m_rxTrace
TracedCallback< Ptr< const Packet > >	m_dropTrace
Time	m_tStart
Time	m_tStop
Ptr< Node >	m_node
Mac48Address	m_address
NetDevice::ReceiveCallback	m_rxCallback
NetDevice::PromiscReceiveCallback	m_promiscRxCallback
uint32_t	m_ifIndex
int32_t	m_sll_ifindex
std::string	m_name
bool	m_linkUp
Callback< void >	m_linkChangeCallback
std::string	m_deviceName

---

Detailed Description

A Device for an Emu Network Link.

---

Constructor & Destructor Documentation

ns3::EmuNetDevice::EmuNetDevice

(

)

Construct a EmuNetDevice

This is the constructor for the EmuNetDevice. It takes as a

virtual ns3::EmuNetDevice::~EmuNetDevice

(

)

[virtual]

Destroy a EmuNetDevice

This is the destructor for the EmuNetDevice.

---

Member Function Documentation

void ns3::EmuNetDevice::AddHeader	(	Ptr< Packet >	p,
		uint16_t	protocolNumber
	)			[private]

Adds the necessary headers and trailers to a packet of data in order to respect the protocol implemented by the agent.

void ns3::EmuNetDevice::CreateSocket

(

void

)

[private]

Call out to a separate process running as suid root in order to get a raw socket. We do this to avoid having the entire simulation running as root. If this method returns, we'll have a raw socket waiting for us in m_sock.

virtual void ns3::EmuNetDevice::DoDispose

(

void

)

[private, virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

Reimplemented from ns3::Object.

std::string ns3::EmuNetDevice::FindCreator

(

void

)

[private]

Figure out where the raw socket creation process lives on the system.

void ns3::EmuNetDevice::ForwardUp	(	uint8_t *	buf,
		uint32_t	len
	)			[private]

Method to handle received packets. Synchronized with simulator via ScheduleNow from ReadThread.

virtual Address ns3::EmuNetDevice::GetAddress

(

void

)

const [virtual]

Returns:

the current Address of this interface.

Implements ns3::NetDevice.

virtual Address ns3::EmuNetDevice::GetBroadcast

(

void

)

const [virtual]

Returns:

the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

virtual Ptr<Channel> ns3::EmuNetDevice::GetChannel

(

void

)

const [virtual]

Returns:

the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel.

Implements ns3::NetDevice.

virtual uint32_t ns3::EmuNetDevice::GetIfIndex

(

void

)

const [virtual]

Returns:

index ifIndex of the device

Implements ns3::NetDevice.

virtual uint16_t ns3::EmuNetDevice::GetMtu

(

void

)

const [virtual]

Returns:

the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

virtual Address ns3::EmuNetDevice::GetMulticast

(

Ipv4Address

multicastGroup

)

const [virtual]

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex).

This method performs the multicast address creation function appropriate to an EUI-48-based CSMA device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact address format.

Parameters:

multicastGroup

The IP address for the multicast group destination of the packet.

Returns:

The MAC multicast Address used to send packets to the provided multicast group.

See also:

Ipv4Address

Mac48Address

Address

Implements ns3::NetDevice.

virtual Address ns3::EmuNetDevice::GetMulticast

(

Ipv6Address

addr

)

const [virtual]

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters:

addr

IPv6 address

Returns:

the MAC multicast address

Warning:

Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

virtual std::string ns3::EmuNetDevice::GetName

(

void

)

const [virtual]

Returns:

name name of the device (e.g. "eth0")

Implements ns3::NetDevice.

virtual Ptr<Node> ns3::EmuNetDevice::GetNode

(

void

)

const [virtual]

Returns:

the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Ptr<Queue> ns3::EmuNetDevice::GetQueue

(

void

)

const [private]

Get a copy of the attached Queue.

This method is provided for any derived class that may need to get direct access to the underlying queue.

Returns:

Ptr to the queue.

static TypeId ns3::EmuNetDevice::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::EmuNetDevice.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3EmuNetDevice

Attributes defined for this type:

• Address: The ns-3 MAC address of this (virtual) device.
  • Set with class: Mac48AddressValue
  • Underlying type: Mac48Address
  • Initial value: ff:ff:ff:ff:ff:ff
  • Flags: construct write read
• DeviceName: The name of the underlying real device (e.g. eth1).
  • Set with class: StringValue
  • Underlying type: std::string
  • Initial value: eth1
  • Flags: construct write read
• Start: The simulation time at which to spin up the device thread.
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 0ns
  • Flags: construct write read
• Stop: The simulation time at which to tear down the device thread.
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 0ns
  • Flags: construct write read
• TxQueue: A queue to use as the transmit queue in the device.
  • Set with class: ns3::PointerValue
  • Underlying type: ns3::Ptr< ns3::Queue >
  • Initial value: 0
  • Flags: construct write read

Attributes defined in parent class ns3::NetDevice:

• Mtu: The MAC-level Maximum Transmission Unit
  • Set with class: ns3::UintegerValue
  • Underlying type: uint16_t 0:65535
  • Flags: write read

TraceSources defined for this type:

• Rx: Trace source indicating recvfrom of packet destined for broadcast, multicast or local address.

Reimplemented from ns3::NetDevice.

virtual bool ns3::EmuNetDevice::IsBridge

(

void

)

const [virtual]

Is this a bridge?

Returns:

false.

Implements ns3::NetDevice.

virtual bool ns3::EmuNetDevice::IsBroadcast

(

void

)

const [virtual]

Returns:

true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

virtual bool ns3::EmuNetDevice::IsLinkUp

(

void

)

const [virtual]

Returns:

true if link is up; false otherwise

Implements ns3::NetDevice.

virtual bool ns3::EmuNetDevice::IsMulticast

(

void

)

const [virtual]

Returns:

value of m_isMulticast flag

Implements ns3::NetDevice.

virtual bool ns3::EmuNetDevice::IsPointToPoint

(

void

)

const [virtual]

Is this a point to point link?

Returns:

false.

Implements ns3::NetDevice.

virtual bool ns3::EmuNetDevice::NeedsArp

(

void

)

const [virtual]

Returns:

true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

bool ns3::EmuNetDevice::ProcessHeader	(	Ptr< Packet >	p,
		uint16_t &	param
	)			[private]

Removes, from a packet of data, all headers and trailers that relate to the protocol implemented by the agent

Returns:

Returns true if the packet should be forwarded up the protocol stack.

void ns3::EmuNetDevice::ReadThread

(

void

)

[private]

Loop to read and process packets

virtual bool ns3::EmuNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)			[virtual]

Parameters:

	packet	packet sent from above down to Network Device
	dest	mac address of the destination (already resolved)
	protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns:

whether the Send operation succeeded

Implements ns3::NetDevice.

virtual bool ns3::EmuNetDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)			[virtual]

Parameters:

	packet	packet sent from above down to Network Device
	source	source mac address (so called "MAC spoofing")
	dest	mac address of the destination (already resolved)
	protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns:

whether the Send operation succeeded

Implements ns3::NetDevice.

void ns3::EmuNetDevice::SetAddress

(

Mac48Address

addr

)

Assign a MAC address to this device.

See also:

Mac48Address

Parameters:

addr

The new address.

void ns3::EmuNetDevice::SetDataRate

(

DataRate

bps

)

Set the Data Rate used for transmission of packets.

See also:

Attach ()

Parameters:

bps

the data rate at which this object operates

virtual void ns3::EmuNetDevice::SetIfIndex

(

const uint32_t

index

)

[virtual]

Parameters:

index

ifIndex of the device

Implements ns3::NetDevice.

virtual void ns3::EmuNetDevice::SetLinkChangeCallback

(

Callback< void >

callback

)

[virtual]

Parameters:

callback

the callback to invoke

Register a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache whenever the link goes up.

Implements ns3::NetDevice.

virtual bool ns3::EmuNetDevice::SetMtu

(

const uint16_t

mtu

)

[virtual]

Parameters:

mtu

MTU value, in bytes, to set for the device

Returns:

whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

virtual void ns3::EmuNetDevice::SetName

(

const std::string

name

)

[virtual]

Parameters:

name

name of the device (e.g. "eth0")

Implements ns3::NetDevice.

virtual void ns3::EmuNetDevice::SetNode

(

Ptr< Node >

node

)

[virtual]

Parameters:

node

the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

virtual void ns3::EmuNetDevice::SetPromiscReceiveCallback

(

PromiscReceiveCallback

cb

)

[virtual]

Parameters:

cb

callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means _all_ packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

void ns3::EmuNetDevice::SetQueue

(

Ptr< Queue >

queue

)

Attach a queue to the EmuNetDevice.

The EmuNetDevice "owns" a queue that implements a queueing method such as DropTail or RED.

See also:

Queue

DropTailQueue

Parameters:

queue

Ptr to the new queue.

virtual void ns3::EmuNetDevice::SetReceiveCallback

(

NetDevice::ReceiveCallback

cb

)

[virtual]

Parameters:

cb

callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Implements ns3::NetDevice.

void ns3::EmuNetDevice::Start

(

Time

tStart

)

Set a start time for the device.

Parameters:

tStart

the start time

void ns3::EmuNetDevice::StartDevice

(

void

)

[private]

Spin up the device

void ns3::EmuNetDevice::Stop

(

Time

tStop

)

Set a stop time for the device.

Parameters:

tStop

the stop time

void ns3::EmuNetDevice::StopDevice

(

void

)

[private]

Tear down the device

virtual bool ns3::EmuNetDevice::SupportsSendFrom

(

void

)

const [virtual]

Returns:

true if this interface supports a bridging mode, false otherwise.

Implements ns3::NetDevice.

bool ns3::EmuNetDevice::TransmitStart

(

Ptr< Packet >

p

)

[private]

Start Sending a Packet Down the Wire.

Returns:

true if success, false on failure

---

Member Data Documentation

Mac48Address ns3::EmuNetDevice::m_address [private]

The MAC address which has been assigned to this device.

std::string ns3::EmuNetDevice::m_deviceName [private]

The unix/linux name of the underlying device (e.g., eth0)

TracedCallback<Ptr<const Packet> > ns3::EmuNetDevice::m_dropTrace [private]

The trace source for the packet drop events that the device can fire.

See also:

class CallBackTraceSource

uint32_t ns3::EmuNetDevice::m_ifIndex [private]

The ns-3 interface index (in the sense of net device index) that has been assigned to this network device.

Callback<void> ns3::EmuNetDevice::m_linkChangeCallback [private]

Callback to fire if the link changes state (up or down).

bool ns3::EmuNetDevice::m_linkUp [private]

Flag indicating whether or not the link is up. In this case, whether or not the device is connected to a channel.

std::string ns3::EmuNetDevice::m_name [private]

The human readable name of this device.

Ptr<Node> ns3::EmuNetDevice::m_node [private]

The Node to which this device is attached.

NetDevice::PromiscReceiveCallback ns3::EmuNetDevice::m_promiscRxCallback [private]

The callback used to notify higher layers that a packet has been received in promiscuous mode.

Ptr<Queue> ns3::EmuNetDevice::m_queue [private]

The Queue which this EmuNetDevice uses as a packet source. Management of this Queue has been delegated to the EmuNetDevice and it has the responsibility for deletion.

See also:

class Queue

class DropTailQueue

NetDevice::ReceiveCallback ns3::EmuNetDevice::m_rxCallback [private]

The callback used to notify higher layers that a packet has been received.

TracedCallback<Ptr<const Packet> > ns3::EmuNetDevice::m_rxTrace [private]

The trace source for the packet reception events that the device can fire.

See also:

class CallBackTraceSource

int32_t ns3::EmuNetDevice::m_sll_ifindex [private]

The Unix interface index that we got from the system and which corresponds to the interface (e.g., "eth1") we are using to talk to the network. Valid when m_sock is valid.

Time ns3::EmuNetDevice::m_tStart [private]

Time to start spinning up the device

Time ns3::EmuNetDevice::m_tStop [private]

Time to start tearing down the device

---

The documentation for this class was generated from the following files:

• src/devices/emu/emu-net-device.h
• doc/introspected-doxygen.h
