ns3::GlobalValue Class Reference

hold a so-called 'global value'. More...

#include <global-value.h>

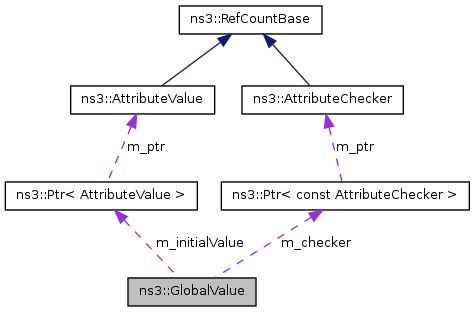

Collaboration diagram for ns3::GlobalValue:

List of all members.

Public Member Functions
	GlobalValue (std::string name, std::string help, const AttributeValue &initialValue, Ptr< const AttributeChecker > checker)
std::string	GetName (void) const
std::string	GetHelp (void) const
void	GetValue (AttributeValue &value) const
Ptr< const AttributeChecker >	GetChecker (void) const
bool	SetValue (const AttributeValue &value)
Static Public Member Functions
static void	Bind (std::string name, const AttributeValue &value)
static bool	BindFailSafe (std::string name, const AttributeValue &value)
static Iterator	Begin (void)
static Iterator	End (void)

---

Detailed Description

hold a so-called 'global value'.

Instances of this class are expected to be allocated as static global variables and should be used to store configurable global state.

---

Constructor & Destructor Documentation

ns3::GlobalValue::GlobalValue	(	std::string	name,
		std::string	help,
		const AttributeValue &	initialValue,
		Ptr< const AttributeChecker >	checker
	)

Parameters:

	name	the name of this global value.
	help	some help text which describes the purpose of this global value.
	initialValue	the value to assign to this global value during construction.
	checker	a pointer to an AttributeChecker which can verify that any user-supplied value to override the initial value matches the requested type constraints.

---

Member Function Documentation

static Iterator ns3::GlobalValue::Begin

(

void

)

[static]

Returns:

an iterator which represents a pointer to the first GlobalValue registered.

static void ns3::GlobalValue::Bind	(	std::string	name,
		const AttributeValue &	value
	)			[static]

Parameters:

	name	the name of the global value
	value	the value to set in the requested global value.

Iterate over the set of GlobalValues until a matching name is found and then set its value with GlobalValue::SetValue.

This method cannot fail. It will crash if the input is not valid.

static bool ns3::GlobalValue::BindFailSafe	(	std::string	name,
		const AttributeValue &	value
	)			[static]

Parameters:

	name	the name of the global value
	value	the value to set in the requested global value.

Returns:

true if the value could be set successfully, false otherwise.

Iterate over the set of GlobalValues until a matching name is found and then set its value with GlobalValue::SetValue.

static Iterator ns3::GlobalValue::End

(

void

)

[static]

Returns:

an iterator which represents a pointer to the last GlobalValue registered.

Ptr<const AttributeChecker> ns3::GlobalValue::GetChecker

(

void

)

const

Returns:

the checker associated to this GlobalValue.

std::string ns3::GlobalValue::GetHelp

(

void

)

const

Returns:

the help text of this GlobalValue.

std::string ns3::GlobalValue::GetName

(

void

)

const

Returns:

the name of this GlobalValue.

void ns3::GlobalValue::GetValue

(

AttributeValue &

value

)

const

Returns:

the current value of this GlobalValue.

bool ns3::GlobalValue::SetValue

(

const AttributeValue &

value

)

Parameters:

value

the new value to set in this GlobalValue.

---

The documentation for this class was generated from the following file:

• src/core/global-value.h
