ns3::PropagationLossModel Class Reference

Modelize the propagation loss through a transmission medium. More...

#include <propagation-loss-model.h>

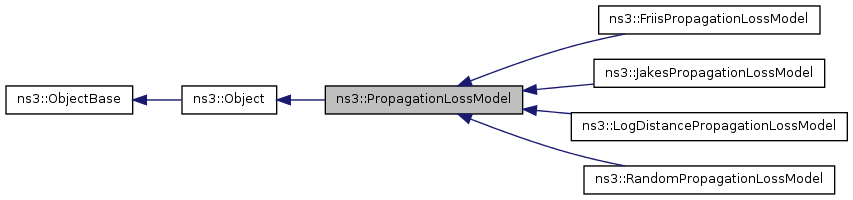

Inheritance diagram for ns3::PropagationLossModel:

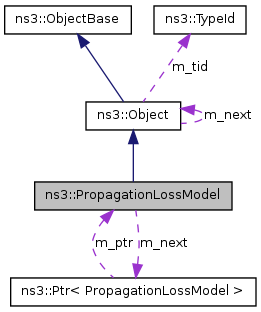

Collaboration diagram for ns3::PropagationLossModel:

List of all members.

Public Member Functions
double	GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::PropagationLossModel.
Private Attributes
Ptr< PropagationLossModel >	m_next

---

Detailed Description

Modelize the propagation loss through a transmission medium.

Calculate the receive power (dbm) from a transmit power (dbm), and, a mobility model for the source and destination positions.

---

Member Function Documentation

double ns3::PropagationLossModel::GetLoss	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)			const

Parameters:

	a	the mobility model of the source
	b	the mobility model of the destination

Returns:

the attenuation coefficient (dB)

static TypeId ns3::PropagationLossModel::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::PropagationLossModel.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

Reimplemented in ns3::JakesPropagationLossModel, ns3::RandomPropagationLossModel, ns3::FriisPropagationLossModel, and ns3::LogDistancePropagationLossModel.

---

Member Data Documentation

Ptr<PropagationLossModel> ns3::PropagationLossModel::m_next [private]

A pointer to the next aggregate object. This is a circular linked list of aggregated objects: the last one points back to the first one. If an object is not aggregated to any other object, the value of this field is equal to the value of the 'this' pointer.

Reimplemented from ns3::Object.

---

The documentation for this class was generated from the following files:

• src/devices/wifi/propagation-loss-model.h
• doc/introspected-doxygen.h
