FifoQueueDiscTestCase Class Reference

Fifo Queue Disc Test Case. More...

Inheritance diagram for FifoQueueDiscTestCase:

Collaboration diagram for FifoQueueDiscTestCase:

Public Member Functions
	FifoQueueDiscTestCase ()
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
void	DoRunFifoTest (Ptr< FifoQueueDisc > q, uint32_t qSize, uint32_t pktSize)
	Run test function. More...
void	RunFifoTest (QueueSizeUnit mode)
	Run test function. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Fifo Queue Disc Test Case.

Definition at line 97 of file fifo-queue-disc-test-suite.cc.

Constructor & Destructor Documentation

FifoQueueDiscTestCase()

FifoQueueDiscTestCase::FifoQueueDiscTestCase

(

)

Definition at line 117 of file fifo-queue-disc-test-suite.cc.

Member Function Documentation

DoRun()

void FifoQueueDiscTestCase::DoRun ( void  )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 246 of file fifo-queue-disc-test-suite.cc.

References ns3::BYTES, ns3::PACKETS, and RunFifoTest().

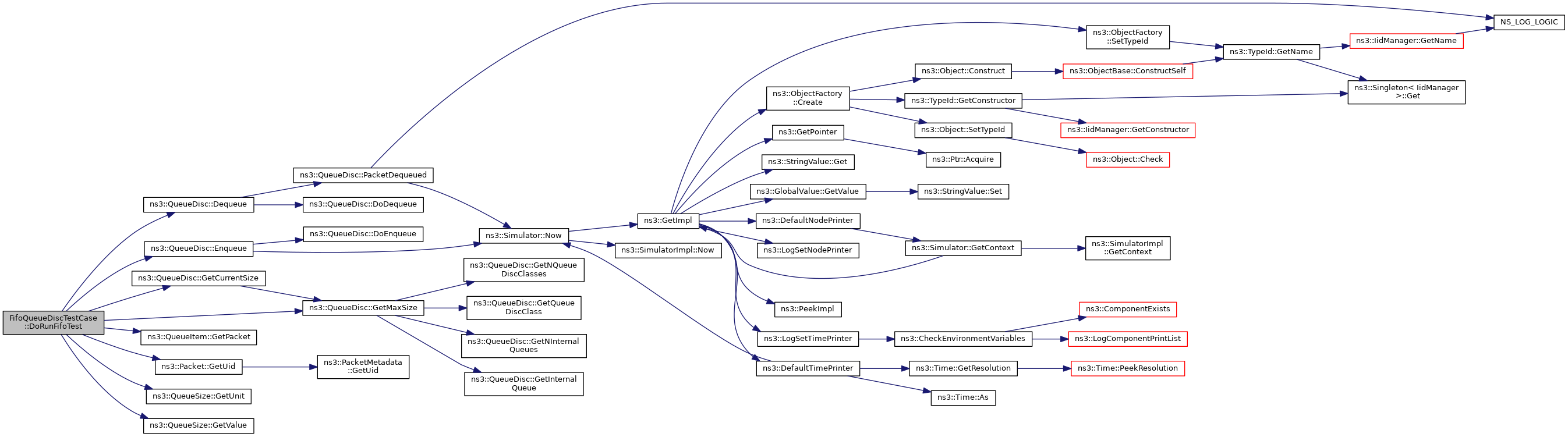

Here is the call graph for this function:

DoRunFifoTest()

void FifoQueueDiscTestCase::DoRunFifoTest ( Ptr< FifoQueueDisc >  q, uint32_t  qSize, uint32_t  pktSize  )

private

Run test function.

Parameters

q	the queue disc
qSize	the expected size of the queue disc
pktSize	the packet size

Definition at line 123 of file fifo-queue-disc-test-suite.cc.

References ns3::QueueDisc::Dequeue(), ns3::QueueDisc::Enqueue(), ns3::QueueDisc::GetCurrentSize(), ns3::QueueDisc::GetMaxSize(), ns3::QueueItem::GetPacket(), ns3::Packet::GetUid(), ns3::QueueSize::GetUnit(), ns3::QueueSize::GetValue(), NS_TEST_EXPECT_MSG_EQ, and ns3::PACKETS.

Referenced by RunFifoTest().

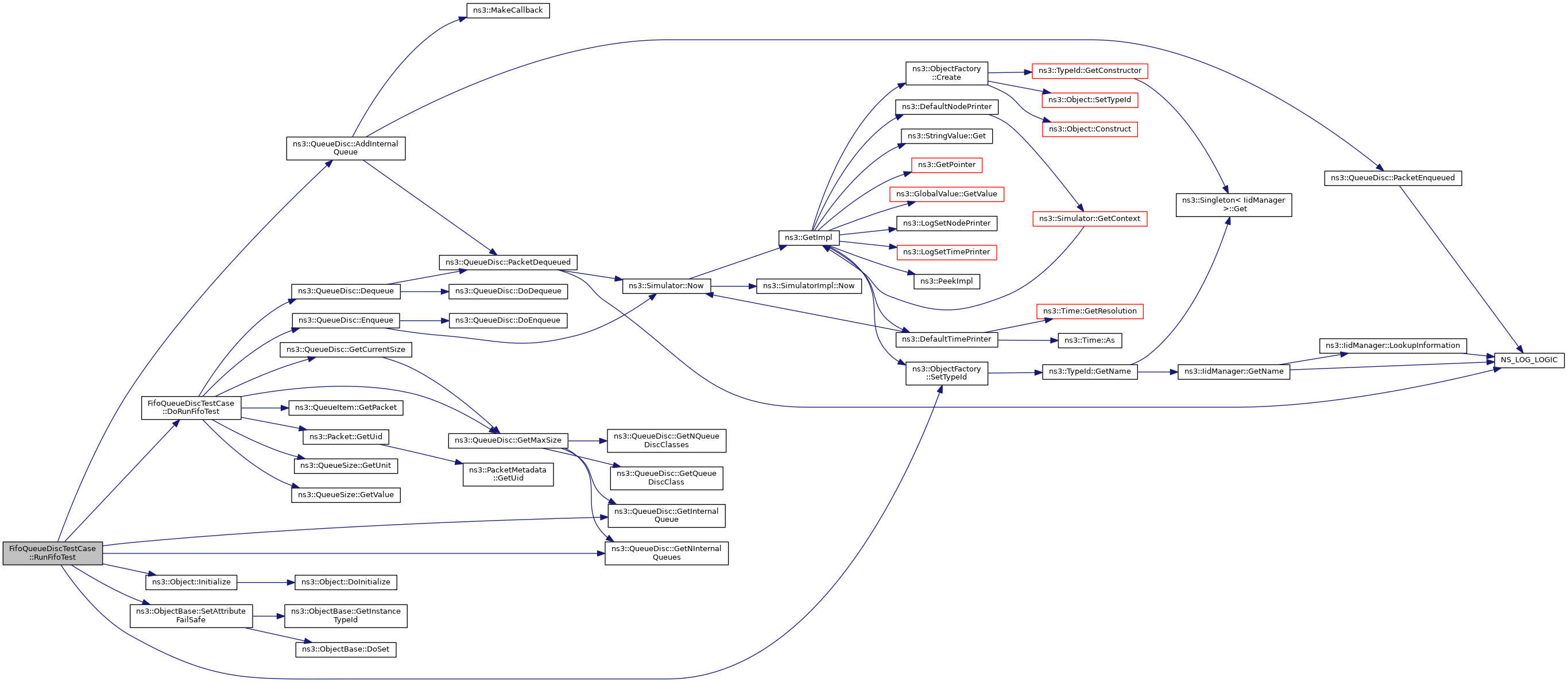

Here is the call graph for this function:

Here is the caller graph for this function:

RunFifoTest()

void FifoQueueDiscTestCase::RunFifoTest ( QueueSizeUnit  mode )

private

Run test function.

Parameters

mode	the test mode

Definition at line 161 of file fifo-queue-disc-test-suite.cc.

References ns3::QueueDisc::AddInternalQueue(), ns3::BYTES, DoRunFifoTest(), ns3::QueueDisc::GetInternalQueue(), ns3::QueueDisc::GetNInternalQueues(), ns3::Object::Initialize(), NS_TEST_EXPECT_MSG_EQ, ns3::PACKETS, ns3::ObjectBase::SetAttributeFailSafe(), and ns3::ObjectFactory::SetTypeId().

Referenced by DoRun().

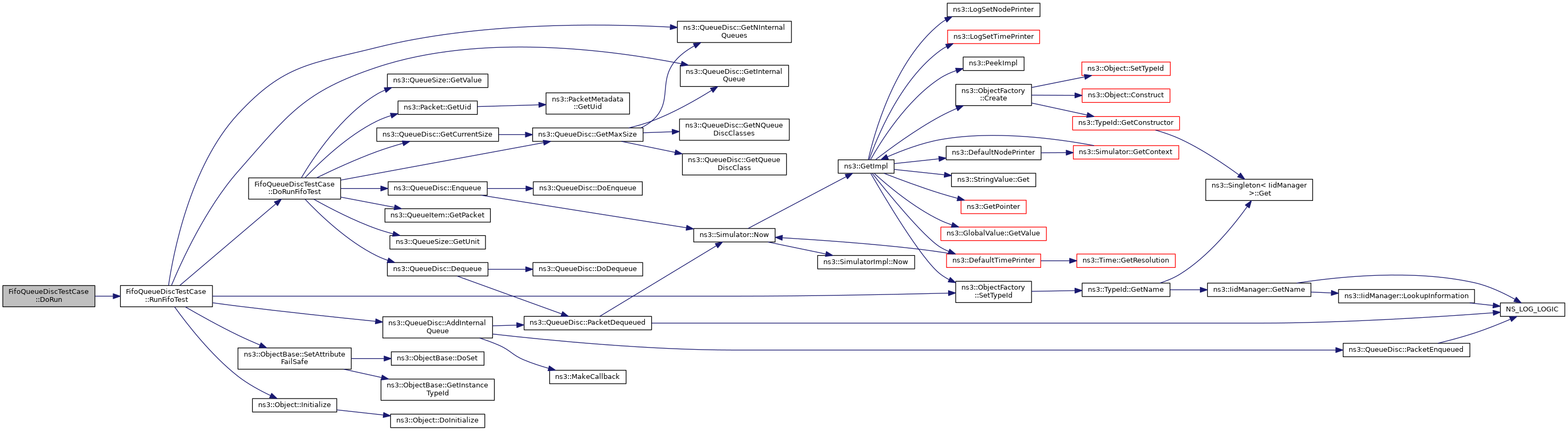

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/traffic-control/test/fifo-queue-disc-test-suite.cc
