LteDownlinkPowerControlTestCase Class Reference

Test SINR calculation in the downlink when the power control is used. More...

#include "lte-test-downlink-power-control.h"

Inheritance diagram for LteDownlinkPowerControlTestCase:

Collaboration diagram for LteDownlinkPowerControlTestCase:

Public Member Functions
	LteDownlinkPowerControlTestCase (bool changePower, uint8_t pa, std::string name)
	Constructor. More...
virtual	~LteDownlinkPowerControlTestCase ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Private Attributes
bool	m_changePdschConfigDedicated
	PDSCH config dedicated change. More...
double	m_expectedPowerDiff
	expected power difference More...
LteRrcSap::PdschConfigDedicated	m_pdschConfigDedicated
	PDSCH config dedicated. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test SINR calculation in the downlink when the power control is used.

Test the power control by comparing the downlink data and ctrl power difference with the estimated value based on the specified change in power.

Definition at line 98 of file lte-test-downlink-power-control.h.

Constructor & Destructor Documentation

LteDownlinkPowerControlTestCase()

LteDownlinkPowerControlTestCase::LteDownlinkPowerControlTestCase	(	bool	changePower,
		uint8_t	pa,
		std::string	name
	)

Constructor.

Parameters

changePower
pa
name	the reference name

Definition at line 382 of file lte-test-downlink-power-control.cc.

References m_changePdschConfigDedicated, m_expectedPowerDiff, m_pdschConfigDedicated, NS_LOG_INFO, and ns3::LteRrcSap::PdschConfigDedicated::pa.

~LteDownlinkPowerControlTestCase()

LteDownlinkPowerControlTestCase::~LteDownlinkPowerControlTestCase ( )

virtual

Definition at line 391 of file lte-test-downlink-power-control.cc.

Member Function Documentation

DoRun()

void LteDownlinkPowerControlTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Simulation Topology

Implements ns3::TestCase.

Definition at line 396 of file lte-test-downlink-power-control.cc.

References ns3::LteHelper::ActivateDataRadioBearer(), ns3::LteChunkProcessor::AddCallback(), ns3::LteHelper::Attach(), ns3::LteFfrSimple::ChangePdschConfigDedicated(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), ns3::LtePhy::GetDownlinkSpectrumPhy(), ns3::PointerValue::GetObject(), ns3::Object::GetObject(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), m_changePdschConfigDedicated, m_expectedPowerDiff, m_pdschConfigDedicated, ns3::MakeCallback(), third::mobility, NS_LOG_DEBUG, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::Config::Reset(), ns3::Seconds(), ns3::Config::SetDefault(), ns3::LteHelper::SetFfrAlgorithmType(), ns3::LteFfrSimple::SetPdschConfigDedicated(), and ns3::LteHelper::SetSchedulerType().

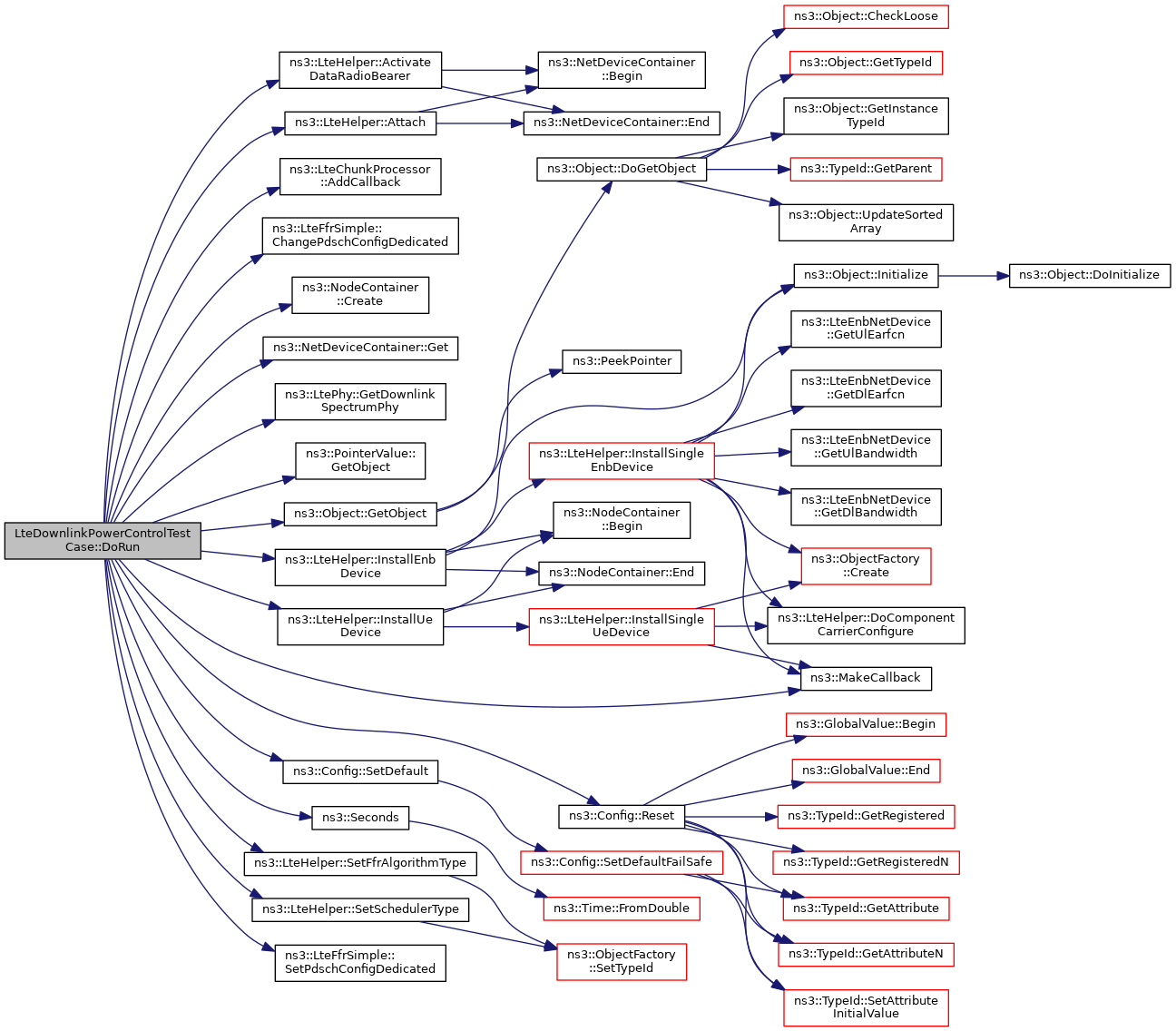

Here is the call graph for this function:

Member Data Documentation

m_changePdschConfigDedicated

bool LteDownlinkPowerControlTestCase::m_changePdschConfigDedicated

private

PDSCH config dedicated change.

Definition at line 114 of file lte-test-downlink-power-control.h.

Referenced by DoRun(), and LteDownlinkPowerControlTestCase().

m_expectedPowerDiff

double LteDownlinkPowerControlTestCase::m_expectedPowerDiff

private

expected power difference

Definition at line 116 of file lte-test-downlink-power-control.h.

Referenced by DoRun(), and LteDownlinkPowerControlTestCase().

m_pdschConfigDedicated

LteRrcSap::PdschConfigDedicated LteDownlinkPowerControlTestCase::m_pdschConfigDedicated

private

PDSCH config dedicated.

Definition at line 115 of file lte-test-downlink-power-control.h.

Referenced by DoRun(), and LteDownlinkPowerControlTestCase().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-downlink-power-control.h
• src/lte/test/lte-test-downlink-power-control.cc
