LteInterferenceStrictFrTestCase Class Reference

Lte interference test when using strict frequency reuse algorithm. More...

#include "lte-test-interference-fr.h"

Inheritance diagram for LteInterferenceStrictFrTestCase:

Collaboration diagram for LteInterferenceStrictFrTestCase:

Public Member Functions
	LteInterferenceStrictFrTestCase (std::string name, double d1, double d2, double commonDlSinr, double commonUlSinr, double edgeDlSinr, double edgeUlSinr, uint32_t rspqThreshold)
	Constructor. More...
virtual	~LteInterferenceStrictFrTestCase ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Private Attributes
double	m_commonDlSinrDb
	expected common DL SINR in dB More...
double	m_d1
	distance between UE and ENB More...
double	m_d2
	distance between UE and other ENB More...
double	m_edgeDlSinrDb
	expected edge DL SINR in dB More...
uint32_t	m_rspqThreshold
	RSPQ threshold. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Lte interference test when using strict frequency reuse algorithm.

Definition at line 83 of file lte-test-interference-fr.h.

Constructor & Destructor Documentation

LteInterferenceStrictFrTestCase()

LteInterferenceStrictFrTestCase::LteInterferenceStrictFrTestCase	(	std::string	name,
		double	d1,
		double	d2,
		double	commonDlSinr,
		double	commonUlSinr,
		double	edgeDlSinr,
		double	edgeUlSinr,
		uint32_t	rspqThreshold
	)

Constructor.

Parameters

name	the reference name
d1	distance between ENB and UE
d2	distnace between ENB and other UE
commonDlSinr	the DL SINR
commonUlSinr	the UL SINR
edgeDlSinr	the DL SINR
edgeUlSinr	the UL SINR
rspqThreshold	RSPQ threshold

Definition at line 241 of file lte-test-interference-fr.cc.

References NS_LOG_INFO.

~LteInterferenceStrictFrTestCase()

LteInterferenceStrictFrTestCase::~LteInterferenceStrictFrTestCase ( )

virtual

Definition at line 254 of file lte-test-interference-fr.cc.

Member Function Documentation

DoRun()

void LteInterferenceStrictFrTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 259 of file lte-test-interference-fr.cc.

References ns3::LteHelper::ActivateDataRadioBearer(), ns3::ListPositionAllocator::Add(), ns3::NetDeviceContainer::Add(), ns3::LteHelper::Attach(), ns3::NodeContainer::Create(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::LtePhy::GetDownlinkSpectrumPhy(), ns3::TestCase::GetName(), ns3::Object::GetObject(), ns3::LtePhy::GetUplinkSpectrumPhy(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), m_commonDlSinrDb, m_d1, m_d2, m_edgeDlSinrDb, m_rspqThreshold, ns3::MakeCallback(), third::mobility, NS_LOG_DEBUG, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::Config::Reset(), ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::LteHelper::SetFfrAlgorithmAttribute(), ns3::LteHelper::SetFfrAlgorithmType(), ns3::LteHelper::SetSchedulerAttribute(), and ns3::LteHelper::SetSchedulerType().

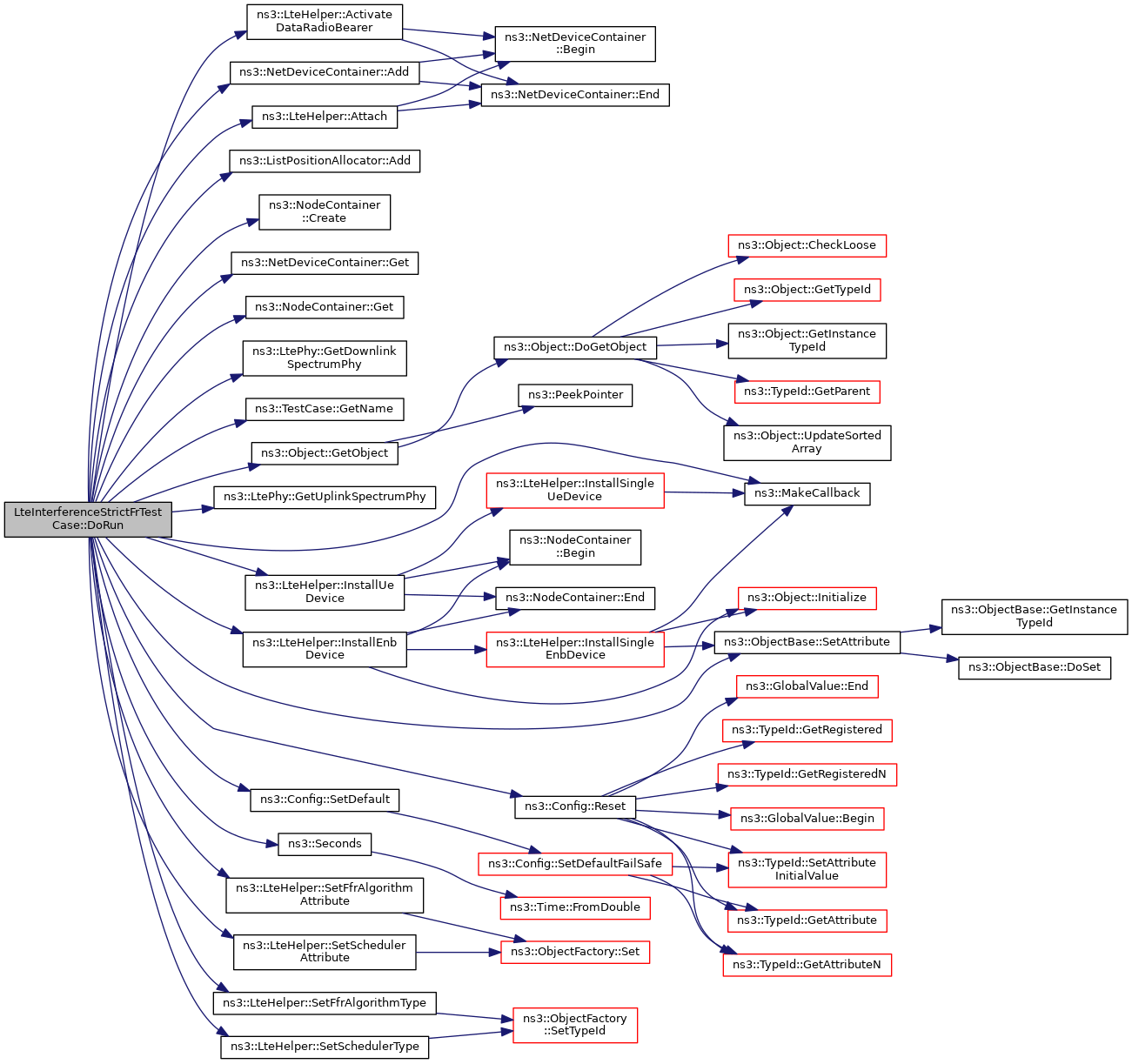

Here is the call graph for this function:

Member Data Documentation

m_commonDlSinrDb

double LteInterferenceStrictFrTestCase::m_commonDlSinrDb

private

expected common DL SINR in dB

Definition at line 108 of file lte-test-interference-fr.h.

Referenced by DoRun().

m_d1

double LteInterferenceStrictFrTestCase::m_d1

private

distance between UE and ENB

Definition at line 106 of file lte-test-interference-fr.h.

Referenced by DoRun().

m_d2

double LteInterferenceStrictFrTestCase::m_d2

private

distance between UE and other ENB

Definition at line 107 of file lte-test-interference-fr.h.

Referenced by DoRun().

m_edgeDlSinrDb

double LteInterferenceStrictFrTestCase::m_edgeDlSinrDb

private

expected edge DL SINR in dB

Definition at line 109 of file lte-test-interference-fr.h.

Referenced by DoRun().

m_rspqThreshold

uint32_t LteInterferenceStrictFrTestCase::m_rspqThreshold

private

RSPQ threshold.

Definition at line 111 of file lte-test-interference-fr.h.

Referenced by DoRun().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-interference-fr.h
• src/lte/test/lte-test-interference-fr.cc
