LteRlcAmE2eTestCase Class Reference

Test cases used for the test suite lte-rlc-am-e2e. More...

#include "lte-test-rlc-am-e2e.h"

Inheritance diagram for LteRlcAmE2eTestCase:

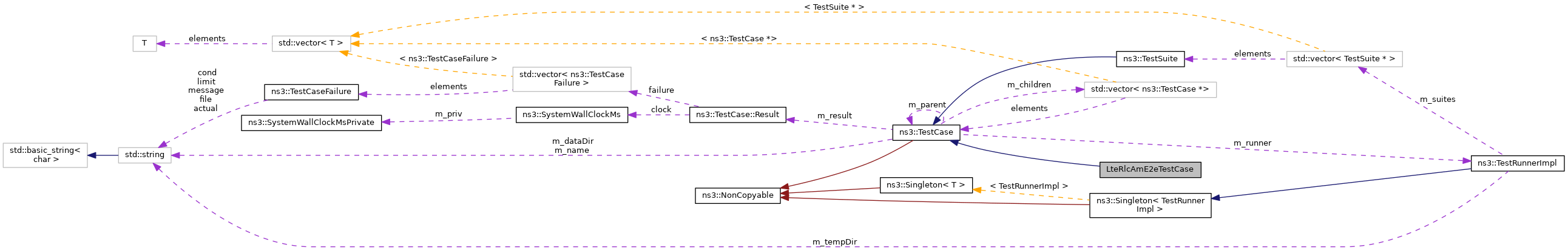

Collaboration diagram for LteRlcAmE2eTestCase:

Public Member Functions
	LteRlcAmE2eTestCase (std::string name, uint32_t seed, double losses, bool bulkSduArrival)
	Constructor. More...
	LteRlcAmE2eTestCase ()
virtual	~LteRlcAmE2eTestCase ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
void	DlDropEvent (Ptr< const Packet > p)
	DL drop event. More...
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
void	UlDropEvent (Ptr< const Packet > p)
	UL drop event. More...

Private Attributes
bool	m_bulkSduArrival
	bulk SDU arrival More...
uint32_t	m_dlDrops
	number of Dl drops More...
double	m_losses
	error rate More...
uint32_t	m_run
	rng run More...
uint32_t	m_ulDrops
	number of UL drops More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test cases used for the test suite lte-rlc-am-e2e.

See the testing section of the LTE module documentation for details.

Definition at line 50 of file lte-test-rlc-am-e2e.h.

Constructor & Destructor Documentation

LteRlcAmE2eTestCase() [1/2]

LteRlcAmE2eTestCase::LteRlcAmE2eTestCase	(	std::string	name,
		uint32_t	seed,
		double	losses,
		bool	bulkSduArrival
	)

Constructor.

Parameters

name	the reference name
seed	the random variable seed
losses	the error rate
bulkSduArrival	true if bulk SDU arrival

Definition at line 101 of file lte-test-rlc-am-e2e.cc.

References NS_LOG_INFO.

LteRlcAmE2eTestCase() [2/2]

LteRlcAmE2eTestCase::LteRlcAmE2eTestCase

(

)

~LteRlcAmE2eTestCase()

LteRlcAmE2eTestCase::~LteRlcAmE2eTestCase ( )

virtual

Definition at line 112 of file lte-test-rlc-am-e2e.cc.

Member Function Documentation

DlDropEvent()

void LteRlcAmE2eTestCase::DlDropEvent ( Ptr< const Packet >  p )

private

DL drop event.

Parameters

p	the packet

Definition at line 118 of file lte-test-rlc-am-e2e.cc.

References m_dlDrops.

Referenced by DoRun().

Here is the caller graph for this function:

DoRun()

void LteRlcAmE2eTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 132 of file lte-test-rlc-am-e2e.cc.

References ns3::RateErrorModel::AssignStreams(), ns3::NodeContainer::Create(), DlDropEvent(), ns3::NetDeviceContainer::Get(), ns3::LteTestMac::GetRxPdus(), ns3::LteTestMac::GetTxPdus(), ns3::LteSimpleHelper::InstallEnbDevice(), ns3::LteSimpleHelper::InstallUeDevice(), m_bulkSduArrival, m_dlDrops, ns3::LteSimpleHelper::m_enbMac, ns3::LteSimpleHelper::m_enbRrc, m_losses, m_run, ns3::LteSimpleHelper::m_ueMac, ns3::LteSimpleHelper::m_ueRrc, ns3::MakeCallback(), max, ns3::MilliSeconds(), min, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ, ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::Config::SetGlobal(), ns3::LteTestMac::SetTxOpportunityMode(), ns3::LteTestMac::SetTxOppSize(), ns3::LteTestMac::SetTxOppTime(), and stopTime.

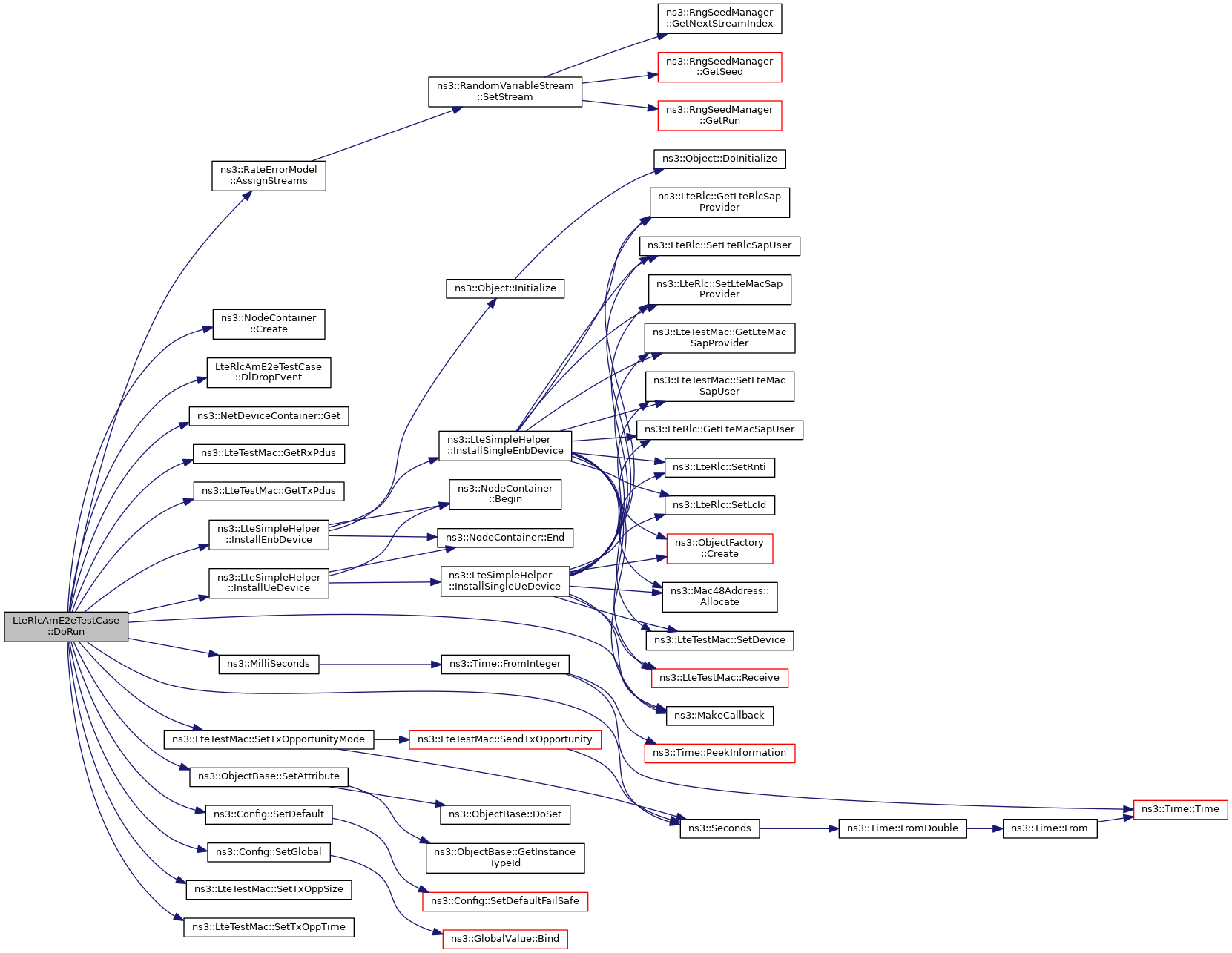

Here is the call graph for this function:

UlDropEvent()

void LteRlcAmE2eTestCase::UlDropEvent ( Ptr< const Packet >  p )

private

UL drop event.

Parameters

p	the packet

Definition at line 125 of file lte-test-rlc-am-e2e.cc.

References m_ulDrops.

Member Data Documentation

m_bulkSduArrival

bool LteRlcAmE2eTestCase::m_bulkSduArrival

private

bulk SDU arrival

Definition at line 81 of file lte-test-rlc-am-e2e.h.

Referenced by DoRun().

m_dlDrops

uint32_t LteRlcAmE2eTestCase::m_dlDrops

private

number of Dl drops

Definition at line 83 of file lte-test-rlc-am-e2e.h.

Referenced by DlDropEvent(), and DoRun().

m_losses

double LteRlcAmE2eTestCase::m_losses

private

error rate

Definition at line 80 of file lte-test-rlc-am-e2e.h.

Referenced by DoRun().

m_run

uint32_t LteRlcAmE2eTestCase::m_run

private

rng run

Definition at line 79 of file lte-test-rlc-am-e2e.h.

Referenced by DoRun().

m_ulDrops

uint32_t LteRlcAmE2eTestCase::m_ulDrops

private

number of UL drops

Definition at line 84 of file lte-test-rlc-am-e2e.h.

Referenced by UlDropEvent().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-rlc-am-e2e.h
• src/lte/test/lte-test-rlc-am-e2e.cc
