A test class for running several system tests which validate the web browsing traffic model. More...

Inheritance diagram for ThreeGppHttpClientServerTestSuite:

Collaboration diagram for ThreeGppHttpClientServerTestSuite:

Public Member Functions
	ThreeGppHttpClientServerTestSuite ()
	Instantiate the test suite. More...

Public Member Functions inherited from ns3::TestSuite
	TestSuite (std::string name, Type type=UNIT)
	Construct a new test suite. More...

TestSuite::Type	GetTestType (void)
	get the kind of test this test suite implements More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
void	AddHttpObjectTestCase (uint32_t rngRun, const Time &channelDelay, double bitErrorRate, uint32_t mtuSize, bool useIpv6)
	Creates a test case with the given parameters. More...

Additional Inherited Members
Public Types inherited from ns3::TestSuite
enum	Type { ALL = 0, BVT = 1, UNIT, SYSTEM, EXAMPLE, PERFORMANCE }
	Type of test. More...

Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

A test class for running several system tests which validate the web browsing traffic model.

The tests cover the combinations of the following parameters:

The fullness parameter specified when running the test framework will determine the number of test cases created by this test suite.

Constructor & Destructor Documentation

ThreeGppHttpClientServerTestSuite::ThreeGppHttpClientServerTestSuite ( )

inline

Instantiate the test suite.

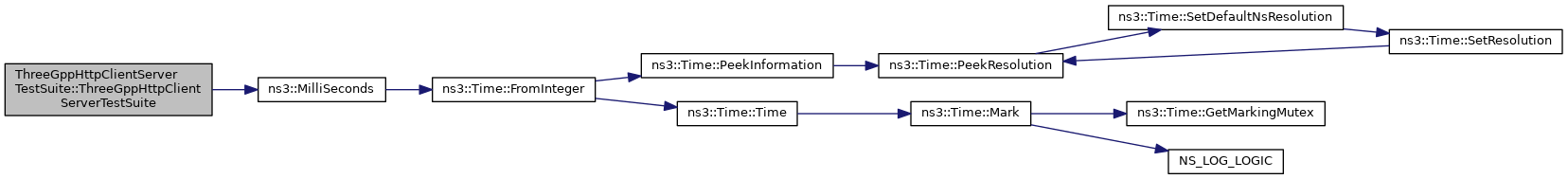

Here is the call graph for this function:

void ThreeGppHttpClientServerTestSuite::AddHttpObjectTestCase	(	uint32_t	rngRun,
		const Time &	channelDelay,
		double	bitErrorRate,
		uint32_t	mtuSize,
		bool	useIpv6
	)

inlineprivate

Creates a test case with the given parameters.

Parameters

rngRun	Run index to be used, intended to affect the values produced by random number generators throughout the test.
channelDelay	Transmission delay between the client and the server (and vice versa) which is due to the channel.
bitErrorRate	The probability of transmission error between the client and the server (and vice versa) in the unit of bits.
mtuSize	Maximum transmission unit (in bytes) to be used by the server model.
useIpv6	If true, IPv6 will be used to address both client and server. Otherwise, IPv4 will be used.

Here is the call graph for this function:

The documentation for this class was generated from the following file:
