Tx Duration Test. More...

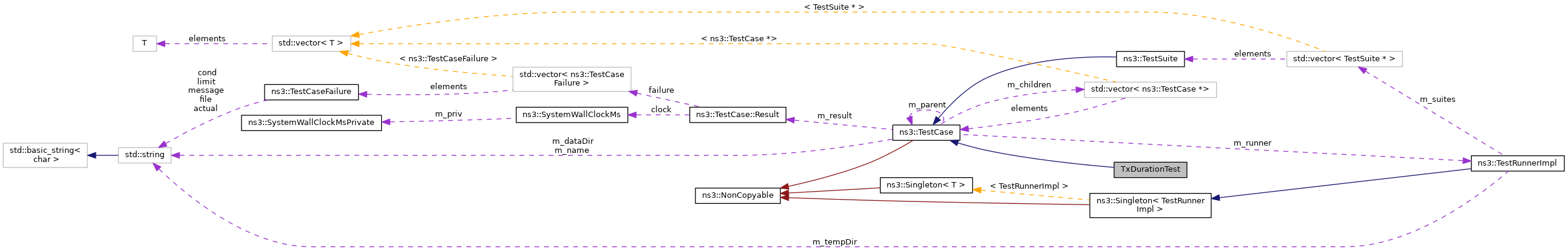

Inheritance diagram for TxDurationTest: Collaboration diagram for TxDurationTest:Public Member Functions | |
| TxDurationTest () | |
| virtual | ~TxDurationTest () |
| virtual void | DoRun (void) |
| Implementation to actually run this TestCase. More... | |
| Public Member Functions inherited from ns3::TestCase | |
| virtual | ~TestCase () |
| Destructor. More... | |
| std::string | GetName (void) const |
Private Member Functions | |
| bool | CheckPayloadDuration (uint32_t size, WifiMode payloadMode, uint16_t channelWidth, uint16_t guardInterval, WifiPreamble preamble, Time knownDuration) |
| Check if the payload tx duration returned by InterferenceHelper corresponds to a known value of the pay. More... | |
| bool | CheckTxDuration (uint32_t size, WifiMode payloadMode, uint16_t channelWidth, uint16_t guardInterval, WifiPreamble preamble, Time knownDuration) |
| Check if the overall tx duration returned by InterferenceHelper corresponds to a known value of the pay. More... | |
Additional Inherited Members | |
| Public Types inherited from ns3::TestCase | |
| enum | TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 } |
| How long the test takes to execute. More... | |
| Protected Member Functions inherited from ns3::TestCase | |
| TestCase (std::string name) | |
| Constructor. More... | |
| void | AddTestCase (TestCase *testCase, TestDuration duration=QUICK) |
| Add an individual child TestCase to this test suite. More... | |
| TestCase * | GetParent () const |
| Get the parent of this TestCsse. More... | |
| bool | IsStatusFailure (void) const |
| Check if any tests failed. More... | |
| bool | IsStatusSuccess (void) const |
| Check if all tests passed. More... | |
| void | SetDataDir (std::string directory) |
| Set the data directory where reference trace files can be found. More... | |
| void | ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line) |
| Log the failure of this TestCase. More... | |
| bool | MustAssertOnFailure (void) const |
| Check if this run should assert on failure. More... | |
| bool | MustContinueOnFailure (void) const |
| Check if this run should continue on failure. More... | |
| std::string | CreateDataDirFilename (std::string filename) |
| Construct the full path to a file in the data directory. More... | |
| std::string | CreateTempDirFilename (std::string filename) |
| Construct the full path to a file in a temporary directory. More... | |
Tx Duration Test.
Definition at line 39 of file tx-duration-test.cc.
| TxDurationTest::TxDurationTest | ( | ) |
Definition at line 80 of file tx-duration-test.cc.
|
virtual |
Definition at line 85 of file tx-duration-test.cc.
|
private |
Check if the payload tx duration returned by InterferenceHelper corresponds to a known value of the pay.
| size | size of payload in octets (includes everything after the PLCP header) |
| payloadMode | the WifiMode used for the transmission |
| channelWidth | the channel width used for the transmission (in MHz) |
| guardInterval | the guard interval duration used for the transmission (in nanoseconds) |
| preamble | the WifiPreamble used for the transmission |
| knownDuration | the known duration value of the transmission |
Definition at line 90 of file tx-duration-test.cc.
References CHANNEL_1_MHZ, CHANNEL_36_MHZ, ns3::WifiMode::GetDataRate(), ns3::WifiMode::GetModulationClass(), ns3::MicroSeconds(), third::phy, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNess(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), ns3::WifiTxVector::SetStbc(), ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, and ns3::WIFI_MOD_CLASS_VHT.
Referenced by DoRun().

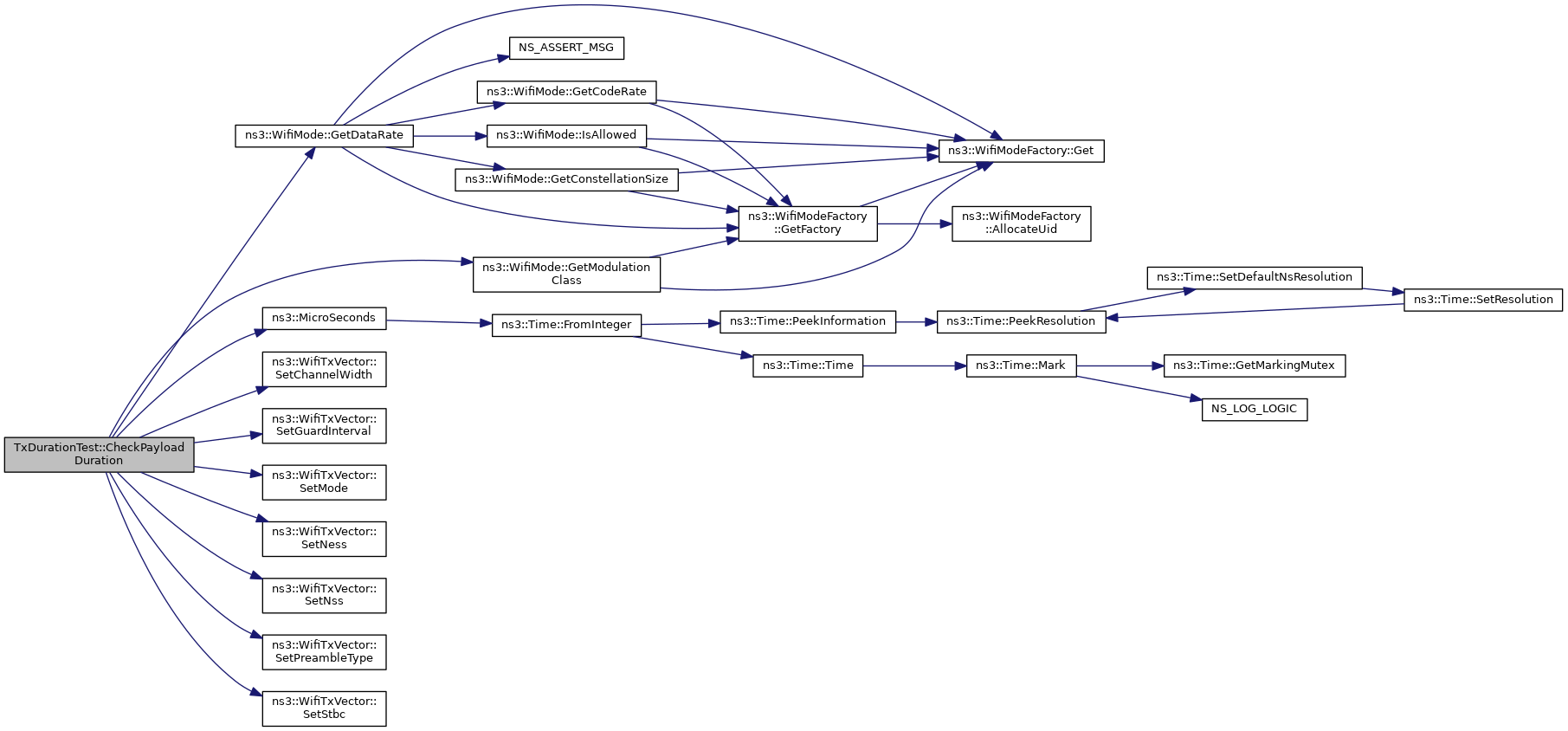

Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Check if the overall tx duration returned by InterferenceHelper corresponds to a known value of the pay.
| size | size of payload in octets (includes everything after the PLCP header) |
| payloadMode | the WifiMode used for the transmission |
| channelWidth | the channel width used for the transmission (in MHz) |
| guardInterval | the guard interval duration used for the transmission (in nanoseconds) |
| preamble | the WifiPreamble used for the transmission |
| knownDuration | the known duration value of the transmission |
Definition at line 145 of file tx-duration-test.cc.
References CHANNEL_1_MHZ, CHANNEL_36_MHZ, ns3::WifiMode::GetDataRate(), ns3::WifiMode::GetModulationClass(), ns3::MicroSeconds(), third::phy, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNess(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), ns3::WifiTxVector::SetStbc(), ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, and ns3::WIFI_MOD_CLASS_VHT.
Referenced by DoRun().

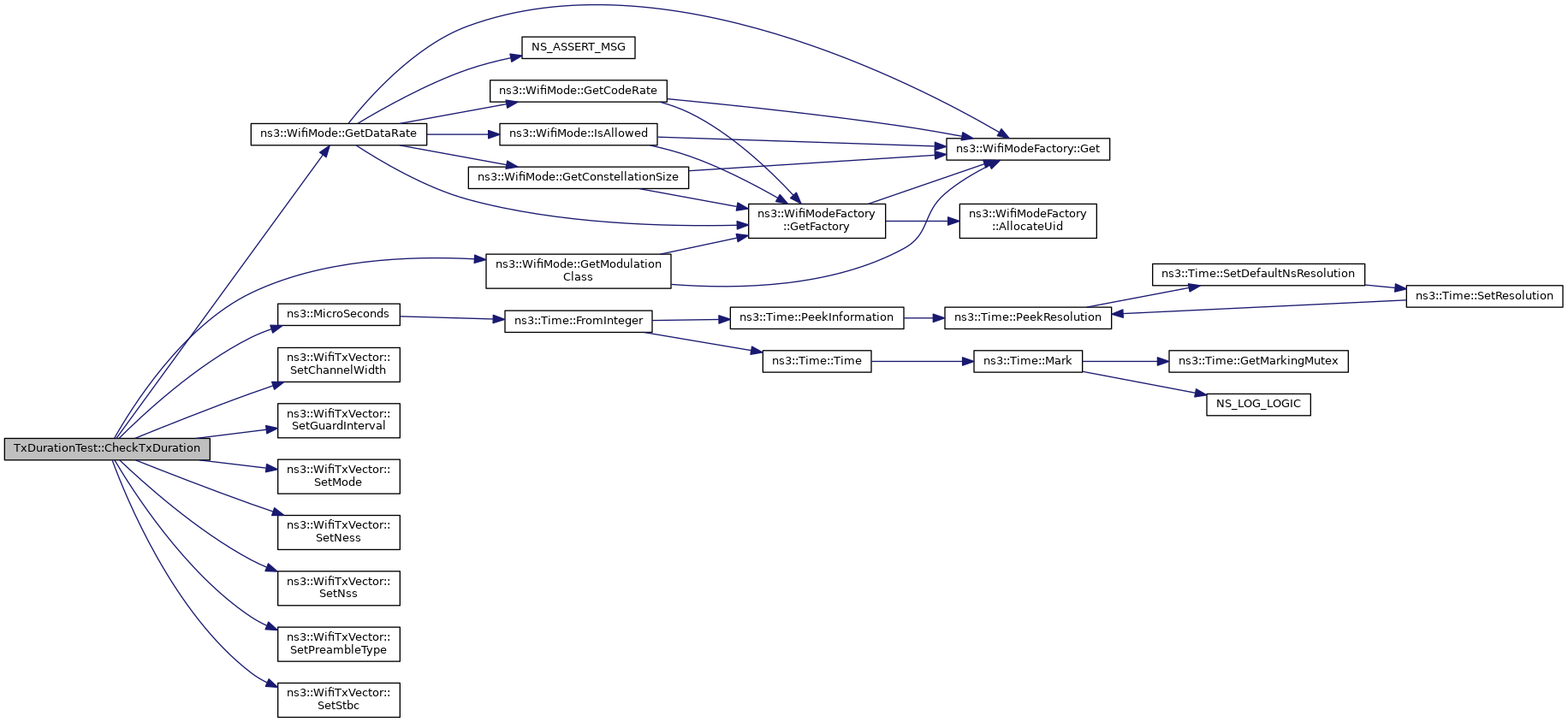

Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
Implementation to actually run this TestCase.
Subclasses should override this method to conduct their tests.
Implements ns3::TestCase.
Definition at line 202 of file tx-duration-test.cc.
References CheckPayloadDuration(), CheckTxDuration(), ns3::MicroSeconds(), ns3::NanoSeconds(), NS_TEST_EXPECT_MSG_EQ, ns3::WIFI_PREAMBLE_HE_SU, ns3::WIFI_PREAMBLE_HT_GF, ns3::WIFI_PREAMBLE_HT_MF, ns3::WIFI_PREAMBLE_LONG, ns3::WIFI_PREAMBLE_SHORT, and ns3::WIFI_PREAMBLE_VHT_SU.

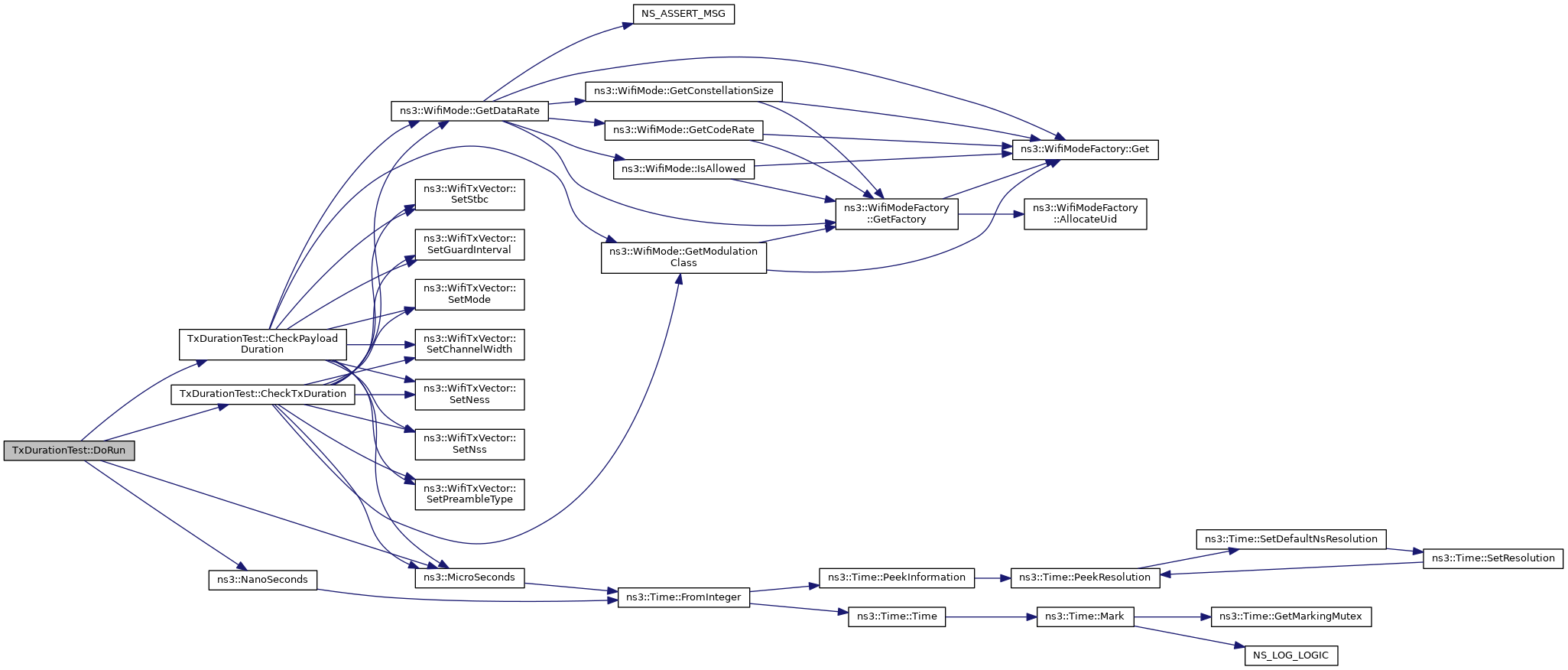

Here is the call graph for this function:
