Inheritance diagram for WifiInterferenceTestCase:

Collaboration diagram for WifiInterferenceTestCase:

Public Member Functions
	WifiInterferenceTestCase ()

virtual	~WifiInterferenceTestCase ()

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

void	PrintEndSync (std::string context, uint32_t dataRate, double snr, double per)

void	ReceivePacket (Ptr< Socket > socket)

double	WifiSimpleInterference (std::string phyMode, double Prss, double Irss, double delta, uint32_t PpacketSize, uint32_t IpacketSize, bool verbose, InternetStackHelper internet, WifiPhyStandard wifiStandard)

Static Private Member Functions
static void	GenerateTraffic (Ptr< Socket > socket, uint32_t pktSize, uint32_t pktCount, Time pktInterval)

Private Attributes
uint32_t	m_DataRate

double	m_PER

double	m_SNR

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Definition at line 35 of file wifi-interference-test-suite.cc.

Constructor & Destructor Documentation

◆ WifiInterferenceTestCase()

WifiInterferenceTestCase::WifiInterferenceTestCase ( )

Definition at line 54 of file wifi-interference-test-suite.cc.

◆ ~WifiInterferenceTestCase()

WifiInterferenceTestCase::~WifiInterferenceTestCase ( )

virtual

Definition at line 59 of file wifi-interference-test-suite.cc.

Member Function Documentation

◆ DoRun()

void WifiInterferenceTestCase::DoRun ( void )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 230 of file wifi-interference-test-suite.cc.

References NS_TEST_ASSERT_MSG_EQ, verbose, ns3::WIFI_PHY_STANDARD_80211b, ns3::WIFI_PHY_STANDARD_80211n_2_4GHZ, and WifiSimpleInterference().

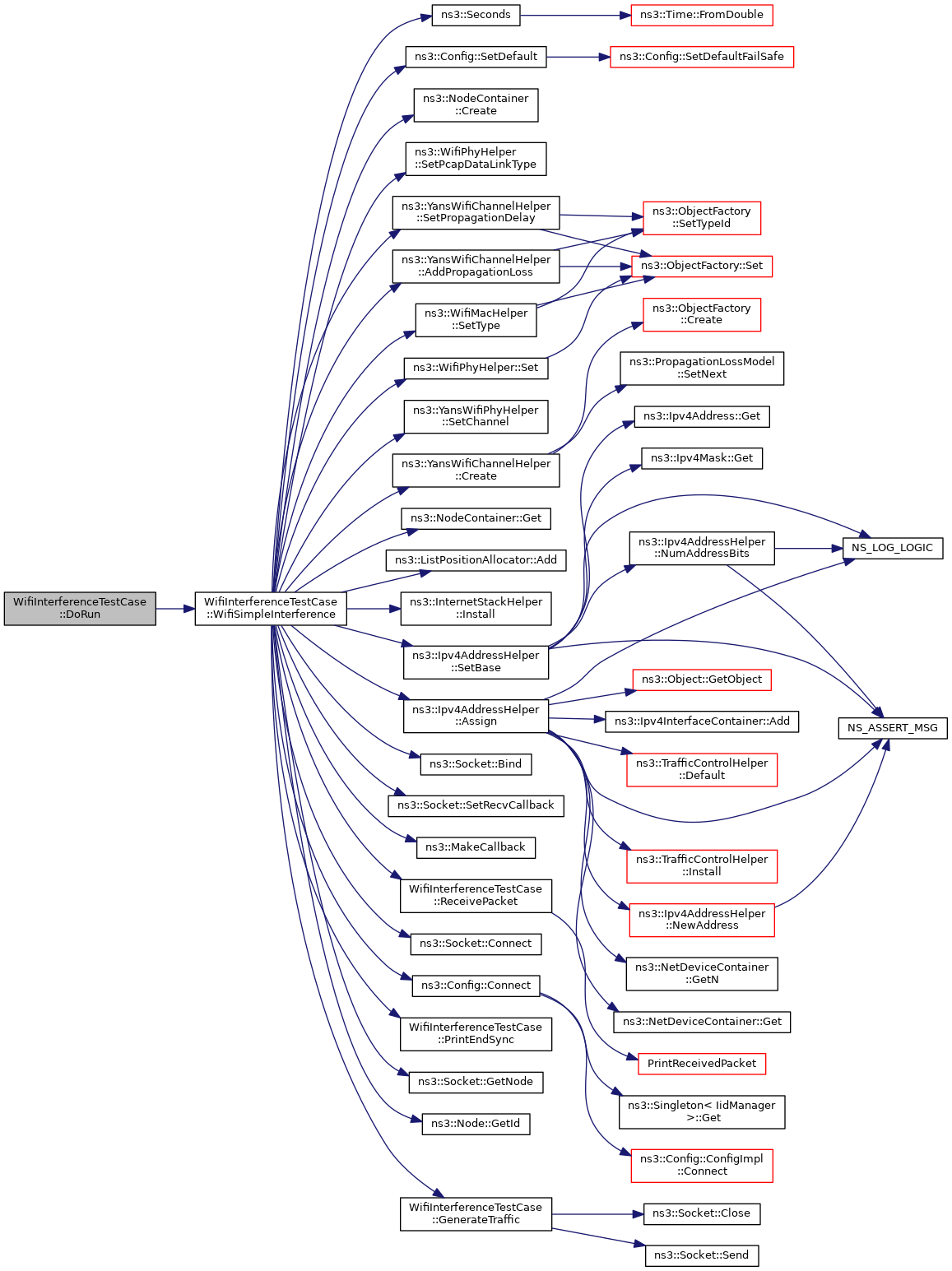

Here is the call graph for this function:

◆ GenerateTraffic()

void WifiInterferenceTestCase::GenerateTraffic	(	Ptr< Socket >	socket,
		uint32_t	pktSize,
		uint32_t	pktCount,
		Time	pktInterval
	)

staticprivate

Definition at line 83 of file wifi-interference-test-suite.cc.

References ns3::Socket::Close(), and ns3::Socket::Send().

Referenced by WifiSimpleInterference().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PrintEndSync()

void WifiInterferenceTestCase::PrintEndSync	(	std::string	context,
		uint32_t	dataRate,
		double	snr,
		double	per
	)

private

Definition at line 97 of file wifi-interference-test-suite.cc.

References m_DataRate, m_PER, m_SNR, and NS_LOG_UNCOND.

Referenced by WifiSimpleInterference().

Here is the caller graph for this function:

◆ ReceivePacket()

void WifiInterferenceTestCase::ReceivePacket ( Ptr< Socket > socket )

private

Definition at line 77 of file wifi-interference-test-suite.cc.

References NS_LOG_UNCOND, and PrintReceivedPacket().

Referenced by WifiSimpleInterference().

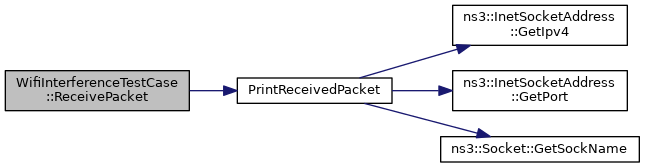

Here is the call graph for this function:

Here is the caller graph for this function:

◆ WifiSimpleInterference()

double WifiInterferenceTestCase::WifiSimpleInterference	(	std::string	phyMode,
		double	Prss,
		double	Irss,
		double	delta,
		uint32_t	PpacketSize,
		uint32_t	IpacketSize,
		bool	verbose,
		InternetStackHelper	internet,
		WifiPhyStandard	wifiStandard
	)
