WifiPhyThresholdsStrongWifiSignalTest Class Reference

Wifi Phy Threshold Strong Wifi Signal Test. More...

+ Inheritance diagram for WifiPhyThresholdsStrongWifiSignalTest:
+ Collaboration diagram for WifiPhyThresholdsStrongWifiSignalTest:

Public Member Functions

 WifiPhyThresholdsStrongWifiSignalTest ()
virtual ~WifiPhyThresholdsStrongWifiSignalTest ()
virtual void DoRun (void)
 Implementation to actually run this TestCase. More...
- Public Member Functions inherited from WifiPhyThresholdsTest
 WifiPhyThresholdsTest (std::string test_name)
virtual ~WifiPhyThresholdsTest ()
- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...
std::string GetName (void) const

Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...
- Protected Member Functions inherited from WifiPhyThresholdsTest
virtual Ptr< SpectrumSignalParametersMakeForeignSignal (double txPowerWatts)
 Make foreign signal function. More...
virtual Ptr< SpectrumSignalParametersMakeWifiSignal (double txPowerWatts)
 Make wifi signal function. More...
virtual void PhyStateChanged (Time start, Time duration, WifiPhyState newState)
 PHY state changed callback function. More...
void RxDropped (Ptr< const Packet > p, WifiPhyRxfailureReason reason)
 PHY dropped packet callback function. More...
virtual void RxFailure (Ptr< Packet > p)
 PHY receive failure callback function. More...
virtual void RxSuccess (Ptr< Packet > p, double snr, WifiTxVector txVector, std::vector< bool > statusPerMpdu)
 PHY receive success callback function. More...
virtual void SendSignal (double txPowerWatts, bool wifiSignal)
 Send signal function. More...
- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...
void AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
 Add an individual child TestCase to this test suite. More...
TestCaseGetParent () const
 Get the parent of this TestCsse. More...
bool IsStatusFailure (void) const
 Check if any tests failed. More...
bool IsStatusSuccess (void) const
 Check if all tests passed. More...
void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...
void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...
bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...
bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...
std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...
std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...
- Protected Attributes inherited from WifiPhyThresholdsTest
uint32_t m_ccabusyStateCount
 count number of PHY state change to CCA_BUSY state More...
uint32_t m_idleStateCount
 count number of PHY state change to IDLE state More...
Ptr< SpectrumWifiPhym_phy
 PHY object. More...
uint32_t m_rxDropped
 count number of dropped packets More...
uint32_t m_rxFailure
 count number of unsuccessfully received packets More...
uint32_t m_rxStateCount
 count number of PHY state change to RX state More...
uint32_t m_rxSuccess
 count number of successfully received packets More...
uint32_t m_stateChanged
 count number of PHY state change More...

Detailed Description

Wifi Phy Threshold Strong Wifi Signal Test.

This test makes sure PHY processes a Wi-Fi signal with a received power higher than RxSensitivity.

Definition at line 330 of file wifi-phy-thresholds-test.cc.

Constructor & Destructor Documentation

◆ WifiPhyThresholdsStrongWifiSignalTest()

WifiPhyThresholdsStrongWifiSignalTest::WifiPhyThresholdsStrongWifiSignalTest ( )

Definition at line 338 of file wifi-phy-thresholds-test.cc.

◆ ~WifiPhyThresholdsStrongWifiSignalTest()

WifiPhyThresholdsStrongWifiSignalTest::~WifiPhyThresholdsStrongWifiSignalTest ( )

Definition at line 343 of file wifi-phy-thresholds-test.cc.

Member Function Documentation

◆ DoRun()

void WifiPhyThresholdsStrongWifiSignalTest::DoRun ( void  )

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 348 of file wifi-phy-thresholds-test.cc.

References ns3::DbmToW(), WifiPhyThresholdsTest::m_idleStateCount, WifiPhyThresholdsTest::m_rxDropped, WifiPhyThresholdsTest::m_rxFailure, WifiPhyThresholdsTest::m_rxStateCount, WifiPhyThresholdsTest::m_rxSuccess, WifiPhyThresholdsTest::m_stateChanged, NS_TEST_ASSERT_MSG_EQ, ns3::Seconds(), and WifiPhyThresholdsTest::SendSignal().

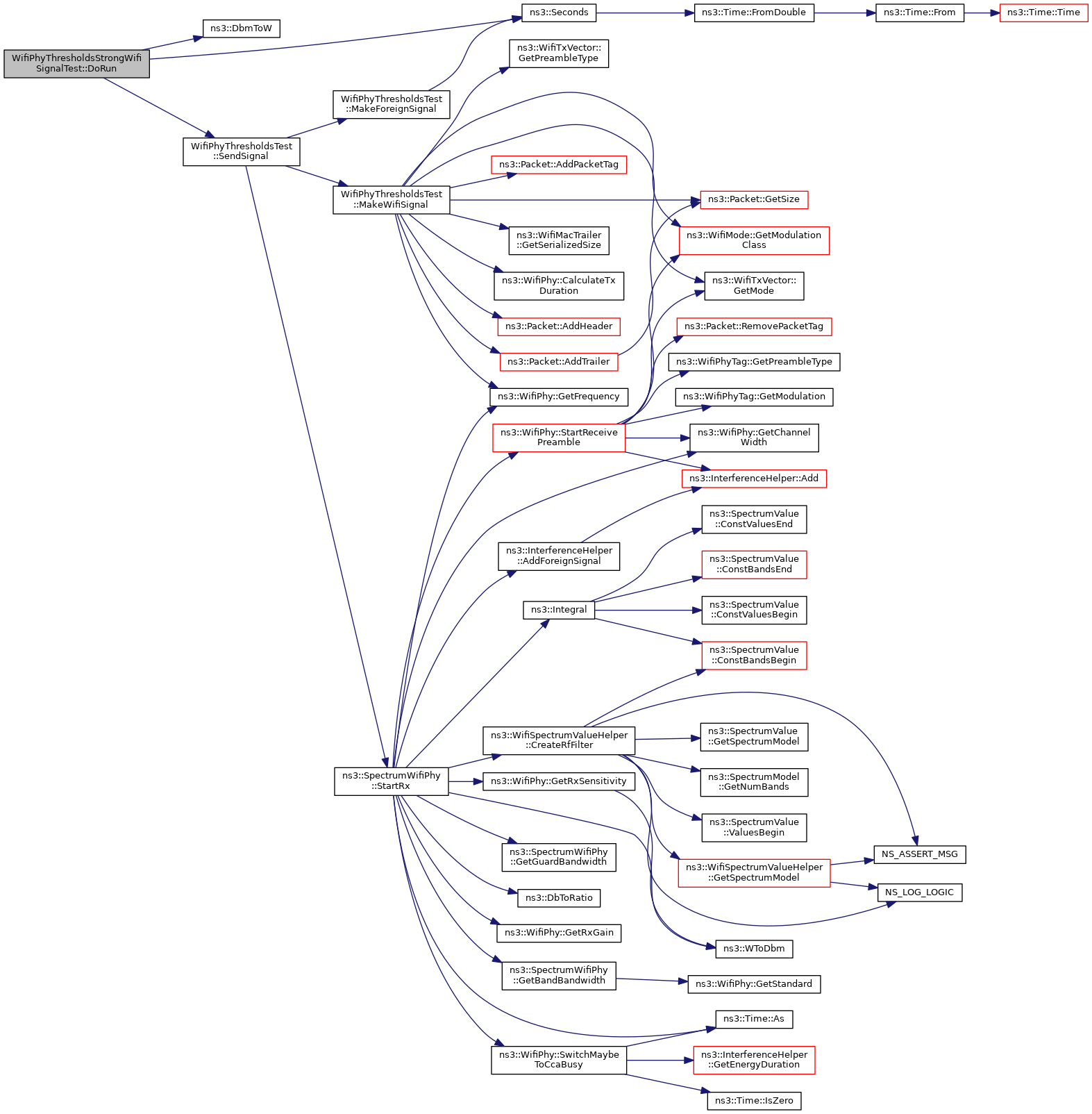

+ Here is the call graph for this function:

The documentation for this class was generated from the following file:
